4K 60Hz HDMI 兼容音頻提取器光學 Toslink SPDIF + 3.5 毫米音頻嵌入器 1080P 3D 套裝適用於 Fire Stick Xbox 筆記本電腦
品牌名稱: ICANING連接器 B : 光接口連接器 B : 輔助連接器 B : 兼容 HDMI性別: 女-女型號: 4K HDMI 兼容音頻提取器產地: CN(產地)類型: HDMI 兼容電纜連接器 A : 兼容 HDMI包裝: 不特點: HDMI兼容1.4外徑: -捆綁: 捆綁 1包裝: 塑料袋認證: 沒有任何屏蔽: 組合應用: 揚聲器應用: 對於 iPod應用: 計算機應用: 麥克風應用: 多媒體應用: 監視器應用: 電話應用: DVD播放機應用: 投影儀應用: 電視應用: 放大器應用: MP3 / MP4 播放器型號: 音頻分配器型號: 兼容的音頻提取器外徑: 組合
出貨方式 送貨
價錢 HK$109

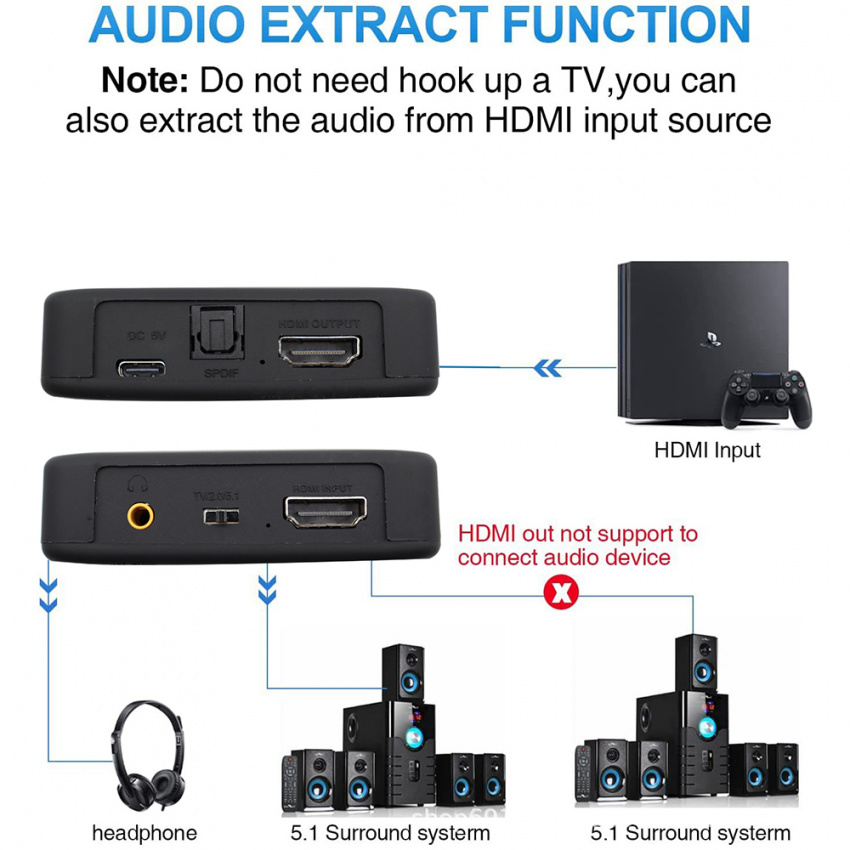

▶【HDMI AUDIO EXTRACTOR】:One HDMI input to one HDMI output + Optical Toslink SPDIF and 3.5mm stereo audio output, achieving the synchronization of audio signal separation. (Tips: Optical Toslink SPDIF and 3.5mm audio support output separately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
▶【4K@60HZ HIGH RESOLUTION】HDMI audio extractor splitter support 4Kx2K@60Hz/ 3D/1080p/1080/720p. HDCP1.4, YUV:4:2:0. Support video color format:24bit/deep color 30bit. Audio format: DTS-HD/dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD(Not Support Always Dobly Digital Plus). Max Bandwidth of 10.8Gbps. Using AWG26 HDMI standard cable, the longest input and output can reach 32.8ft respectively.
▶【THREE AUDIO EDID SETTINGS】: HDMI Audio Converter has three kinds of audio mode TV, 2.0CH and 5.1CH. 3.5MM audio output supports 2.0CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2.0CH PCM, 5.1CH .( Note: Our Audio Extractor can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.)

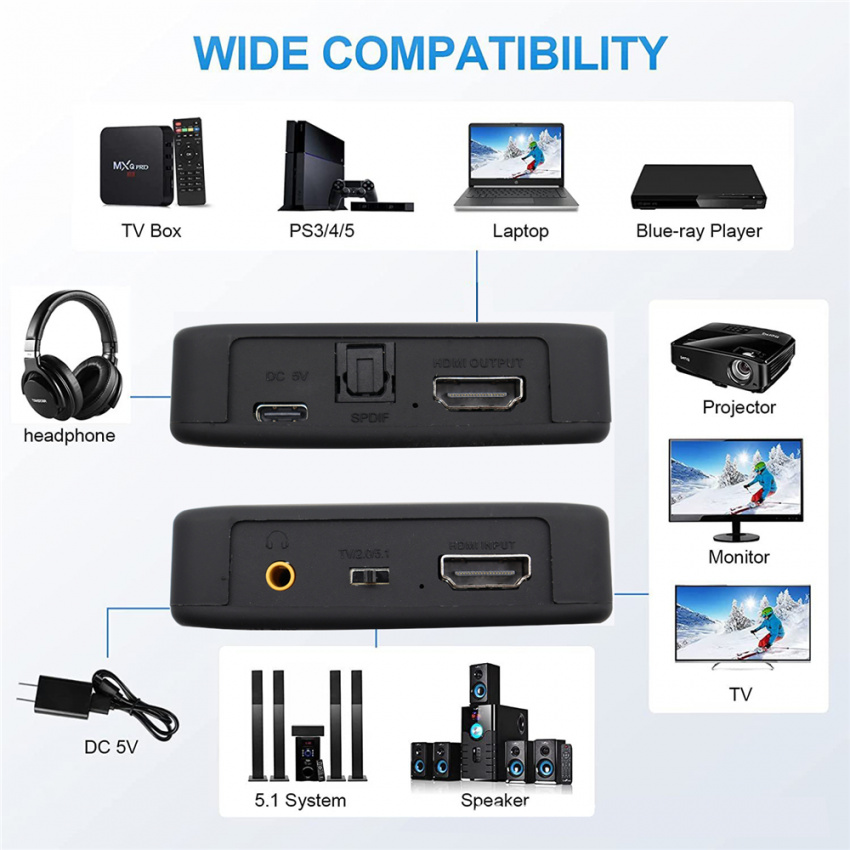

▶【WIDE COMPATIBILITY】:4K HDMI Audio Extractor Embedder is Suitable for various HDMI source devices like Blu-ray/ DVD/ HD player, Amazon Fire TV, Apple TV, PS5, Xbox, PC/laptop, HD camera, HD DVR etc. Due to voltage supply each device can support is different and limited,For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), we highly recommend using power adapter.

This is a high-performance, multi-functional HD audio extractor, this extractor can extract the audio signal among the HDMI-compatiblesignal to the power amplifier system to obtain high-quality audio effects which is hard for TV speaker to achieve.


This HDMI-compatibleaudio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI-compatiblesource.

It can extract the digital audio signal embedded in HDMI-compatiblesource and convert it through 3.5mm L/R analog output and SPDIF output at the same time.

The RCA L/R and SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH(NOT support Dolby Digital Plus)

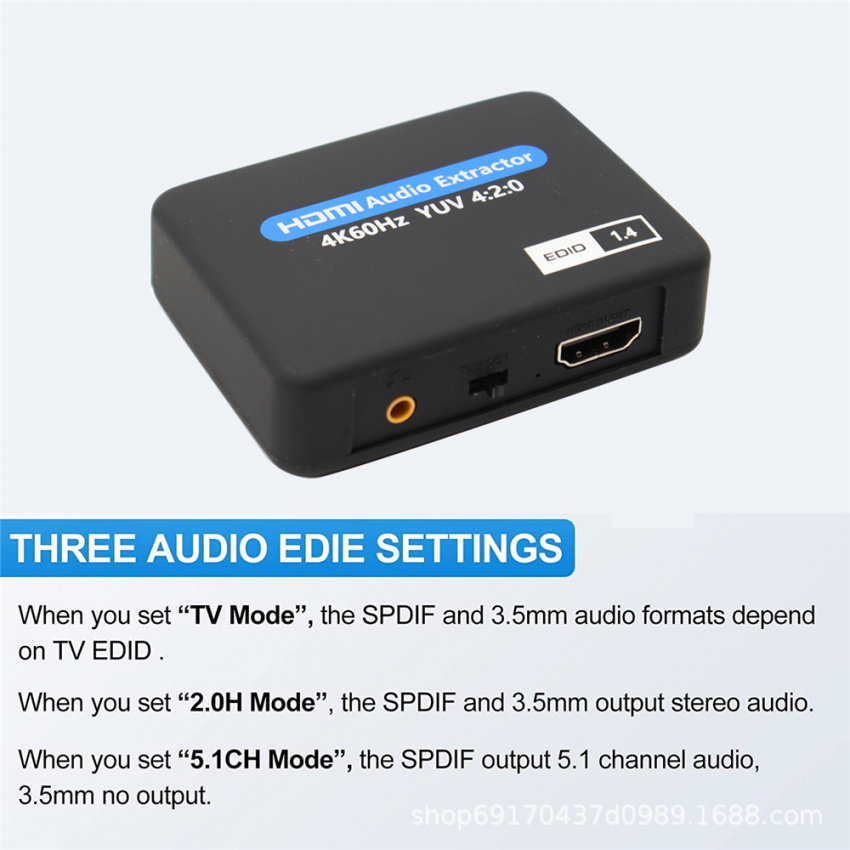

Three switching audio EDID settings:

Pass: HDMI-compatiblepass mode. The audio and video can be convertered from the HDMI-compatibleoutput. SPDIF and L/R will not output any sound.

2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI-compatibleinput and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.

5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.


* Convert 1 HDMI-compatibleInput to 1 HDMI-compatible+ 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output

*Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.

*HDMI-compatibleto achieve the synchronization of audio signal separation. *There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options.

*LED clearly indicate the working state of the Extractor.


HDCP Version...........................................HDCP1.4



Support Video Color Format.........24bits/deep color 30bit,36bit

Audio Output...........................SPDIF+3.5mm Audio
