small size GPS Module,GPS GLONASS Dual,GNSS module,GPS Module,UART TTL level,BN-180

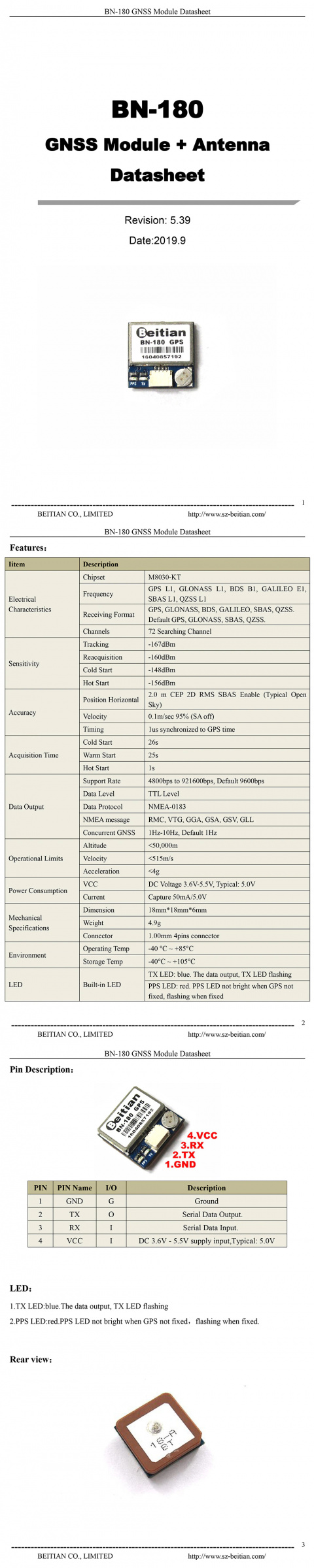

Model:BN-180 GNSS module


Features:

Iitem

Description

Electrical Characteristics

Chipset

M8030-KT

Frequency

GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

Receiving Format

GPS, GLONASS, BDS, GALILEO, SBAS, QZSS.

Default GPS, GLONASS, SBAS, QZSS.

Channels

72 Searching Channel

Sensitivity

Tracking

-167dBm

Reacquisition

-160dBm

Cold Start

-148dBm

Hot Start

-156dBm

Accuracy

Position Horizontal

2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity

0.1m/sec 95% (SA off)

Timing

1us synchronized to GPS time

Acquisition Time

Cold Start

26s

Warm Start

25s

Hot Start

1s

Data Output

Support Rate

4800bps to 921600bps, Default 9600bps

Data Level

TTL Level

Data Protocol

NMEA-0183

NMEA message

RMC, VTG, GGA, GSA, GSV, GLL

Concurrent GNSS

1Hz-10Hz, Default 1Hz

Operational Limits

Altitude

<50,000m

Velocity

<515m/s

Acceleration

<4g

Power Consumption

VCC

DC Voltage 3.6V-5.5V, Typical: 5.0V

Current

Capture 50mA/5.0V

Mechanical Specifications

Dimension

18mm*18mm*6mm

Weight

4.9g

Connector

1.00mm 4pins connector

Environment

Operating Temp

-40 °C ~ +85°C

Storage Temp

-40°C ~ +105°C

LED

Built-in LED

TX LED: blue. The data output, TX LED flashing

PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed



Pin Description:

PIN

PIN Name

I/O

Description

1

GND

G

Ground

2

TX

O

Serial Data Output.

3

RX

I

Serial Data Input.

4

VCC

I

DC 3.6V - 5.5V supply input,Typical: 5.0V

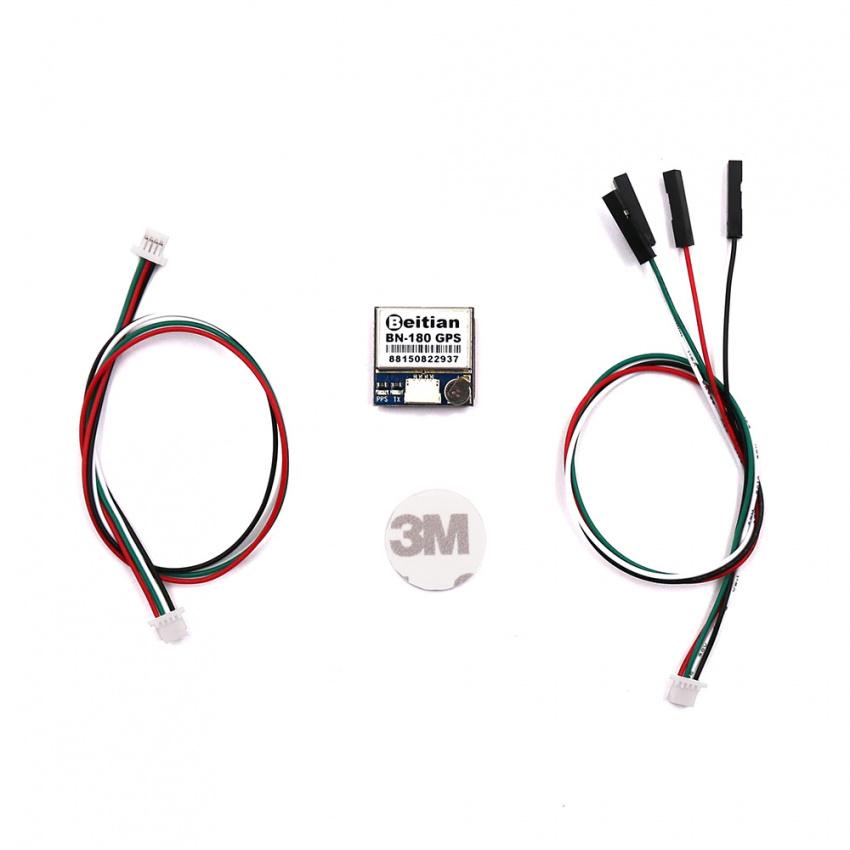

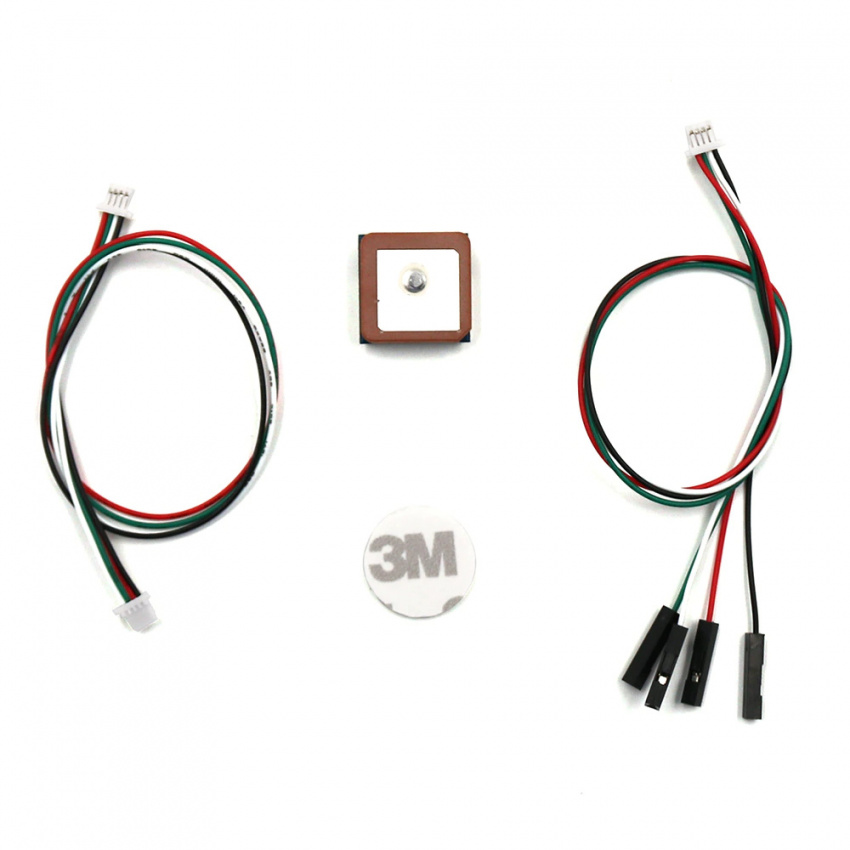

Pcakage Included:
1x BN-180 GPS Module
2x 20cm Cable
