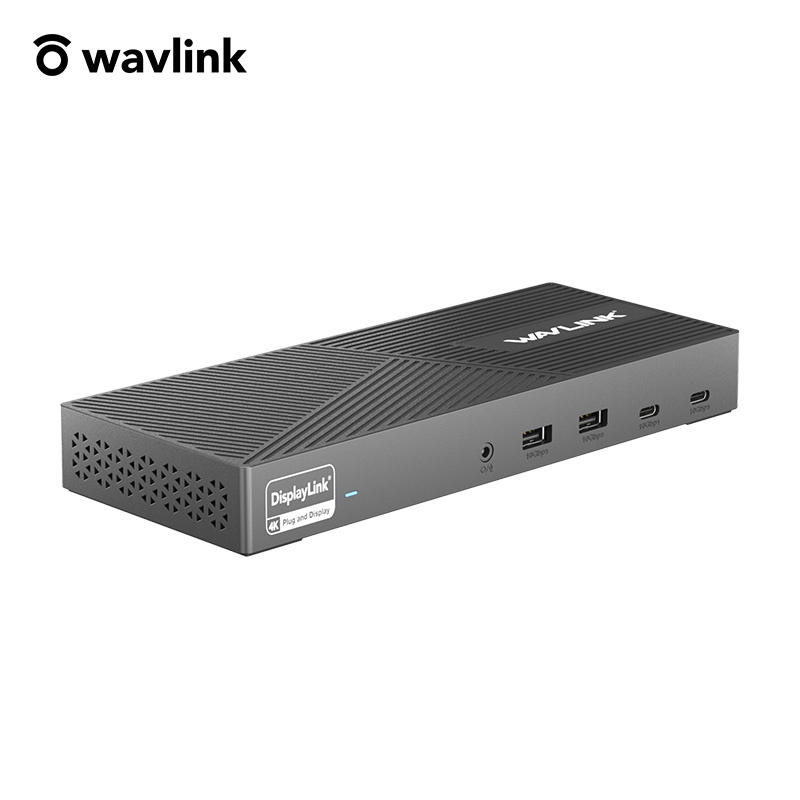

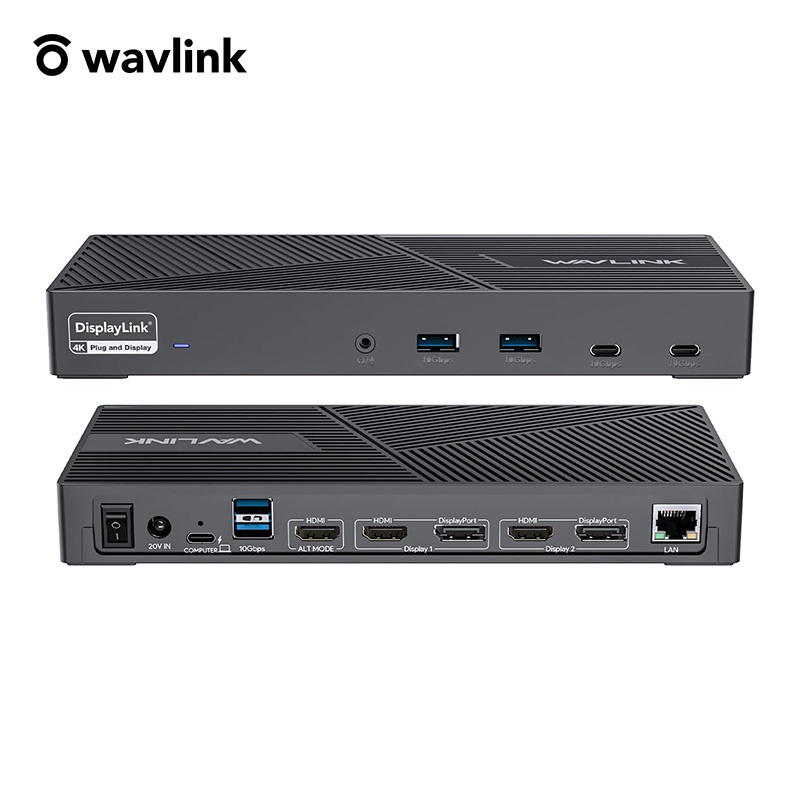

Wavlink WL-UG69PD25 PRO USB-C HDMI 和 DisplayPort 三重顯示 4K@60Hz 13 合 1 通用擴充埠，100W 功率輸出
Wavlink WL-UG69PD25 PRO 塢站是一款通用塢站，兼容所有筆記本品牌和平台的 USB 3.0 和 USB-C 筆記本電腦。 它允許您添加帶有 2 個 DisplayPort (DP1.2) 端口和 3 個 HDMI (HDMI2.0) 端口的三重顯示器 4K@60Hz。 它只需一根電線即可將 11 個附件和外圍設備連接到您的筆記本電腦，從而提供一個操作台環境，讓您更輕鬆地在更短的時間內完成更多工作。 該塢站還具有完整的 6 個 USB Gen2 端口，支持高速 10Gbps。

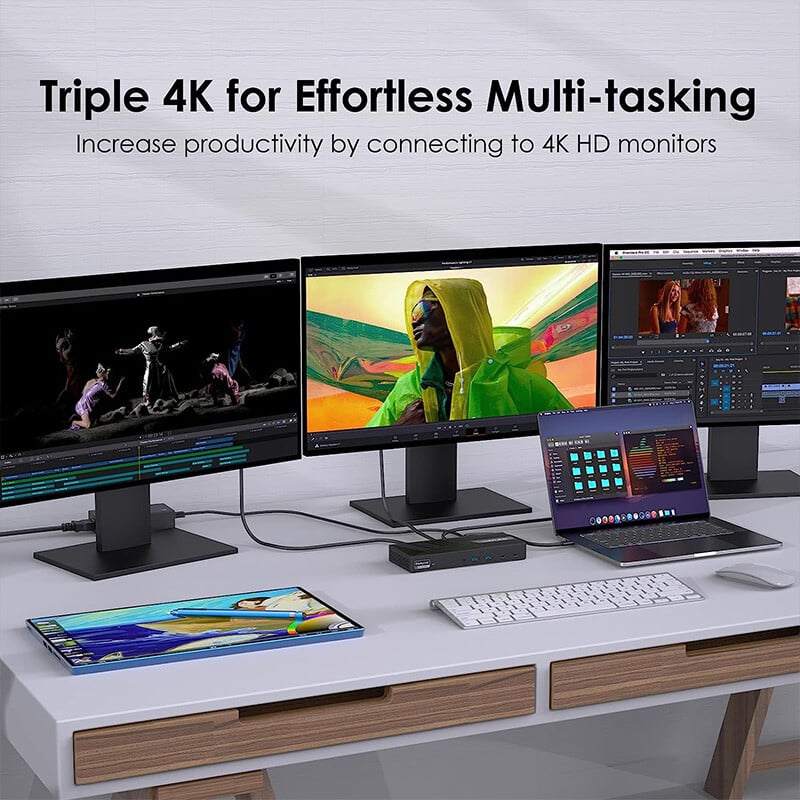

・3 x HDMI (HDMI2.0) + 2 x DP (DP1.2)，最高支持三重 4K@60Hz 分辨率顯示

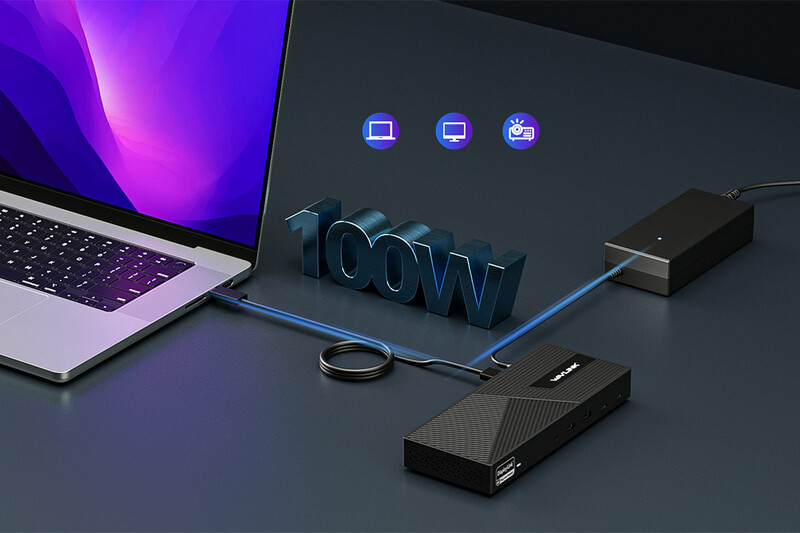

・支援高達 100W 上游 USB 供電 (PD3.0) 為連接的筆記本電腦充電

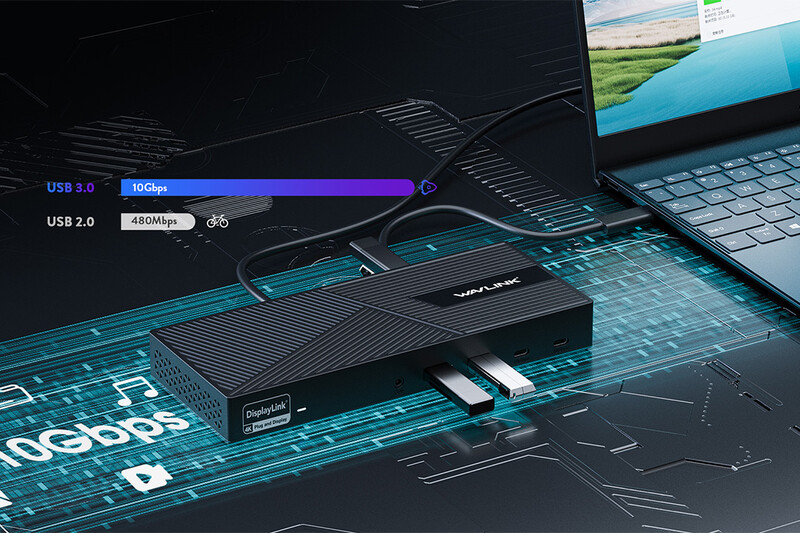

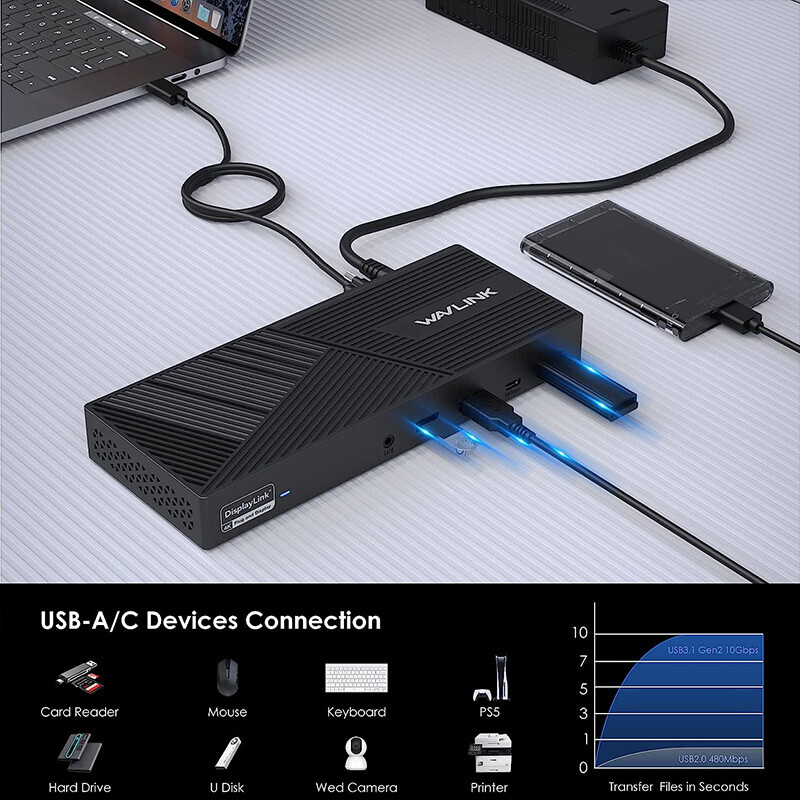

・四個 USB3.1 Type-A (10G) 和兩個 USB-C Gen2 (10G) 端口，可擴展與 USB 設備的更多連接
・LAN端口最高支持1Gbps（10/100/1000Mbps），提供穩定高速的互聯網連接
・支持 Kensington 鎖
・1 個音頻/麥克風組合端口

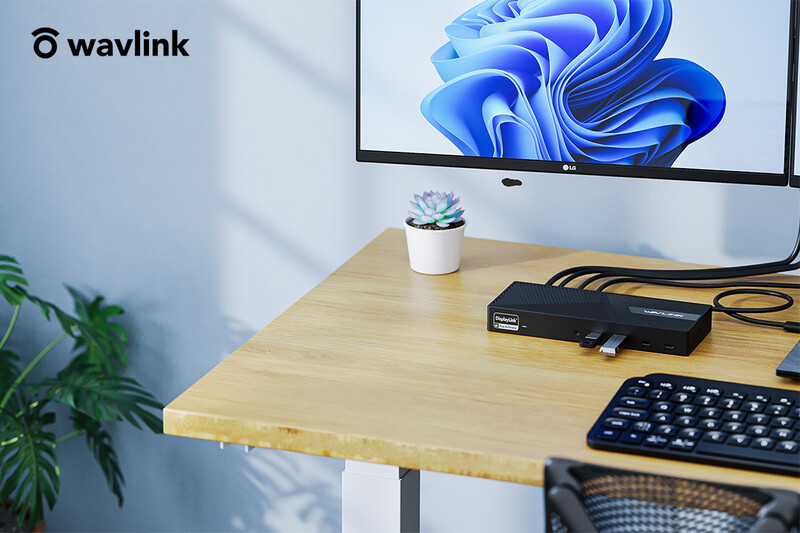

・當您將此擴展塢放在顯示器下方時，平放水平設計可節省寶貴的桌面空間

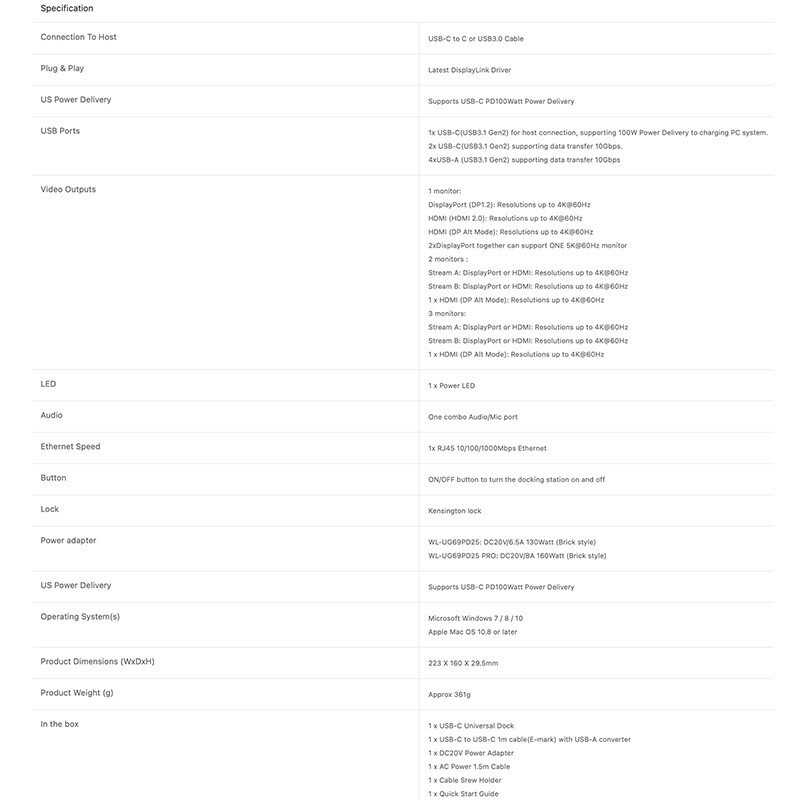

・Connection To Host: USB-C to C or USB3.0 Cable
・Plug & Play: Latest DisplayLink Driver
・US Power Delivery: Supports USB-C PD100Watt Power Delivery

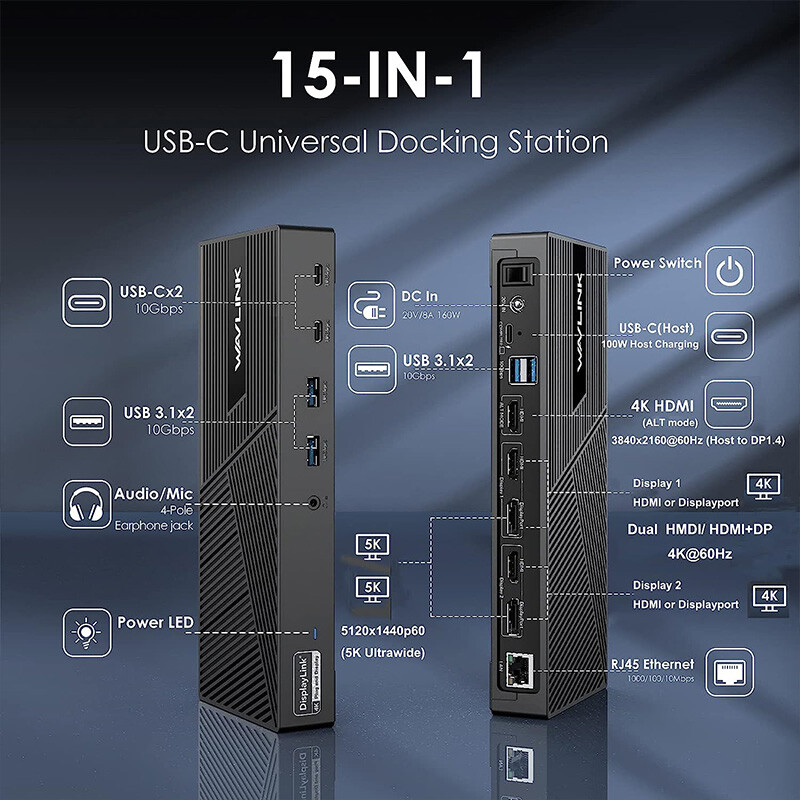

・USB Ports:
1x USB-C(USB3.1 Gen2) for host connection, supporting 100W Power Delivery to charging PC system
2x USB-C(USB3.1 Gen2) supporting data transfer 10Gbps.
4xUSB-A (USB3.1 Gen2) supporting data transfer 10Gbps
・Video Outputs:
1 monitor:
DisplayPort (DP1.2): Resolutions up to 4K@60Hz
HDMI (HDMI 2.0): Resolutions up to 4K@60Hz
HDMI (DP Alt Mode): Resolutions up to 4K@60Hz
2 x DisplayPort together can support ONE 5K@60Hz monitor

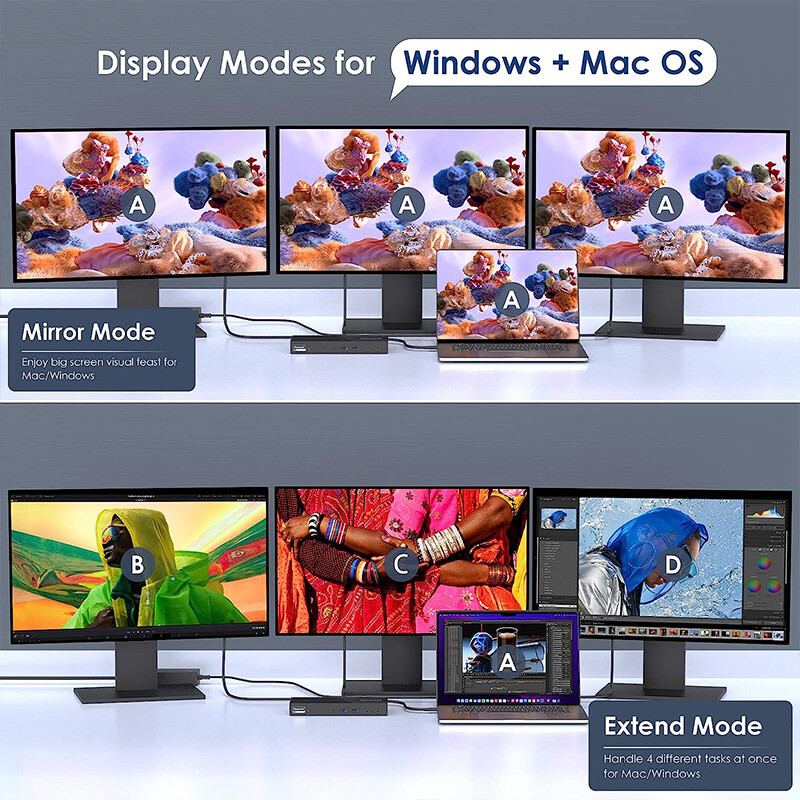

2 monitors :
Stream A: DisplayPort or HDMI: Resolutions up to 4K@60Hz
Stream B: DisplayPort or HDMI: Resolutions up to 4K@60Hz
1 x HDMI (DP Alt Mode): Resolutions up to 4K@60Hz

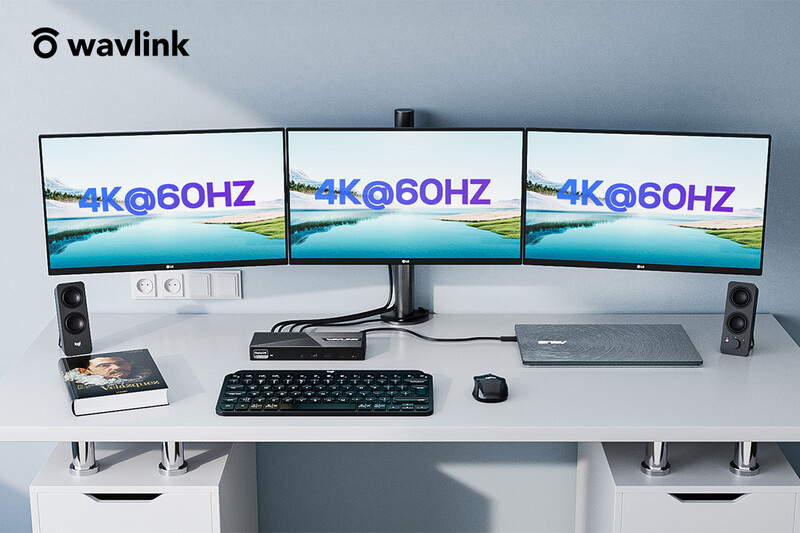

3 monitors:
Stream A: DisplayPort or HDMI: Resolutions up to 4K@60Hz
Stream B: DisplayPort or HDMI: Resolutions up to 4K@60Hz
1 x HDMI (DP Alt Mode): Resolutions up to 4K@60Hz
・LED: 1 x Power LED

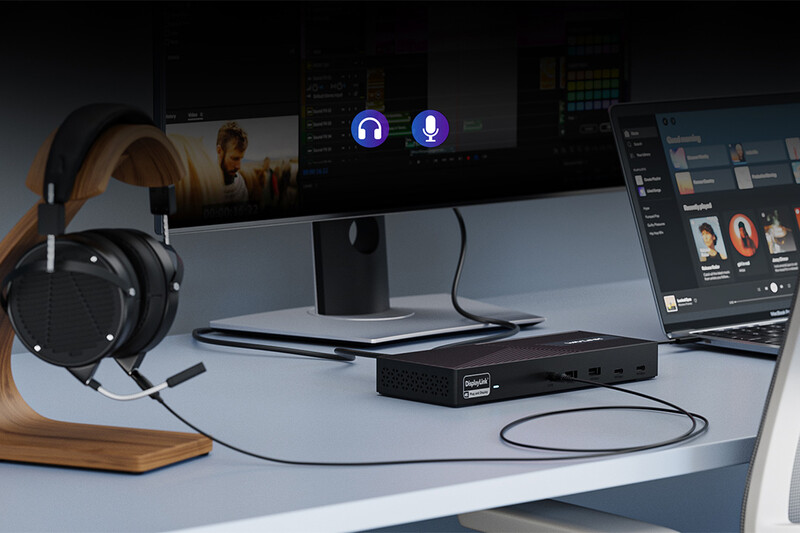

・Audio: One combo Audio/Mic port

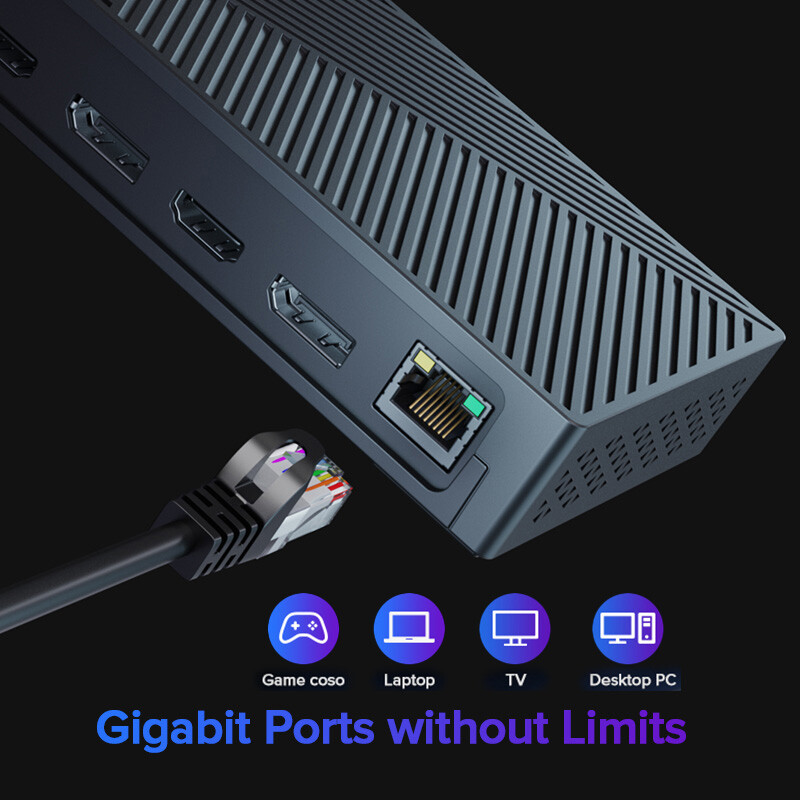

・Ethernet Speed: 1x RJ45 10/100/1000Mbps Ethernet
・Button: ON/OFF button to turn the docking station on and off

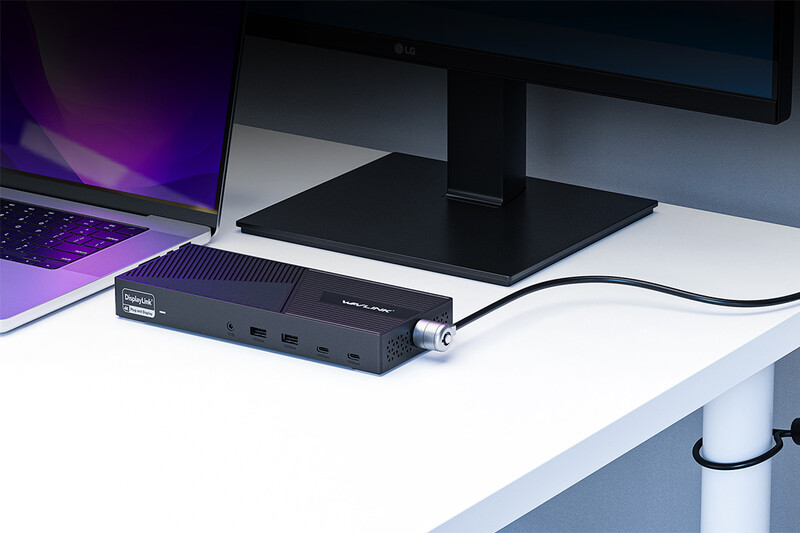

・Lock: Kensington lock

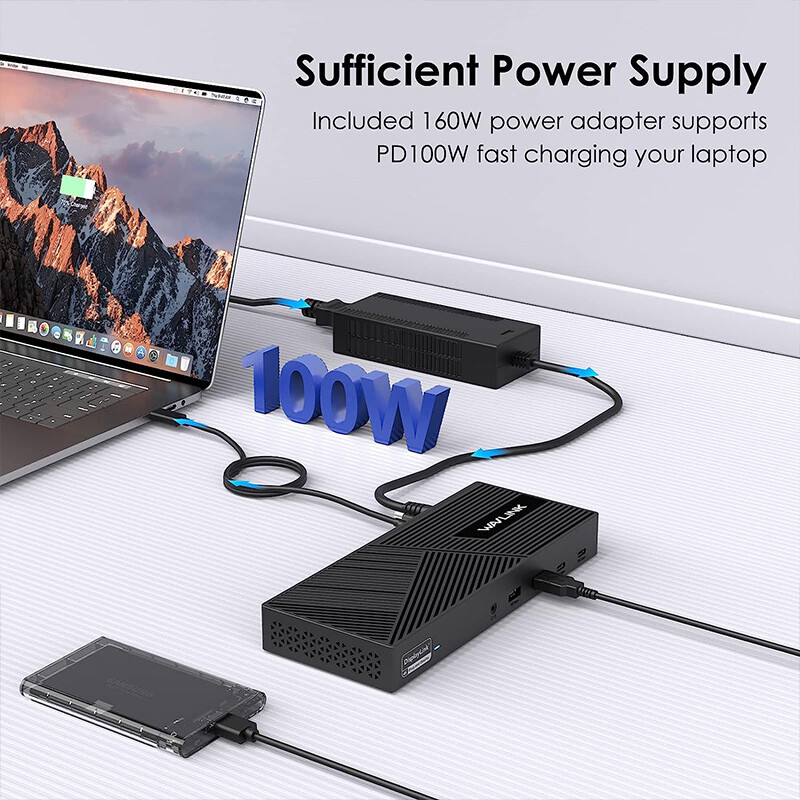

・Power adapter: DC20V/8A 160Watt
・US Power Delivery: Supports USB-C PD100Watt Power Delivery
・Operating System(s): Microsoft Windows 7/8/10; Apple Mac OS 10.8 or later
・Product Dimensions: 223 X 160 X 29.5mm
・Product Weight: Approx 361g
・In the box:
1 x USB-C Universal Dock
1 x USB-C to USB-C 1m cable(E-mark) with USB-A converter
1 x DC20V Power Adapter
1 x AC Power 1.5m Cable
1 x Cable Srew Holder
1 x Quick Start Guide
