- CORSAIR POWER SUPPLIES

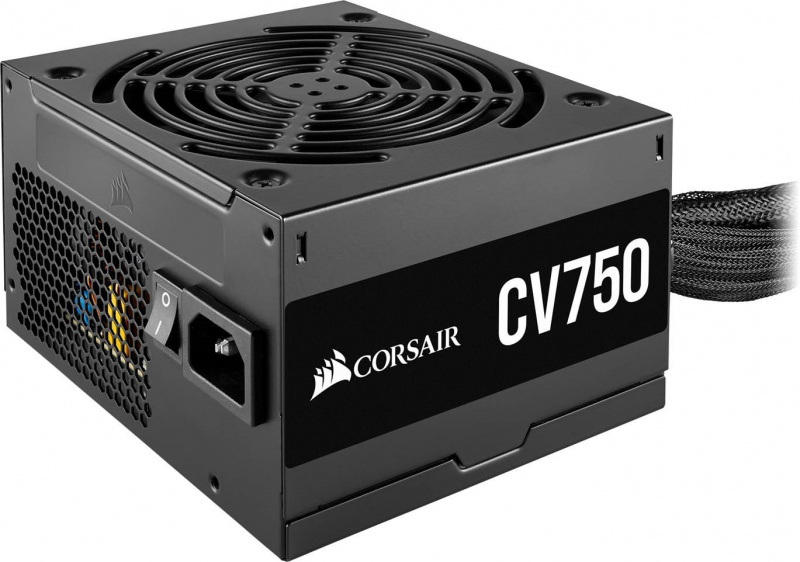

- CV SERIES™CV750
- POWER SUPPLY
- QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY
- ULTRA EFFICIENT

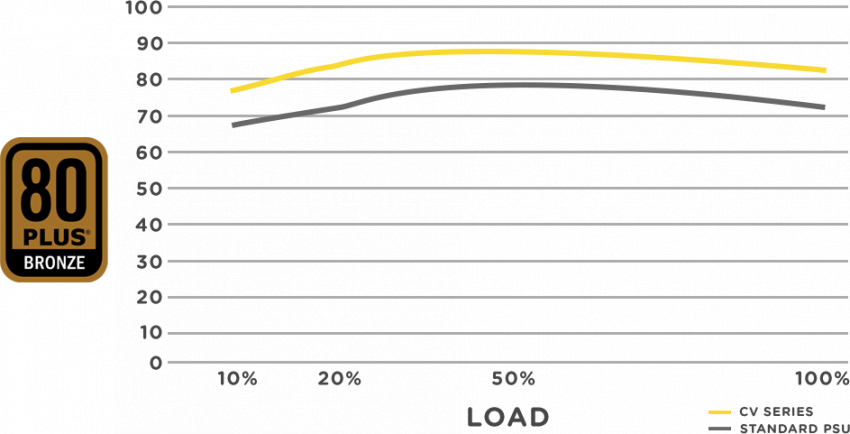

- CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.
CONTINUOUS, RELIABLE OUTPUT
- Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.
- OUTPUT WATTAGE
- 750W
- CV Series PSU
- "Peak" rated PSU
LOW-NOISE OPERATION

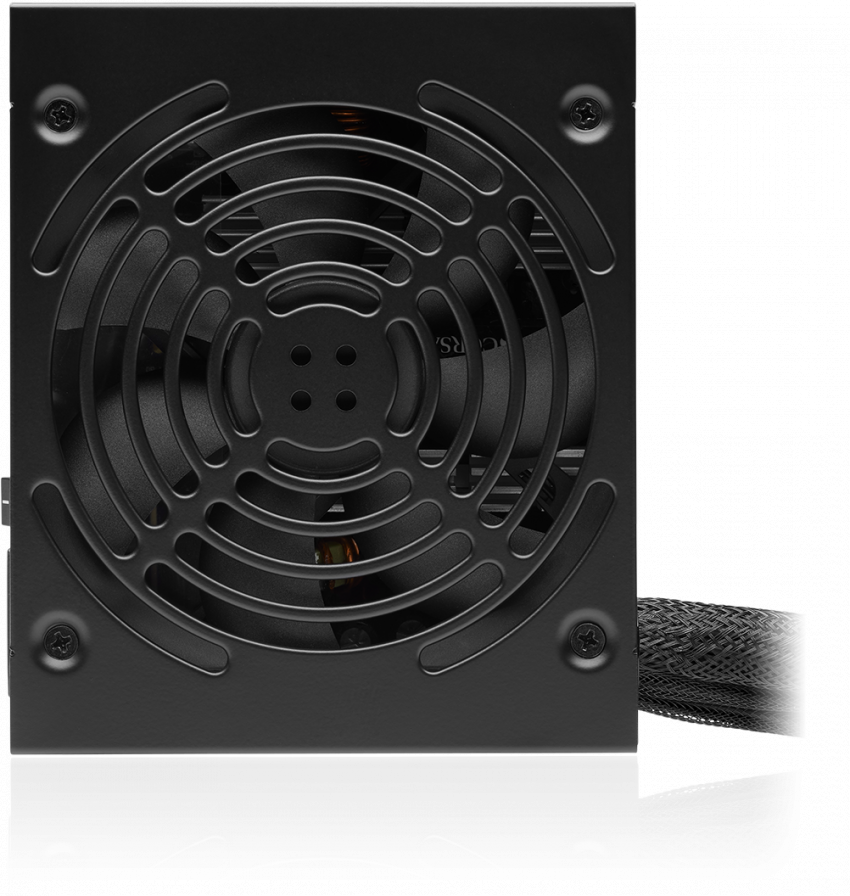

- A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
COMPACT DESIGN

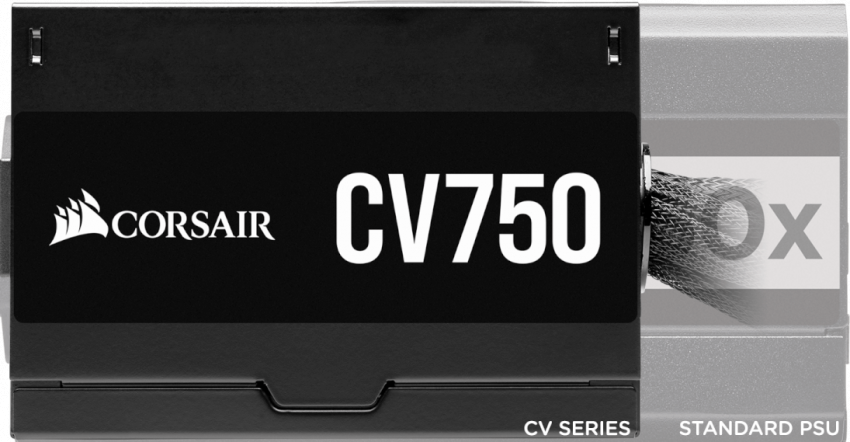

- CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.
STEALTH MODE
- Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.
*CV550 shown in photo
GUARANTEED RELIABILITY
- Three-year warranty backed by the CORSAIR global technical support team.
- BUILDING A BUDGET PC WITH CORSAIR COMPONENTS
CV750 POWER TABLE
| Model | RPS0146 | |
|---|---|---|
| Part No. | CP-9020237 | |
| AC Input Rating | ||
| AC Input | 100-240V | |
| Input Current | 10A-5A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +5V | 20A | 130W |
| +3.3V | 24A | |
| +12V | 62A | 744W |
| -12V | 0.3A | 3.6W |
| +5Vsb | 3A | 15W |
| Total Power | 750W | |
CV750 DC CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector Spacing |
Total length |
|---|---|---|---|---|---|
| 1 |
ATX Cable 24-pin  |
1 | 1 | - | 550mm (± 10mm) |
| 2 |
EPS/ATX12V 8-pin (4+4) cable  |
1 | 2 | - | 600mm (± 10mm) |
| 1 |
PCIe 8-pin (6+2) cable  |
2 | 2 | 550mm, 120mm | 670mm (± 10mm) |
| 2 |
SATA Cable (3 SATA)  |
3 | 6 | 450mm, 120mm, 120mm | 690mm (± 10mm) |
| 1 |
SATA-PATA-PATA-FDD  |
4 | 4 | 450mm, 120mm, 120mm, 120mm | 810mm (± 10mm) |
