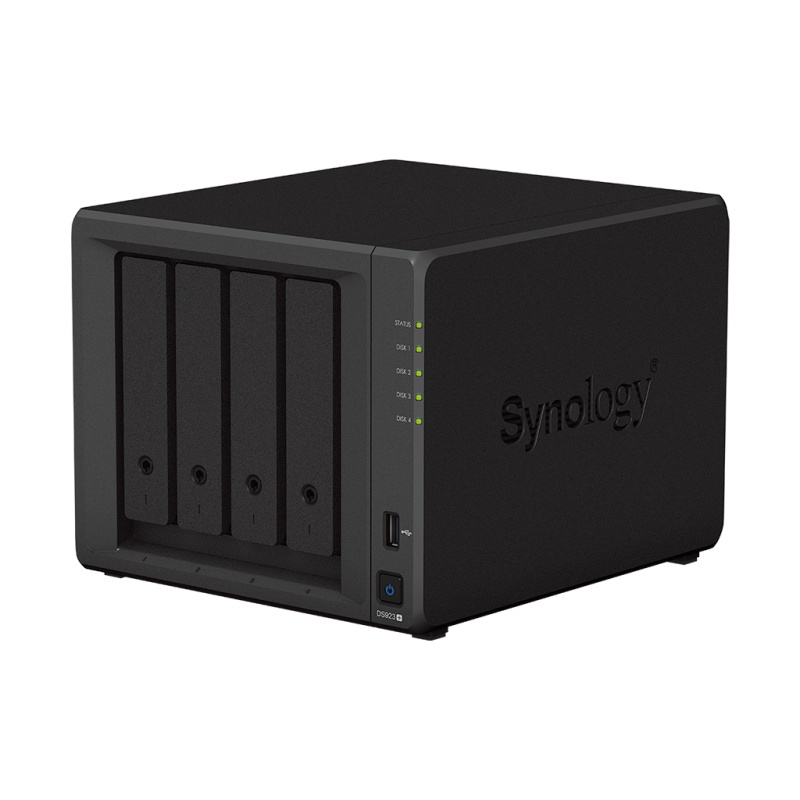

SYNOLOGY DiskStation® DS923+ 4bay NAS

產品介紹

CPU	CPU Model	AMD Ryzen R1600
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	2-core 2.6 (base) / 3.1 (turbo) GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	4 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	4 GB (4 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	4
	Maximum Drive Bays with Expansion Unit	9 (DX517 x 1)
	M.2 Drive Slots	2 (NVMe)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	eSATA Port	1
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x2 network upgrade slot
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Size (Height x Width x Depth)	166 mm x 199 mm x 223 mm
	Weight	2.24 kg
Others	System Fan	92 mm x 92 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	22.9 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	100 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	35.51 W (Access) 11.52 W (HDD Hibernation)
	British Thermal Unit	121.09 BTU/hr (Access) 39.28 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G Expansion Units: DX517 3.5" SATA HDD: HAT5300/HAT3300 2.5" SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 10GbE Network Upgrade Module: E10G22-T1-Mini Surveillance Device License Pack

Notes:

Model specifications are subject to change without prior notice.
The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
