| Processor |
Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB |
| Graphics |
Integrated Intel® UHD Graphics 730 |
| Chipset |
Intel® B760 Chipset |
| Memory |
16GB UDIMM DDR5-4800 |
| Memory Slots |
Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB DDR5-5600 |
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Max Storage Support |
Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB |
| Card Reader |
None |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers |
No speakers |
| Power Supply |
180W 85% |
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, English |
| Mouse |
USB Calliope Mouse, Black |
| Expansion Slots |
Two M.2 slots (one for WLAN, one for SSD) |
| Case Color |
Grey |
| System Fan |
None |
| Stand |
Vertical Stand |
| Pen |
Pen Not Supported |
| Form Factor |
Tower (8.2L) |
| Dimensions (WxDxH) |
89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches) |
| Weight |
Around 4.25 kg (9.4 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth |
Wi-Fi® 6, 802.11ax 2x2 + BT5.2 |
| WWAN |
Non-WWAN |
| Ethernet |
Integrated 100/1000M |

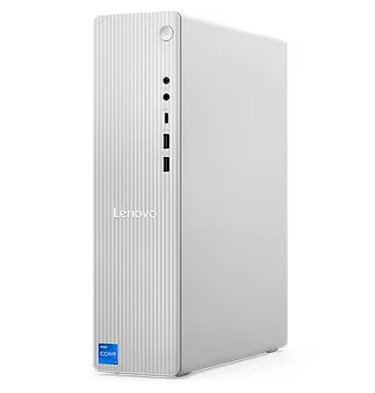

| Front Ports |
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

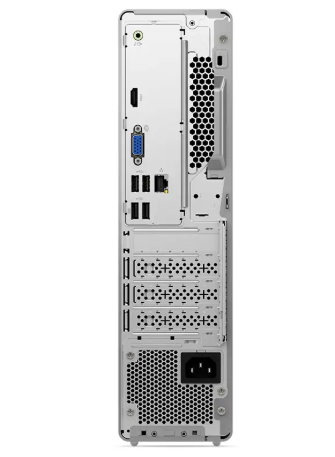

| Rear Ports |
- 1x USB-A (Hi-Speed USB / USB 2.0), with smart power on
- 3x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 2.1 TMDS
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x audio-out (3.5mm)
- 1x power connector
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 integrated in chipset |
