| Processor |
Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB |
| Graphics |
Integrated Intel® UHD Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
2x 8GB SO-DIMM DDR5-5200 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 16GB DDR5-5200 |
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Optane Memory |
None |
| Max Storage Support |
One drive, up to 1TB M.2 SSD |
| Card Reader |
None |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC233-CG codec |
| Speakers |
3Wx2, HARMAN |
| Camera |
5.0MP + IR |
| Microphone |
Dual Microphone |
| Power Supply |
90W 89% Adapter |
| DESIGN |
| Display |
23.8" FHD (1920x1080) IPS Anti-glare 250nits, 100Hz, 99% sRGB, hardware low blue light, 3-side borderless, non-touch |
| Touchscreen |
None |
| Keyboard |
Wireless EOS Keyboard, Luna Grey, English |
| Mouse |
Wireless EOS Mouse, Luna Grey |
| Expansion Slots |
Two M.2 slots (one for WLAN, one for SSD) |
| Case Color |
Luna Grey |
| Stand |
AIO Stand |
| Wireless Charger |
None |
| Pen |
Pen Not Supported |
| Form Factor |
AIO (23.8 inches) |
| Dimensions (WxDxH) |
540 x 192 x 431 mm (21.25 x 7.56 x 16.97 inches) |
| Weight |
Around 6.0 kg (13.23 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth |
Wi-Fi® 6, 802.11ax 2x2 + BT5.2 |
| WWAN |
Non-WWAN |
| Ethernet |
Integrated 100/1000M |

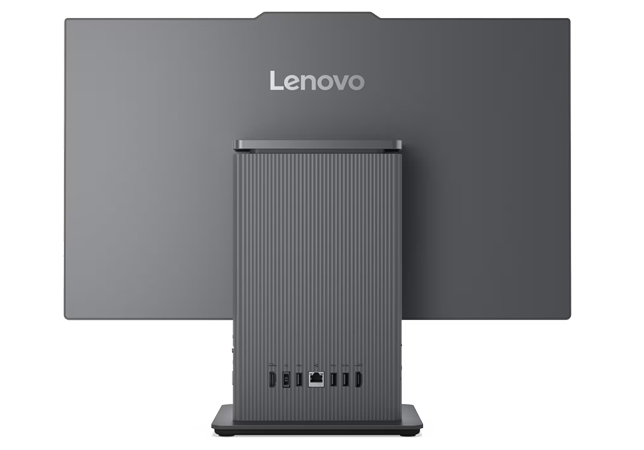

| Rear Ports |
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI®-in 1.4
- 1x HDMI®-out 2.1 TMDS
- 1x Ethernet (RJ-45)
- 1x power connector
|
| Left Ports |
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 1x headphone / microphone combo jack (3.5mm)
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 integrated in SoC |
| Physical Locks |
No physical locks |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Premium Care - Idea AIO (ESS) |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- ErP Lot 3/7
- GREENGUARD®
- RoHS / WEEE / REACH
|
| Other Certifications |
- TÜV Rheinland® Flicker Free
- TÜV Rheinland® Low Blue Light
- TÜV Rheinland® Ultra Low Noise
|
| SOFTWARE |
| Operating System |
Windows® 11 Home, Traditional Chinese / Simplified Chinese / English |
| Bundled Software |
None |
