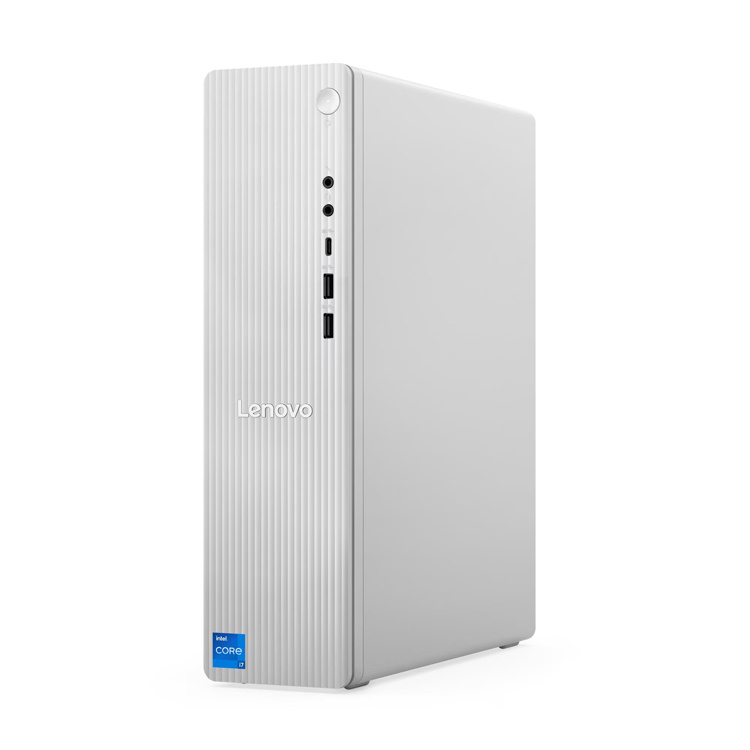

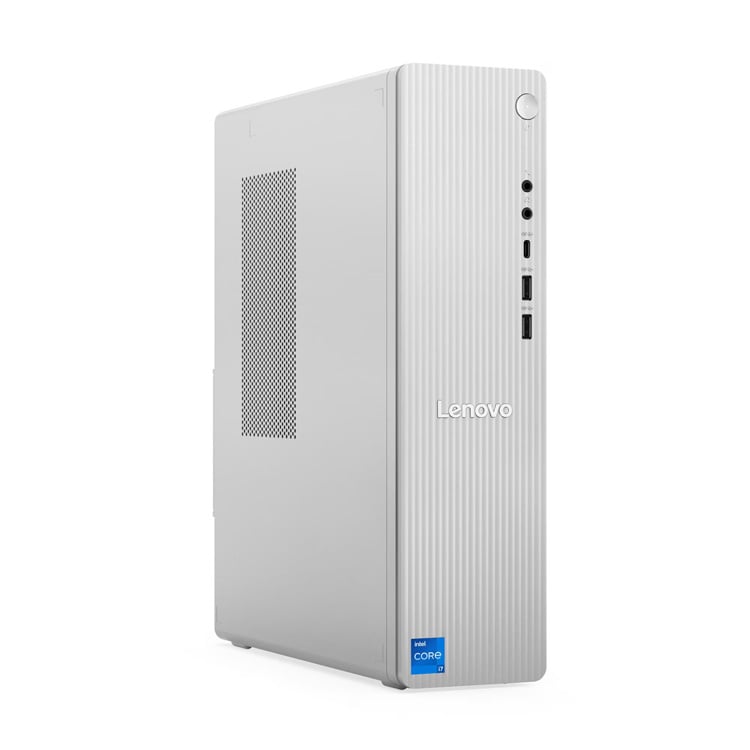

Lenovo 90XW005AHH IdeaCentre Tower 08IRH9 (i5-13420H, 16GB+512GB SSD) 桌上電腦

PERFORMANCE
Processor	Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
Graphics	Integrated Intel® UHD Graphics
Chipset	Intel® SoC Platform
Memory	1x 16GB SODIMM DDR5-5200
Memory Slots	Two DDR5 SODIMM slots, dual-channel capable
Max Memory	Up to 32GB DDR5-5200
Storage	512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support	Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD bay only for customer self upgrade • M.2 SSD up to 1TB each
Card Reader	None
Optical	None
Audio Chip	High Definition (HD) Audio, Realtek® ALC623-CG codec 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs
Speakers	No speakers
Power Supply	180W 85%
DESIGN
Keyboard	USB Calliope Keyboard, Black, English
Mouse	USB Calliope Mouse, Black
Expansion Slots	One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm Three M.2 slots (one for WLAN, two for SSD)
Case Color	Cloud Grey
System Fan	2x default
Pen	Pen Not Supported
Form Factor	SFF (8.2L)
Dimensions (WxDxH)	89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches)
Weight	Around 3.59 kg (7.9 lbs)
CONNECTIVITY
WLAN + Bluetooth	Wi-Fi® 6, 802.11ax 2x2 + BT5.2
WWAN	WWAN Not Supported
Ethernet	Integrated 100/1000M

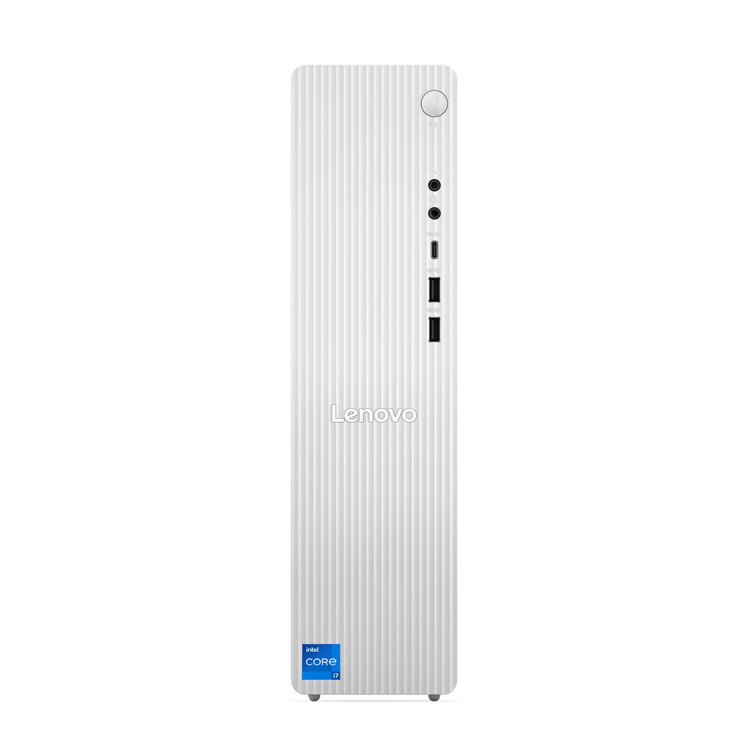

Front Ports	1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)

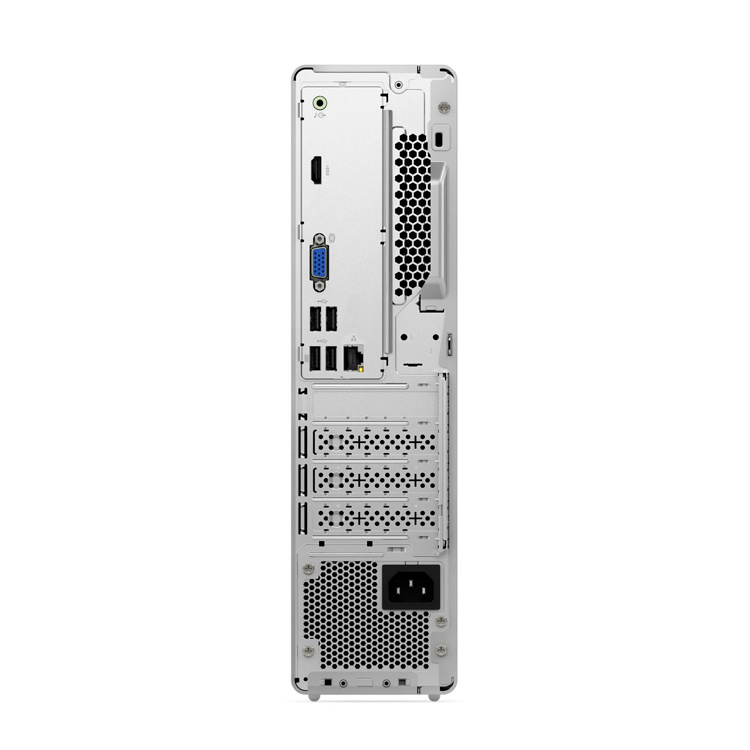

Rear Ports	1x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On 2x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI® 2.1 TMDS 1x VGA 1x Ethernet (RJ-45) 1x audio-out (3.5mm) 1x power connector
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0 integrated in SoC
MANAGEABILITY
System Management	None
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	3Y Premium Care - Idea DT (ESS)
CERTIFICATIONS
Green Certifications	ErP Lot 3 RoHS compliant
SOFTWARE
Operating System	Windows® 11 Home, Traditional Chinese / English
Bundled Software	None
ACCESSORIES
Bundled Accessories	Vertical Stand
