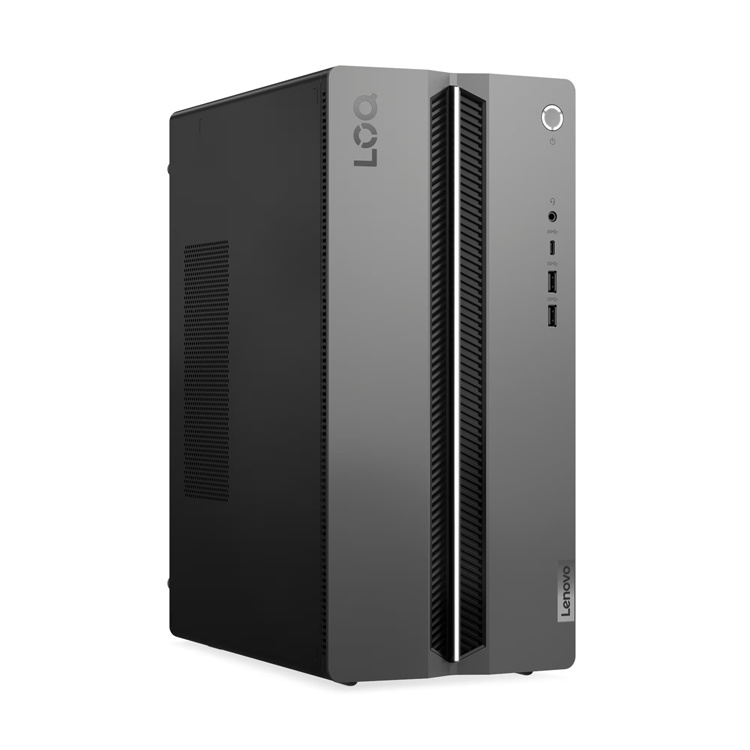

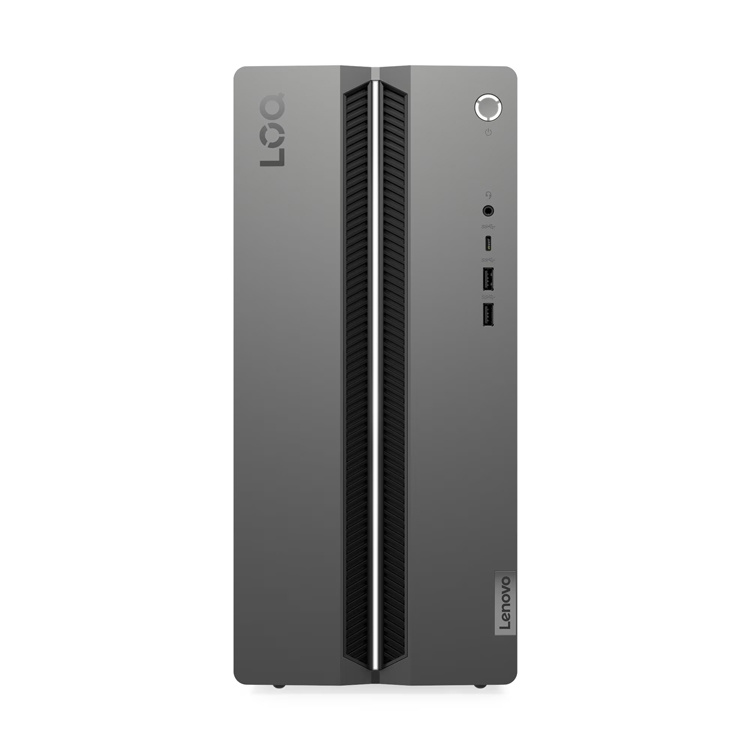

Lenovo 91AY0047HH LOQ Tower 17IAX10 (Intel Ultra 7-255HX, 16GB+1TB SSD, RTX5060) 桌上電腦

PERFORMANCE
Processor	Intel Core™ Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB Intel® Smart Cache
AI PC Category	None
NPU	Integrated Intel® AI Boost, up to 16 TOPS
Graphics	NVIDIA GeForce RTX™ 5060 8GB GDDR7
Chipset	Intel® HM870 Chipset
Memory	1x 16GB SODIMM DDR5-5600
Memory Slots	Two DDR5 SODIMM slots, dual-channel capable
Max Memory	Up to 32GB DDR5-5600
Storage	1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Optane Memory	None
Max Storage Support	Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each
Card Reader	No Card Reader
Optical	None
Audio Chip	High Definition (HD) Audio, Realtek® ALC623-CG codec 24-bit DAC supports 44.1K/48K/96K sample rate, 4 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback 24-bit ADC supports 44.1K/48K/96K sample rate, 4 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs
Speakers	No speakers
Power Supply	500W 92%
DESIGN
Keyboard	USB Calliope Keyboard, Luna Grey, English
Mouse	USB Calliope Mouse, Luna Grey
Expansion Slots	One PCIe® 4.0 x16, full height One PCIe® 3.0 x1, full-height Three M.2 slots (one for WLAN, two for SSD)
Case Color	Luna Grey (Front Bezel), Raven Black (Chassis)
System Fan	1x Front + 1x Rear
Pen	Pen Not Supported
Form Factor	Tower (17L)
Dimensions (WxDxH)	170 x 279.7 x 376 mm (6.69 x 11.01 x 14.8 inches)
Weight	Around 6.7 kg (14.77 lbs)
CONNECTIVITY
WLAN + Bluetooth	Wi-Fi® 6, 802.11ax 2x2 + BT5.2
WWAN	WWAN Not Supported
Ethernet	Integrated 100/1000M
Front Ports	1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm)
Rear Ports	2x USB-A (Hi-Speed USB / USB 2.0) 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI® 2.1 TMDS 1x Ethernet (RJ-45) 1x audio-out (3.5mm) 1x power connector
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0 integrated in chipset
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	3Y Premium Care - Idea DT (ESS)
CERTIFICATIONS
Green Certifications	ErP Lot 3 RoHS compliant
SOFTWARE
Operating System	Windows® 11 Home, Traditional Chinese / English
Bundled Software	None
