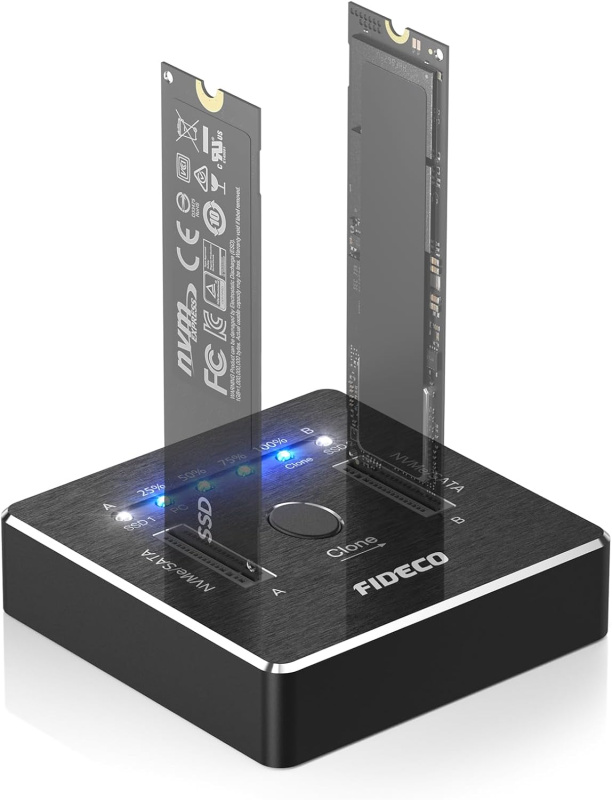

雙 NVMe SATA SSD 機殼, M.2 複製器複製器, 支援離線複製, UASP 和修剪, 鋁製設計
Fideco NVMe SATA 底座採用 USB3.2 Gen2 標準, 可支援 UASP, 最高速度可達到 20Gbps。
- One-Click offline clone
- Up to 8TB SSD per Dis
- 360° All-Around Heat Dissipation
- Support M.2 NVME SATA SSDs ( 2230 /2242 / 2260 / 2280 / 22110 )

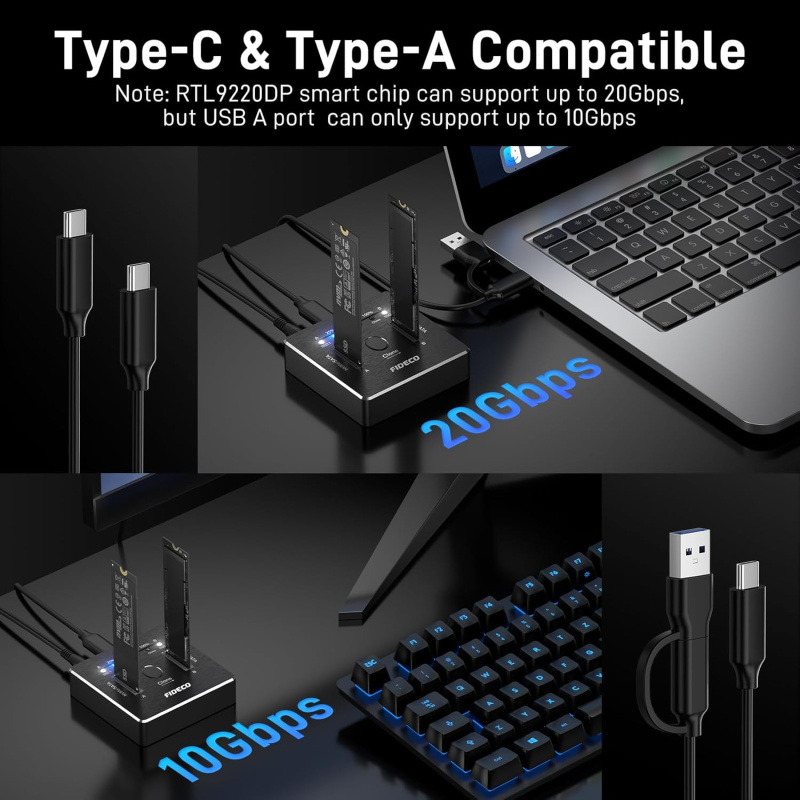

- USB C to USB C / A cable
- Compatible Systems: Windows / Mac / Linux

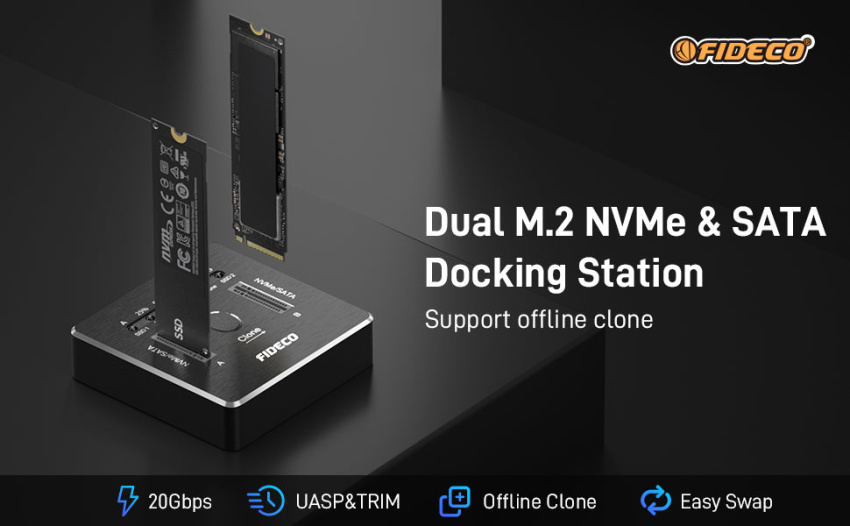

Fideco Dual-Bay NVMe SATA Docking Station, Lay-Flat External Hard Drive Docking Station for M2 SSD Support Offline Clone Function and Tool-Free Installation.

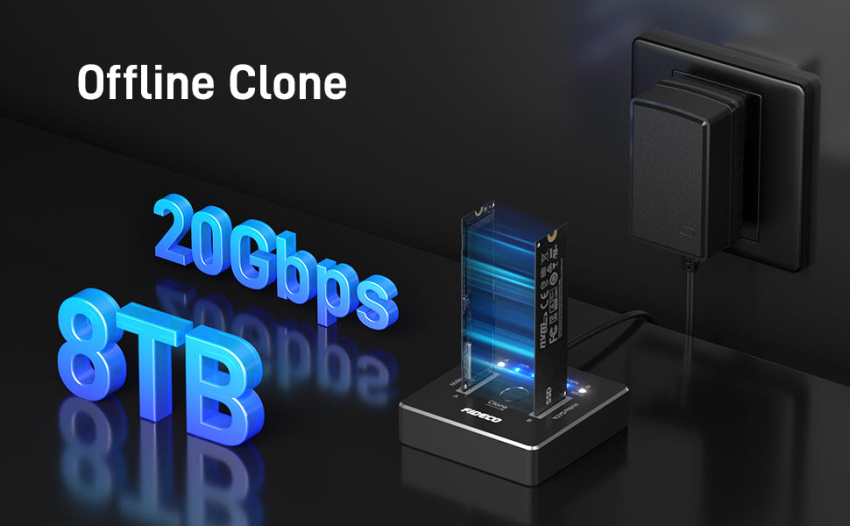

Off-line Cloning, Fast Heat Dissipation
Material: Aluminum alloy Transmission
Compatibility: M.2 PCIe NVMe SSD with M-Key or M+B Key and M.2 SATA SSD with M+B Key
Interface: USB3.2 Gen2

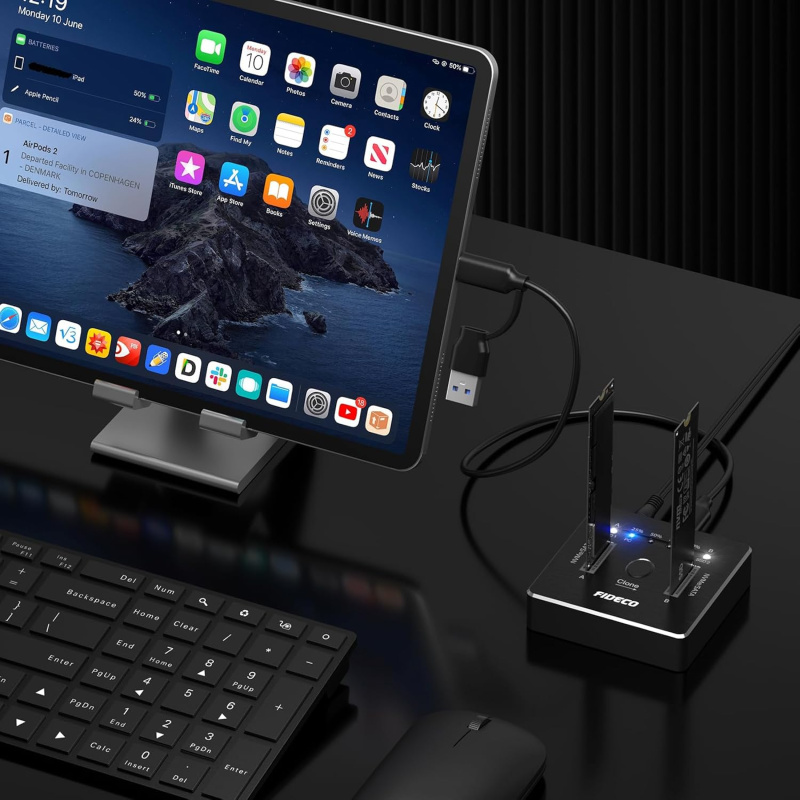

1. To access M.2 SSD with a PC: You’re ready to go once you attach power and Type-C-C-A USB. Carefully insert the SSD into the slot(s) of your choice and push the power button on the back of the dock. Wait a few seconds, and the dock should be enumerated in Windows. Depending on the state of the SSD, you’ll either need to go to Drive Manager to initialize and format the SSD’s, or they could just pop-up in Explorer, ready to use.

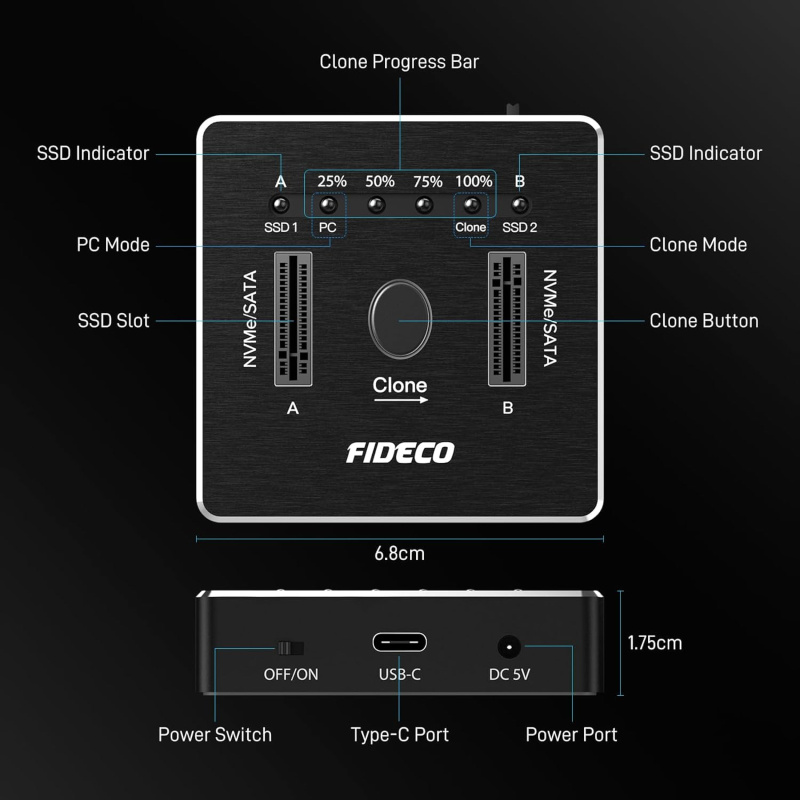

2. For Standalone Duplication: Plug the target SSD into Slot B and plug the source SSD into slot A (the end were the power adapter connects). Target SSD capacity must be Larger than the Source SSD capacity. Press and hold the button for 3-5 seconds to begin the clone process. LED’s on the front top of the dock indicate clone progress – 25%, 50%, 75% and 100%.

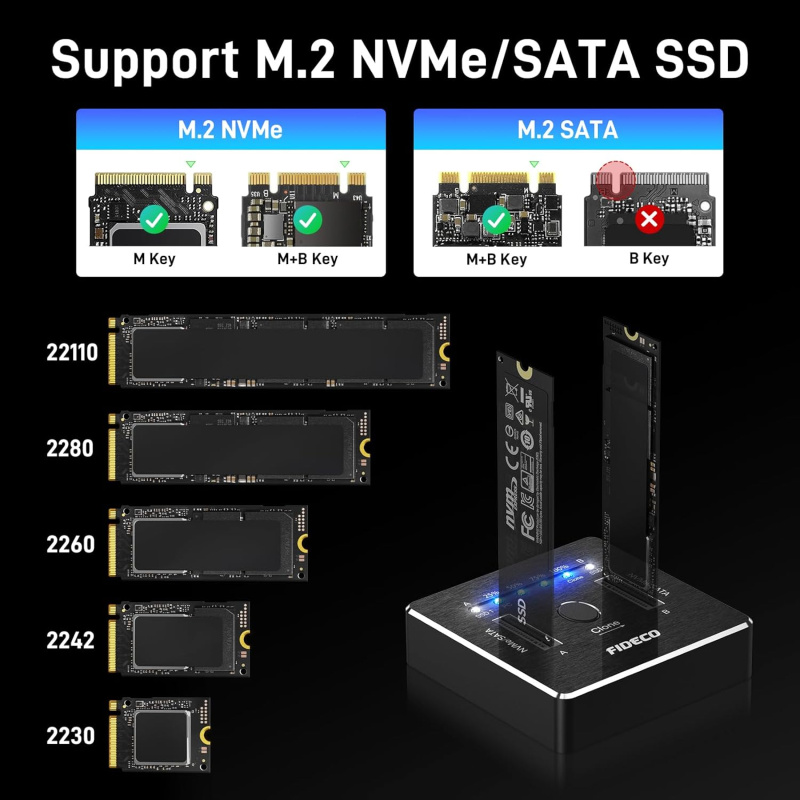

Supported SSD:

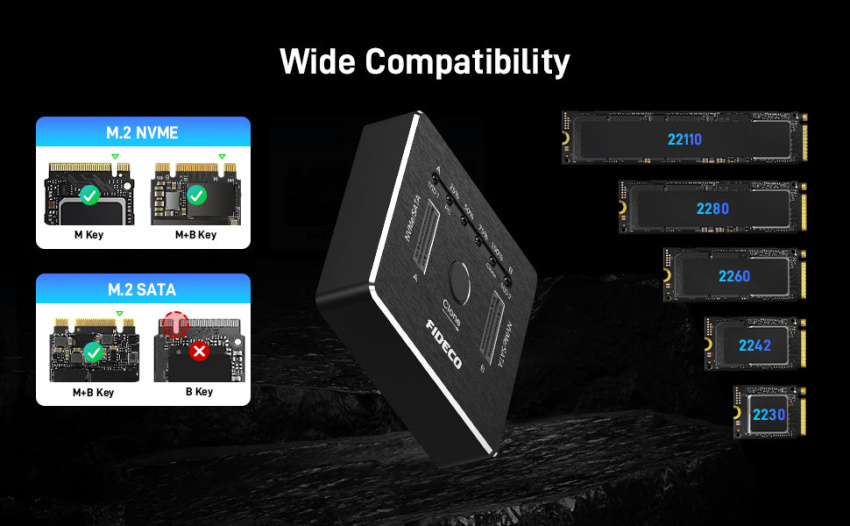

Fideco NVMe SATA SSD Docking Station can support M.2 PCIe NVMe SSD with M-Key or M+B Key and M.2 SATA SSD with M+B Key. The supported M.2 SSD sizes are 2230/2242/2260/2280/22110. Just one dual NVMe SATA SSD dock can meet your needs of using different sizes of SSDs.

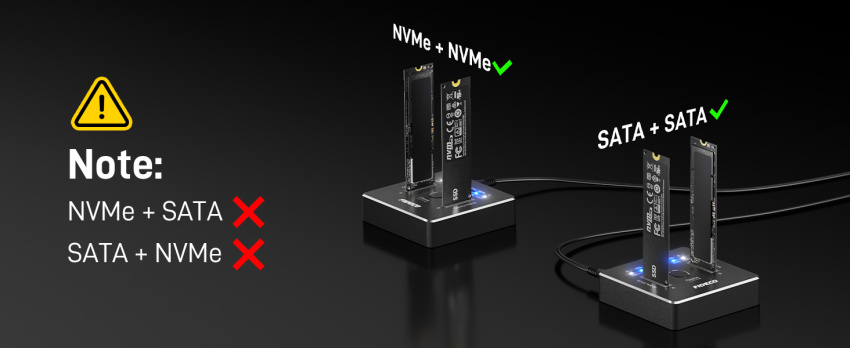

For data transfer or offline clone, M.2 NVMe SSD and SATA SSD cannot be inserted simultaneously, otherwise only SSD A can be recognized, and SSD B cannot be recognized.

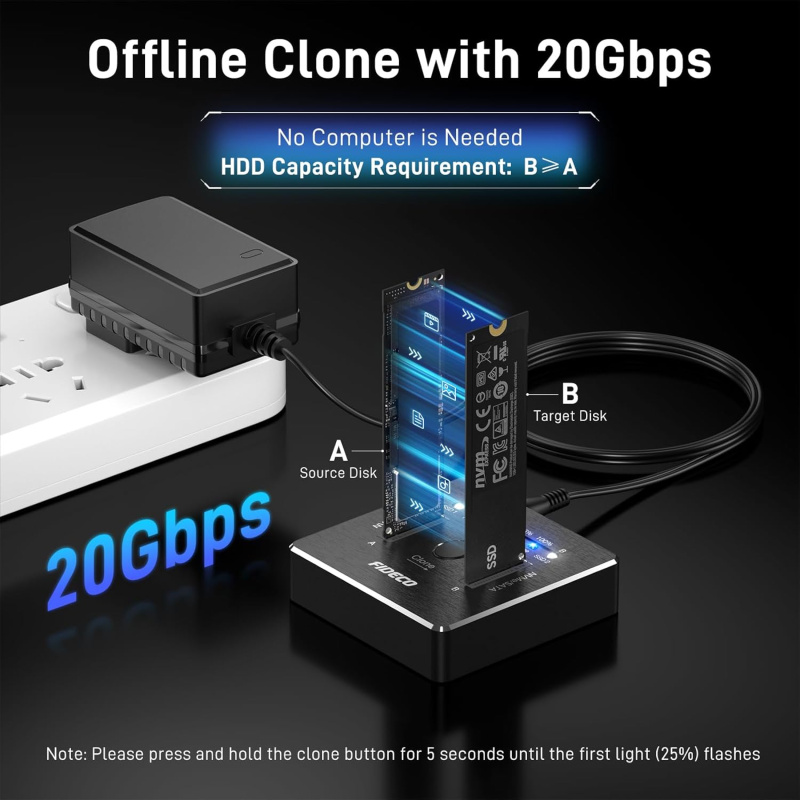

Connecting steps:
Step 1
1. Before cloning, disconnect the USB cable from the device.
2. Plug the source M2.NVME SSD in Slot A and the target M2.NVME SSD in Slot B.
Note: The capacity of Target SSD needs Larger than the source SSD. Target>Source
Step 2
1. Connect the power adapter to the enclosure
2. Press the power button.
3. Hold the clone button for 3-5 seconds until LED indicator begins to flash.
Step 3
The LED indicators show the cloning process from 25%,50%,75% and 100%.
When all four LEDs stop flashing, the cloning is finished. This process may take a long time which mainly depends on the capacity of SSD.
Included:
- 1 PCS M.2 SSD duplicator
- 1PCS USB C-C/A Cable
- 1PCS 5V3A Power adapter
- User Manual
