- Product Name

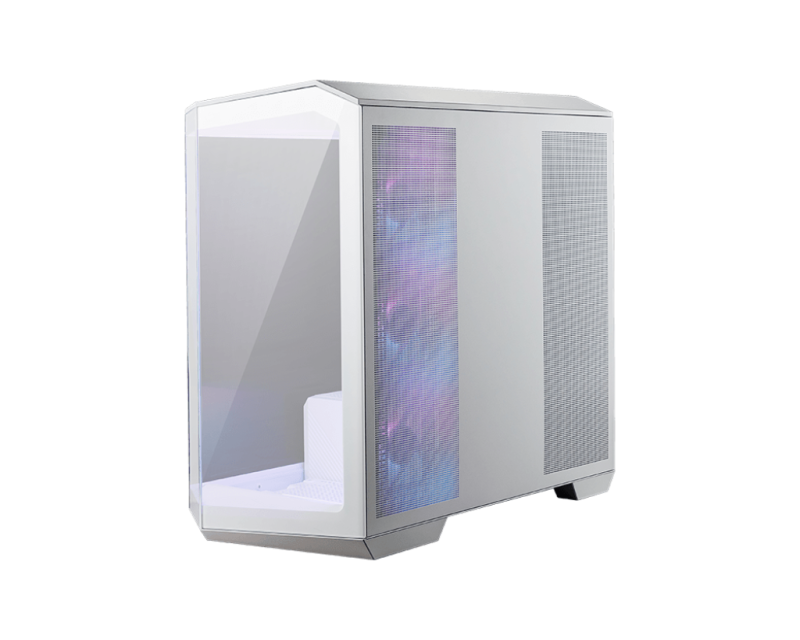

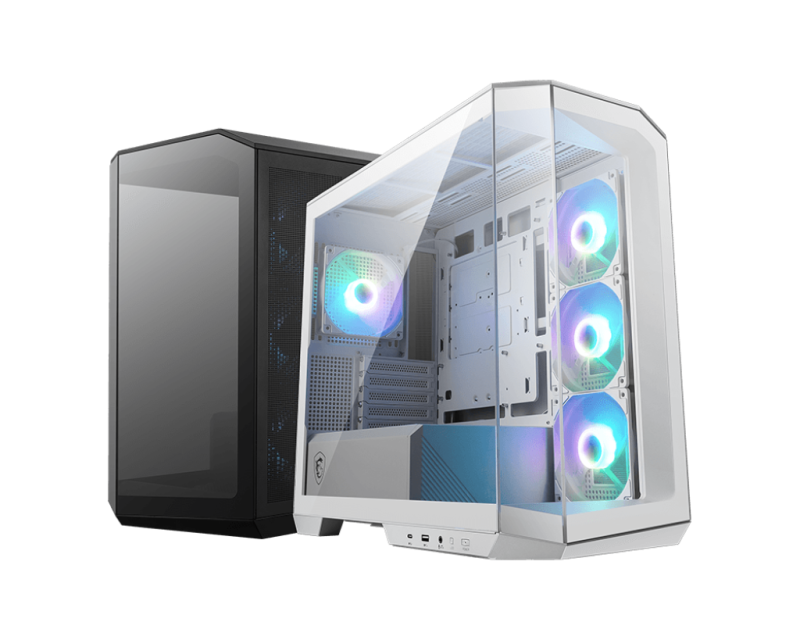

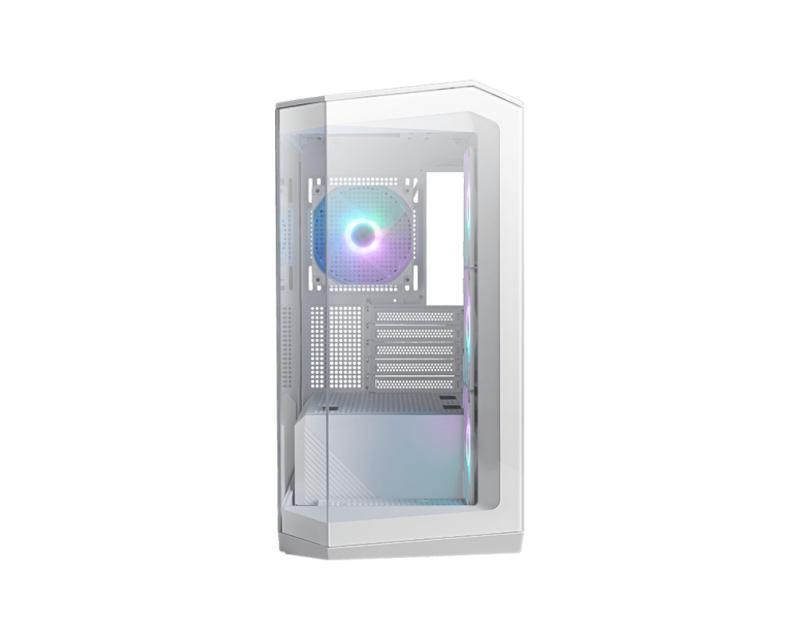

MAG PANO M100R PZ / WHITE
- Case Form Factor
Micro- ATX Tower
- Motherboard Form Factor Support
M-ATX(Back-connect supported) / ITX
- I/O Ports
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
- Drive Mount Support
1 x 2.5”
1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
- Expansion Slots
5
- Maximum GPU Length
390 mm / 15.35 inches
*Support horizontal installation only.
- Maximum CPU Cooler Height
175 mm / 6.9 inches
- Power Supply Support
ATX
- Maximum PSU Length
200 mm / 7.87 inches
- Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
- Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm
- Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
- Dimensions (DxWxH)
440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
- Net Weight
8.66 kg
- Gross Weight
11.29 kg - Radiator Size Support
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
Connection
- 1x USB 3.2 Gen 2x2 Type-C
- 1x USB 3.2 Gen 1 Type-A
- Mic In/ Audio Out
- LED Switch Button
- Power Button
產品規格與配備可能會隨地區而有所不同，本公司另保留變更規格不另行通知權利。購買前請與當地經銷商確認產品規格。
