• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphic)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  Ultrafast Connectivity
  - 2.5G LAN, 802.11ax Wi-Fi 6E Module
  EZ Update
  - ASRock Auto Driver Installer
• CPU
  - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  - Supports Intel® Hybrid Technology
  - Supports Intel® Turbo Boost Max 3.0 Technology
  - Supports Intel® Thermal Velocity Boost (TVB)
  - Supports Intel® Adaptive Boost Technology (ABT)
• Chipset
  - Intel® Z790
• Memory
  - Dual Channel DDR5 Memory Technology
  - 2 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
  - Max. capacity of system memory: 64GB
  - Supports Intel® Extreme Memory Profile (XMP) 3.0


  *1DPC 1R Up to 6800+ MHz (OC), 5600 MHz Natively.
  1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - Intel® Xe Graphics Architecture (Gen 12)
  - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


  *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
  - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
• Wireless LAN
  - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax
  - Supports Dual-Band 2x2 with extended 6GHz band support*
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth + High speed class II
  - Supports MU-MIMO


  *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.
• Slots
  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)


  *Supports PCIe riser cards to extend one x16 slot to two x8 slots
  Supports NVMe SSD as boot disks
• Storage
  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  - 4 x SATA3 6.0 Gb/s Connectors


  *Supports Intel® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

  * Requires additional M.2 NVMe expansion cards to support RAID 5
• USB
  - 1 x USB 3.2 Gen2x2 Type-C (Rear)
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 4 x USB 3.2 Gen2 Type-A (Rear)
  - 2 x USB 3.2 Gen1 (Front)
  - 3 x USB 2.0 (1 Rear, 2 Front)


  *All USB ports support ESD Protection
• Connector
  - 1 x eDP Signal Connector
  - 1 x RGB LED Header*
  - 1 x Addressable LED Header**
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 2 x Chassis Fan Connectors (4-pin)****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****


  *Supports in total up to 12V/3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1/WP supports the fan power up to 2A (24W).
  CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

  ****CHA_FAN1~2 support the fan power up to 1A (12W).

  *****Actual speed depends on USB devices and extension cable in the chassis.

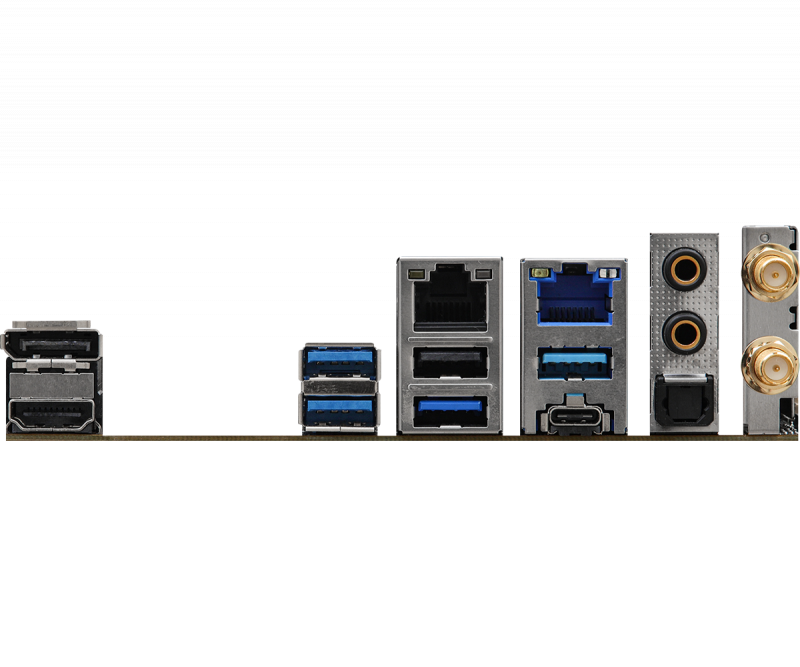

• Rear Panel I/O
  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x Optical SPDIF Out Port
  - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  - 1 x USB 2.0 Port
  - 2 x RJ-45 LAN Ports
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Polychrome SYNC
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer


  *These utilities can be downloaded from ASRock Live Update & APP Shop.

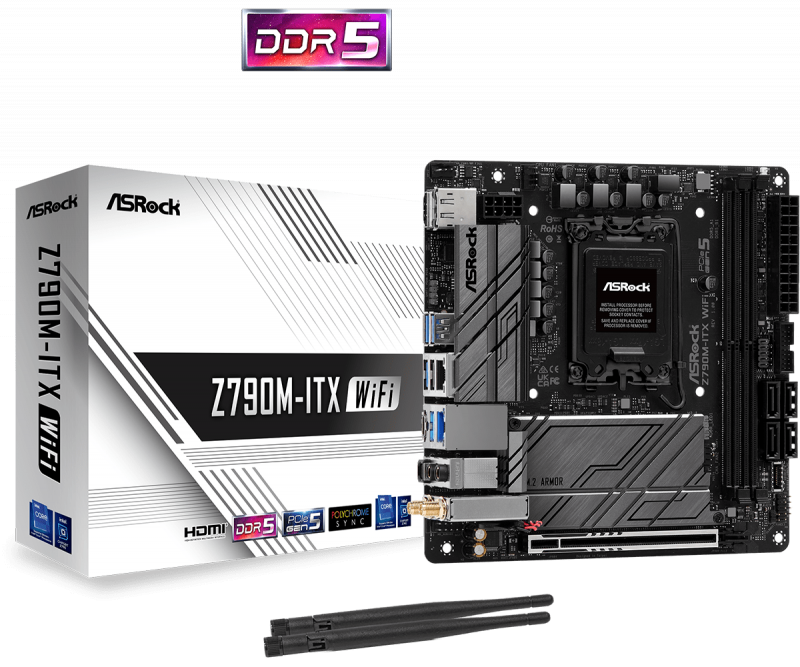

• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  - 2 x Screws for M.2 Sockets
• Form Factor
  - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - 8 Layer PCB
• OS
  - Microsoft® Windows® 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
