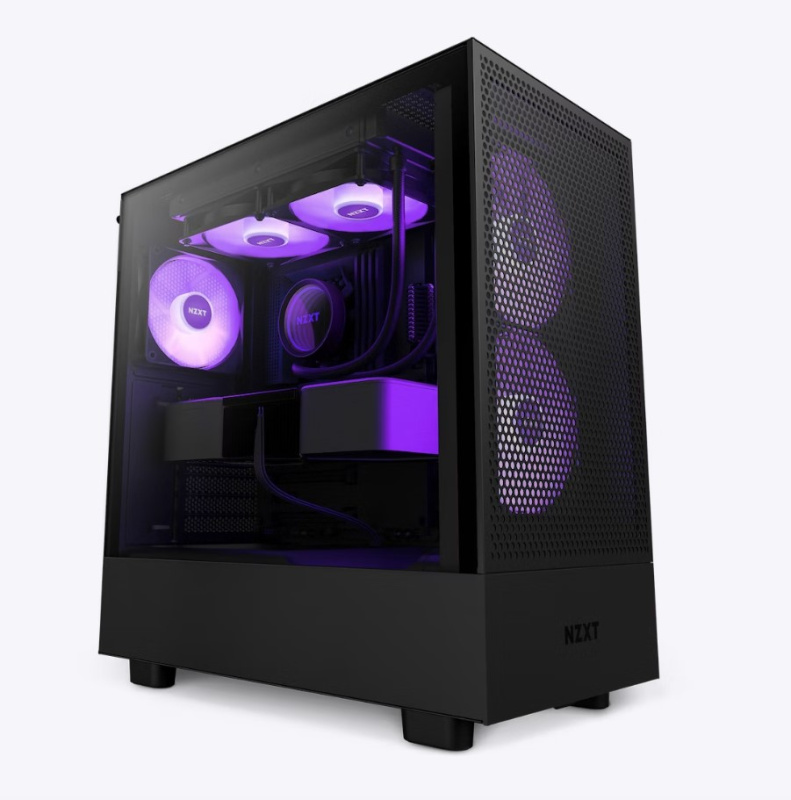

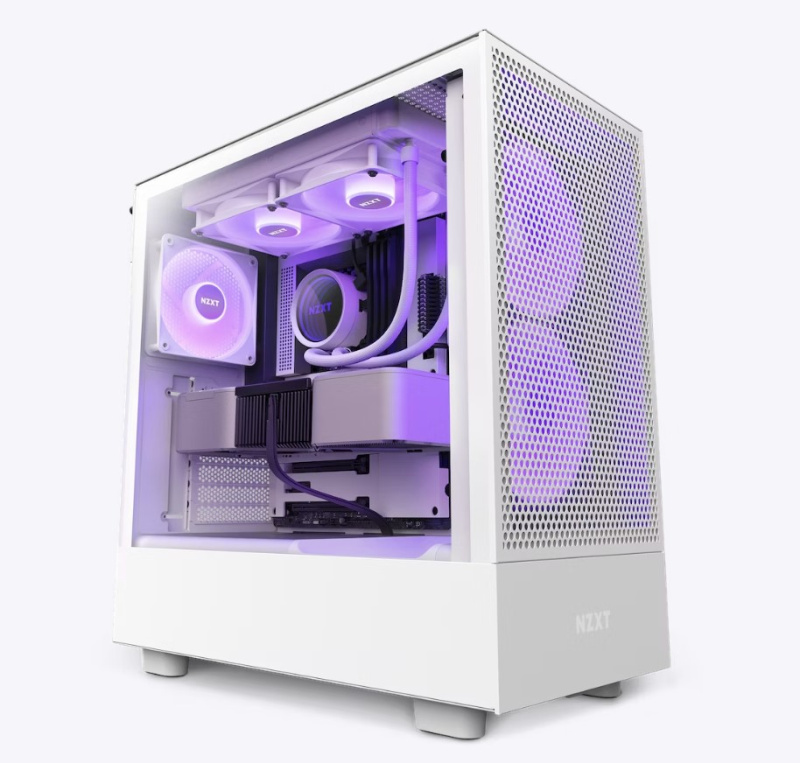

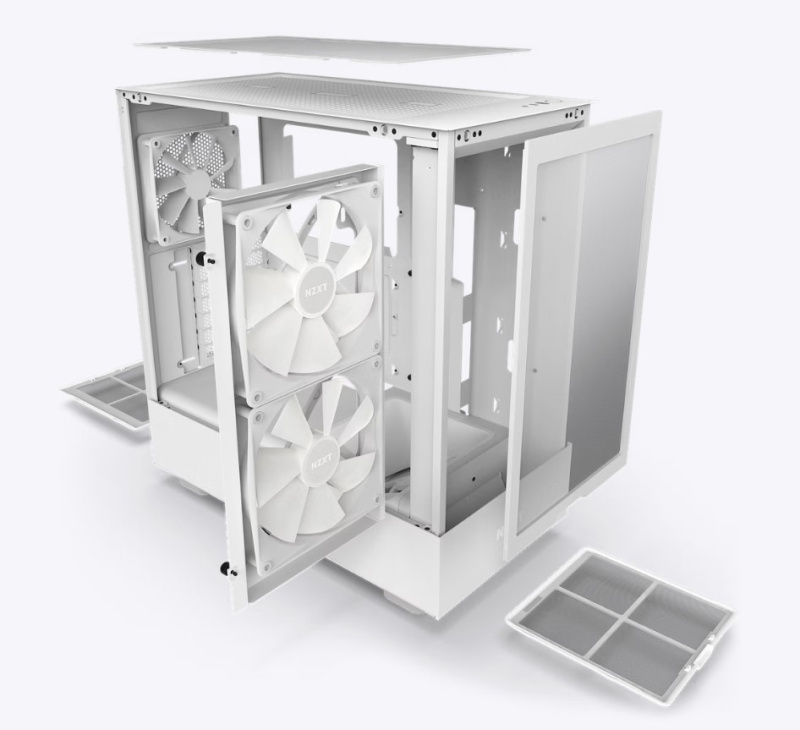

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

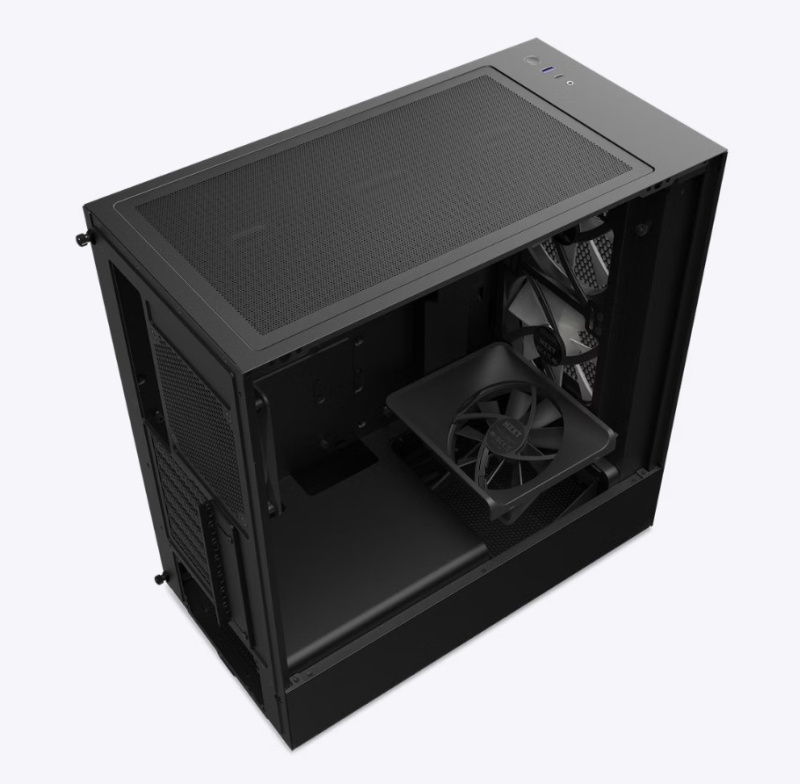

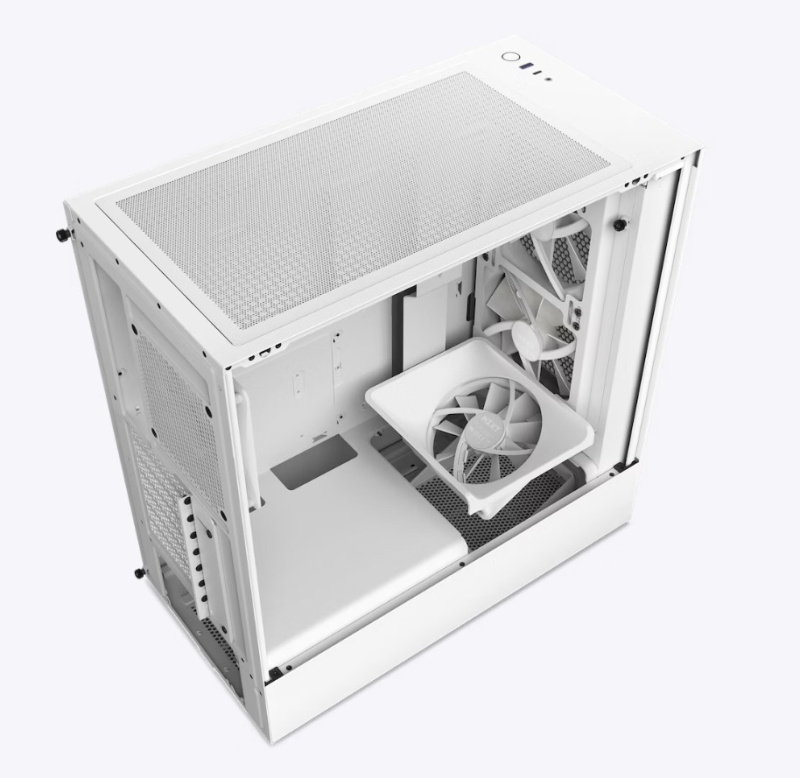

- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation

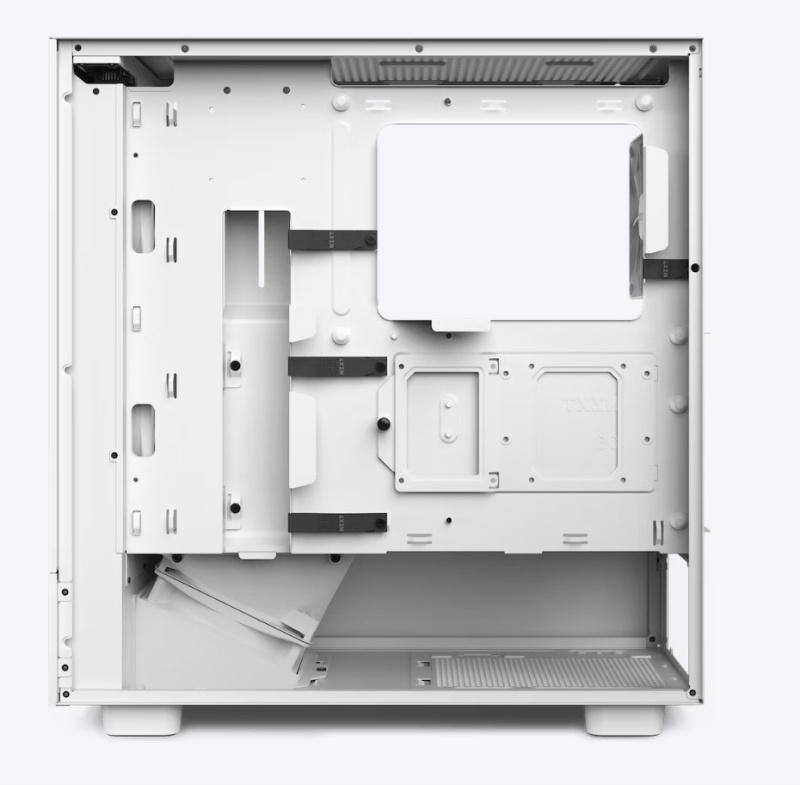

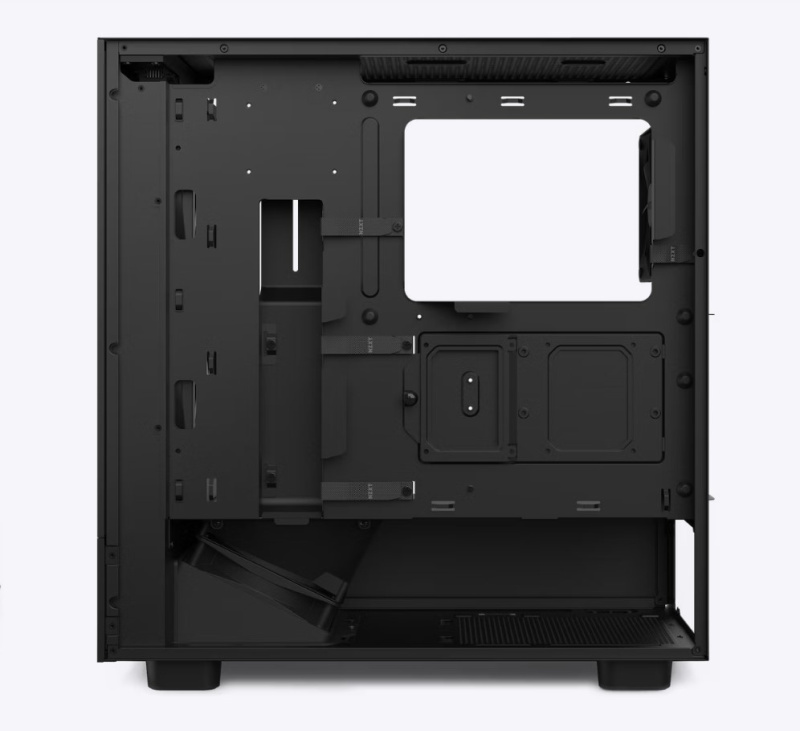

- Intuitive cable management system with wide channels, hooks, & straps

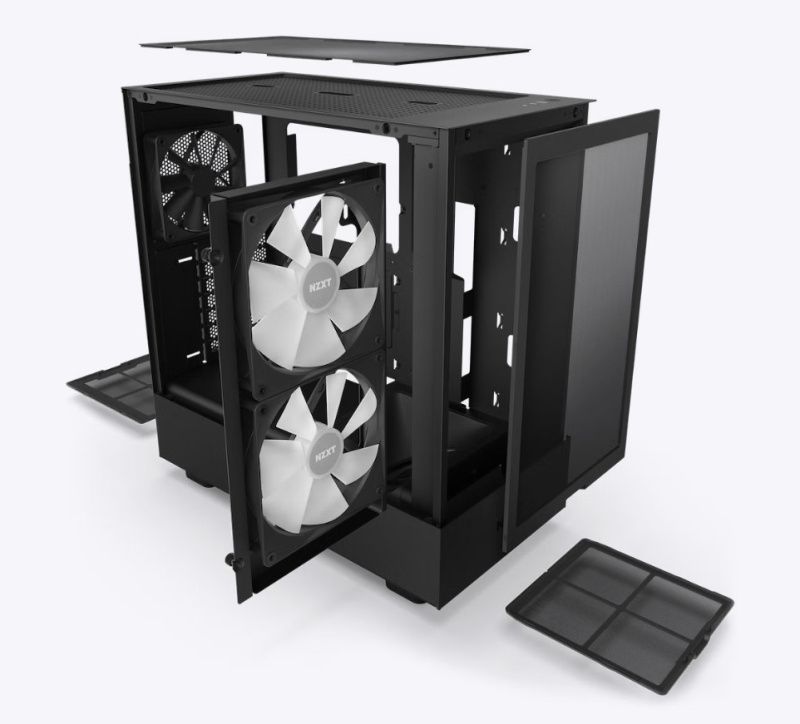

- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans
- Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard

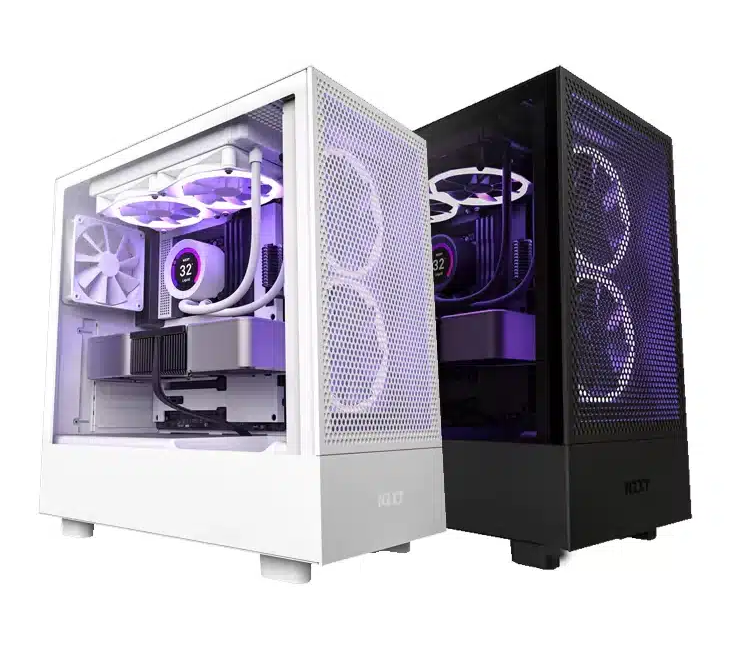

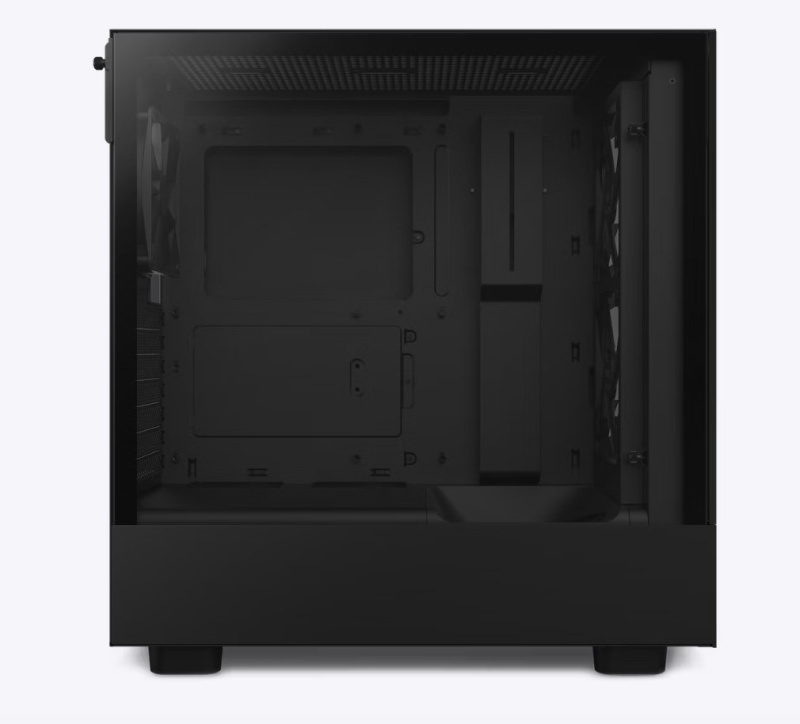

- Two color options (Matte Black, Matte White)
Inside the Box
-
H5 Flow Case with fans (see specs) - 1
-
F140 RGB Core Fan (pre-installed) - 2
-
F120Q Airflow Fan (pre-installed) - 2
-
Front I/O split cables - 1
-
Brown box, PE bag, polyform, manual, accessory box & parts (including the screws) - 1
Tech Specs
KEY SPECS
-

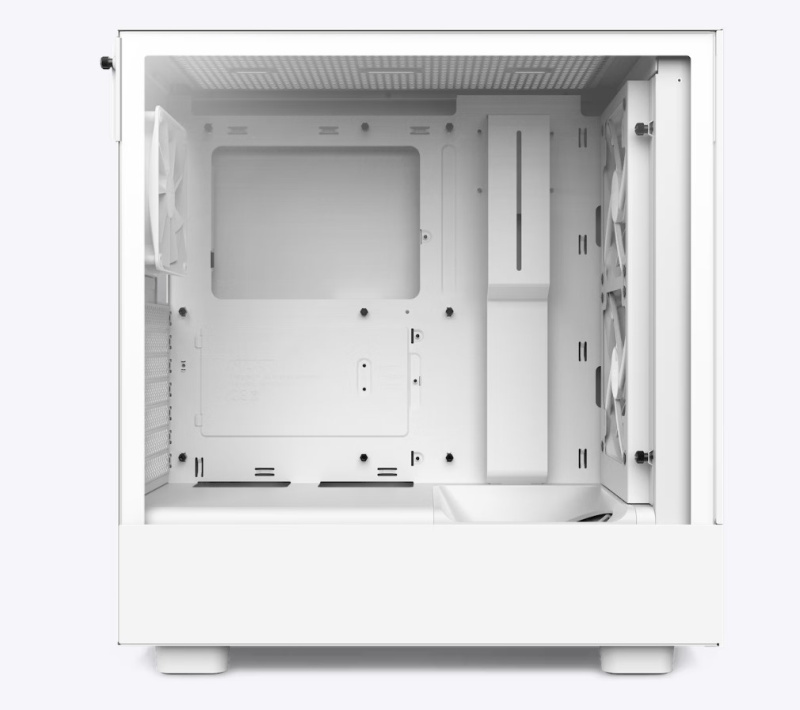

Motherboard Support:Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:Mid-Tower
-
Case Material (White):SGCC Steel, Ultra-clear Tempered Glass
-
Case Material (Black):SGCC Steel, Dark Tinted Tempered Glass
DIMENSIONS
-
Height (With Feet):464mm
-
Height (Without Feet):448mm
-
Width:227mm
-
Depth:446mm
-
Weight:7.36 kg
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:Up to 165mm
-
Max GPU Clearance:Up to 365mm
-
Front Radiator Clearance:45mm
-
Cable Management:Up to 23mm
-
PSU Clearance:Up to 185mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:1
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:7
-
Vertical :0
DRIVE BAYS
-
2.5":1+1
-
3.5":1
FAN SUPPORT
-
Front:2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included)
-
Top:2 x 120mm
-
Rear:1 x F Series Quiet 120mm (Case Version) included
-
Bottom:1 x F Series Quiet 120mm (Case Version) included
-
Filters:All Air Intakes
RADIATOR SUPPORT
-
Front:Up to 280mm
-
Top:Up to 240mm
-
Rear:Up to 120mm
FAN SPECS
-
Model:F140 RGB Core Fan (Case Version)
-
Speed:1200 ± 120 RPM
-
Airflow:61.74 CFM
-
Static Pressure:2.06mm-H2O
-
Noise:29.05 dBA
-
Fan Connector:3-pin
FAN SPECS
-
Model:F120Q Airflow Fan (Case Version)
-
Speed:1200 ± 120 RPM
-
Airflow:62.18 CFM
-
Static Pressure:1.05 mm-H2O
-
Noise:25.1 dBA
-
Fan Connector:3-pin
GENERAL
-
Warranty:2 Years
-
Model Number:CC-H51FW-R1 (White) / CC-H51FB-R1 (Black)
-
UPC:810074843645 (White) / 810074843638 (Black)
-
EAN:5056547203560 (White) / 5056547203553 (Black)
