• Unique Feature
  Rock-Solid Durability
  - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
  - Pre-Installed I/O Shield
  EZ Update
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker
• CPU
  - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  - Supports Intel® Hybrid Technology
  - Supports Intel® Turbo Boost Max 3.0 Technology
  - Supports Intel® Thermal Velocity Boost (TVB)
  - Supports Intel® Adaptive Boost Technology (ABT)
• Chipset
  - Intel® Z790
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 128GB*
  - Supports Intel® Extreme Memory Profile (XMP) 2.0

  *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
  1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
  2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
  2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - Intel® Xe Graphics Architecture (Gen 12)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

  *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Intel® I219V
• Slots
  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
  - 1 x PCIe 3.0 x1 Slot (PCIE2)*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  - Supports AMD CrossFire™

  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  - 4 x SATA3 6.0 Gb/s Connectors

  *Supports Intel® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices


  *Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  - 1 x USB 3.2 Gen2 Type-A (Rear)
  - 1 x USB 3.2 Gen2 Type-C (Rear)
  - 1 x USB 3.2 Gen1 Type-C (Front)
  - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)
  * All USB ports support ESD Protection
• Connector
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen1 Header

  *Supports in total up to 12V/3A, 36W LED Strip

  **Support in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1 supports the fan power up to 1A (12W).

  ****CPU_FAN2/WP supports the fan power up to 2A (24W).

  *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

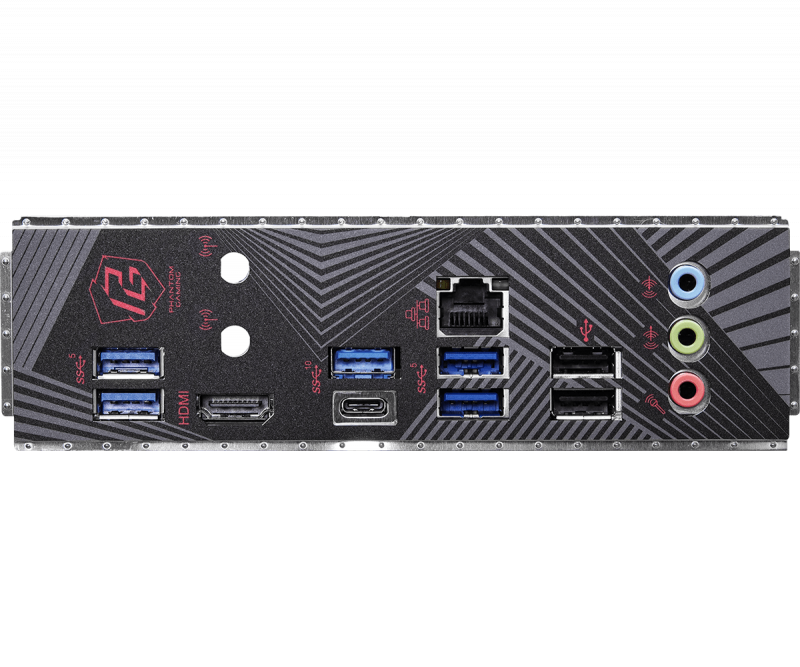

• Rear Panel I/O
  - 2 x Antenna Mounting Points
  - 1 x HDMI Port
  - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  - 4 x USB 3.2 Gen1 Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (Phantom Gaming Tuning)
  - ASRock Polychrome SYNC
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 2 x SATA Data Cables
  - 3 x Screws for M.2 Sockets
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS
  - Microsoft® Windows® 10 64-bit / 11 64-bit

  *Windows® 10 only supports version 21H2 or later
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
