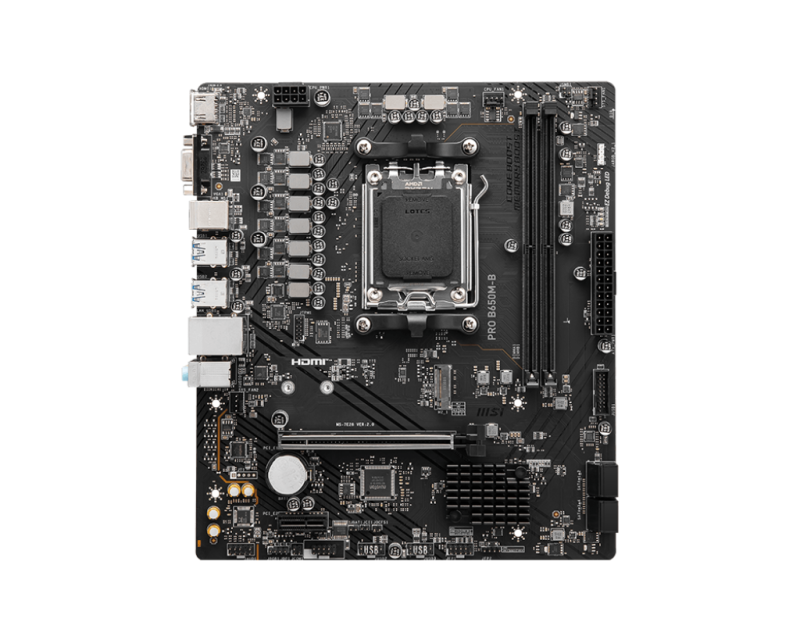

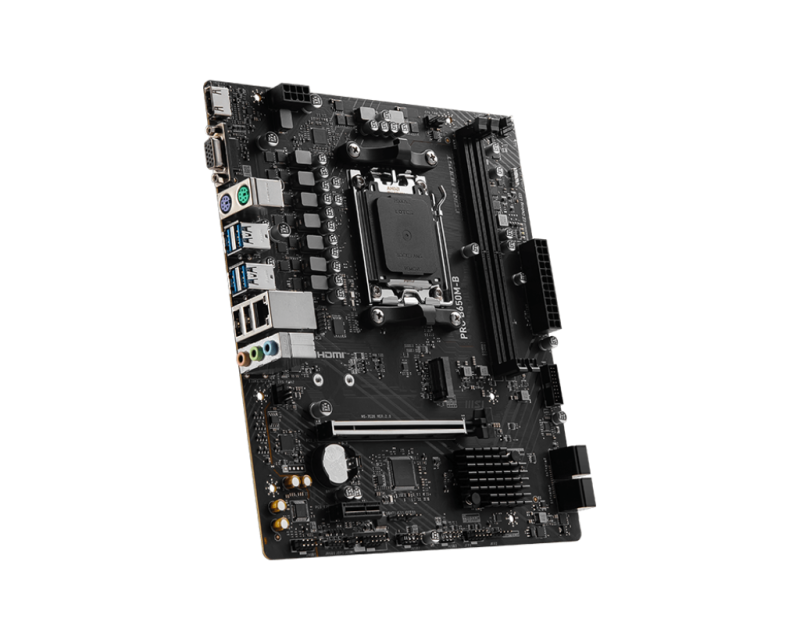

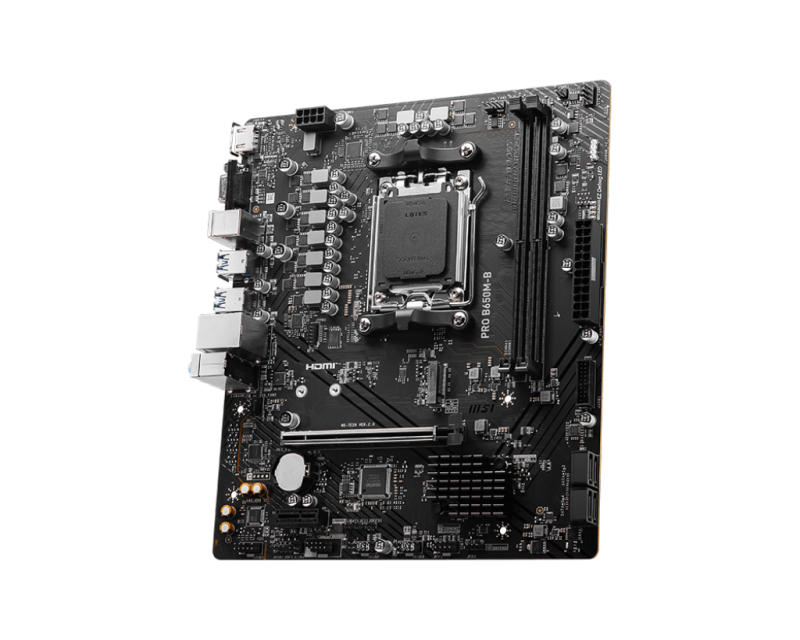

![MSI PRO B650M-B MATX (AM5) [現金優惠 $550]](https://www.price.com.hk//space/ec_product/shop/1444000/1444622_qh8vs0_0.png "MSI PRO B650M-B MATX (AM5) [現金優惠 $550]")
![MSI PRO B650M-B MATX (AM5) [現金優惠 $550]](https://www.price.com.hk//space/ec_product/shop/1444000/1444622_k3ieyz_0.png "MSI PRO B650M-B MATX (AM5) [現金優惠 $550]")
![MSI PRO B650M-B MATX (AM5) [現金優惠 $550]](https://www.price.com.hk//space/ec_product/shop/1444000/1444622_i5ivh7_0.png "MSI PRO B650M-B MATX (AM5) [現金優惠 $550]")
![MSI PRO B650M-B MATX (AM5) [現金優惠 $550]](https://www.price.com.hk//space/ec_product/shop/1444000/1444622_fh73dd_0.png "MSI PRO B650M-B MATX (AM5) [現金優惠 $550]")
| CHIPSET | AMD B650 |
|---|---|
| CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
| MEMORY | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 1x PCI-E x16 slot (Qty) • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| STORAGE | 1x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |

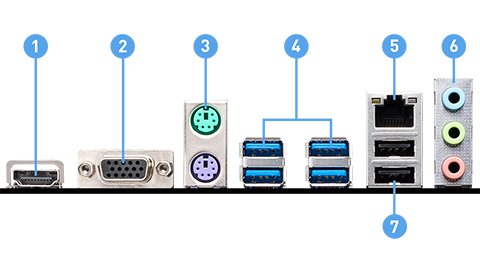

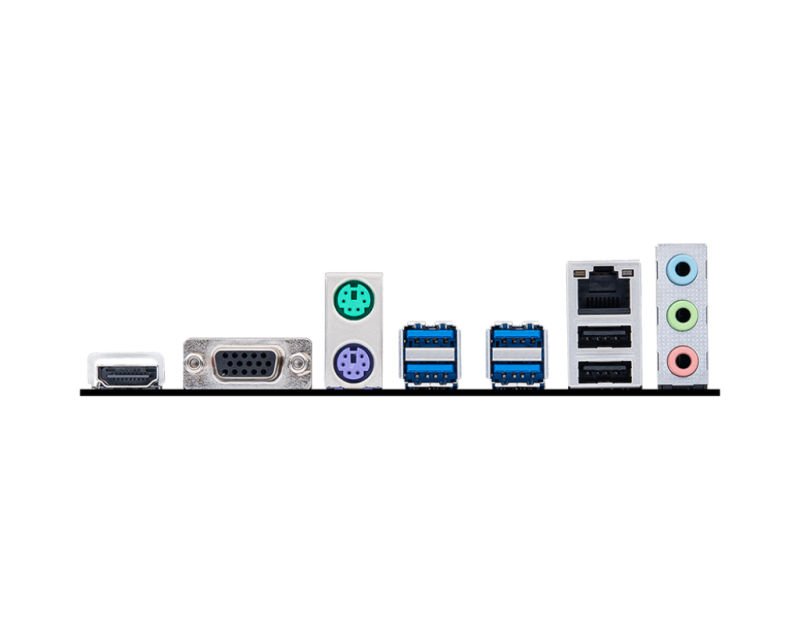

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX 215mmx243.84mm |

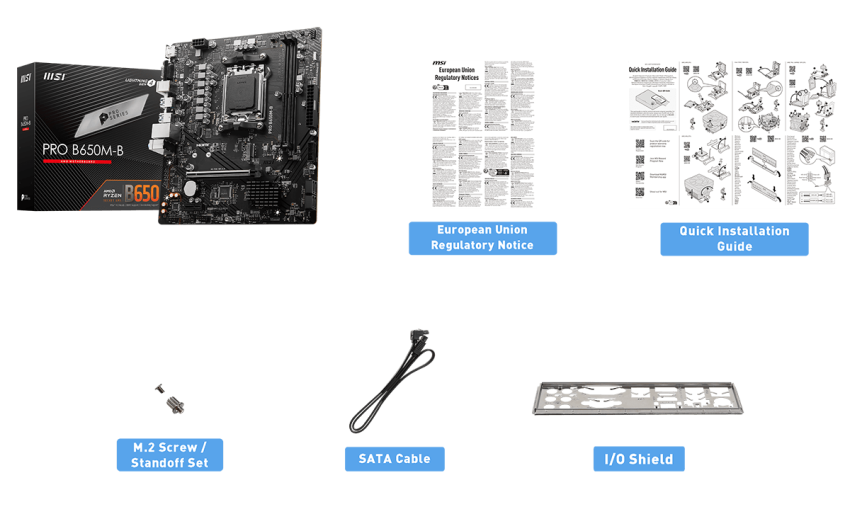

| BOX CONTENT |  |
