Overview

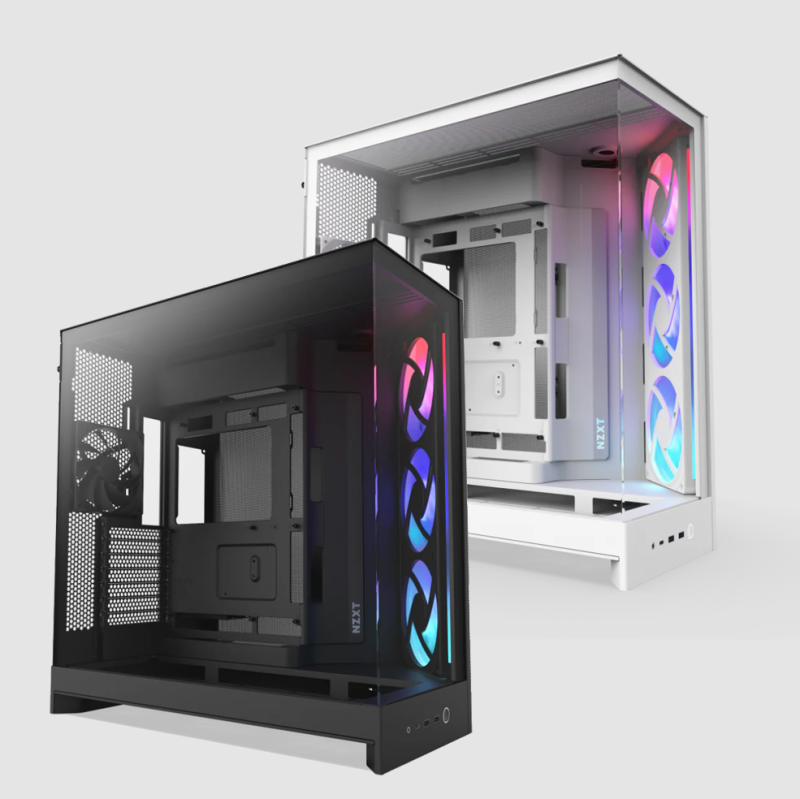

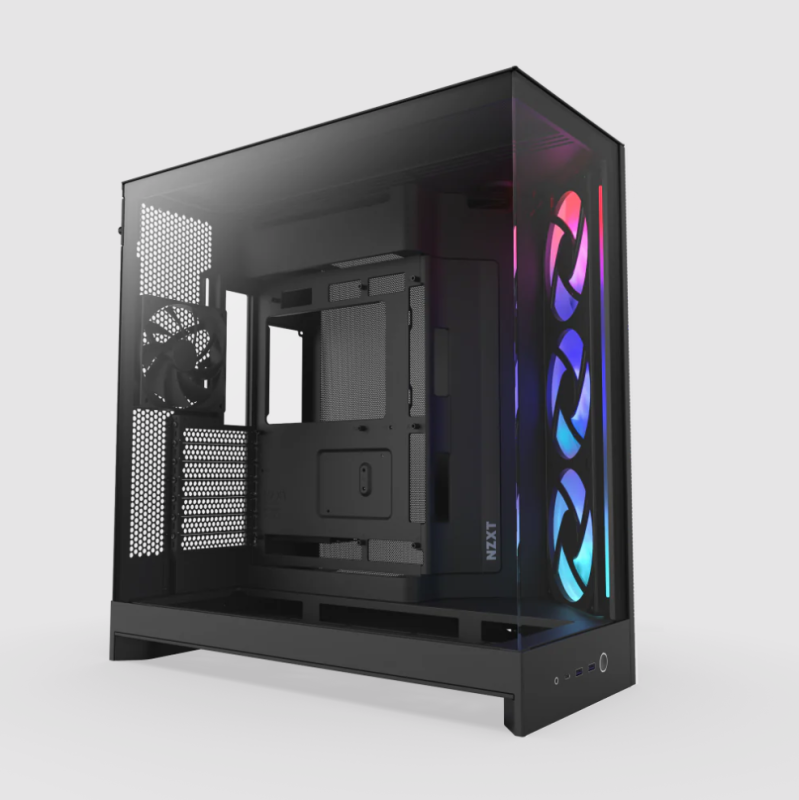

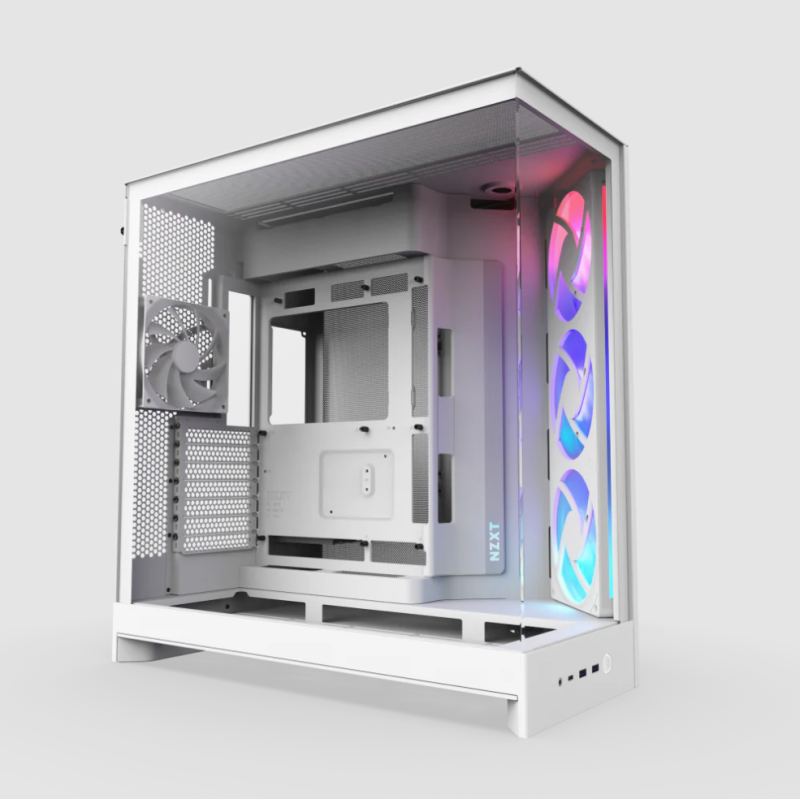

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

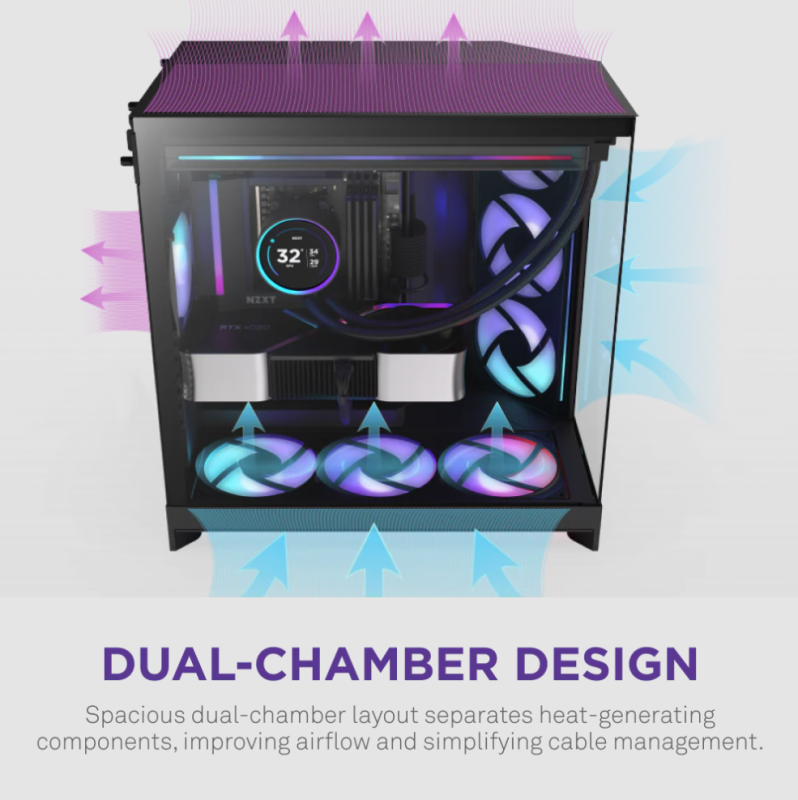

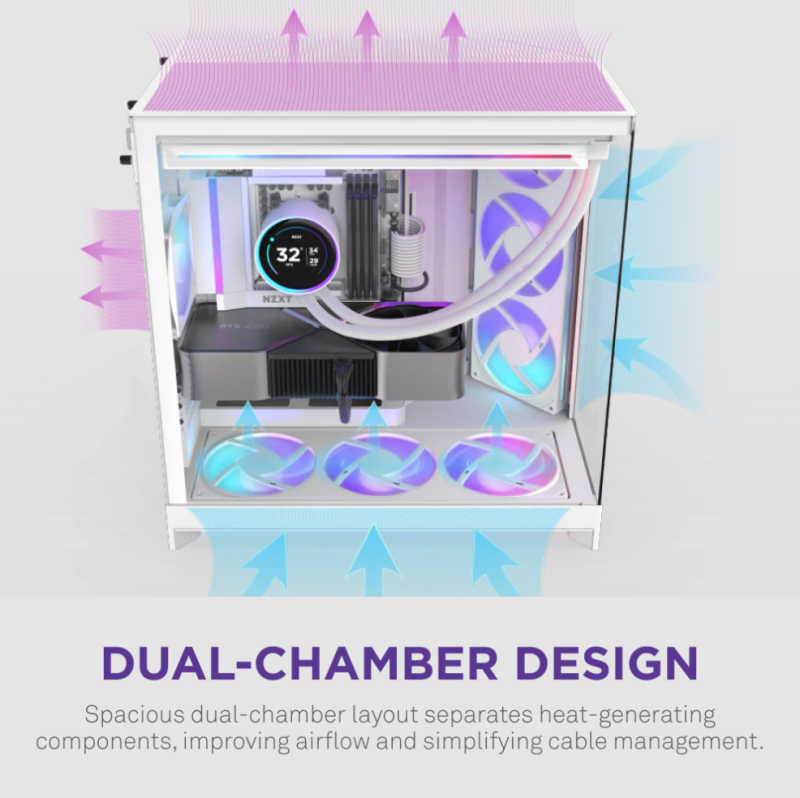

- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

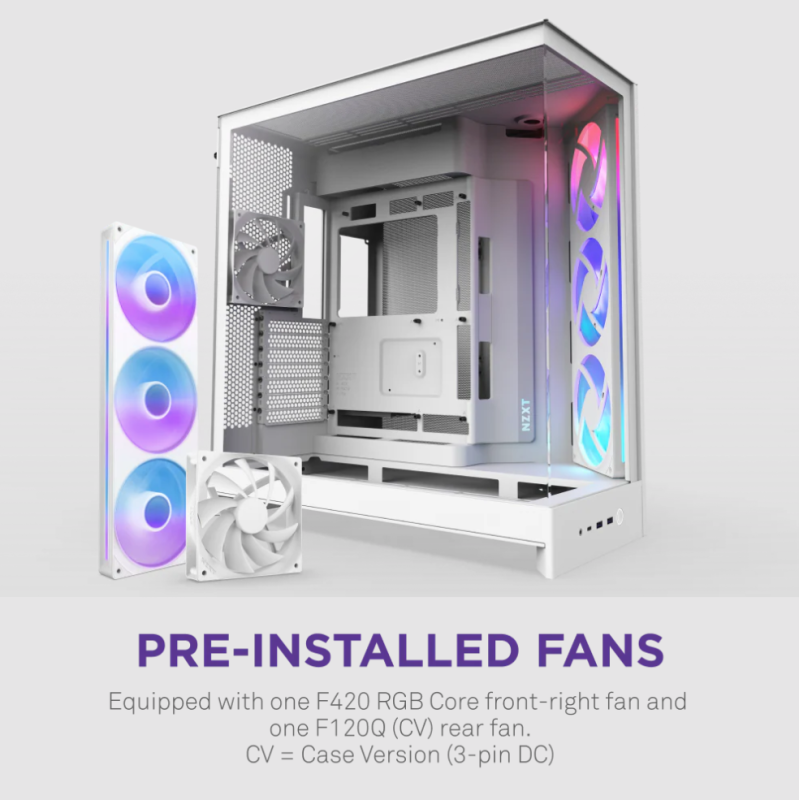

- Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)

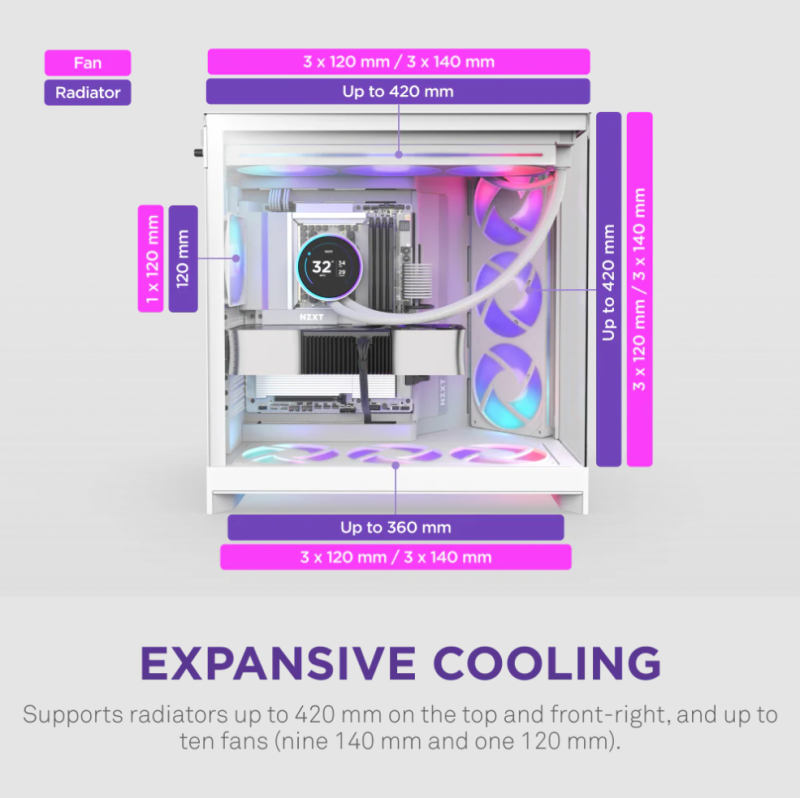

- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

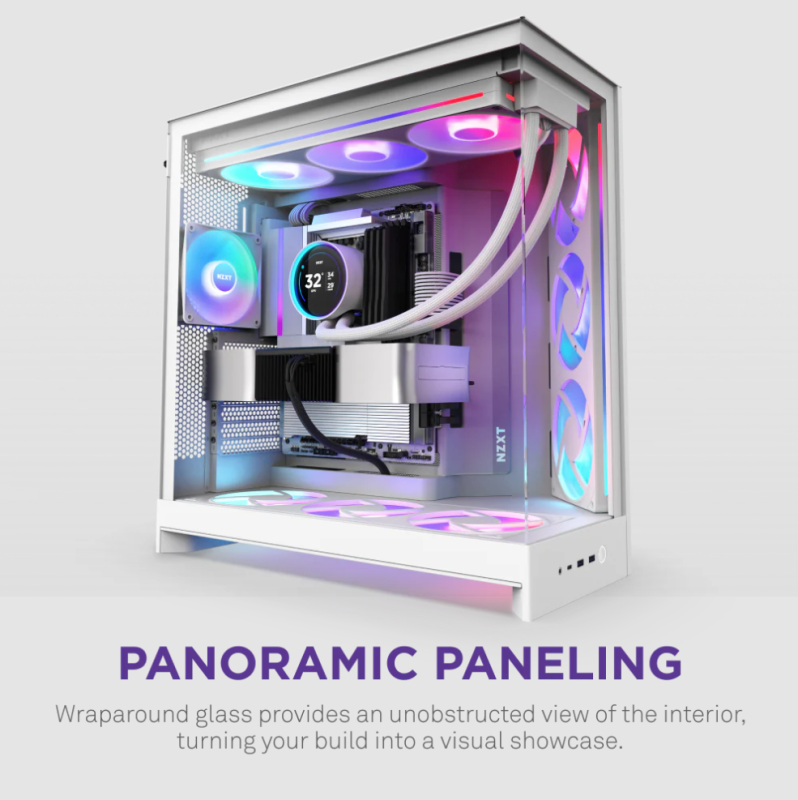

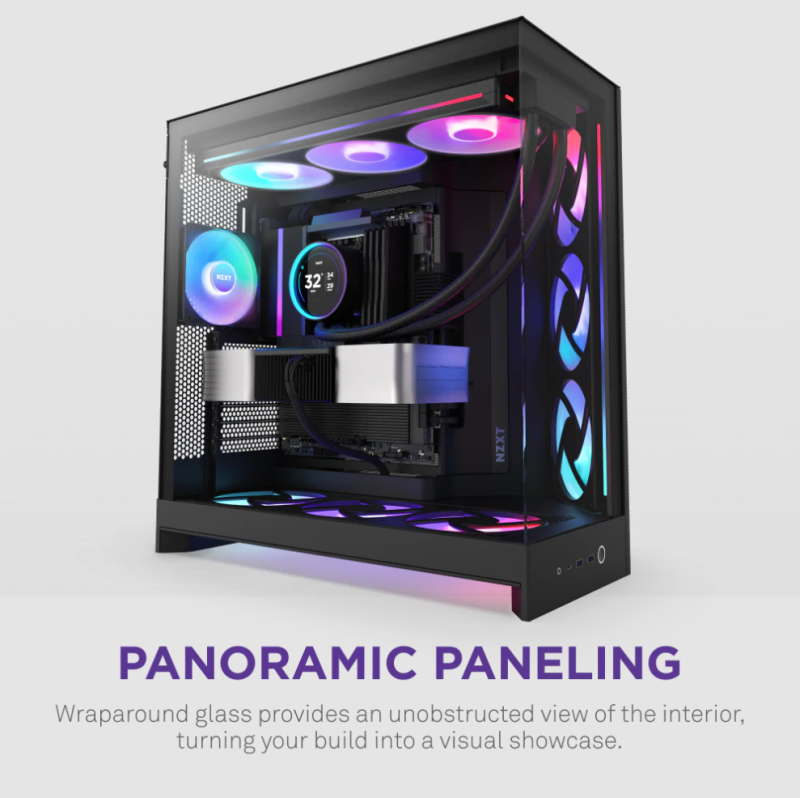

- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

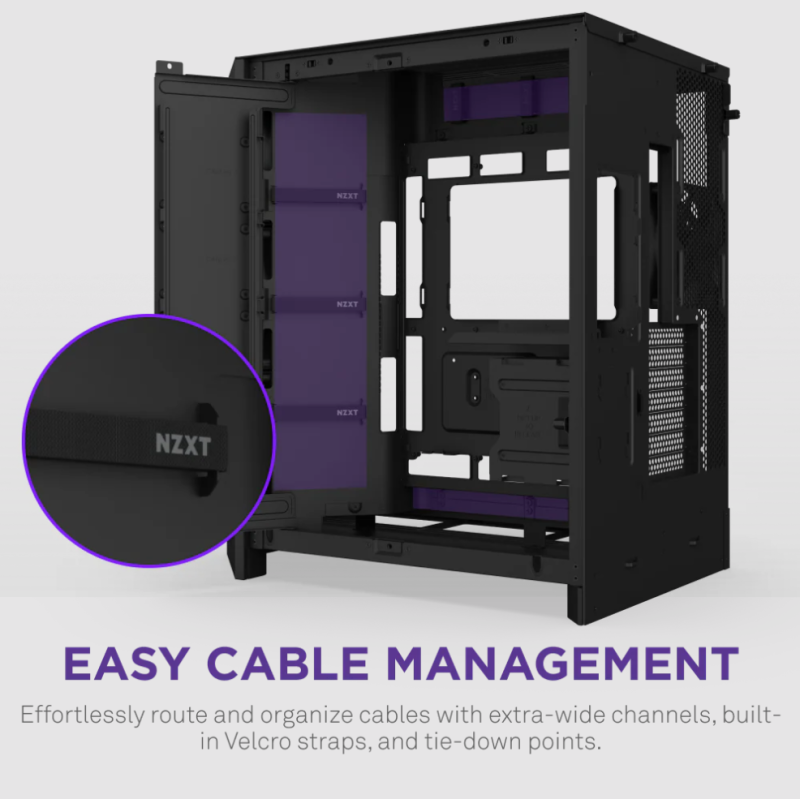

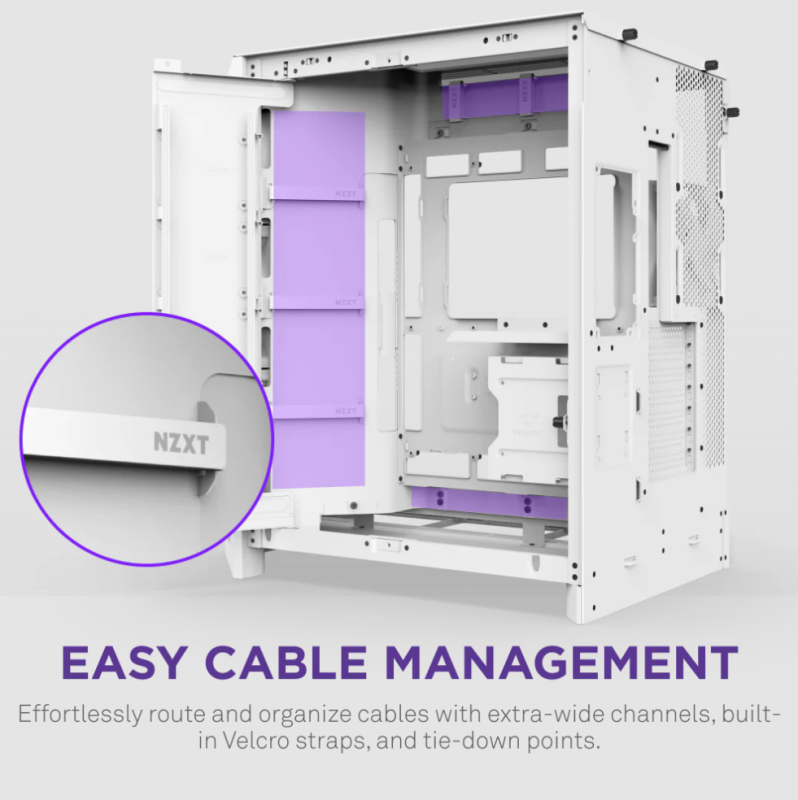

- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

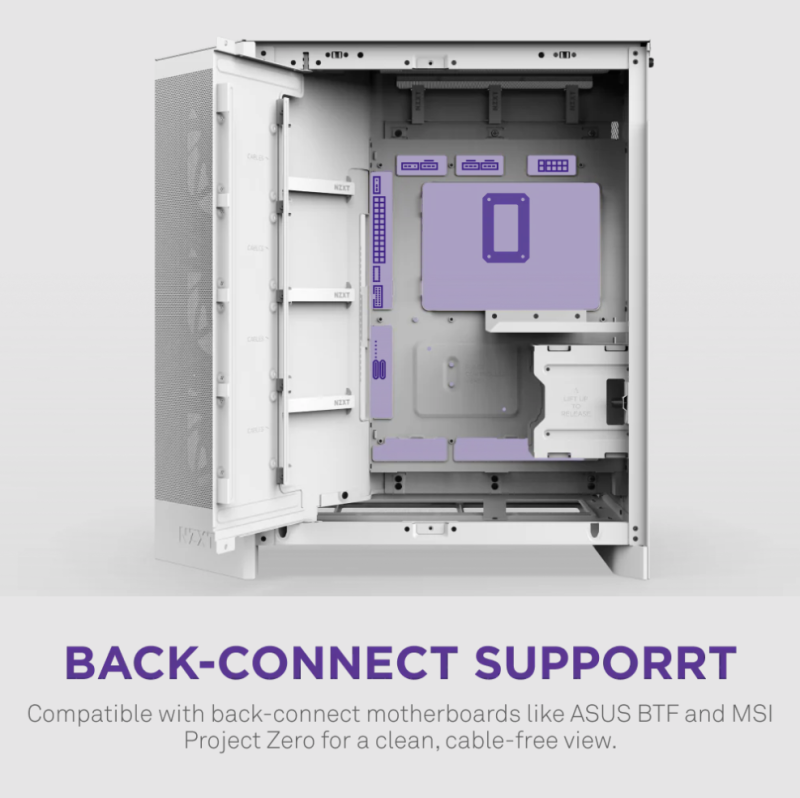

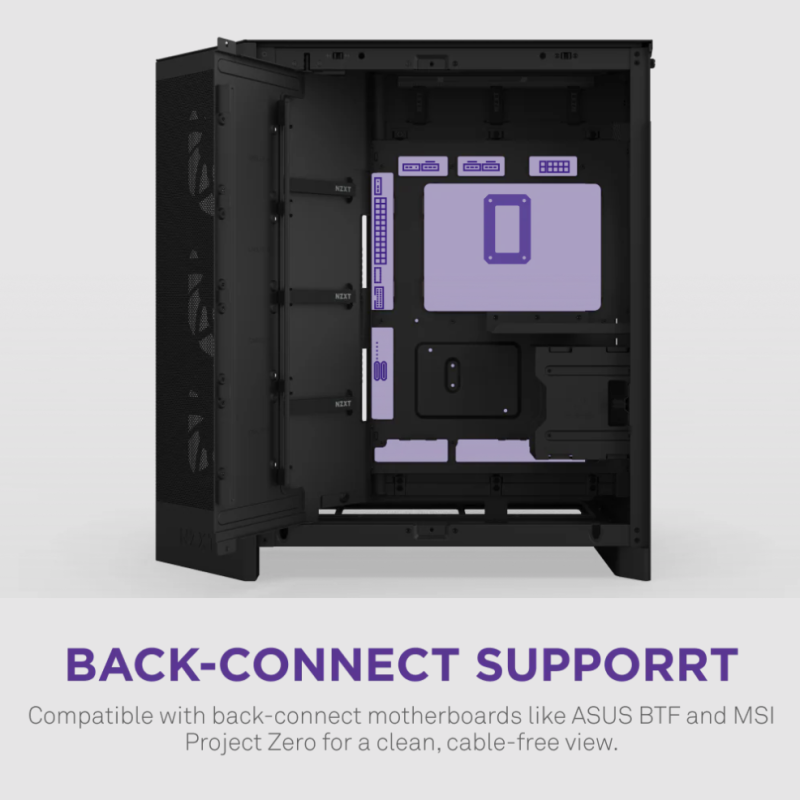

- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Tech Specs

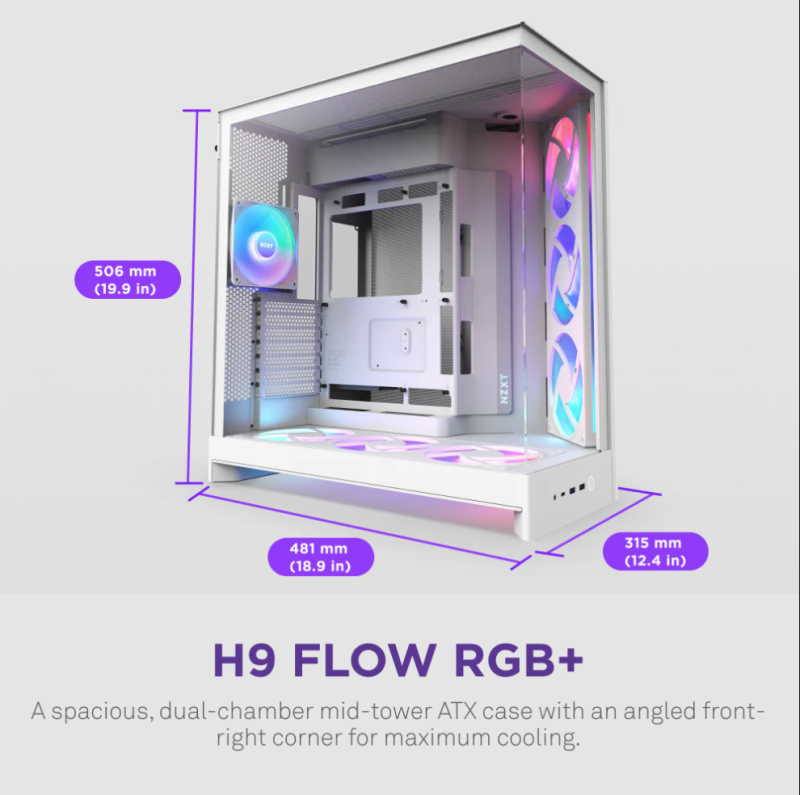

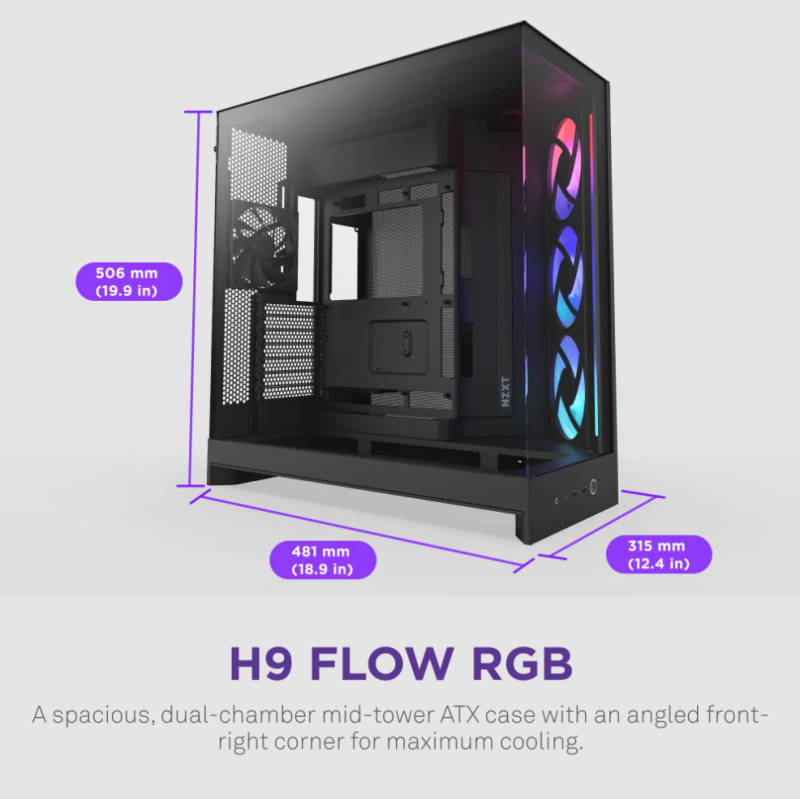

Dimensions
Height
506 mm (19.9 in)
Width
315 mm (12.4 in)
Depth
481 mm (18.9 in)
Volume
76.7 L
Weight
12.6 kg (27.78 lb)
General
Enclosure Type
Mid-tower
Motherboard Compatibility
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero)
Yes (ATX, Micro-ATX)
Materials
SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance
CPU Cooler Height
165 mm

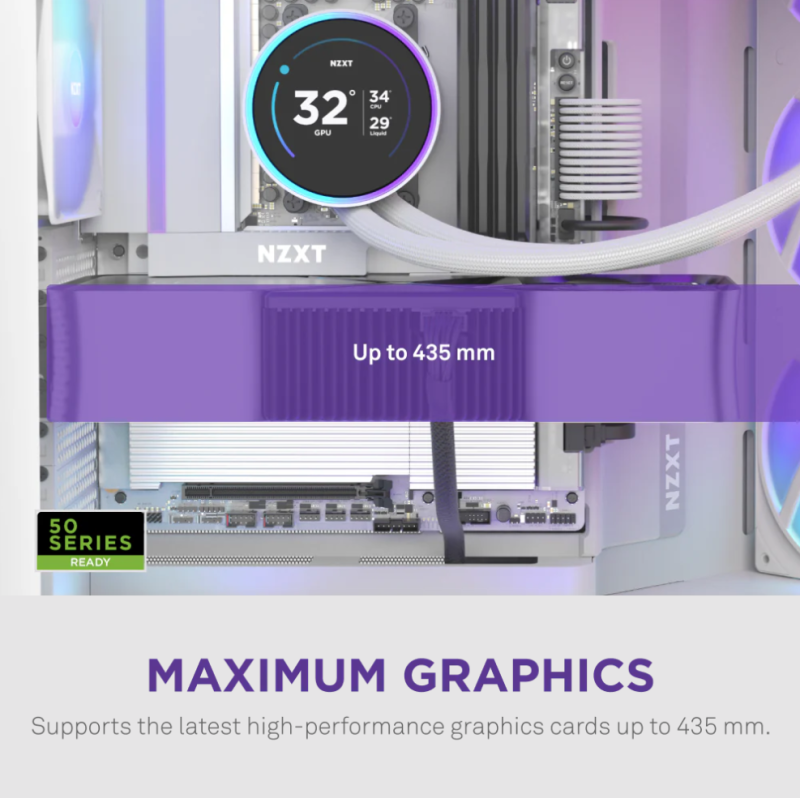

GPU Length
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length
200 mm
Top Radiator & Fan Thickness
Up to 80 mm (360 mm) Up to 62 mm (420 mm)
Front I/O Ports
USB 3.2 Type-A
2
USB 3.2 Gen2x2 Type-C
1
Headset Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
4+2
3.5"
2

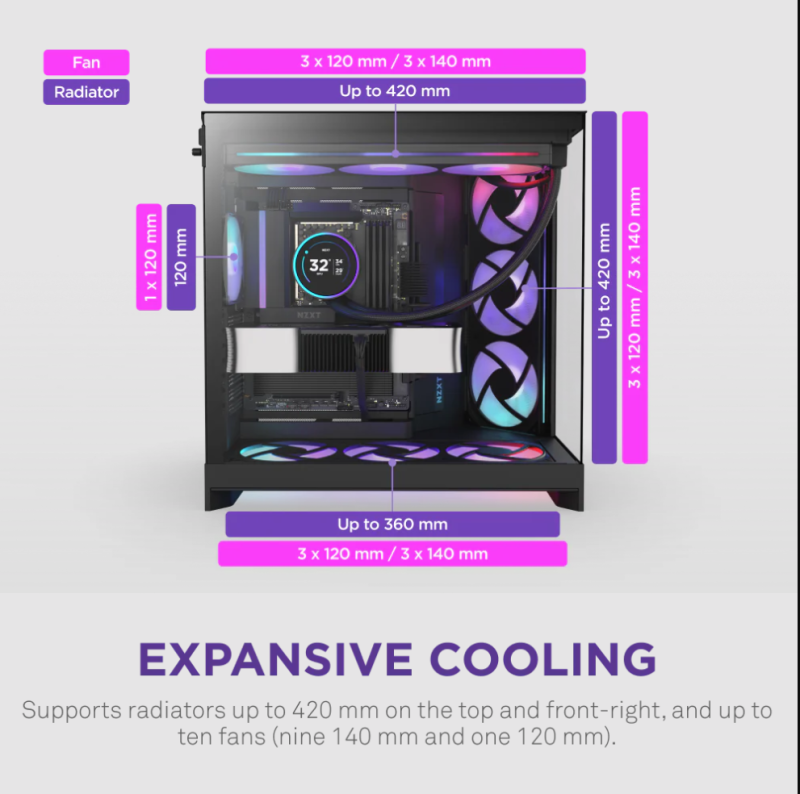

Fan Support
Front-Right
3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
Top
3 x 120 mm / 3 x 140 mm
Bottom
3 x 120 mm / 3 x 140 mm
Rear
1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
Front-Right
Up to 420 mm
Top
Up to 420 mm
Bottom
Up to 360 mm
Rear
Up to 120 mm
Fan Specs - F420 RGB Core
Model
F420 RGB Core
Speed
2,000 ± 200 RPM
Airflow
98.61 CFM
Static Pressure
3.2 mmH2O
Noise
34.5 dBA
Fan Connector
8-pin w/ splitter
Fan Specs - F120Q (CV)
Model
F120Q (CV)
Speed
1,350 ± 150 RPM
Airflow
60.2 CFM
Static Pressure
1.05 mmH2O
Noise
24.1 dBA
Fan Connector
3-pin
Warranty
Warranty
2 years
Product Info
Model Number
CM-H92FW-R1 CM-H92FB-R1 CM-H92FW-R2 CM-H92FB-R2
UPC
810074847865 810074847872 815671019516 815671019523
EAN
5056547207650 5056547207667 5056547208862 5056547208879
