General data

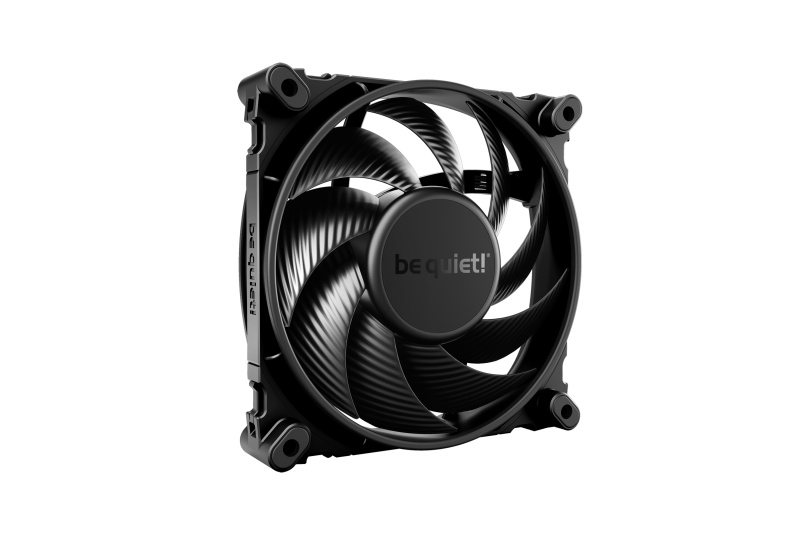

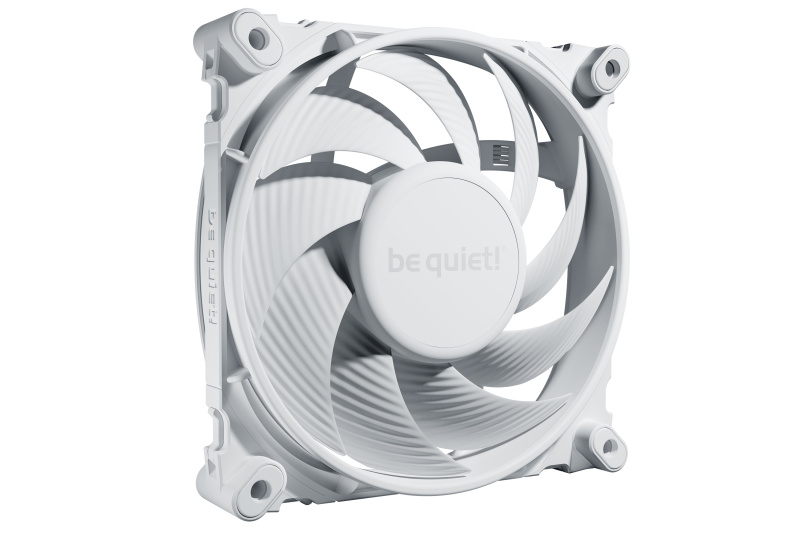

| Model | Silent Wings 4 120mm PWM high-speed |
| Dimensions (mm) | 120 |
| Fan speed @ 100% PWM / 12V (rpm) | 2500 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 76.7 / 130.31 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 3.96 |
| Lighting | - |
| Noise level @ 100% PWM / 12V (dB(A)) | 31.2 |

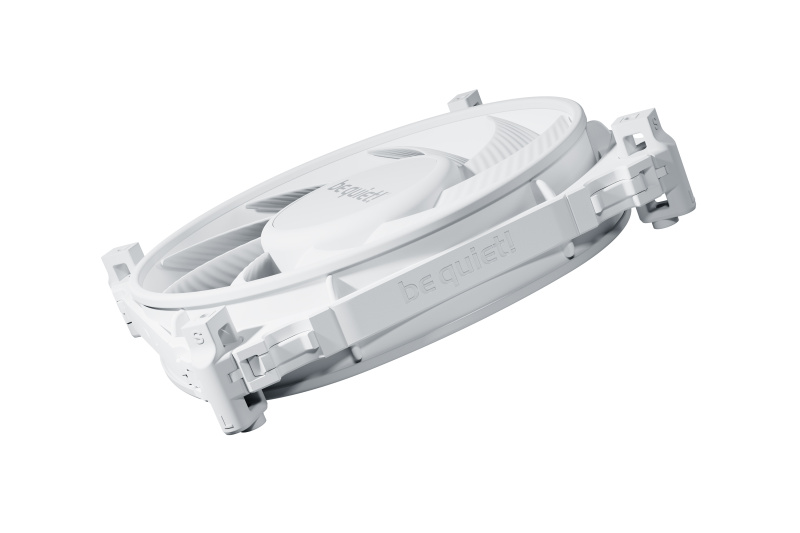

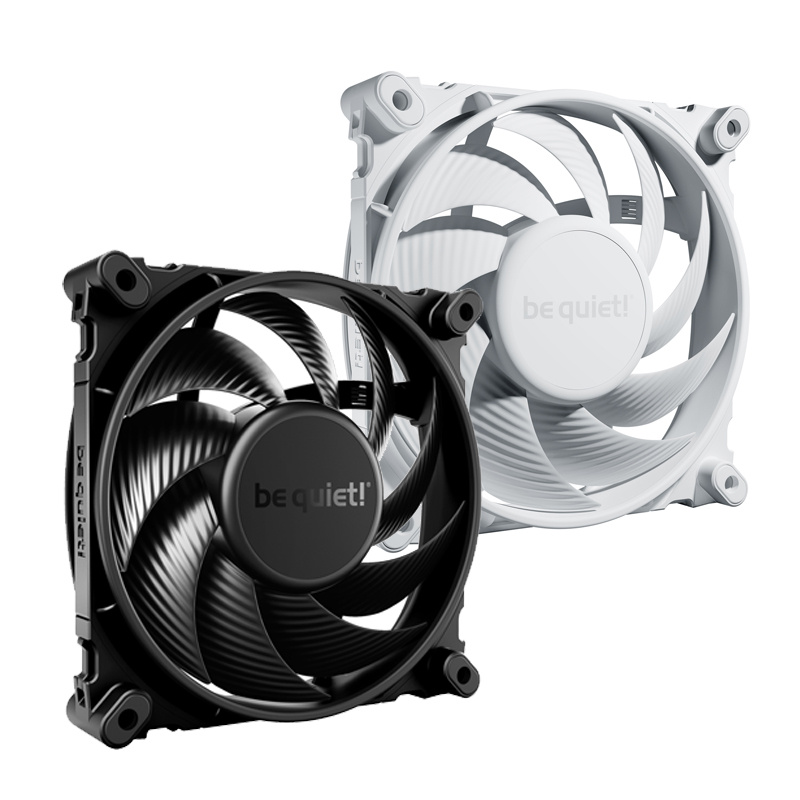

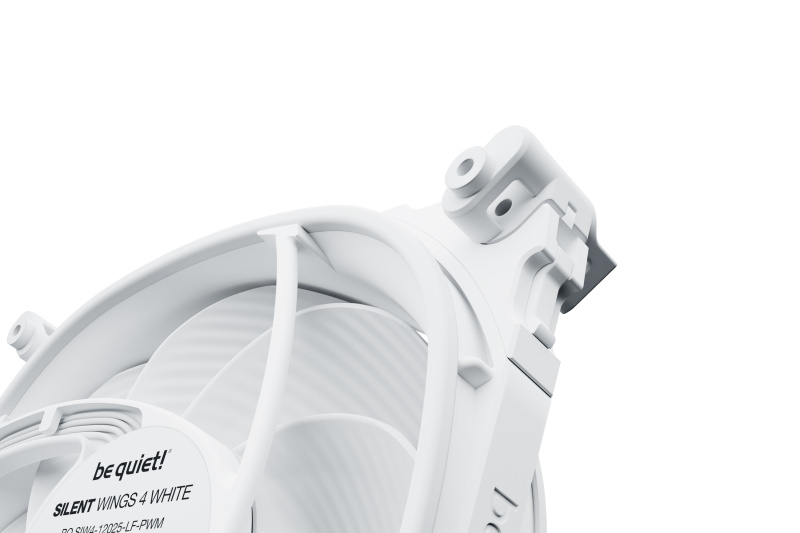

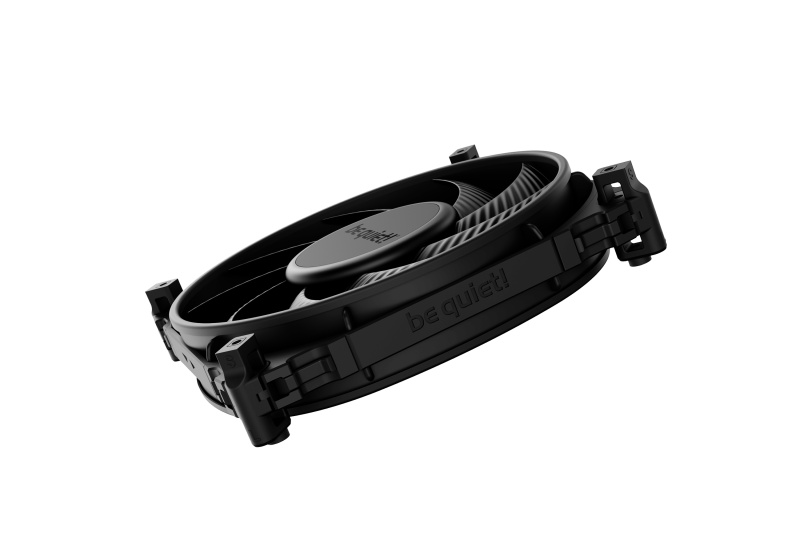

| Color option | Black / White |

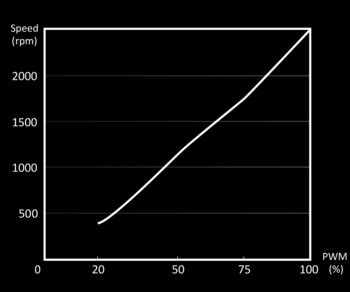

Infographics
Mechanical specifications

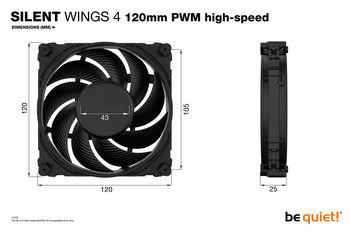

| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Weight incl. fixed cables (kg) | 0.190 |

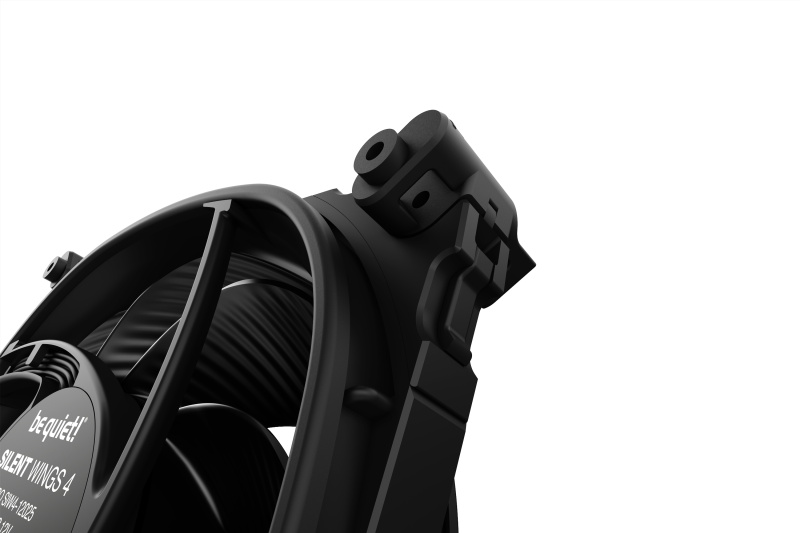

| Push pin fixing | ✓ |
| Screw fixing | ✓ |
Cables / Connectors
| Y-cable for lighting signal | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
Performance / Noise
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 76.7 / 130.31 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 3.96 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31.2 |
| Lifespan (h / 25°C) | 300,000 |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.20 |
| Safety current (A) | 0.22 |
| Input power (W) | 2.4 |
| Rated Current LED (A) | - |

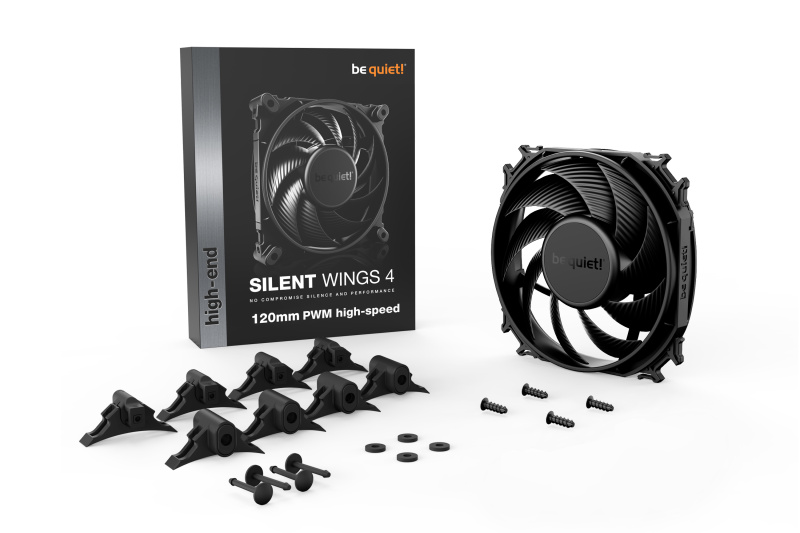

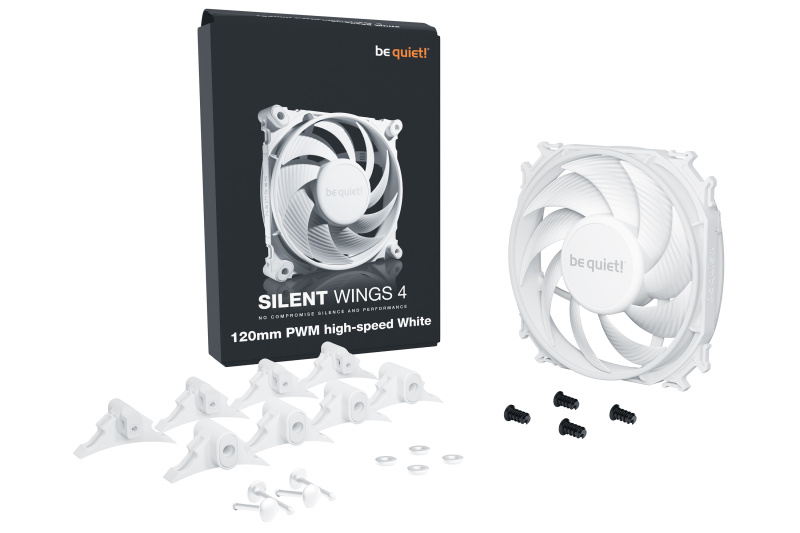

Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | 4 |
| hard plastic washer | - |
| Others | Rubber & hard plastic mountings |
Safety certification
| Approvals | CE / RoHs / RU / UKCA / TÜV / WEEE |
Service
| Warranty (Years) | 5 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data, RRP
| Article number | BL094 |
| EAN code | 4260052188866 |
| Dimensions, package (L x W x H), (mm) | 192 x 141 x 31 |
| Gross weight, package (kg) | 0.346 |
| Pieces per packaging unit | 40 |
| Dimensions, shipping box (L x W x H), (mm) | 432 x 387 x 375 |
| Gross weight, shipping box (kg) | 15.04 |
