Product Specifications

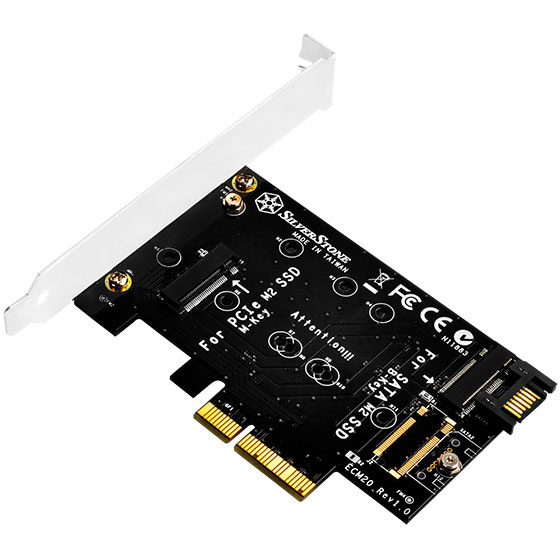

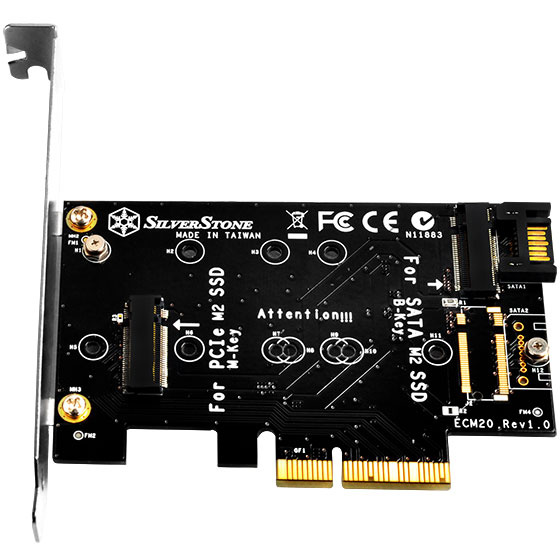

Model No.
SST-ECM20
Interface

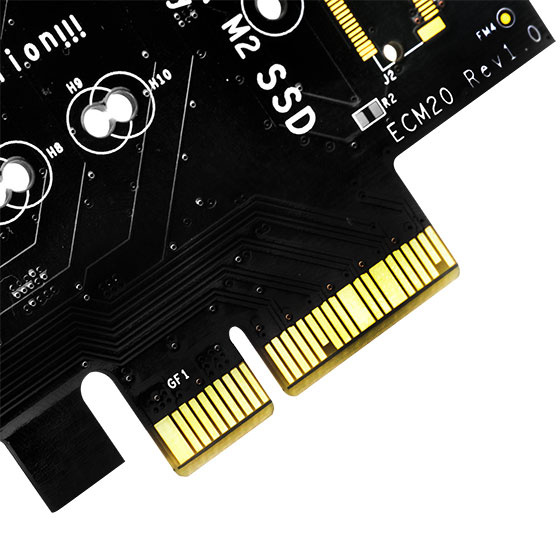

PCI Express X4 / SATA 6Gbps
SSD Interface
M.2(NGFF)
Number of Drives
2
Support Length of M.2 SSD
22x30mm, 22x42mm, 22x60mm, 22x80mm
Module Key

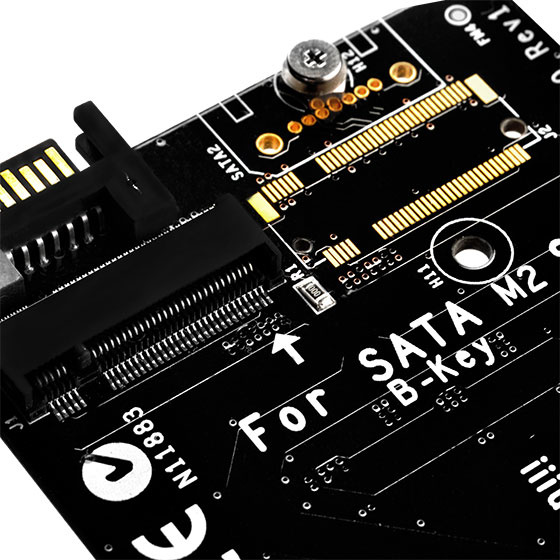

SATA-based B key

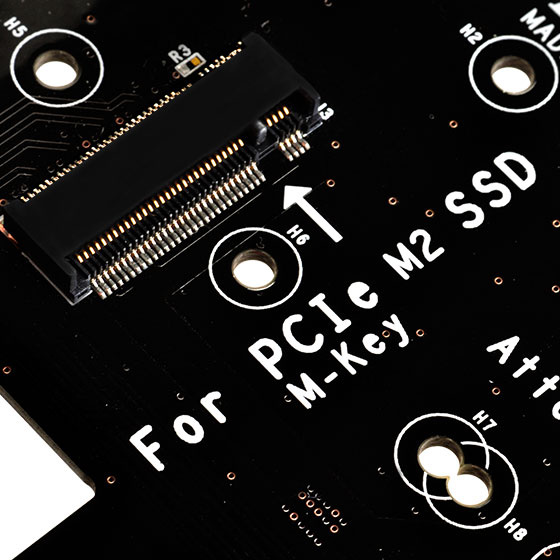

PCI-E 4X-based M key
Note: ECM20’s 'M' key is for use only with PCI-E SSD, 'B' key is for use with only SATA SSD.

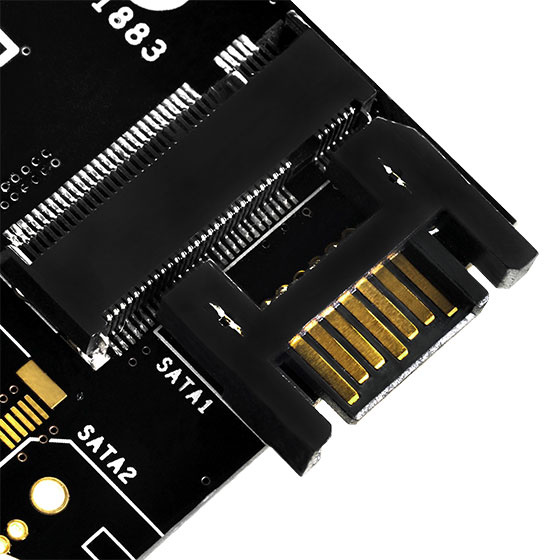

Note: B key SSD requires SATA 7 pin cable connected to motherboard to function.
Note : M.2 PCIe-NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) / AMD 300 series (A320 B350 X370) or higher version chipset motherboard with Windows 8 or higher version operating system.
Note : If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
