Product Specifications
Model No.
SST-TP05B
Material
Aluminum
Color
Black
M.2 length support
2280 (22mm x 80mm)

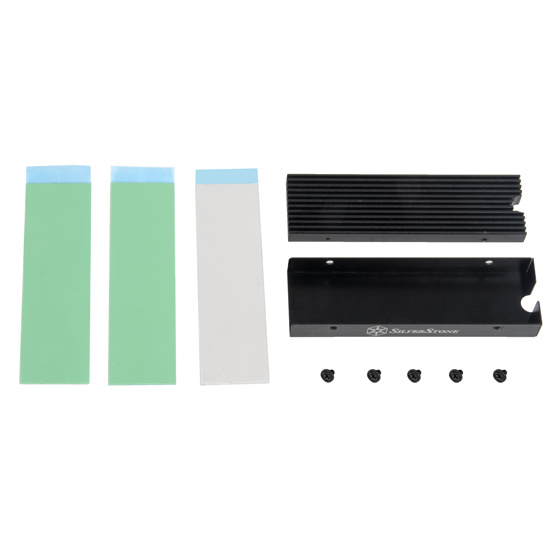

Thermal pad thickness
0.5mm x 2
1.75mm x 1
Thermal conductivity
0.5mm = 1.8W/m.k,
1.75mm = 1.5W/m.k
Dimension
Gross weight: 76.4mm (W) x 24.8mm (H) x 10.3mm (D), 23.5g
Thermal pad 1: 70mm (W) x 0.5mm (H) x 20mm (D), 1.5g
Thermal pad 2 : 70mm (W) X 1.75mm (H) X 20mm (D), 5.25g

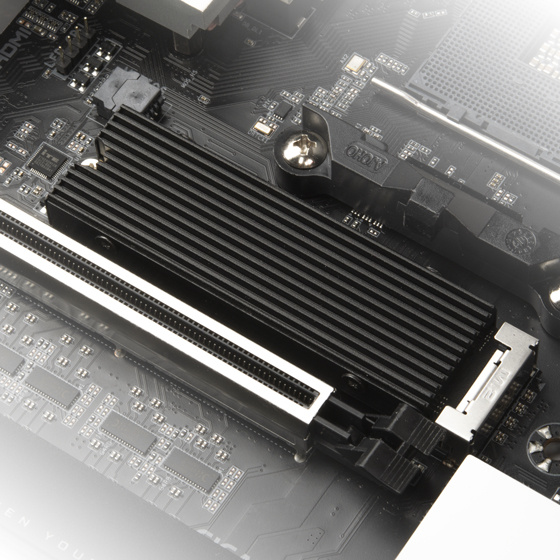

* If the M.2 slot on the motherboard is situated next to a PCIe slot, the height of the TP05 ‘s heatsink may interfere with graphic card or expansion card installation, we recommended installing TP05 onto other available M.2 slots on the motherboard to avoid interference issue.
