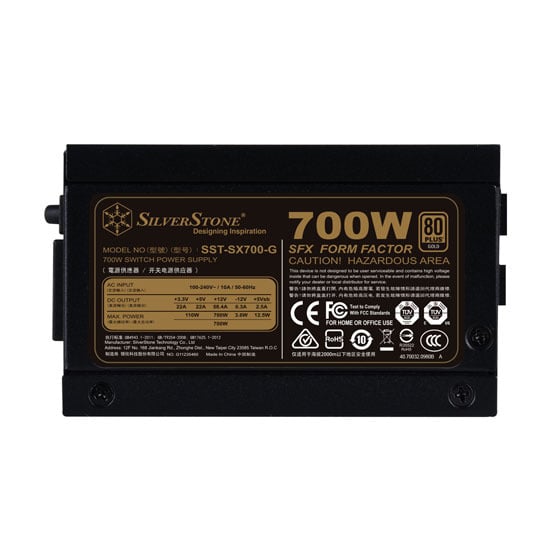

Product Specifications
Product No.
SST-SX700-G
Color
Black（Lead-Free Paint）
Max. DC Output
700W
Power density
882W per liter
Load Range
Combined +3.3V & +5V
110W
Combined +12V
700W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection

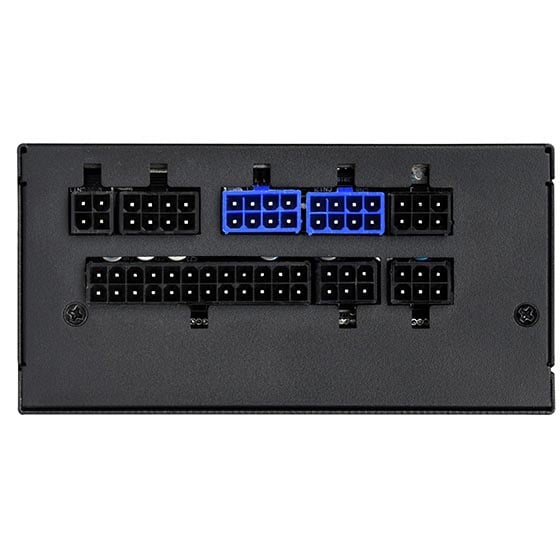

Connectors
V1.0
1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)

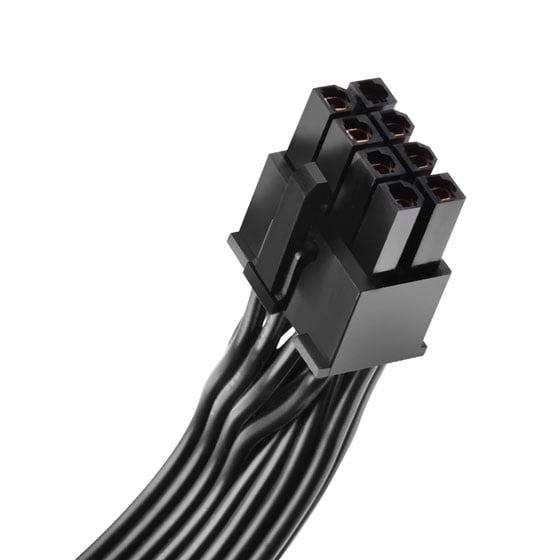

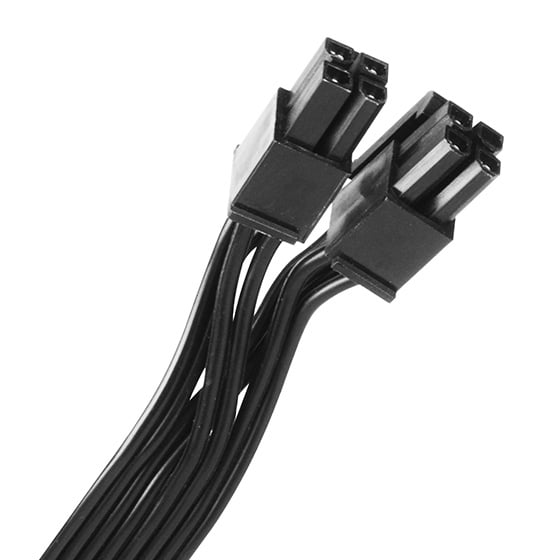

2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)

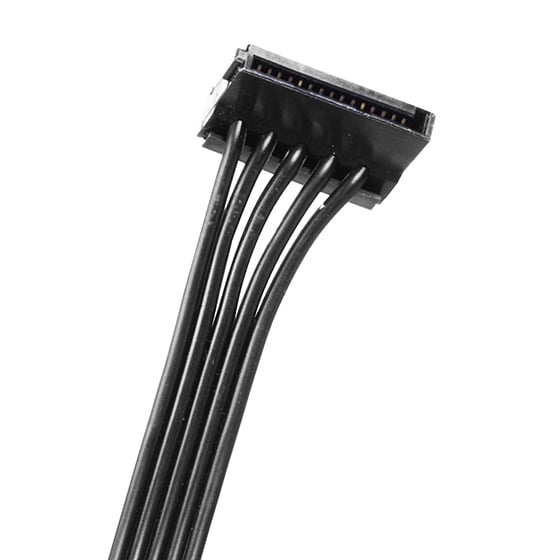

6 x SATA connector ("300mm / 200mm / 100mm" x 2)

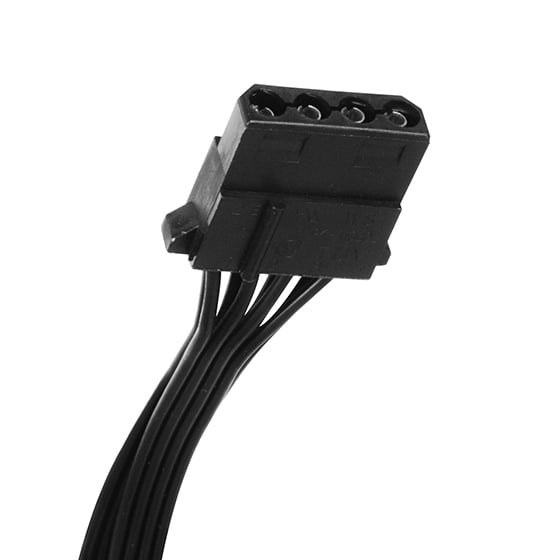

3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)

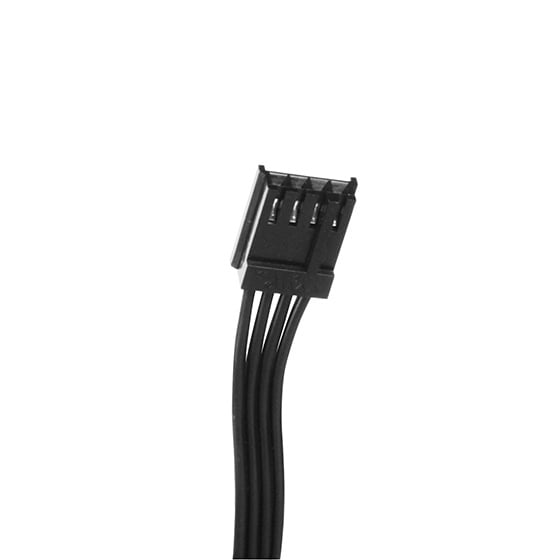

1 x 4-Pin Floppy connector (100mm)
V1.1

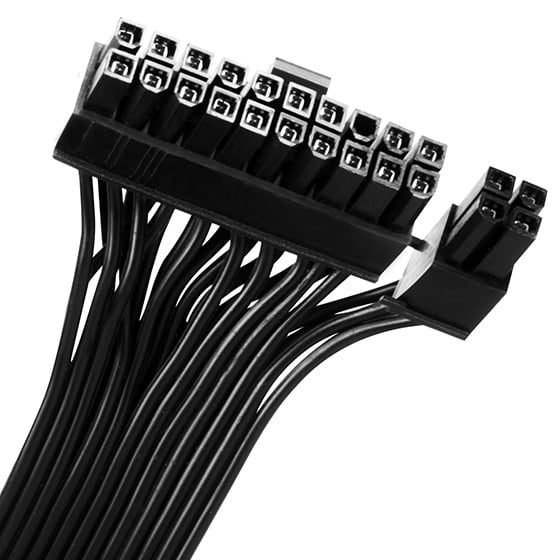

1 x 24 / 20-Pin motherboard connector (300mm)

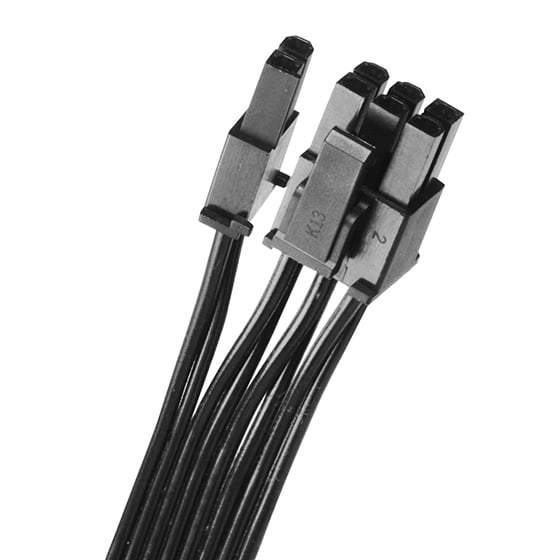

*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector ("300mm / 200mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)

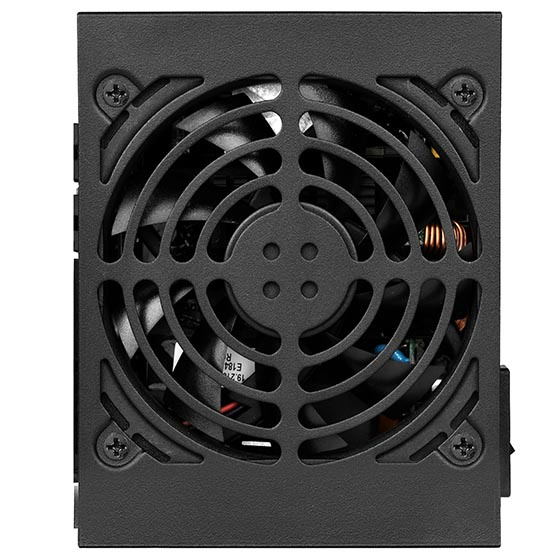

Cooling System

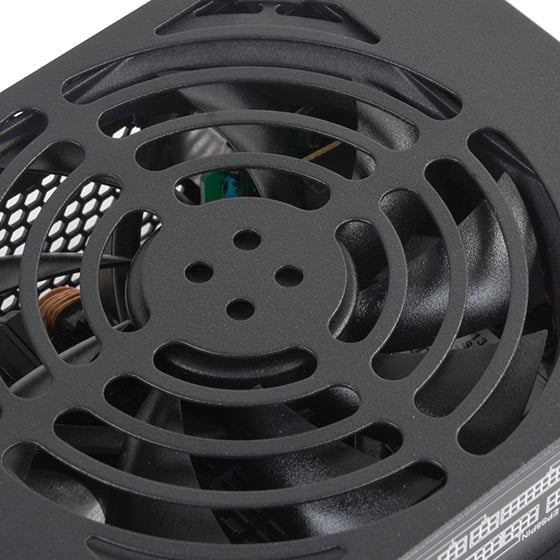

Single 92mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
SFX
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
Weight
1.4 Kg
Other
GPU Support list
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.

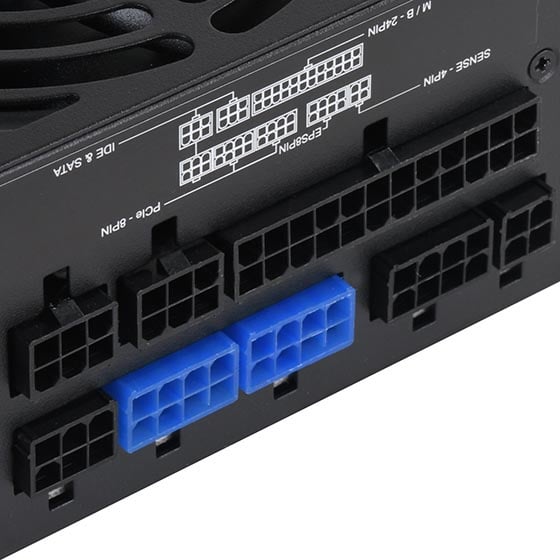

This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
Product No.
SST-SX700-G
Color
Black（Lead-Free Paint）
Max. DC Output
700W
Power density
882W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 22A | 22A | 58.4A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
110W
Combined +12V
700W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
V1.0
1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector ("300mm / 200mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
V1.1
1 x 24 / 20-Pin motherboard connector (300mm)
*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (400mm / 150mm)
2 x 8 / 6-Pin PCIe connector (550mm / 150mm)
6 x SATA connector ("300mm / 200mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
Cooling System
Single 92mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
SFX
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
Weight
1.4 Kg
Other
GPU Support list
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
