Product Specifications
Product No.
SST-SX750-PT
Model (safety certification)
SST-SX750-PT
Color
Black（Lead-Free Paint）
Max. DC Output
750W
Power density
945W per liter
Load Range
Combined +3.3V & +5V
120W
Combined +12V
750W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89% ~ 92% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Over Current Protection
Connectors
1 x 24 / 20-Pin motherboard connector（300mm）

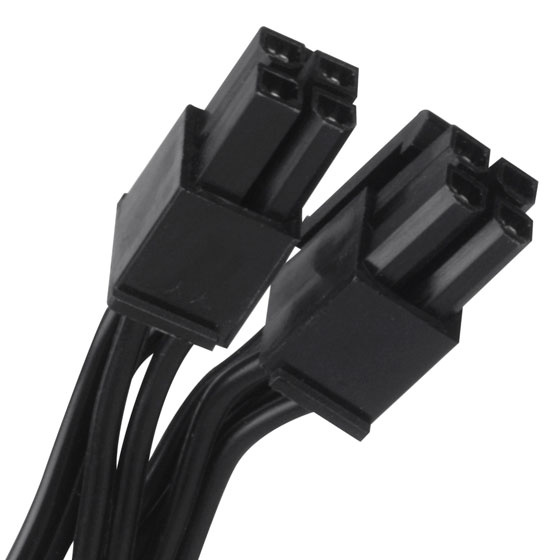

1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
2 x 8 / 4-Pin EPS / ATX 12V connector（400mm / 150mm）

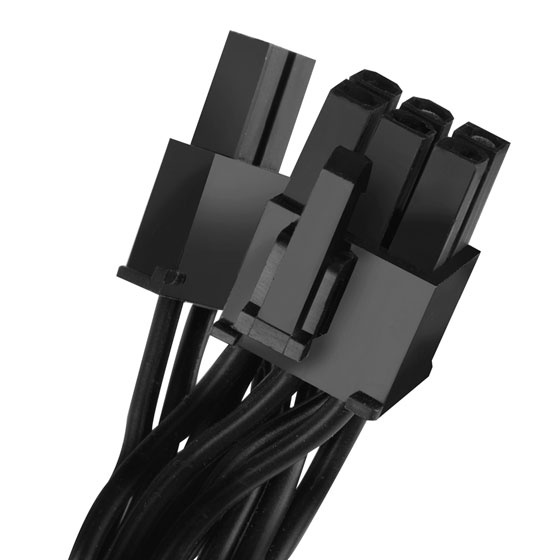

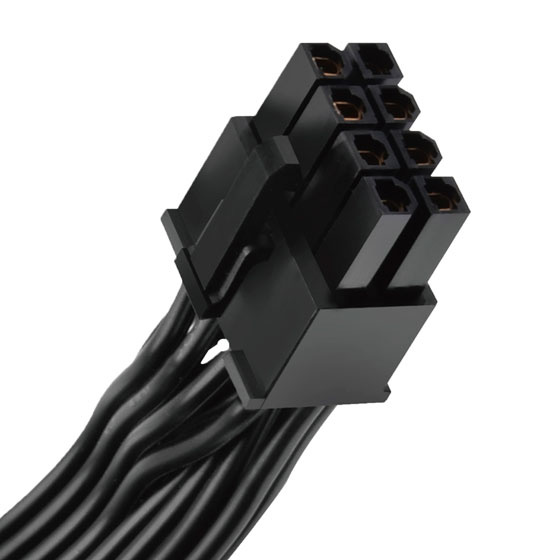

4 x 8 / 6-Pin PCIE connector（”400mm / 150mm” x 2）
8 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 2）

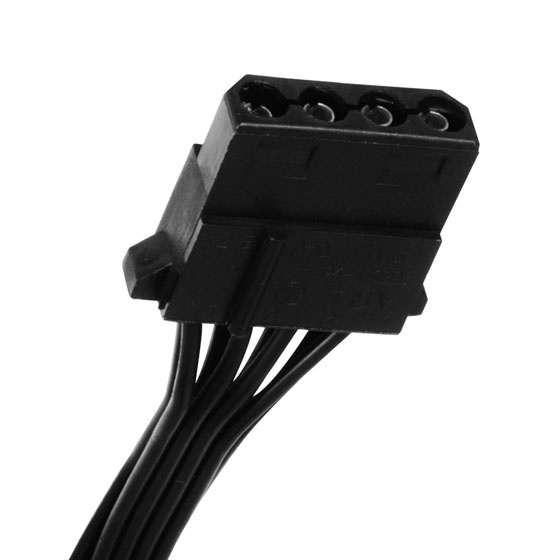

3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）

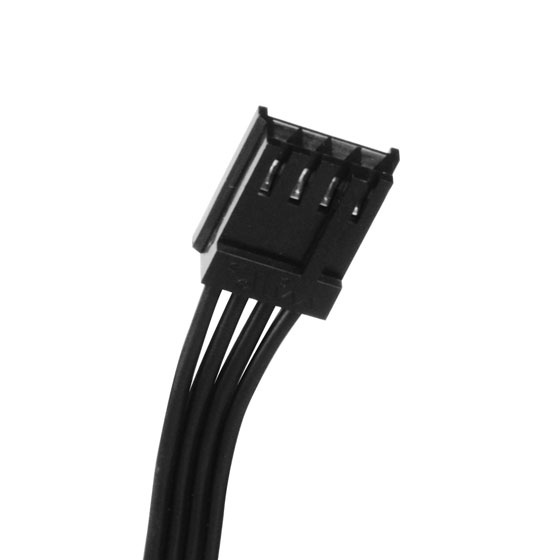

1 x 4-Pin Floppy connector（100mm）
Cooling System

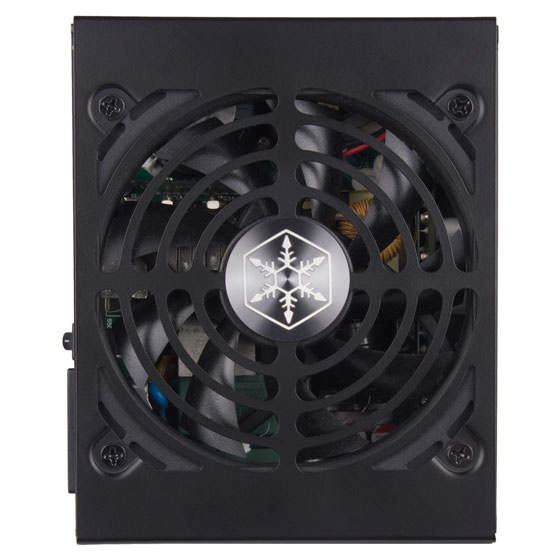

Single 92mm dual ball bearing fan
Noise Level
0 dBA minimum
Certification
80 PLUS Platinum
Form factor
SFX
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
Weight
1.01 Kg
Other
GPU Support list
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.

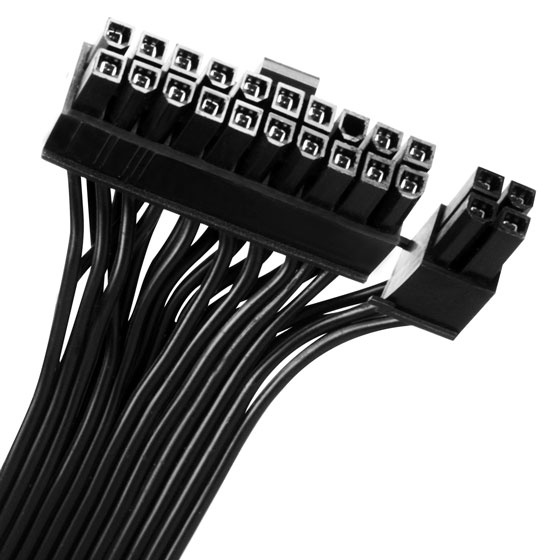

This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
Product No.
SST-SX750-PT
Model (safety certification)
SST-SX750-PT
Color
Black（Lead-Free Paint）
Max. DC Output
750W
Power density
945W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 62.5A | 3A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 50mV | 80mV |
Combined +3.3V & +5V
120W
Combined +12V
750W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89% ~ 92% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Over Current Protection
Connectors
1 x 24 / 20-Pin motherboard connector（300mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
2 x 8 / 4-Pin EPS / ATX 12V connector（400mm / 150mm）
4 x 8 / 6-Pin PCIE connector（”400mm / 150mm” x 2）

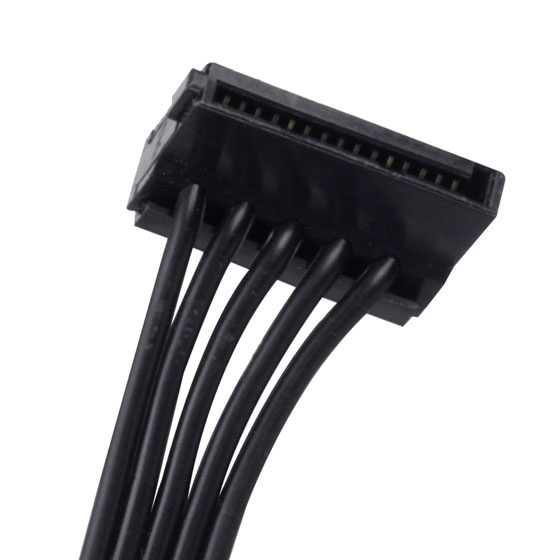

8 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 2）
3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）
1 x 4-Pin Floppy connector（100mm）

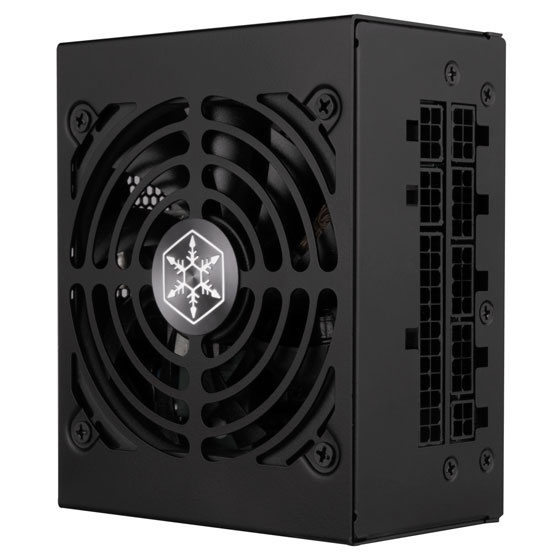

Cooling System
Single 92mm dual ball bearing fan
Noise Level
0 dBA minimum
Certification
80 PLUS Platinum
Form factor
SFX
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
Weight
1.01 Kg
Other
GPU Support list
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.

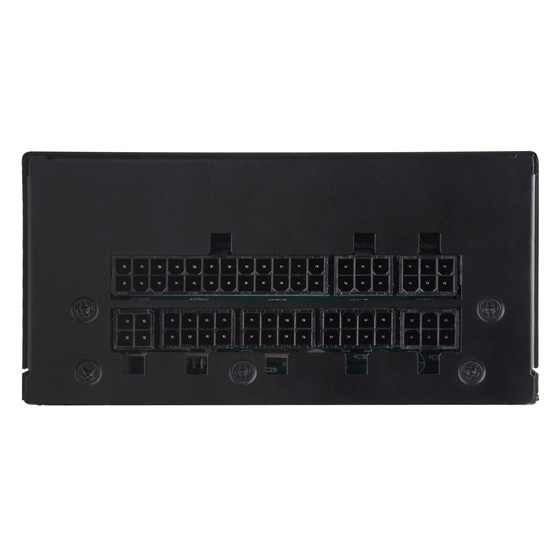

This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
