Specifications
- 3.5"/2.5" Universal drive brackets
6 included, 14 positions total - Dedicated 2.5" drive brackets
2 trays included, 4 positions total - 5.25” drive mounts
1 - Expansion slots
7 + 2 - Front ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button - Total fan mounts
9 x 120/140 mm - Front fan
3 x 120/140 mm (2 x Dynamic X2 GP-14 included) - Top fan
3 x 120/140 mm - Rear fan
1 x 120/140 mm (1 x Dynamic X2 GP-14 included) - Bottom fan
2 x 120/140 mm - Dust filters
Top, 2 x front, full length bottom - Fixed velcro straps
Yes - Cable routing grommets
Yes - Captive thumbscrews
HDD brackets, SSD brackets, PSU bracket - Left side panel
Industrial sound-damped steel or Tempered Glass - Right side panel
Industrial sound-damped steel
Compatibility
- Motherboard compatibility
E-ATX (max 285 mm) / ATX / mATX / mITX - Power supply type
ATX - PSU max length
250 mm (with HDD cage installed) - GPU max length
Storage layout: 290 mm - Open layout: 470 mm (445 mm w/ front fan) - CPU cooler max height
185 mm - Front radiator
Up to 360/280 mm - Top radiator
Up to 360/420 mm - Rear radiator
120 mm - Bottom radiator
Up to 240/280 mm - Cable routing space
30 mm - Vertical GPU Support (with Flex B-20 or Flex VRC-25)
65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
Dimensions
- Case dimensions (LxWxH)
547 x 240 x 475 mm - Case dimensions w/o feet/protrusions/screws
533 x 240 x 451 mm - Package dimensions (LxWxH)
558 x 363 x 641 mm - Net weight
Solid Version: 13.49 kg, TG Version: 13.45 kg - Package weight
Solid Version: 15.98 kg TG Version: 15.94 kg - Volume
57.7 liters
Other
- Warranty
2 Years - Package contents

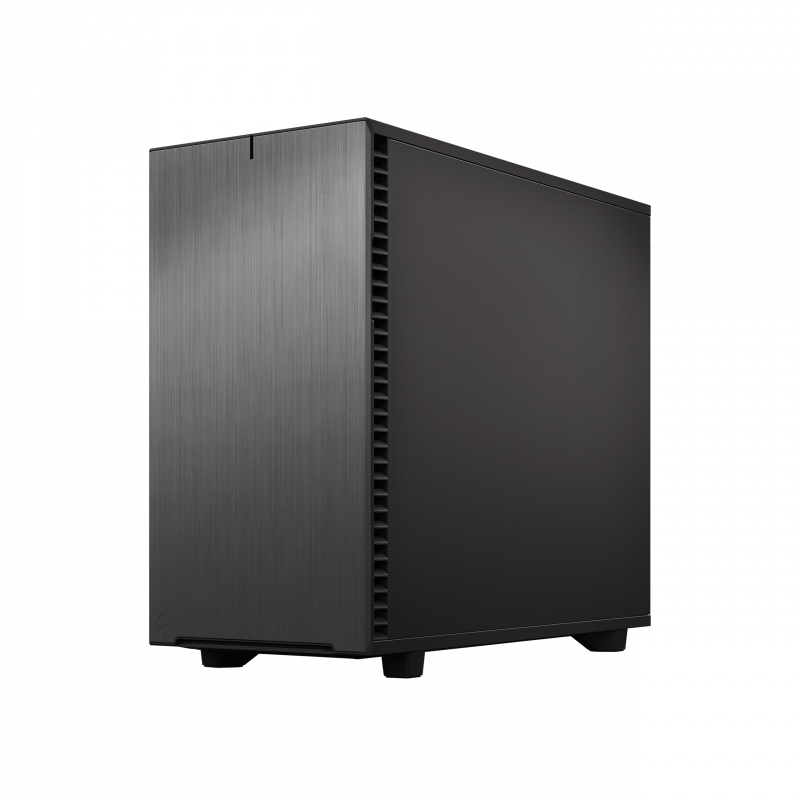

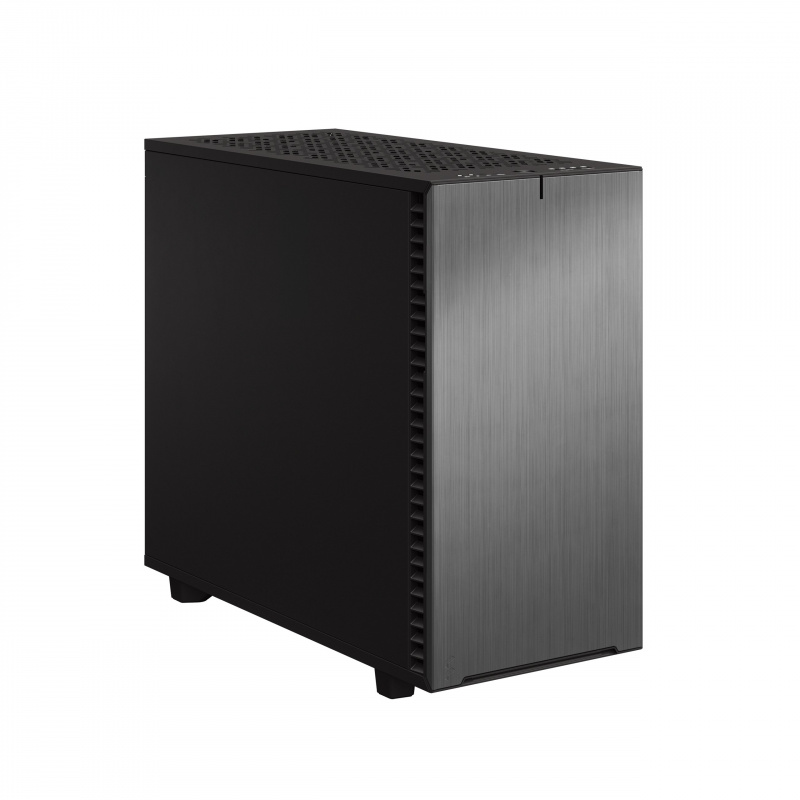

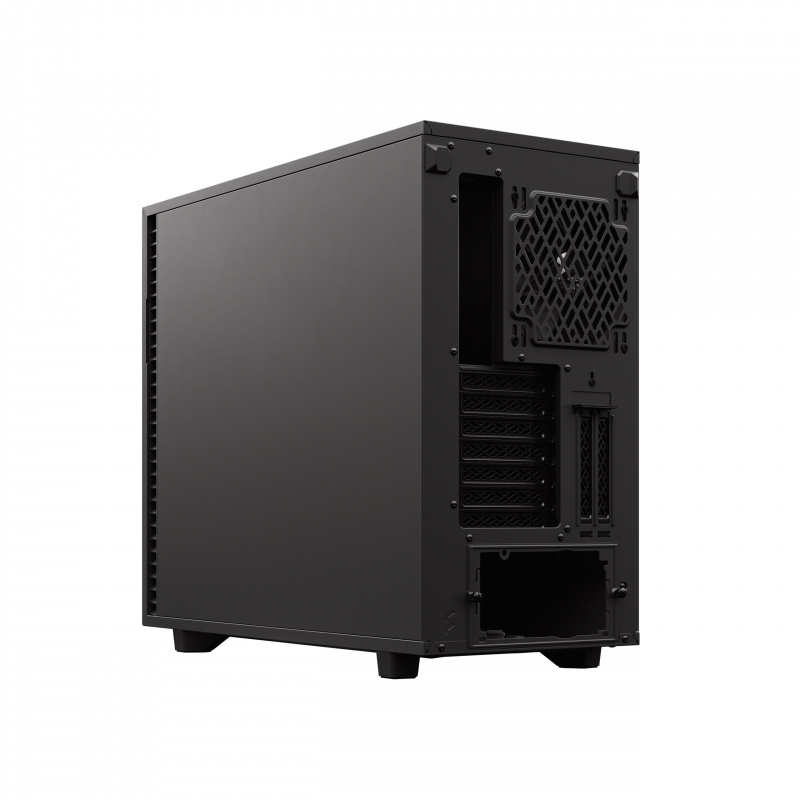

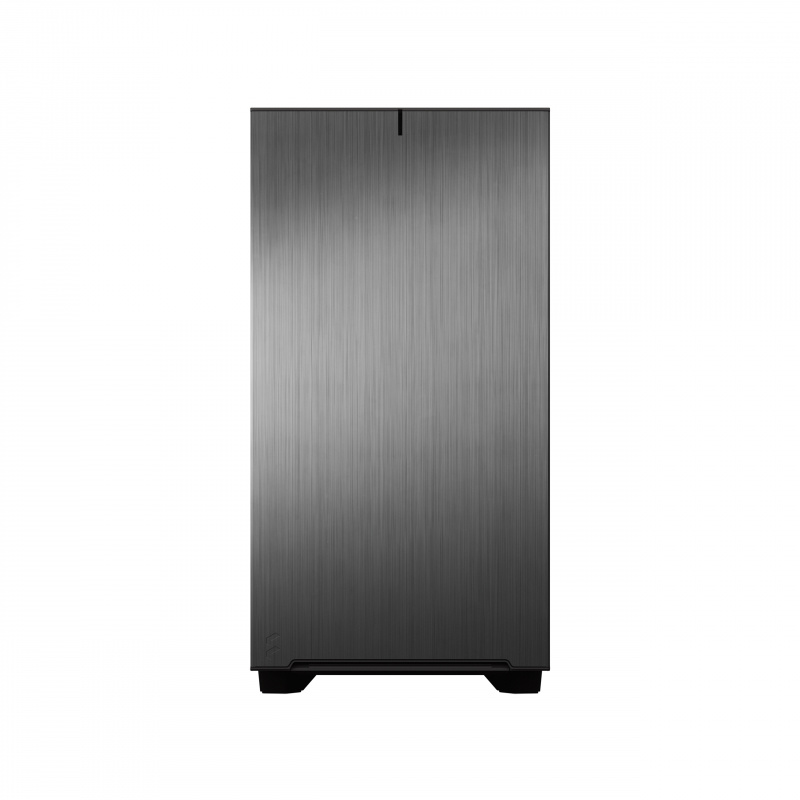

Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6) - Define 7 Black Solid
SKU: FD-C-DEF7A-01 EAN: 7340172702191 UPC: 843276102197 JAN: 4537694275842 - Define 7 Black TG Light Tint
SKU: FD-C-DEF7A-02 EAN: 7340172702207 UPC: 843276102203 JAN: 4537694275859 - Define 7 Black TG Dark Tint
SKU: FD-C-DEF7A-03 EAN: 7340172702214 UPC: 843276102210 JAN: 4537694275866 - Define 7 Black/White TG Clear Tint
SKU: FD-C-DEF7A-05 EAN: 7340172702238 UPC: 843276102234 JAN: 4537694275880 - Define 7 White Solid
SKU: FD-C-DEF7A-09 EAN: 7340172702276 UPC: 843276102272 JAN: 4537694276184 - Define 7 White TG Clear Tint
SKU: FD-C-DEF7A-06 EAN: 7340172702245 UPC: 843276102241 JAN: 4537694275897 - Define 7 Gray Solid
SKU: FD-C-DEF7A-07 EAN: 7340172702252 UPC: 843276102258 JAN: 4537694275903 - Define 7 Gray TG Light Tint
SKU:FD-C-DEF7A-08 EAN: 7340172702269 UPC: 843276102265 JAN: 4537694275910
