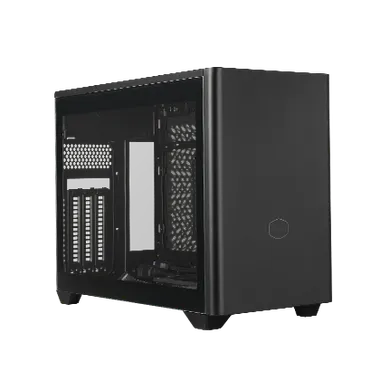

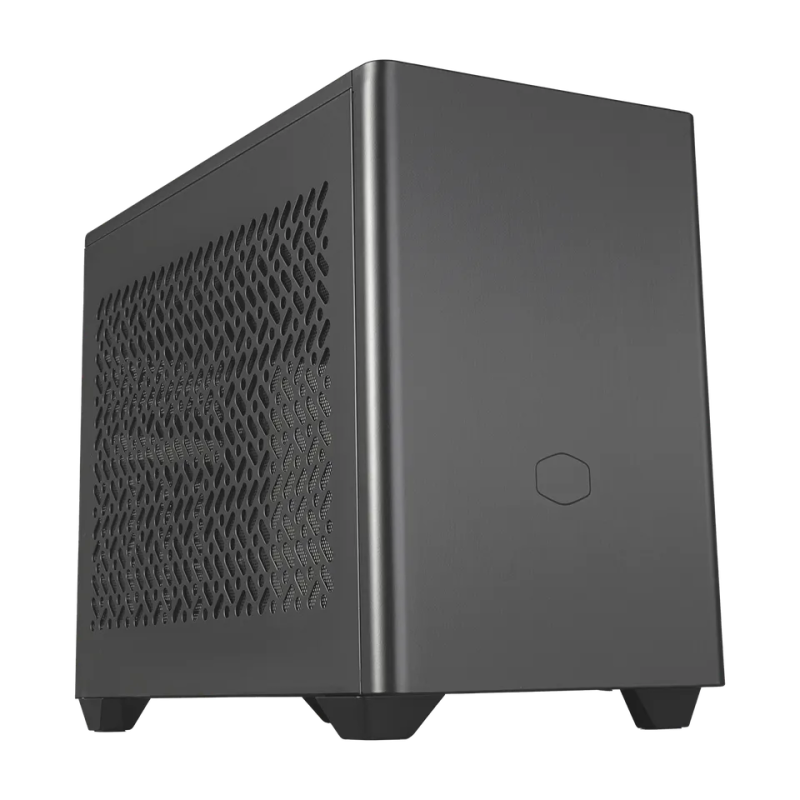

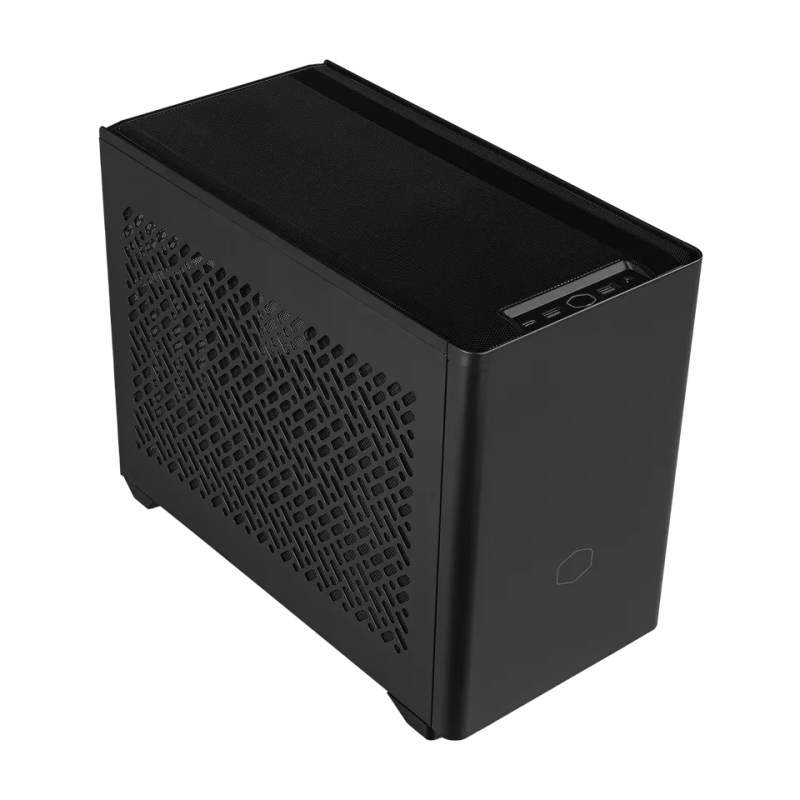

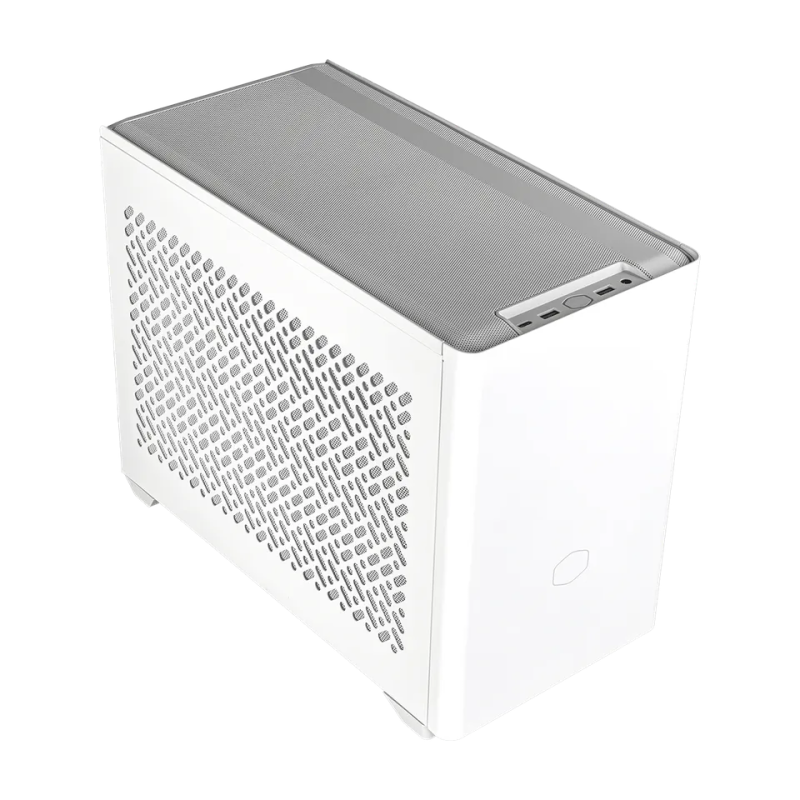

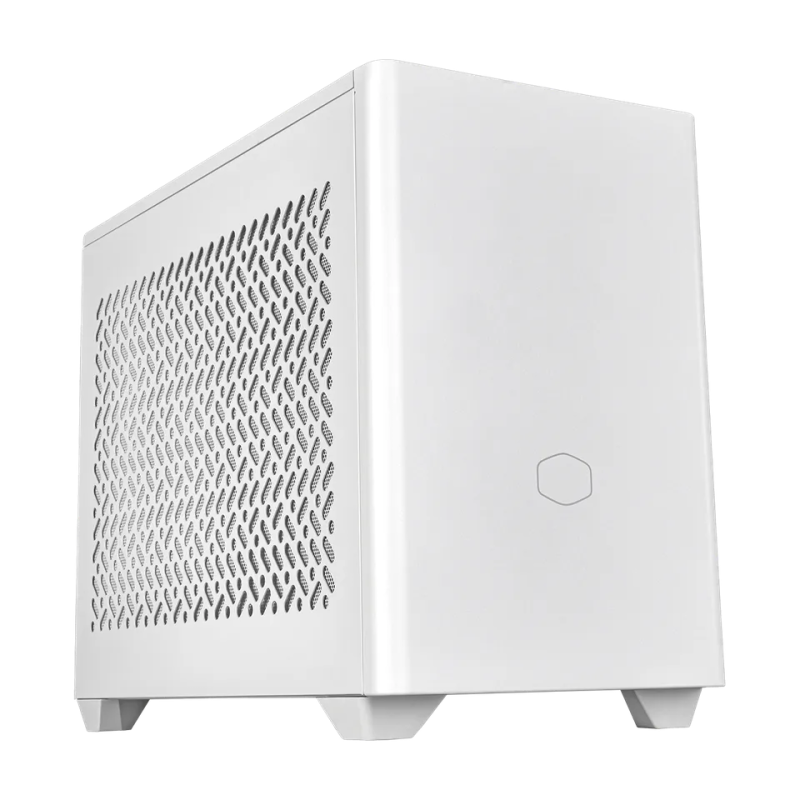

Model NumberMasterBox NR200P V2: NR200PV2-KCNN-S00, MasterBox NR200P V2 White: NR200PV2-WCNN-S00

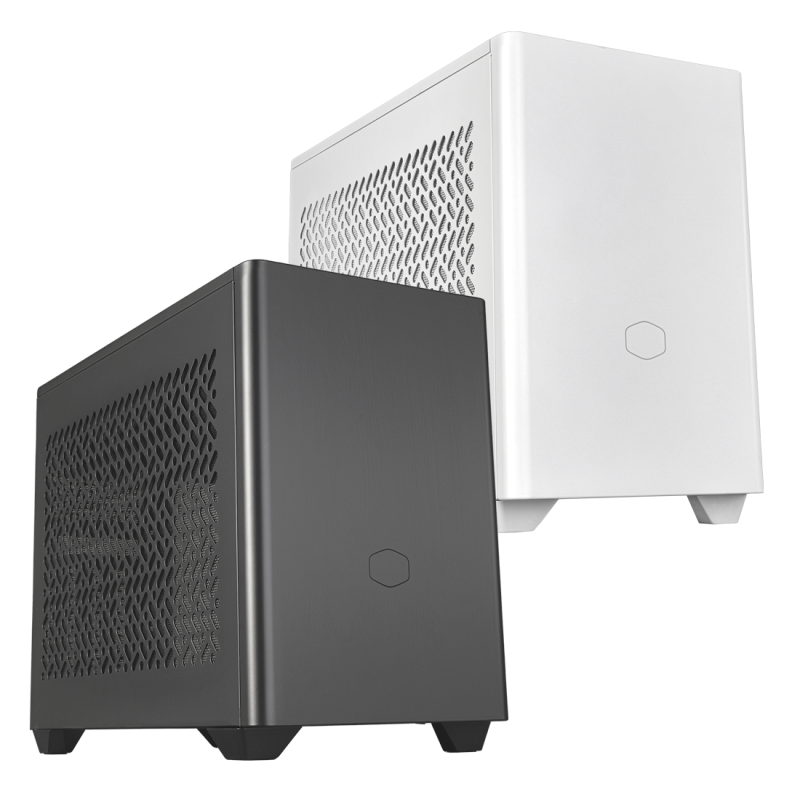

Exterior ColorBlack, White / Grey
Materials - ExteriorSGCC Steel, Mesh, ABS Plastic
Materials - Left Side PanelTempered Glass x1, Steel x1
Dimensions (L x W x H)372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
Volume18.25L
Motherboard SupportMini-ITX, Max. size: 170 x180mm
Expansion Slots3
5.25" Drive Bays0
3.5" Drive Bays1 (Max. 2, remove bottom fan)
2.5" / 3.5" Drive Bays (Combo)1
2.5" Drive Bays1 (Max. 2)

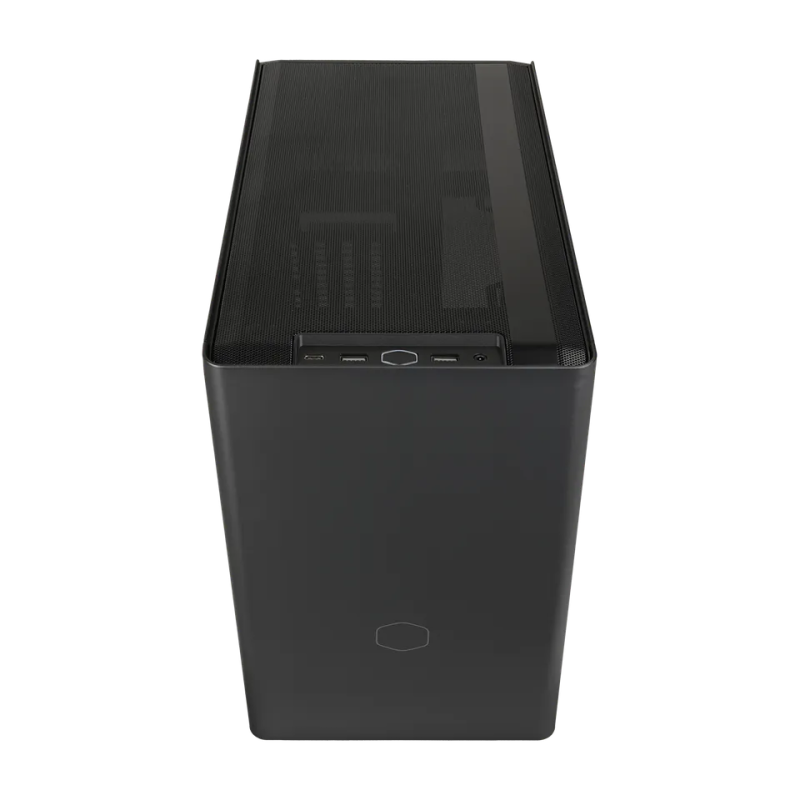

I/O Panel - USB Ports2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)
Included Accessories1x PCIe 4.0 x16 riser cable, 1x GPU Holder
Pre-installed Fans - TopN/A
Pre-installed Fans - FrontN/A
Pre-installed Fans - RearN/A
Pre-installed Fans - Bottom1x 120mm 650~1800rpm PWM SickleFlow
Fan Support - Top2x 120/140mm
Fan Support - SideN/A
Fan Support - RearN/A
Fan Support - Bottom2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
Radiator Support - Top120 / 140 / 240 / 280mm
Radiator Support - SideN/A
Radiator Support - RearN/A
Radiator Support - BottomN/A
Clearance - CPU Cooler67mm
Clearance - PSU130mm
Clearance - GFXExceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
Dust FiltersBottom, Left, Right, Top Panels
Power Supply SupportSFX, SFX-L
Warranty2 years
SeriesMasterBox Series
SizeMini ITX
Exterior ColorBlack, White / Grey
Materials - ExteriorSGCC Steel, Mesh, ABS Plastic
Materials - Left Side PanelTempered Glass x1, Steel x1
Dimensions (L x W x H)372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
Volume18.25L
Motherboard SupportMini-ITX, Max. size: 170 x180mm
Expansion Slots3
5.25" Drive Bays0
3.5" Drive Bays1 (Max. 2, remove bottom fan)
2.5" / 3.5" Drive Bays (Combo)1
2.5" Drive Bays1 (Max. 2)
I/O Panel - USB Ports2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)
Included Accessories1x PCIe 4.0 x16 riser cable, 1x GPU Holder
Pre-installed Fans - TopN/A
Pre-installed Fans - FrontN/A
Pre-installed Fans - RearN/A
Pre-installed Fans - Bottom1x 120mm 650~1800rpm PWM SickleFlow
Fan Support - Top2x 120/140mm
Fan Support - SideN/A
Fan Support - RearN/A
Fan Support - Bottom2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
Radiator Support - Top120 / 140 / 240 / 280mm
Radiator Support - SideN/A
Radiator Support - RearN/A
Radiator Support - BottomN/A
Clearance - CPU Cooler67mm
Clearance - PSU130mm
Clearance - GFXExceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
Dust FiltersBottom, Left, Right, Top Panels
Power Supply SupportSFX, SFX-L
Warranty2 years
SeriesMasterBox Series
SizeMini ITX
