Product NumberNCORE 100 MAX: NR100-MNNN85-SL0, NR100-MNNN85-SL1
Product NumberNCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1

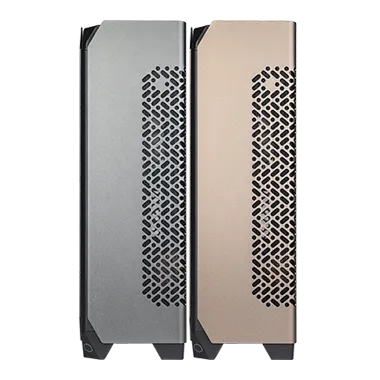

Exterior ColorNCORE 100 MAX: Dark grey
Exterior ColorNCORE 100 MAX Bronze Edition: Bronze
Materials - ExteriorSteel, Plastic, Aluminum
Materials - Side PanelAluminum
Dimensions (L x W x H)Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions)
Dimensions (L x W x H)Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions)
Dimensions (L x W x H)155mm x 212mm x 457mm (Excl. Protrusions)
Dimensions (L x W x H)172mm x 212mm x 457mm (Excl. Protrusions)
Volume15.80L (Normal mode)
Volume17.54L (Expansion mode)
Motherboard SupportITX
Expansion Slots3x PCIe Slot mounting
Drive Bays - 2.5" SSD1
I/O Panel2x USB 3.2 Gen1 Type A
I/O Panel1x USB 3.2 Gen2 x 2 Type C
I/O Panel1x Audio Combo (Audio In / Out 3.5mm)
Pre-Installed Accessories1x 240mm PCIe 4.0 x16
Pre-Installed CPU Cooling Solution120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
Pre-installed Power Supply UnitV SFX Gold 850W ATX 3.0
Pre-installed Fan(s) - Rear120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
Clearances - CPU Cooler48mm
Clearances - Power Supply100mm
Clearances - RAM48mm
Clearances - Graphics Card337mm x 62mm x 180mm (Normal, 3.0 Slot thick)
Clearances - Graphics Card357mm x 79mm x 180mm (Expansion, 3.9 Slot thick)
Clearances - Graphics Card(Maximum space including GPU power connector)
Cable Routing - Behind MB Tray11mm
Dust FiltersSide panels
Power Supply SupportSFX
Warranty2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
SizeMini ITX
Product NumberNCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1
Exterior ColorNCORE 100 MAX: Dark grey
Exterior ColorNCORE 100 MAX Bronze Edition: Bronze
Materials - ExteriorSteel, Plastic, Aluminum
Materials - Side PanelAluminum
Dimensions (L x W x H)Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions)
Dimensions (L x W x H)Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions)
Dimensions (L x W x H)155mm x 212mm x 457mm (Excl. Protrusions)
Dimensions (L x W x H)172mm x 212mm x 457mm (Excl. Protrusions)
Volume15.80L (Normal mode)
Volume17.54L (Expansion mode)
Motherboard SupportITX
Expansion Slots3x PCIe Slot mounting
Drive Bays - 2.5" SSD1
I/O Panel2x USB 3.2 Gen1 Type A
I/O Panel1x USB 3.2 Gen2 x 2 Type C
I/O Panel1x Audio Combo (Audio In / Out 3.5mm)
Pre-Installed Accessories1x 240mm PCIe 4.0 x16
Pre-Installed CPU Cooling Solution120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
Pre-installed Power Supply UnitV SFX Gold 850W ATX 3.0
Pre-installed Fan(s) - Rear120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
Clearances - CPU Cooler48mm
Clearances - Power Supply100mm
Clearances - RAM48mm
Clearances - Graphics Card337mm x 62mm x 180mm (Normal, 3.0 Slot thick)
Clearances - Graphics Card357mm x 79mm x 180mm (Expansion, 3.9 Slot thick)
Clearances - Graphics Card(Maximum space including GPU power connector)
Cable Routing - Behind MB Tray11mm
Dust FiltersSide panels
Power Supply SupportSFX
Warranty2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
SizeMini ITX
