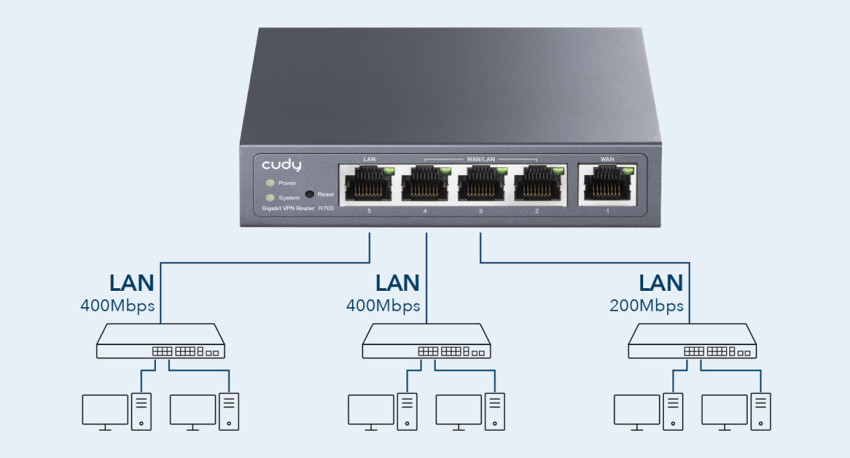

Flexible Traffic ControlBandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage. |
Internet Access Management StrategyStandardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). |
 |
 |
Multi-Wan Load BalancingIntelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port to raise the utilization rate of multi-line broadband allowing one device to satisfy various internet requirements. |

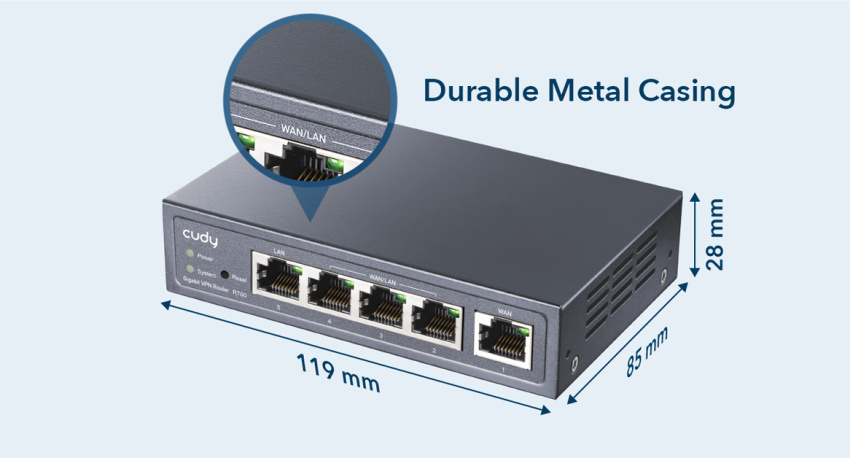

Compact Desktop DesignDurable metal casing and desktop/wall-mounting design suited for different environments. |
Specifications
| Product Model | R700 |

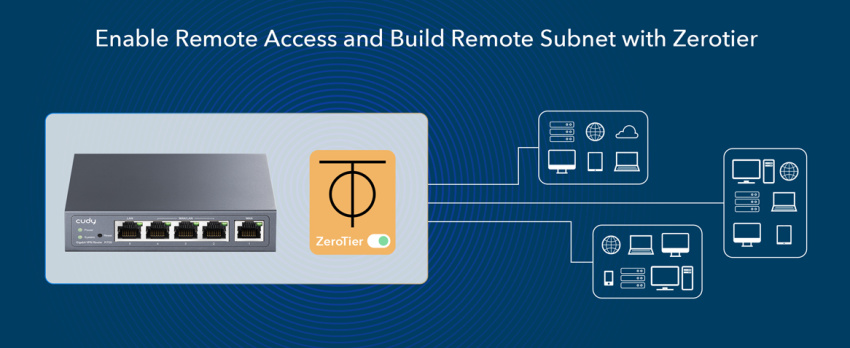

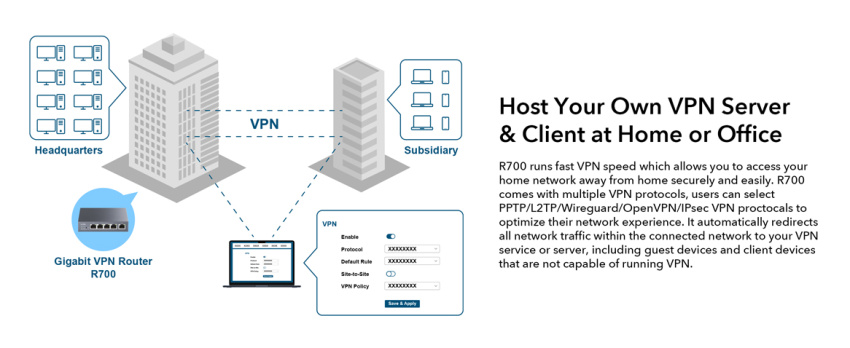

| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE,HTTP, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier |

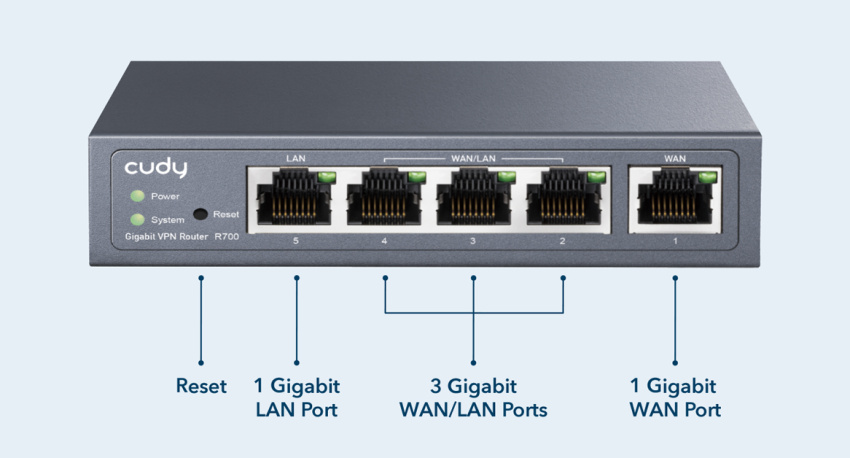

| Interface | 1 Gigabit WAN port 3 Gigabit LAN/WAN ports 1 Gigabit LAN ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | External 12V/1A DC Adapter |
| Flash | 16 MB NOR Flash |
| DRAM | 128 MB DDR |
| LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act) |
| Dimensions ( W x D x H ) | 119×85×28 mm |
