• Unique Feature
  Rock-Solid Durability
  - 2+1+1 Power Phase EZ Update
  - ASRock Auto Driver Installer
• CPU
  - Intel^® Quad-Core Processor N100 (Up to 3.4 GHz)
  - Supports Intel^® Turbo Boost Technology
• Memory
  - 1 x DDR4 DIMM Slot
  - Supports DDR4 non-ECC, un-buffered memory up to 3200
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 32GB
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - Integrated Intel^® UHD Graphics: 24 EUs inside (Up to 750MHz)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
  - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

  *The inbox driver for Windows^® 10 only supports 2-channel audio output. Please refer to the FAQ to check how to turn on the 5.1-channel audio output and any limitations.
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Realtek 8111H
• Slots
  - 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode*
  - 1 x M.2 Socket (Key E), supports type 2230 Intel^® CNVio (Integrated WiFi/BT)

  *Supports NVMe SSD as boot disks
• Storage
  - 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*
  - 2 x SATA3 6.0 Gb/s Connectors

  *Supports NVMe SSD as boot disks
• USB
  - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  - 8 x USB 2.0 (4 Rear, 4 Front)

  *All USB ports support ESD Protection
• Connector
  - 1 x Print Port Header
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 2 x Chassis Fan Connectors (4-pin)
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

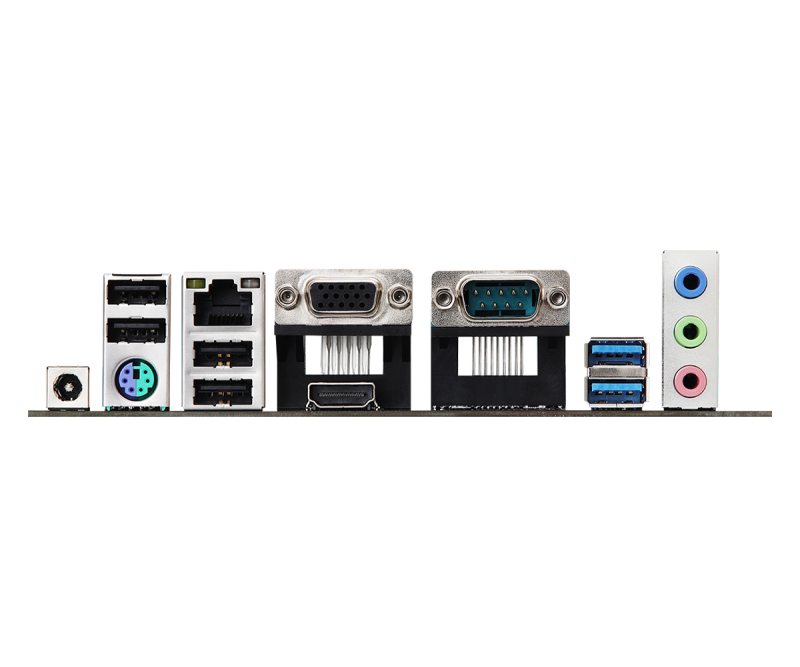

• Rear Panel I/O
  - 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
  - 2 x Antenna Mounting Points
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x Serial Port: COM1
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 2 x USB 3.2 Gen1 Ports
  - 4 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 1 x SATA Power Cable
  - 2 x Screws for M.2 Sockets
• Form Factor
  - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - Solid Capacitor design
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
