- Case Form Factor
Mid Tower - M/B Type
Mini ITX / Micro ATX / ATX / E-ATX - Color
Black / White - Materials
Steel, Plastic, Glass - Dimensions
H=486 W=220 D=473 mm (Within ± 1% error) - Expansion slots
7 - 5.25" Drive Bays
None - 3.5“/2.5” Drive Bays
2 - 2.5" Drive Bays
2 - I/O Panel

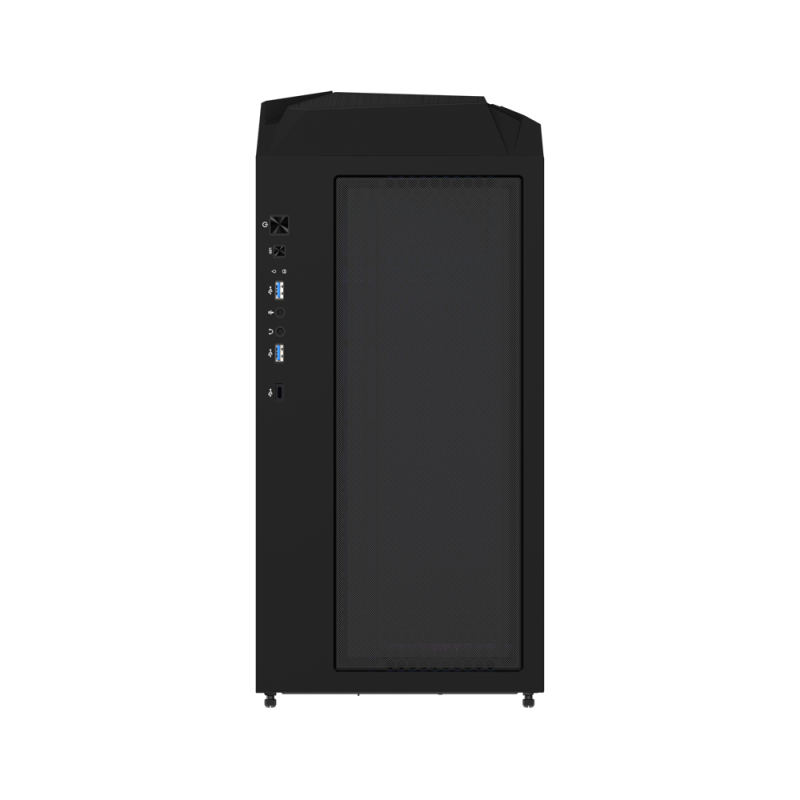

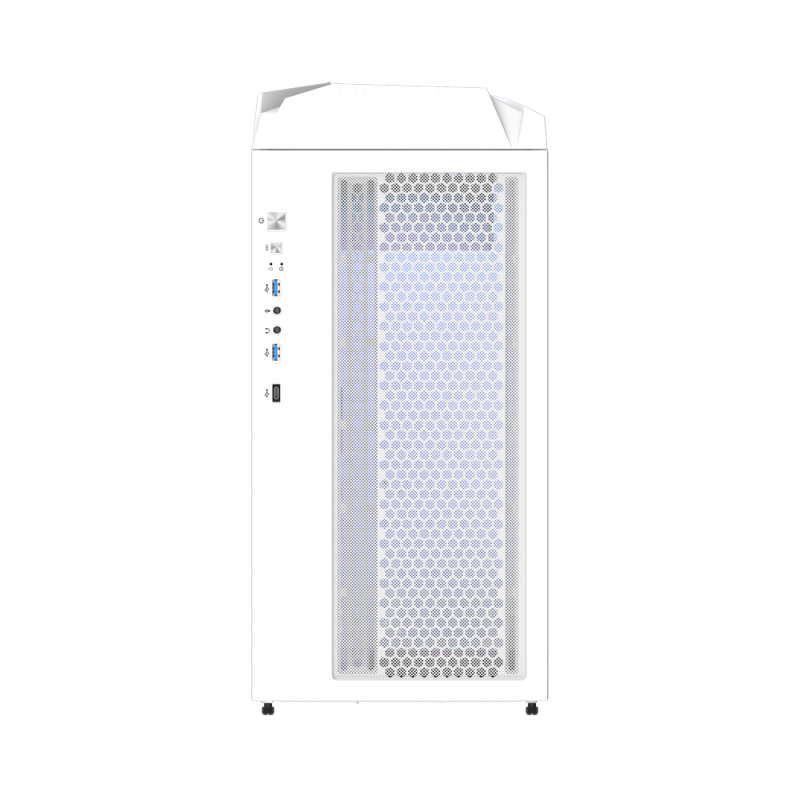

USB 3.1 Gen2 Type-C x1/ USB 3.0 x2 / Audio In & Out (supports HD Audio) / LED Switch - Pre-installed Fan

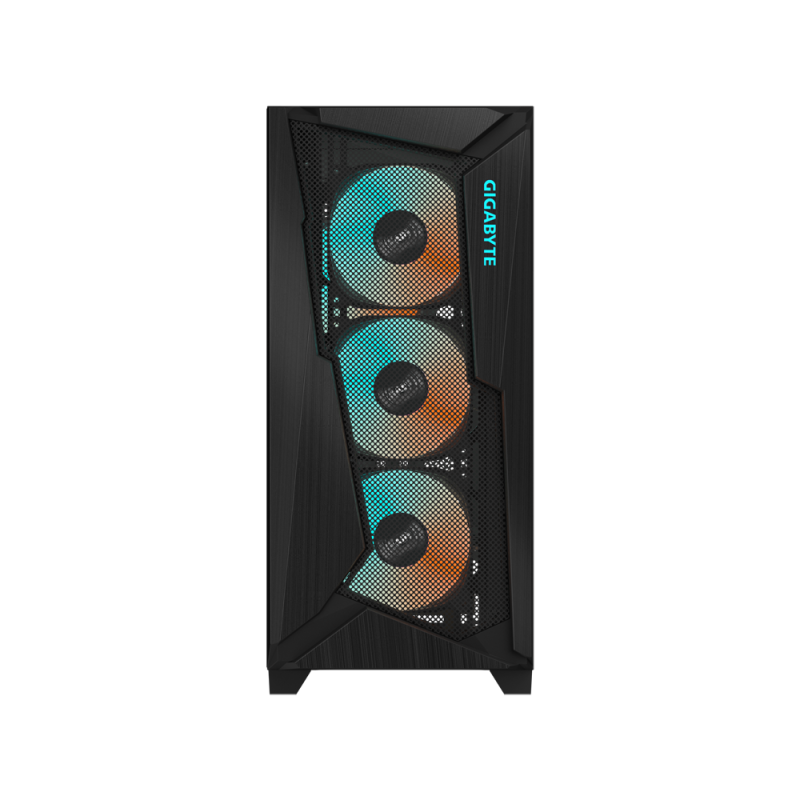

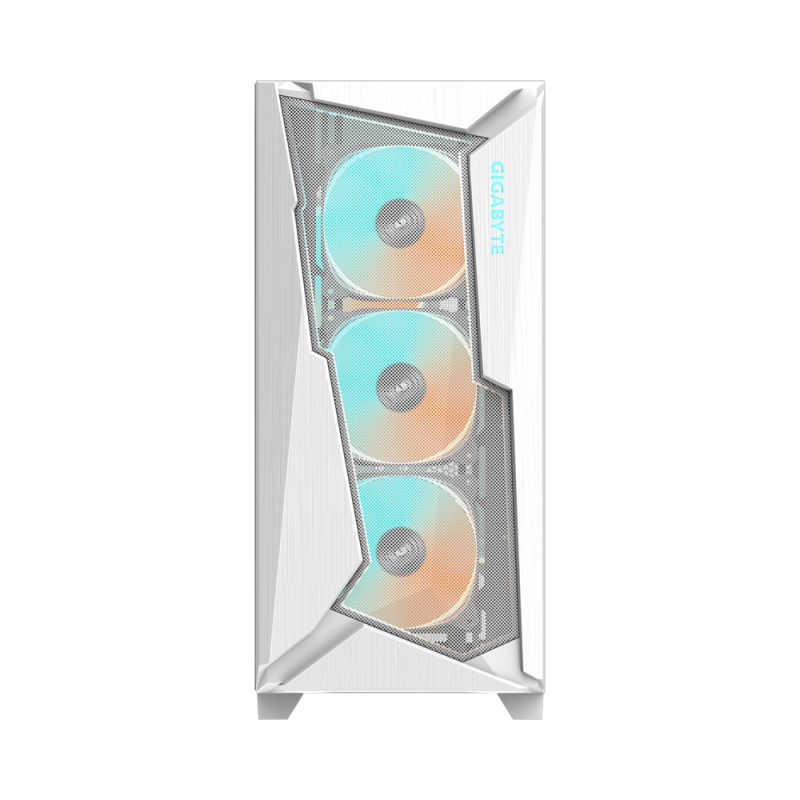

Front : 120mm x3 (ARGB & PWM)

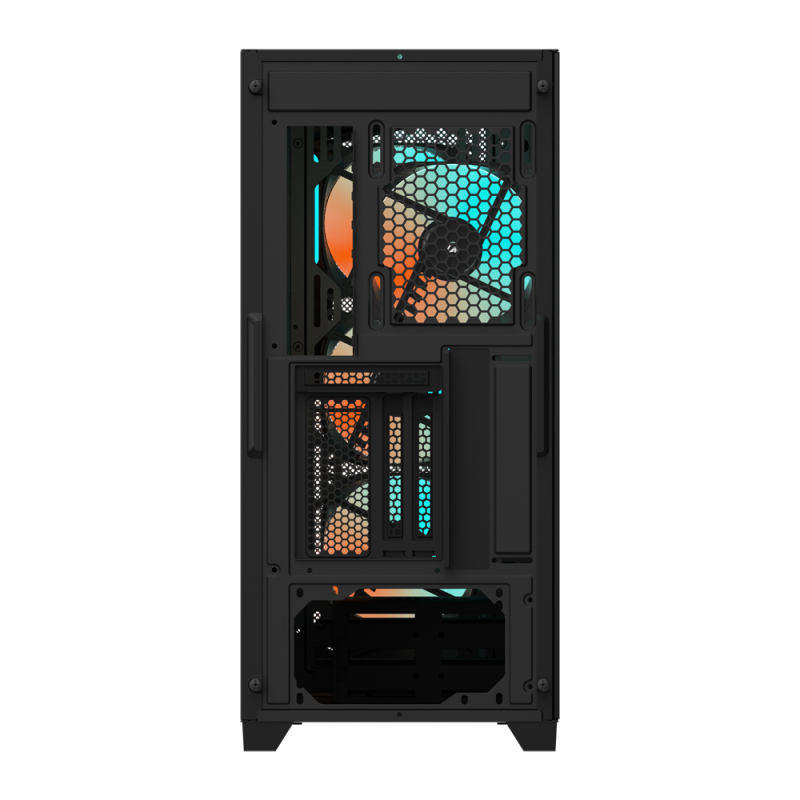

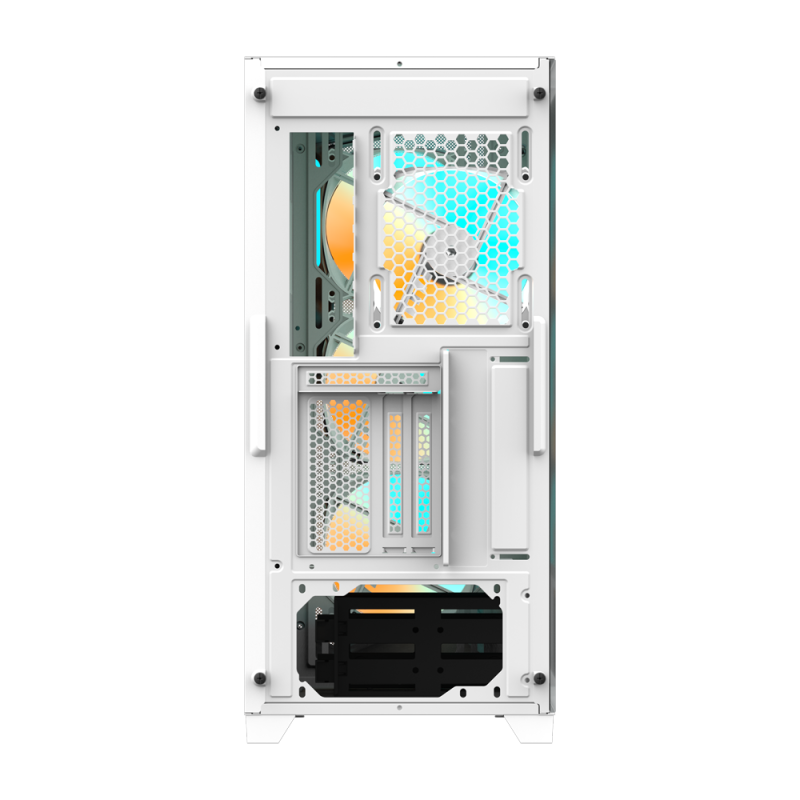

Rear : 120mm x1 (ARGB & PWM)
* Fan splitter cable included - Fan Support
Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1 - Radiator Support
Front : Max 360mm
Top : Max 360mm
Rear : Max 120mm - Power Supply Type
Standard ATX (Not included) - Maximum Compatibility
CPU Height : 170mm
GPU Length : 400mm
PSU Length : 180mm - Vertical GPU Mount
Yes (VGA holder bracket: 100mm total clearance)
*Requires PCIE Riser Cable - Dust Filters
Top, Bottom - RGB Lighting
Yes (Support RGB Fusion) - Weight
N.W. 7.8 Kg
G.W 9.0 Kg - Package Dimensions
H=530 W=282 D=530mm - Accessories
1.Manual
2.Accessories kit
