| 無線網路 | |
|---|---|
| Wi-Fi 速度 | BE3600 • 5 GHz: 2882 Mbps (802.11be) • 2.4 GHz: 688 Mbps (802.11be) |
| Wi-Fi 範圍 | 3 Bedroom Houses

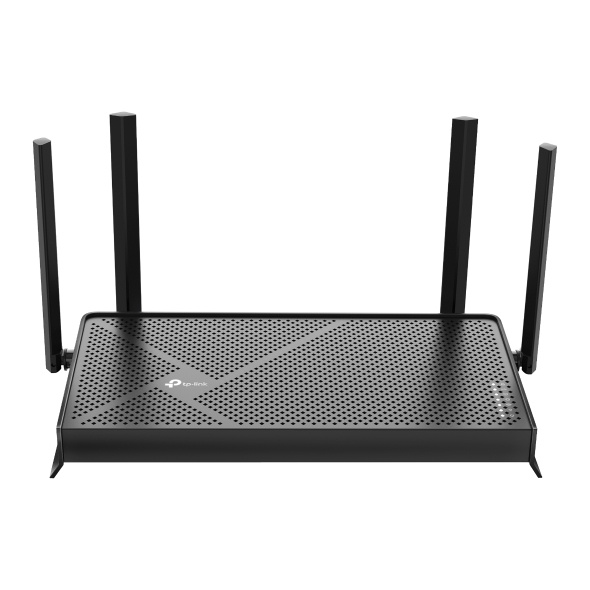

4× External Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| Wi-Fi 容量 | High
Dual-Band Allocate devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth |
| 進階功能 | • Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
| 無線模式 | • Router Mode • Access Point Mode |
| 安全性 | |
|---|---|
| 網路安全性 | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| 訪客網路 | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN 伺服器 | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| VPN 用戶端 | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| Wi-Fi 加密 | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| 硬體規格 | |
|---|---|

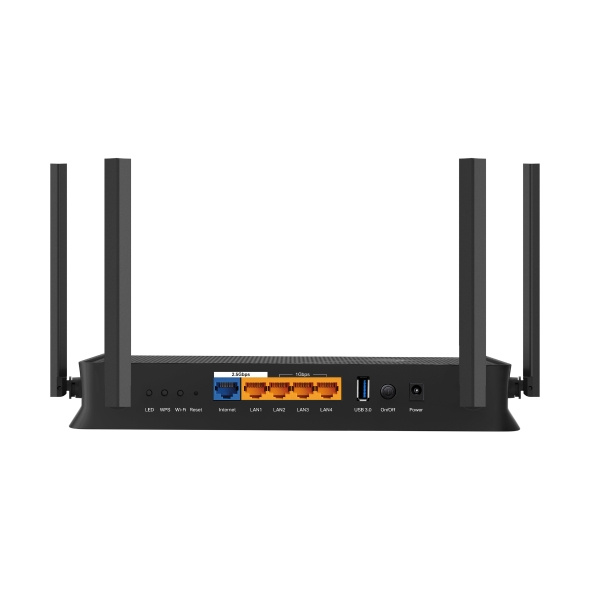

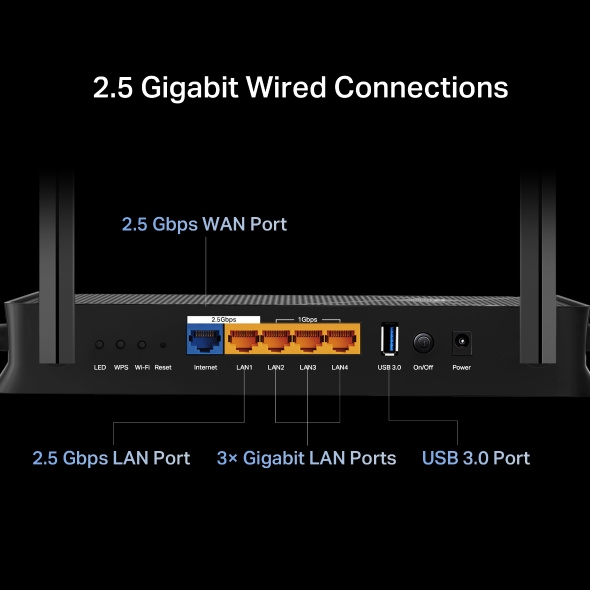

| 網路孔 | • 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
| 支援 USB | 1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| 按鈕 | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
| 電源 | 12 V ⎓ 2 A (US) 12 V ⎓ 1.5 A (EU) |
| 軟體 | |
|---|---|
| 協定 | • IPv4 • IPv6 |
| 服務工具 | HomeShield Learn More> |
| EasyMesh | Compatible with EasyMesh |
| 家長監護 | HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN 類型 | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| 服務品質 | QoS by Device |
| 雲端服務 | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT 轉發 | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| 管理 | • Tether App • Webpage |
| 其他 | |
|---|---|
| 系統需求 | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| 認證 | CE, FCC, RoHS |
| 環境 | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
