• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Dual Channel DDR5
  - USB4 Type-C Ports (40 Gb/s)
  Rock-Solid Durability
  - Server-Grade Low-Loss PCB
  - 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  Ultrafast Connectivity
  - 5G LAN, 802.11be Wi-Fi 7 Module
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
• CPU
  - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
  - Supports ASRock Hyper BCLK Engine

  * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)
• Chipset
  - AMD X870E
• Memory
  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*
  - Max. capacity of system memory: 256GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*

  *Please refer to Memory Support List on ASRock's website for more information.
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*

  * Only the CPU's embedded graphics can be displayed through USB4 ports.
  If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
• Audio
  - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  - WIMA Audio Capacitors (For Rear Outputs)
  - ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
  - Individual PCB Layers for R/L Audio Channel
  - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
  - Nahimic Audio
• LAN
  - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
  - Realtek RTL8126
• Wireless LAN
  - 802.11be 2x2 Wi-Fi 7 Module
  - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  - Supports 2.4GHz/5GHz/6GHz* frequency band
  - Supports 160MHz channel bandwidth with 6GHz* frequency band
  - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.4
  - Supports MU-MIMO

  * Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
• Slots
  CPU:
  - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
  Chipset:
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  - Supports AMD CrossFire™

  * PCIE1 and PCIE2 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
• Storage
  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 6 x SATA3 6.0 Gb/s Connectors

  * Supports NVMe SSD as boot disks
  M2_1 is the first priority for M.2 installation.
  M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
• RAID
  - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• USB
  CPU:
  - 2 x USB4 Type-C (Rear)
  - 2 x USB 3.2 Gen2 Type-A (Rear)
  Chipset:
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 3 x USB 3.2 Gen2 Type-A (Rear)
  - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)

  * All USB ports support ESD Protection
• Connector
  - 3 x Thermistor Cable Headers
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED

  * Supports in total up to 12V/3A, 36W LED Strip
  ** Support in total up to 5V/3A, 15W LED Strip
  *** CPU_FAN1 supports the fan power up to 1A (12W).
  CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
  CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

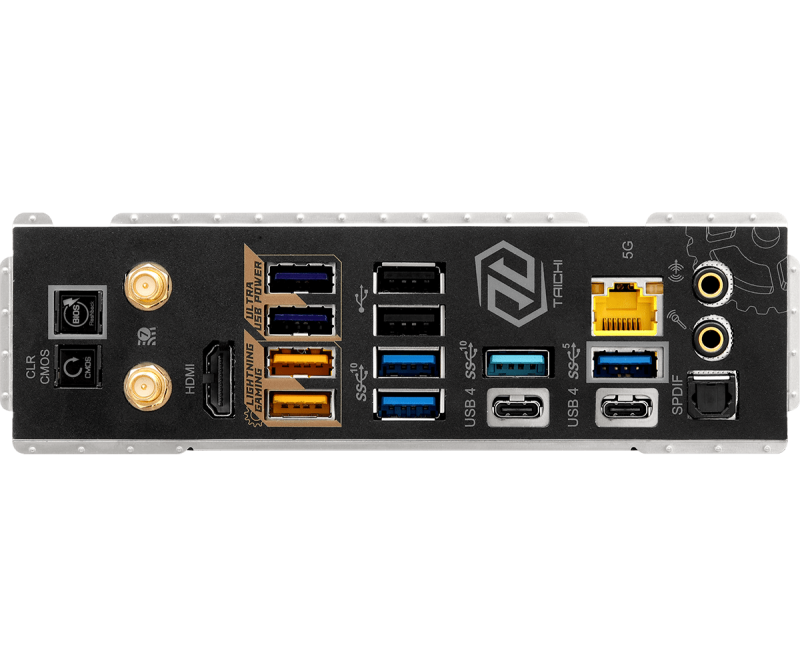

• Rear Panel I/O
  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x Optical SPDIF Out Port
  - 2 x USB4 Type-C Ports (40 Gb/s)*
  - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
  - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x Clear CMOS Button
  - 1 x BIOS Flashback Button
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)

  * Supports USB PD 3.0 up to 5V@3A (15W) charging
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Polychrome SYNC
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 4 x SATA Data Cables
  - 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  - 1 x ARGB Splitter Cable
  - 3 x Thermistor Cables
• Form Factor
  - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
  - 8 Layer PCB
  - 2oz Copper PCB
• OS
  - Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
