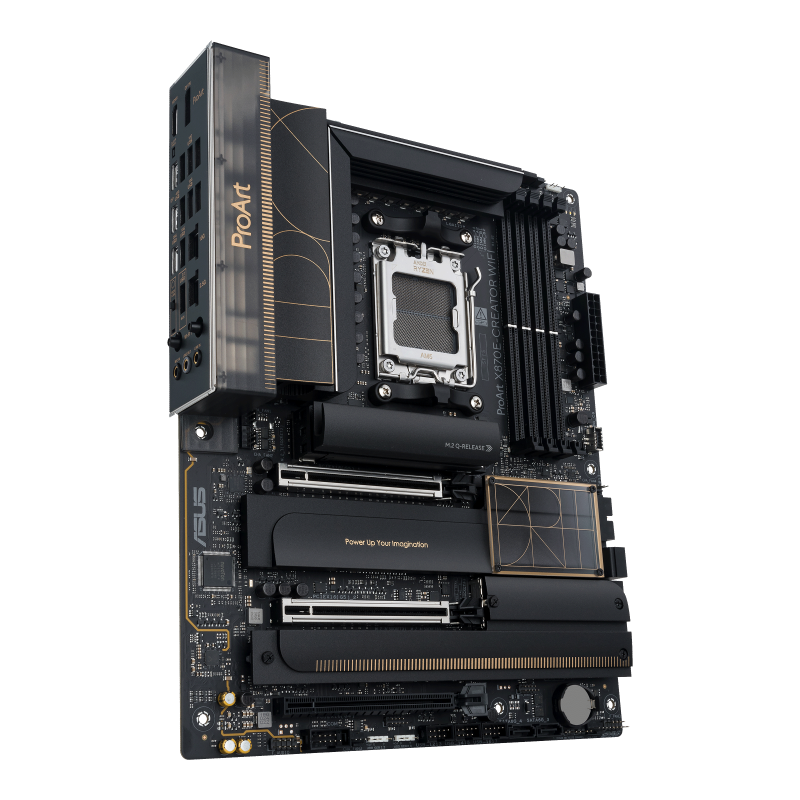

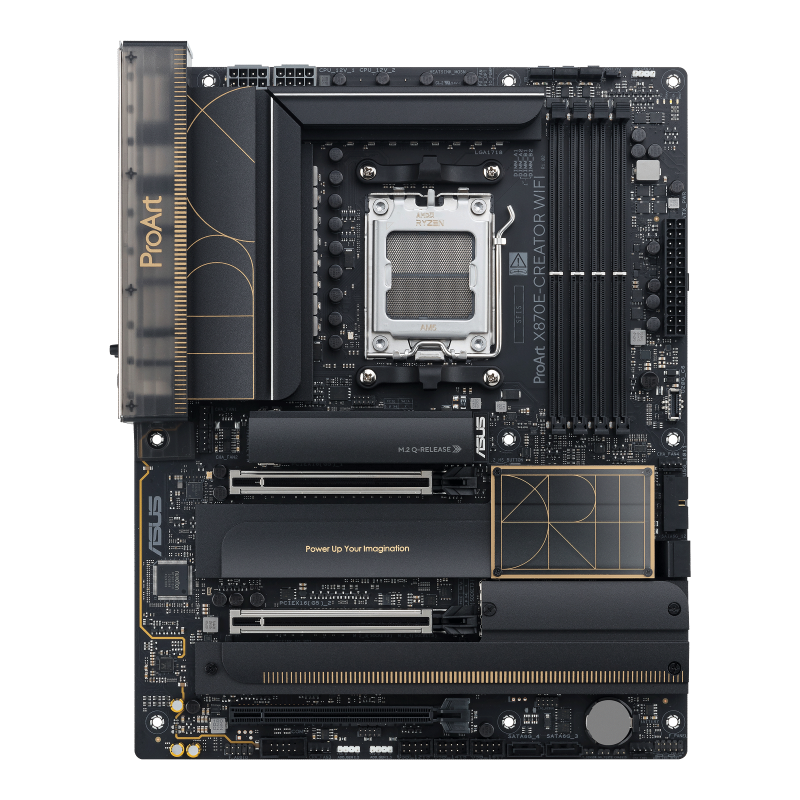

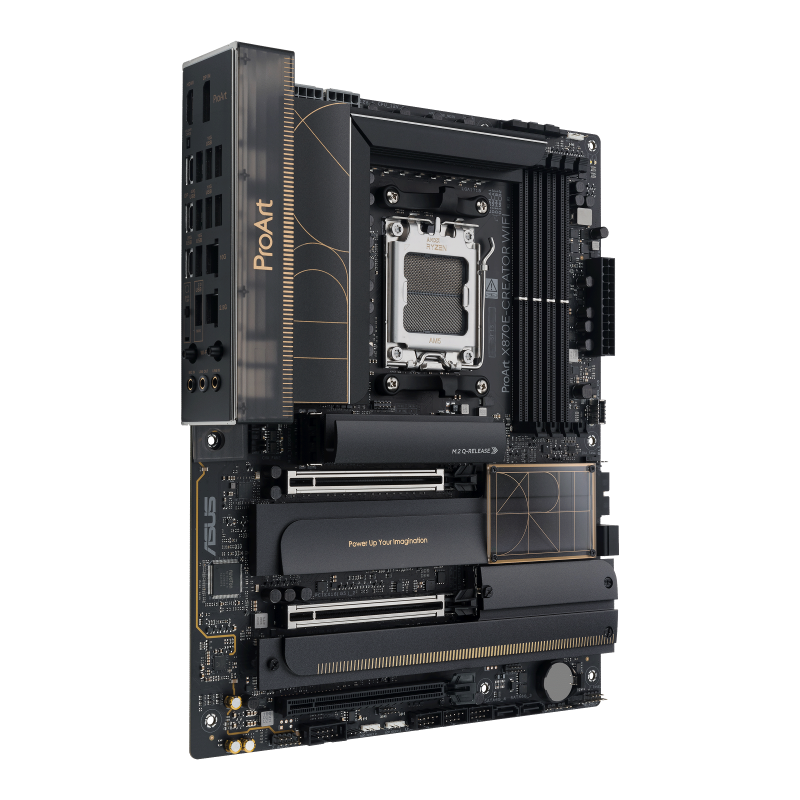

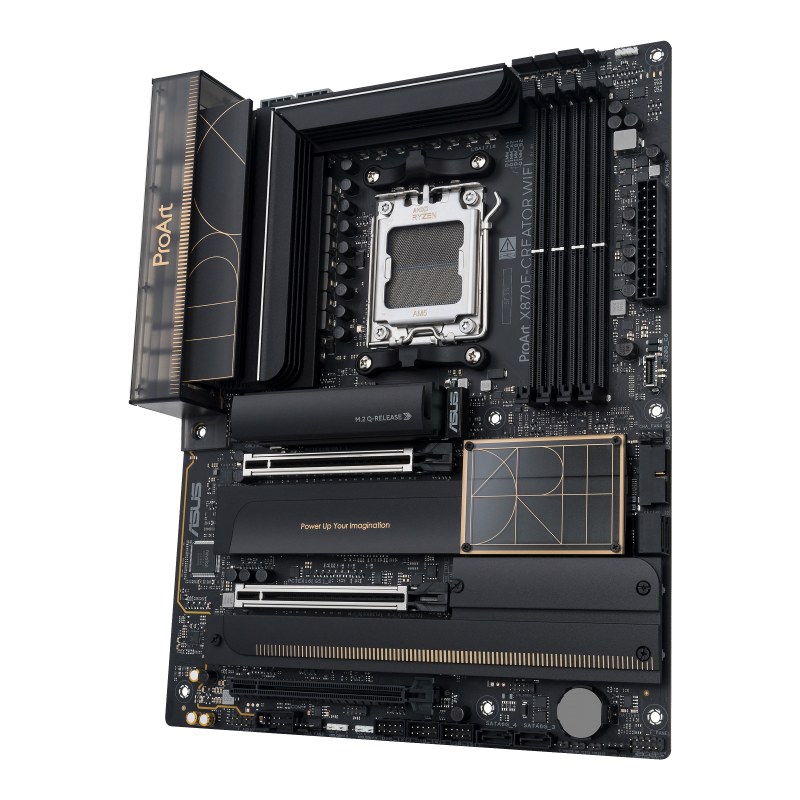

ProArt X870E-CREATOR WIFI
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD X870E
Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory
configuration, for more information refer to www.asus.com for memory support list.
*** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.
*** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 11 ports)
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
"* USB Type-C® power delivery output: max. 5V/3.0A"
** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

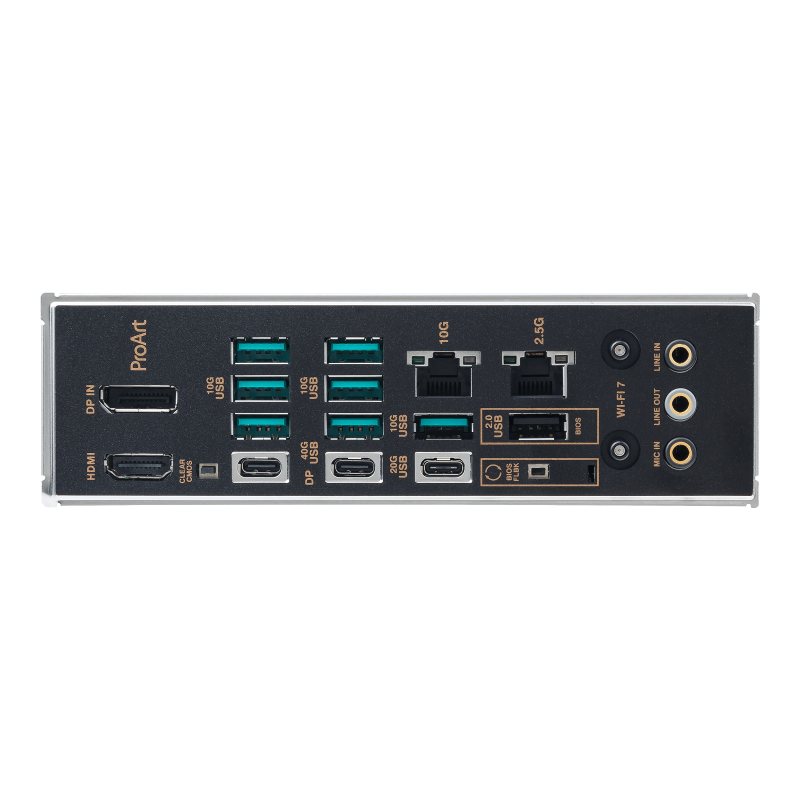

Back Panel I/O Ports
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMITM port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
- Compatible with PD3.0
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

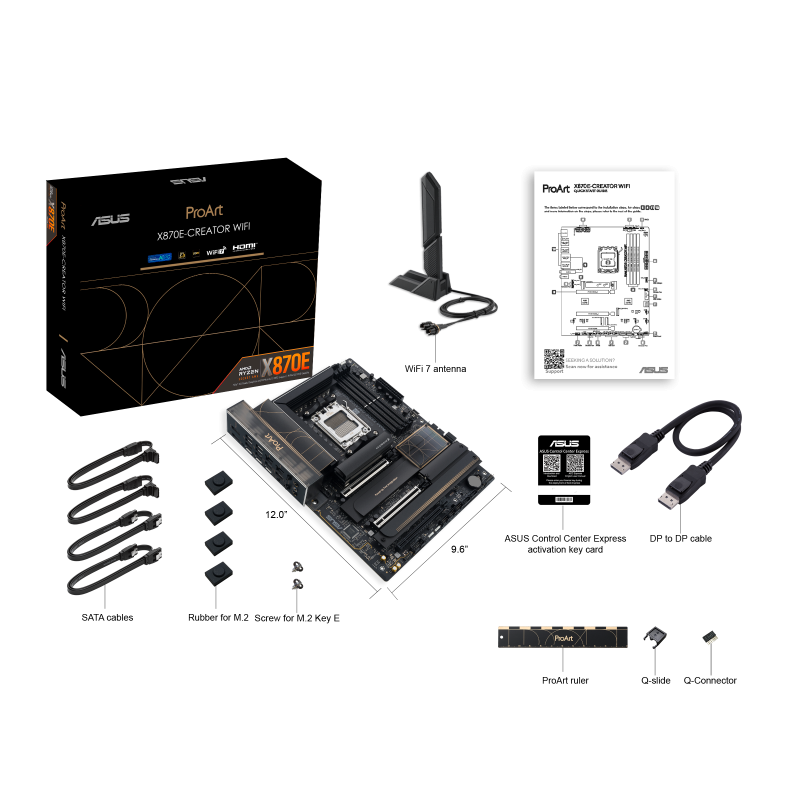

Accessories
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
Operating System
Windows® 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
