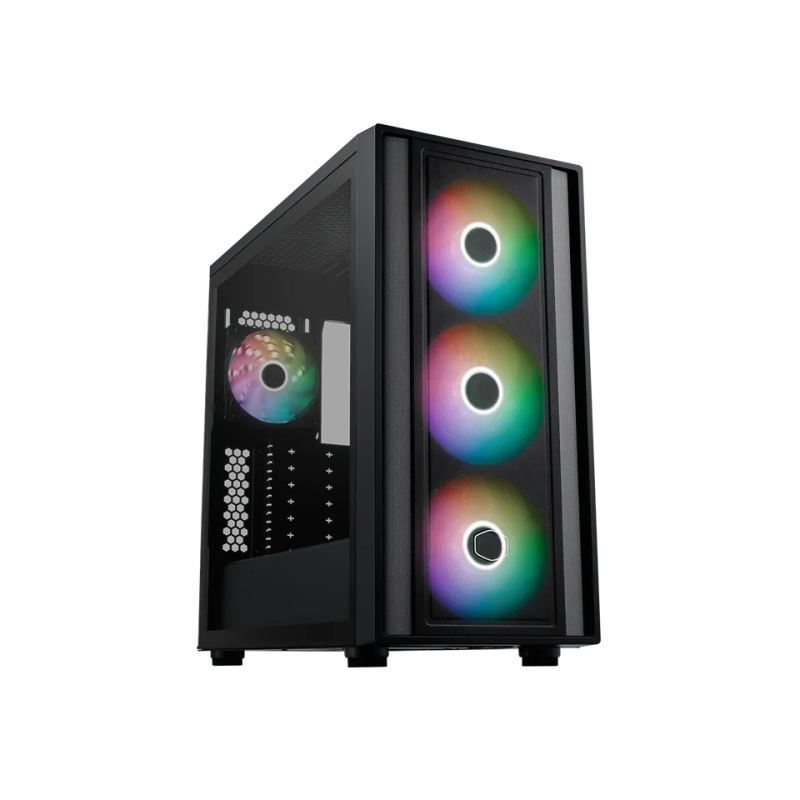

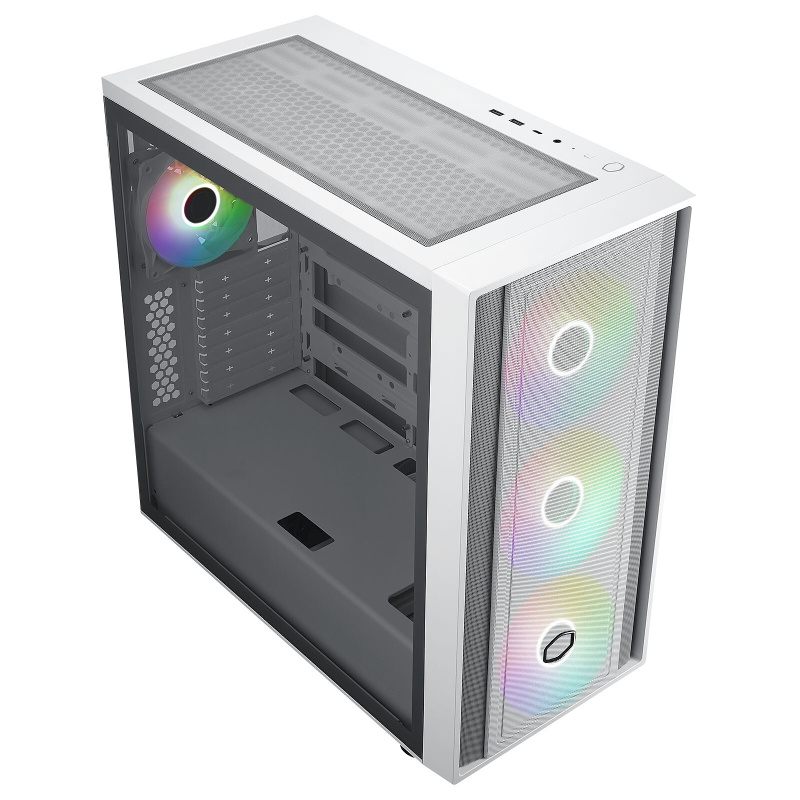

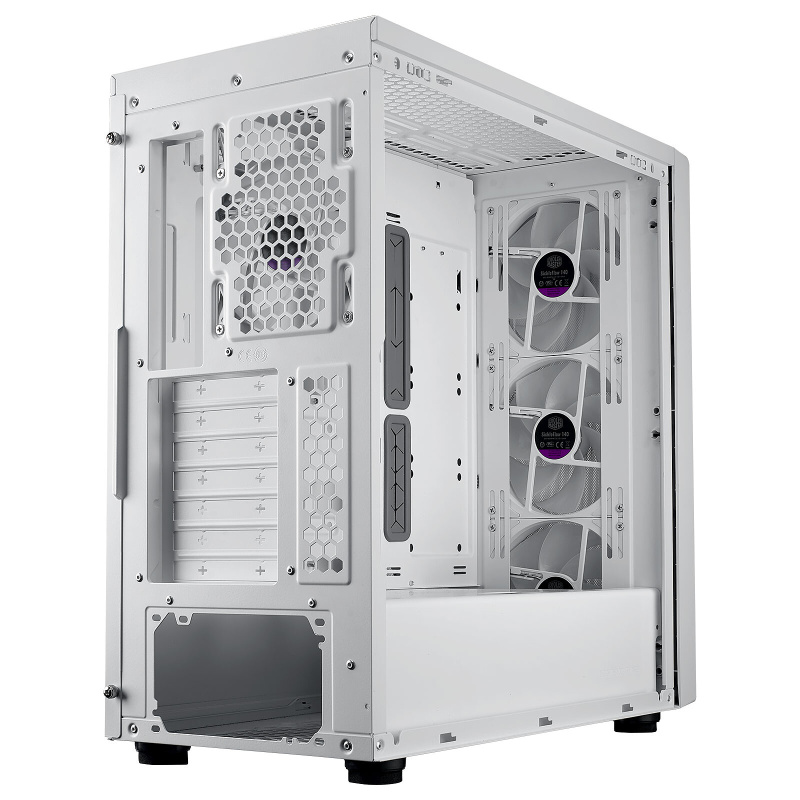

Model Number MasterBox 600 Black:MB600-KGNN-S00 MasterBox 600 White:MB600-WGNN-S00
Exterior Color Black, White
Materials - ExteriorSteel, Plastic
Materials - Side Panel Tempered Glass
Dimensions (L x W x H)474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions)
Volume49.73L
Motherboard Support ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots7
3.5" Drive Bays2
2.5" Drive Bays2 (Max.6)
I/O Panel - USB Ports2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out1x 3.5mm Combo
Included AccessoriesARGB Fans Hub
Pre-installed Fans - Front3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm)
Pre-installed Fans - Rear1x 120mm CF120 ARGB (650~1200 rpm)
Fan Support - Front3x 120/140mm
Fan Support - Top3x 120mm / 2x 140mm
Fan Support - Rear1x 120mm
Radiator Support - Front120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)
Radiator Support - Top120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear120mm
Clearance - CPU Cooler170mm
Clearance - PSU170mm, 210mm (w/o HDD Cage)
Clearance - GFX360mm, 410mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray33-35 mm
Dust FiltersTop, Bottom
Power Supply SupportATX
Warranty2 years
SizeMid Tower
SeriesMasterBox Series
Back Connector Motherboard SupportYes
