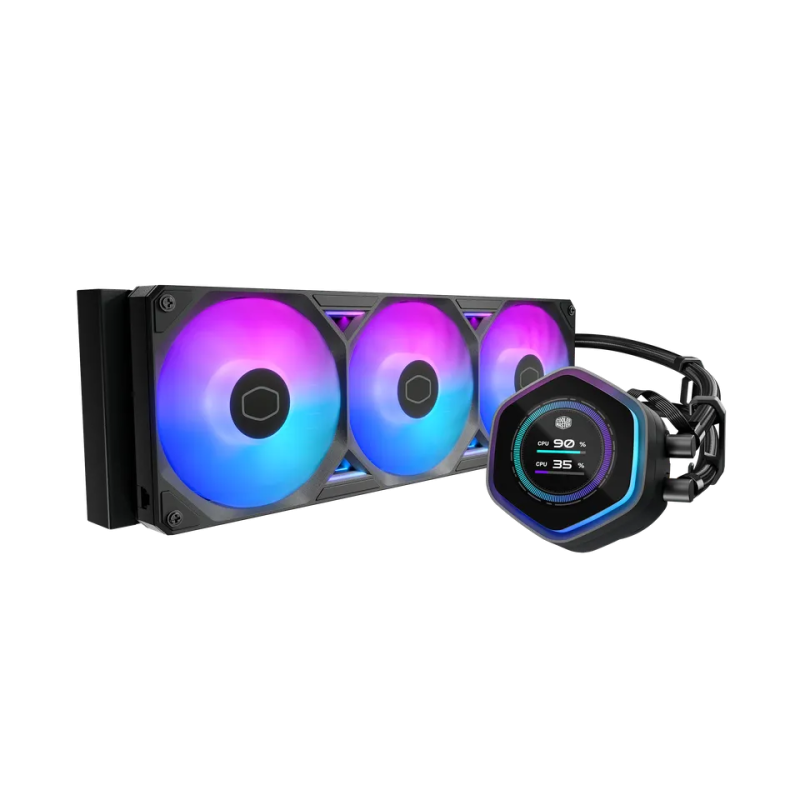

Product Number(240 LCD Black) MLX-D24M-A25SZ-L1, (240 LCD White) MLX-D24M-A25SZ-LW, (360 LCD Black) MLX-D36M-A25SZ-L1, (360 LCD White) MLX-D36M-A25SZ-LW (*SKU may vary by region)
CPU SocketIntel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU SocketAMD® AM5 / AM4
Radiator MaterialAluminum
Radiator Dimensions(240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Radiator Dimensions(360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump ProfilesAddressable Gen2 RGB
Pump Speed3400 ± 300 RPM
Pump MTTF>210,000 Hours
Pump Noise Level25 dBA (Max)
Pump Rated Voltage12 VDC
Pump Power Consumption3.84 W
Pump Connector3-Pin ARGB + 4-Pin PWM
Tube Length(240) 350 mm
Tube Length(360) 400 mm
Fan Dimensions (L x W x H)(240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Fan Dimensions (L x W x H)(360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
ProfileAddressable Gen 2 RGB
Fan Quantity1 PC
Fan Speed690 ~ 2500 RPM ± 15%
Fan Airflow(240) 240.35 m³/h (141.4 CFM)
Fan Airflow(360) 322.8 m³/h (190 CFM)
Fan Air Pressure3.61 mmH2O
Fan MTTF>160,000 Hours
Fan Noise Level(240) 36 dB(A)
Fan Noise Level(360) 38.5 dB(A)
Fan Bearing TypeLoop Dynamic Bearing
Fan Connector7-Pin PWM + ARGB
Fan Rated Voltage12 VDC
Fan Rated Current0.5 A
Fan Safety Current0.8 A
Fan Power Consumption6 W
Radiator Size240
Radiator Size360
Cooler TypeLiquid Cooler
SeriesMasterLiquid
LCD Exterior ColorBlack / White
LCD Dimensions85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch)
LCD ConnectorUSB Type-C to Motherboard 9 pin
LCD Screen Size2.1 inches / Diameter 53.3 mm
LCD Screen Resolution480 x 480 px
LCD Screen Luminance300 cd/m²
LCD Screen Refresh Rate60 Hz
LCD Screen OrientationSoftware-MasterCtrl adjustable
LCD Rated Voltage5 VDC
LCD Rated Current0.3 A
LCD Safety Current0.5 A
LCD Power Consumption1.5 W
Warranty6 years
CPU SocketIntel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU SocketAMD® AM5 / AM4
Radiator MaterialAluminum
Radiator Dimensions(240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Radiator Dimensions(360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump ProfilesAddressable Gen2 RGB
Pump Speed3400 ± 300 RPM
Pump MTTF>210,000 Hours
Pump Noise Level25 dBA (Max)
Pump Rated Voltage12 VDC
Pump Power Consumption3.84 W
Pump Connector3-Pin ARGB + 4-Pin PWM
Tube Length(240) 350 mm
Tube Length(360) 400 mm
Fan Dimensions (L x W x H)(240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Fan Dimensions (L x W x H)(360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
ProfileAddressable Gen 2 RGB
Fan Quantity1 PC
Fan Speed690 ~ 2500 RPM ± 15%
Fan Airflow(240) 240.35 m³/h (141.4 CFM)
Fan Airflow(360) 322.8 m³/h (190 CFM)
Fan Air Pressure3.61 mmH2O
Fan MTTF>160,000 Hours
Fan Noise Level(240) 36 dB(A)
Fan Noise Level(360) 38.5 dB(A)
Fan Bearing TypeLoop Dynamic Bearing
Fan Connector7-Pin PWM + ARGB
Fan Rated Voltage12 VDC
Fan Rated Current0.5 A
Fan Safety Current0.8 A
Fan Power Consumption6 W
Radiator Size240
Radiator Size360
Cooler TypeLiquid Cooler
SeriesMasterLiquid
LCD Exterior ColorBlack / White
LCD Dimensions85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch)
LCD ConnectorUSB Type-C to Motherboard 9 pin
LCD Screen Size2.1 inches / Diameter 53.3 mm
LCD Screen Resolution480 x 480 px
LCD Screen Luminance300 cd/m²
LCD Screen Refresh Rate60 Hz
LCD Screen OrientationSoftware-MasterCtrl adjustable
LCD Rated Voltage5 VDC
LCD Rated Current0.3 A
LCD Safety Current0.5 A
LCD Power Consumption1.5 W
Warranty6 years
