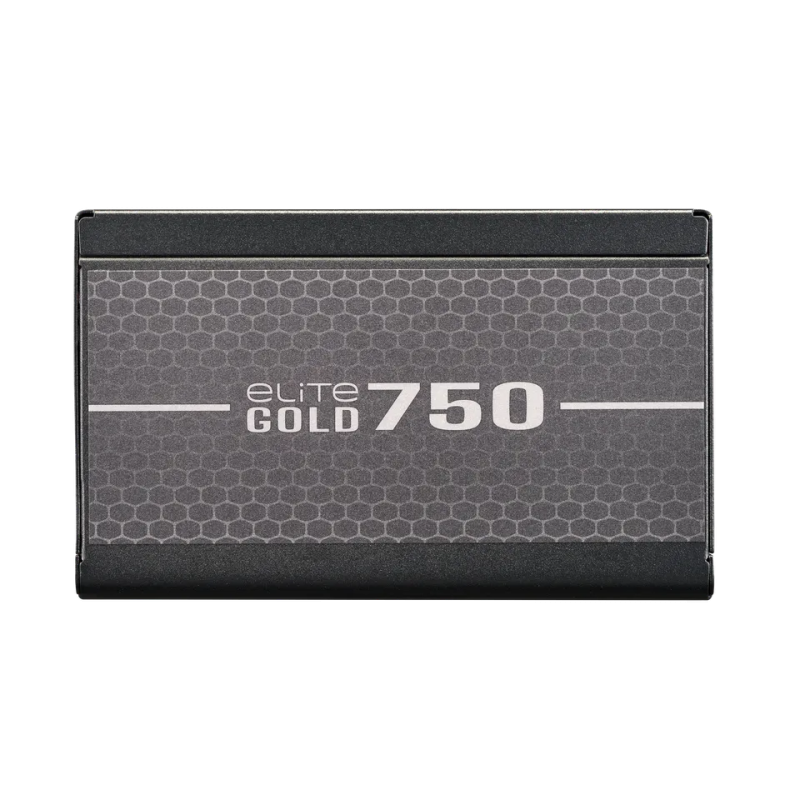

Product NameELITE GOLD 750

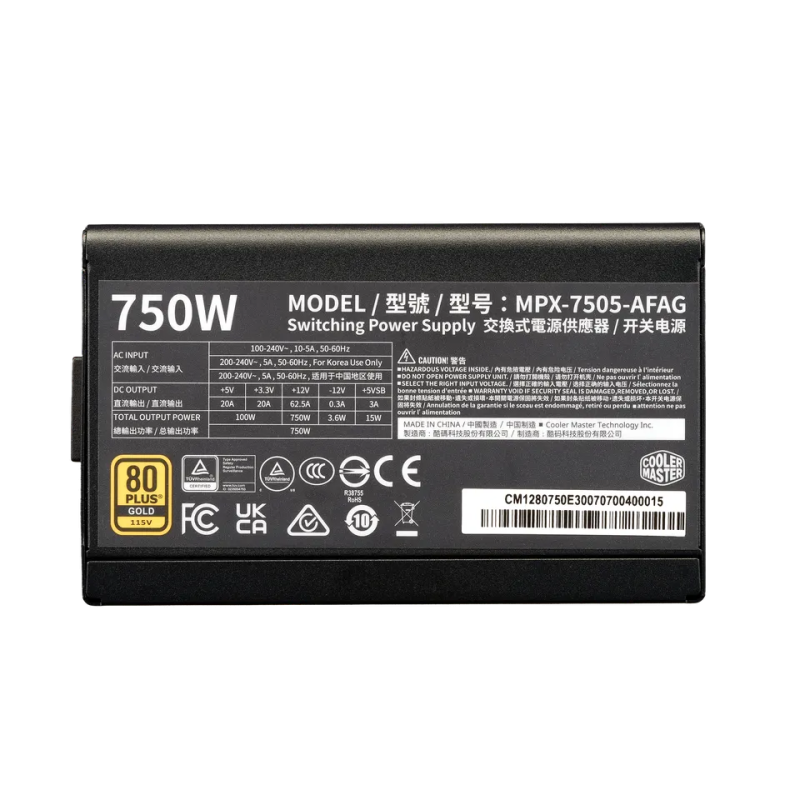

ModelMPX-7505-AFAG
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage100-240V
Input Current5 ~ 10A
Input Frequency50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm

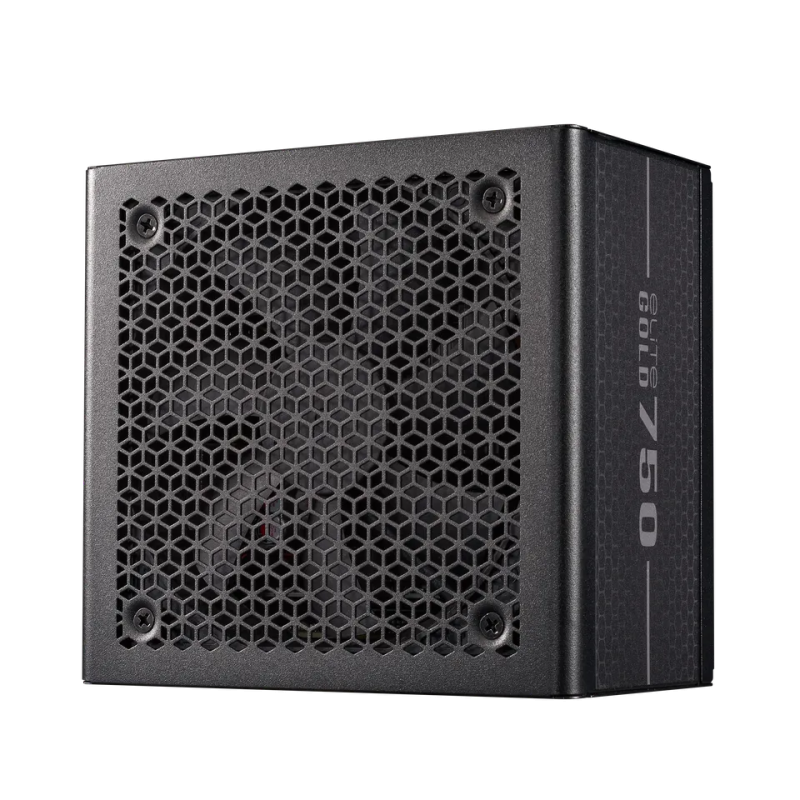

Fan Size120mm
Fan BearingRifle bearing
Efficiency≥90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-40°C
Power Good Signal100 - 150 ms
Hold Up Time≥ 11ms @ 100% Load
MTBF>100,000 hours @ 25℃ ambient
ProtectionsUVP / OVP / OPP / OTP / SCP
RegulatorycTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

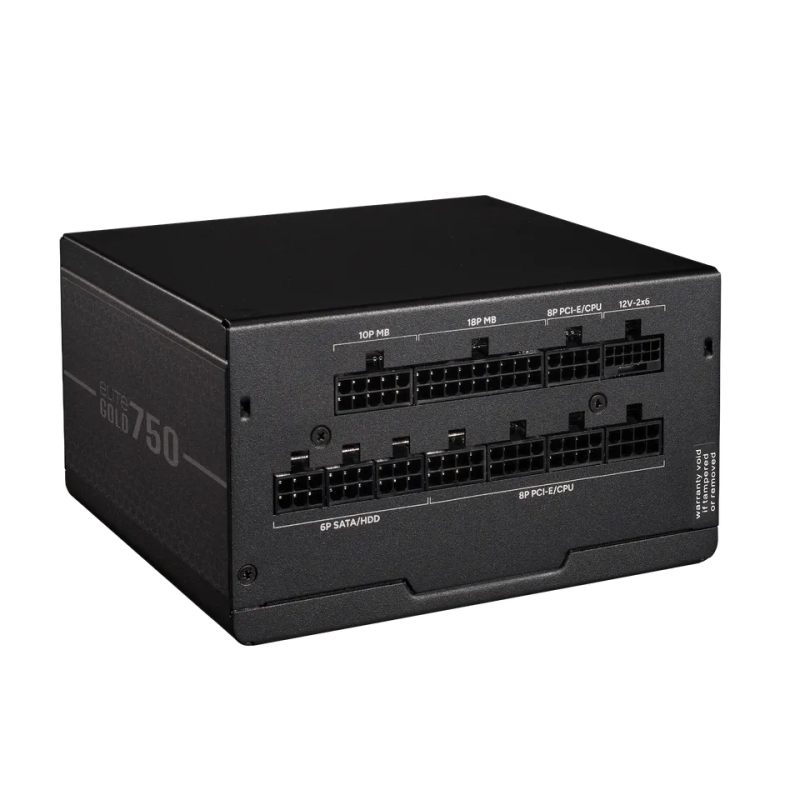

ATX 24 Pin Connectorsx1 = 1 (550mm)
EPS 4+4 Pin Connectorsx1 = 1 (600mm)
EPS 8 Pin Connectorx1 = 1 (600mm)
SATA & Peripheral 4 Pin ConnectorsX4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
PCI-e 6+2 Pin Connectorsx2 = 1 (500+120mm)
12+4 Pin Connectorsx1 = 1 (650mm)
SeriesElite Series
Form FactorATX
Watts750W
ModularFully Modular
80 Plus EfficiencyGold
