Details

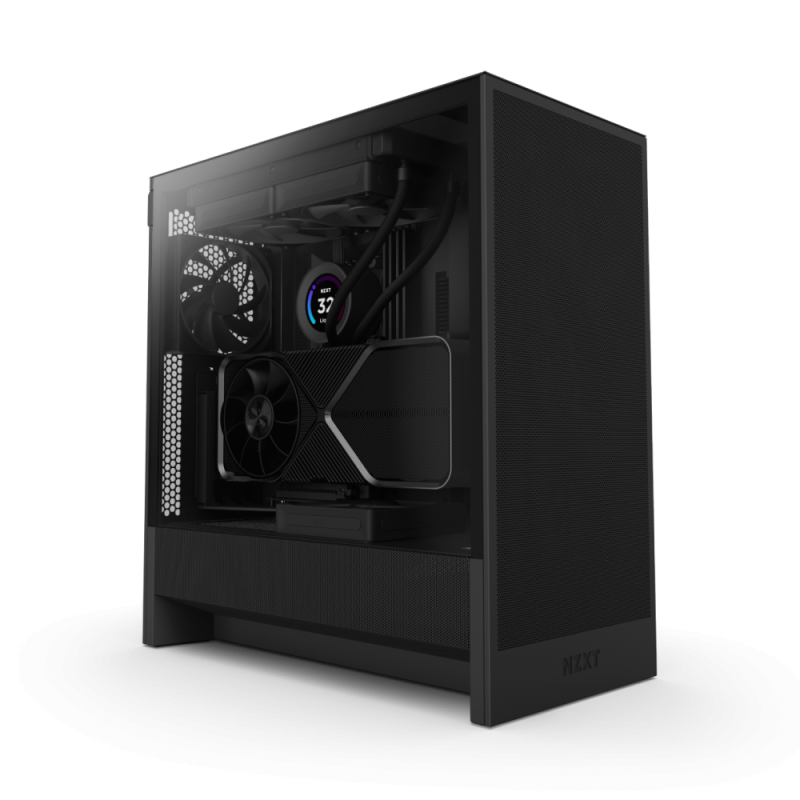

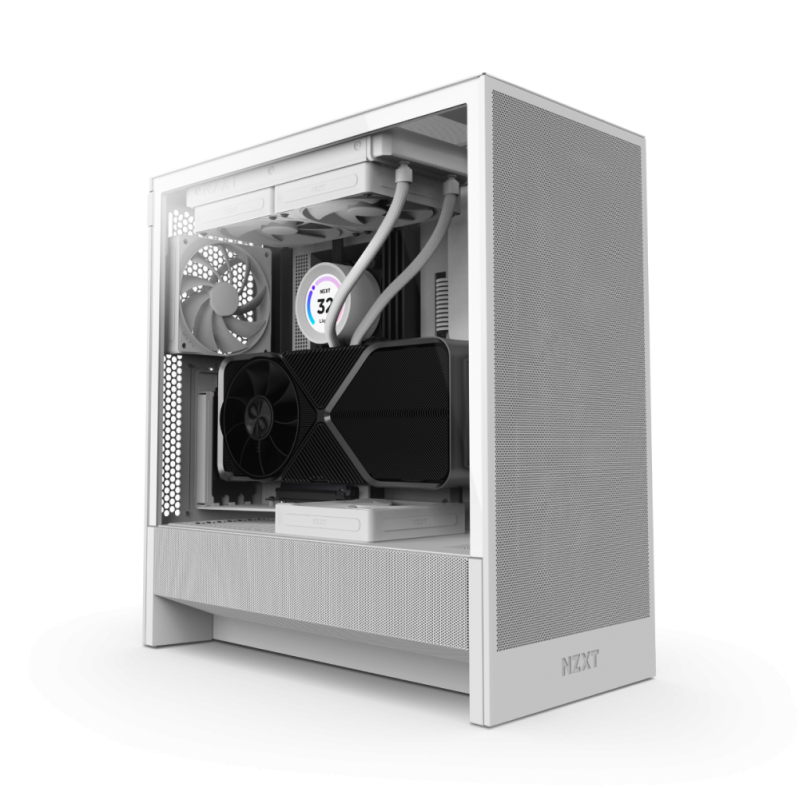

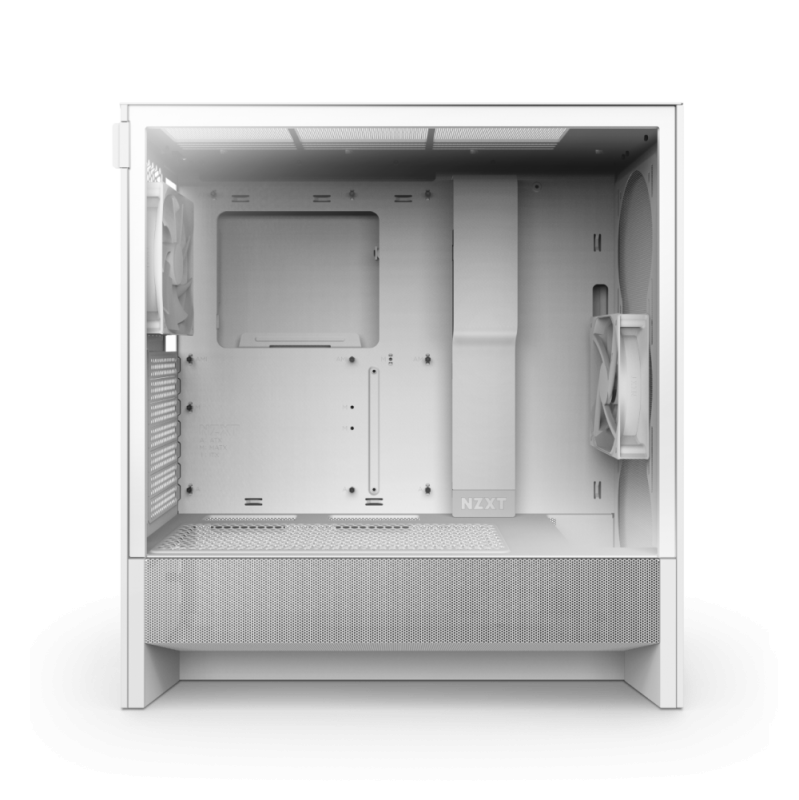

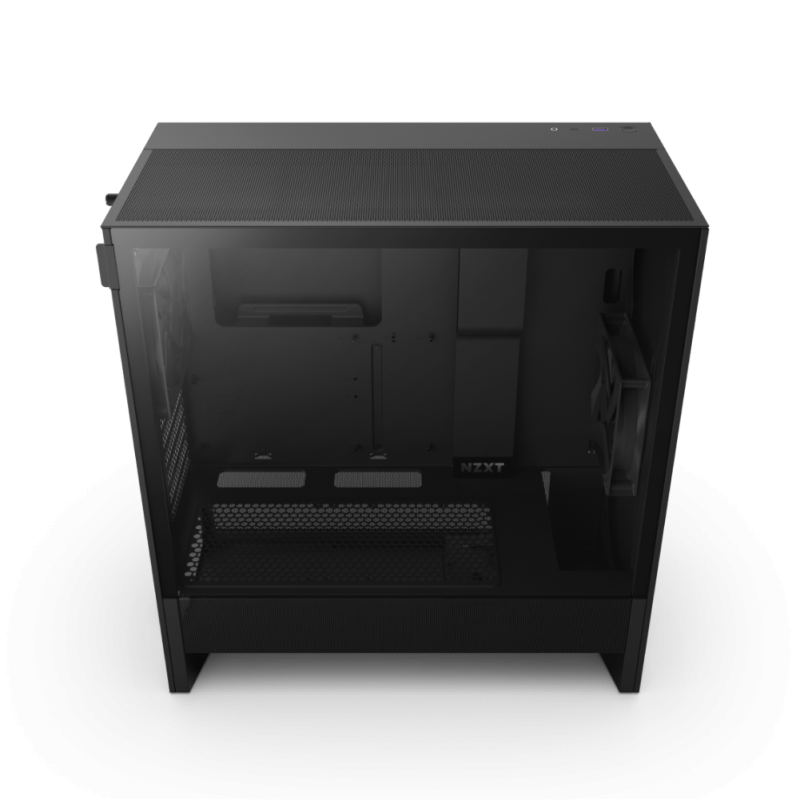

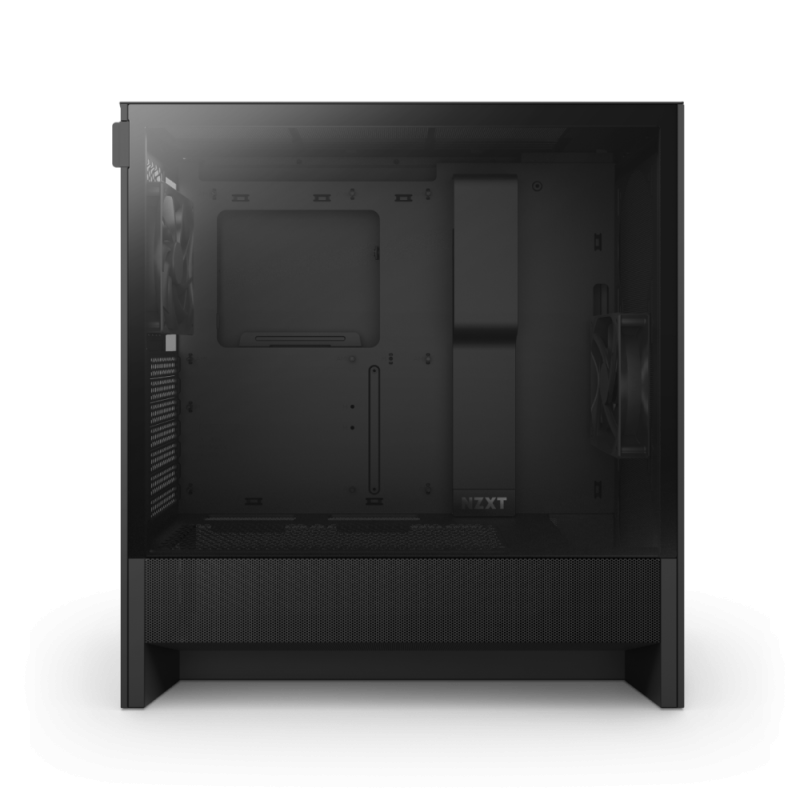

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

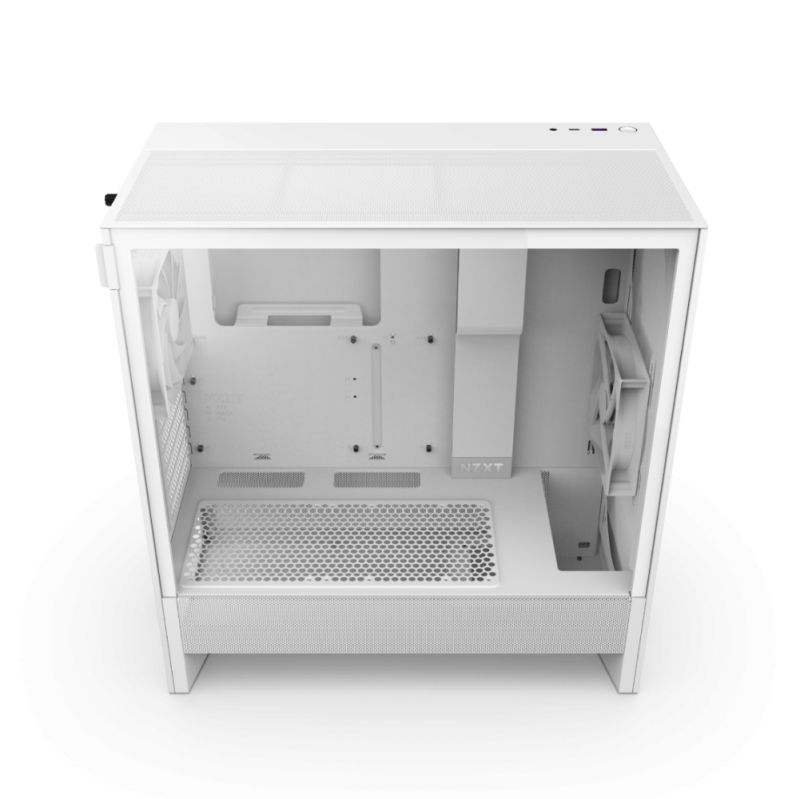

- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

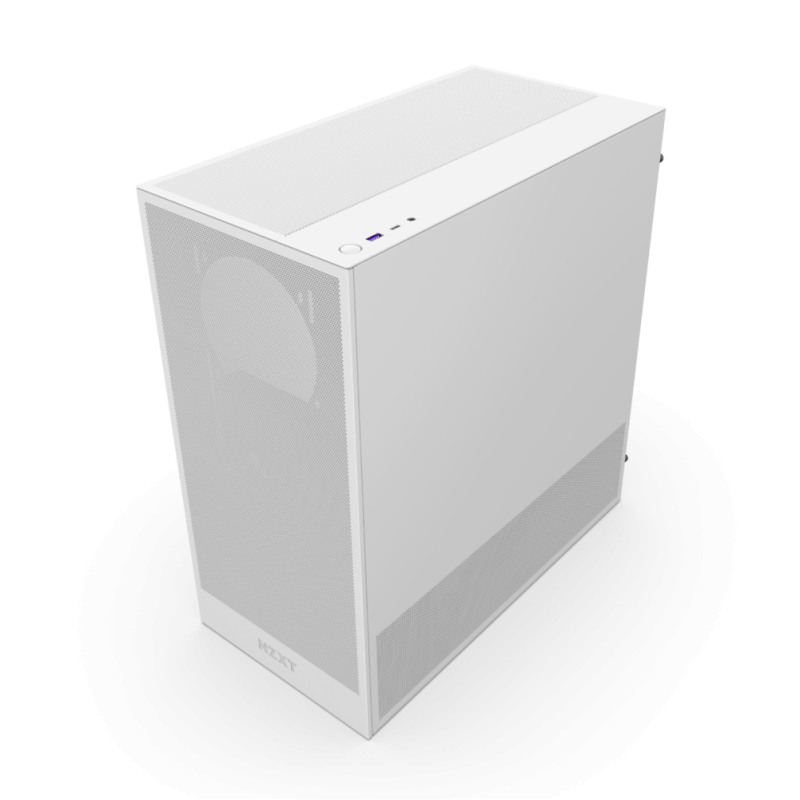

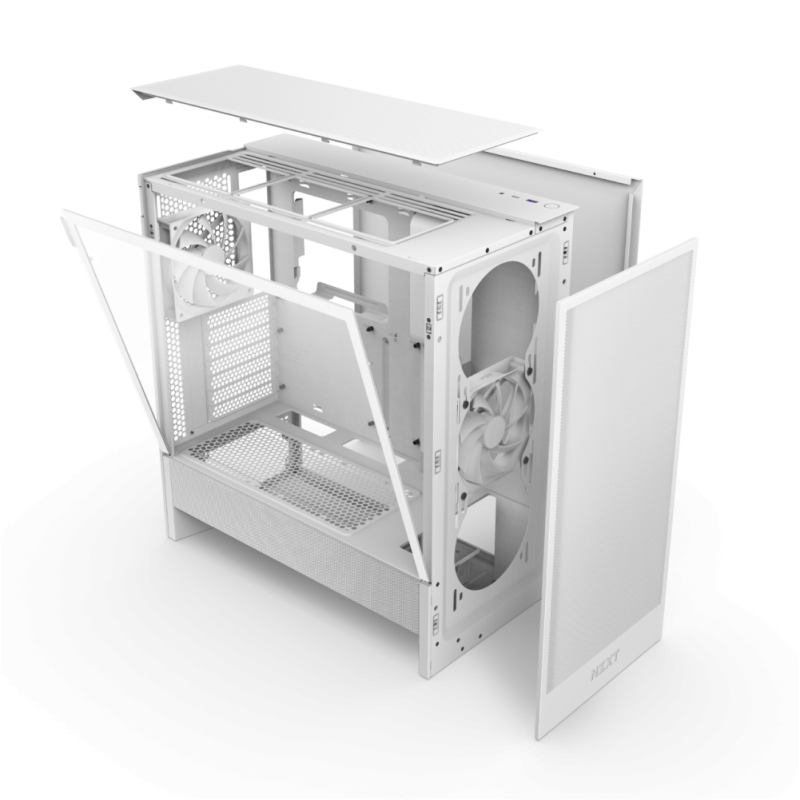

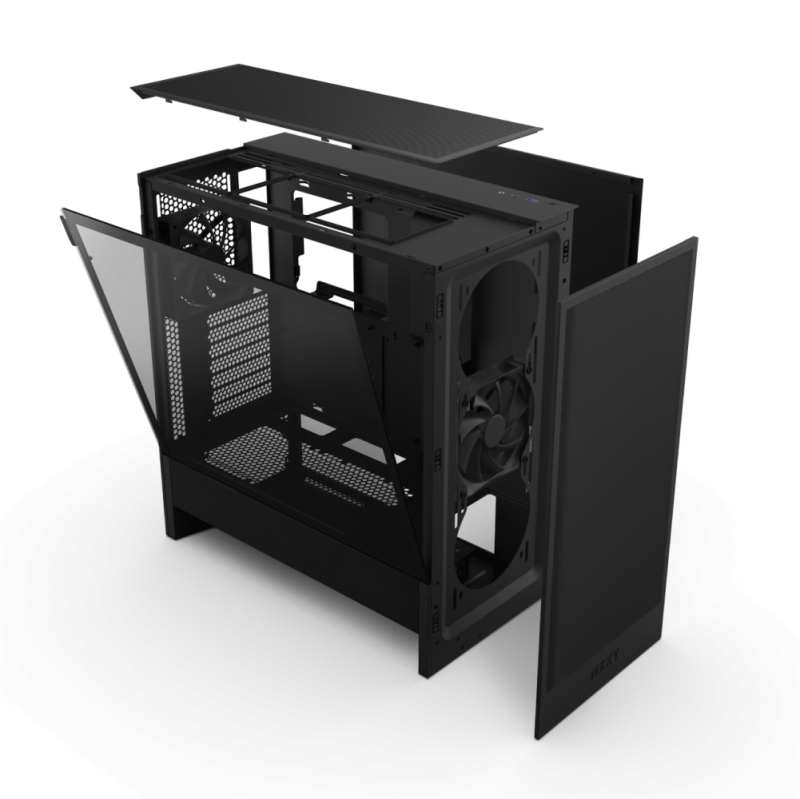

- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.

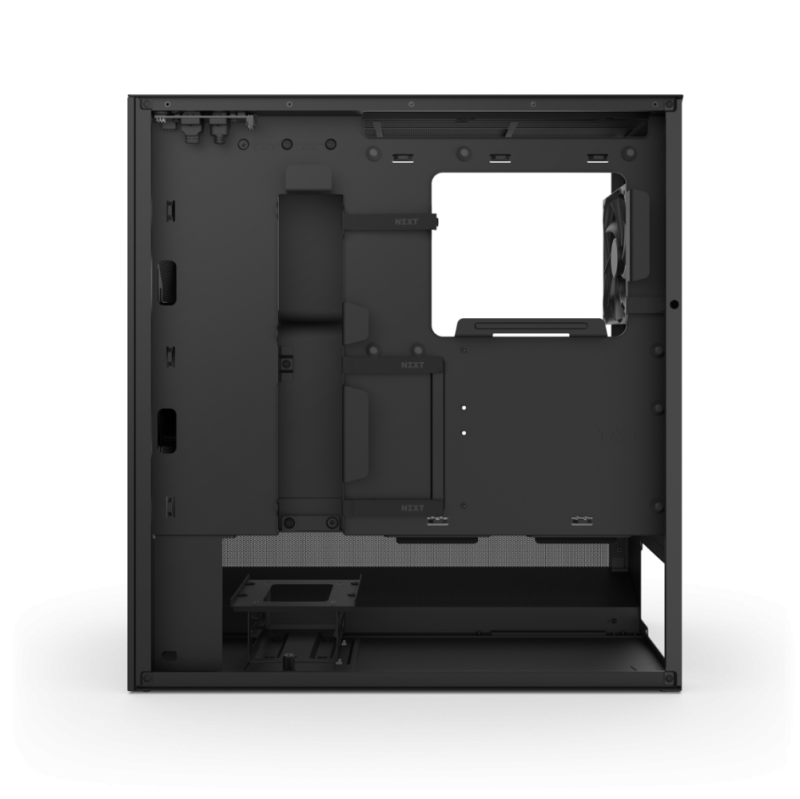

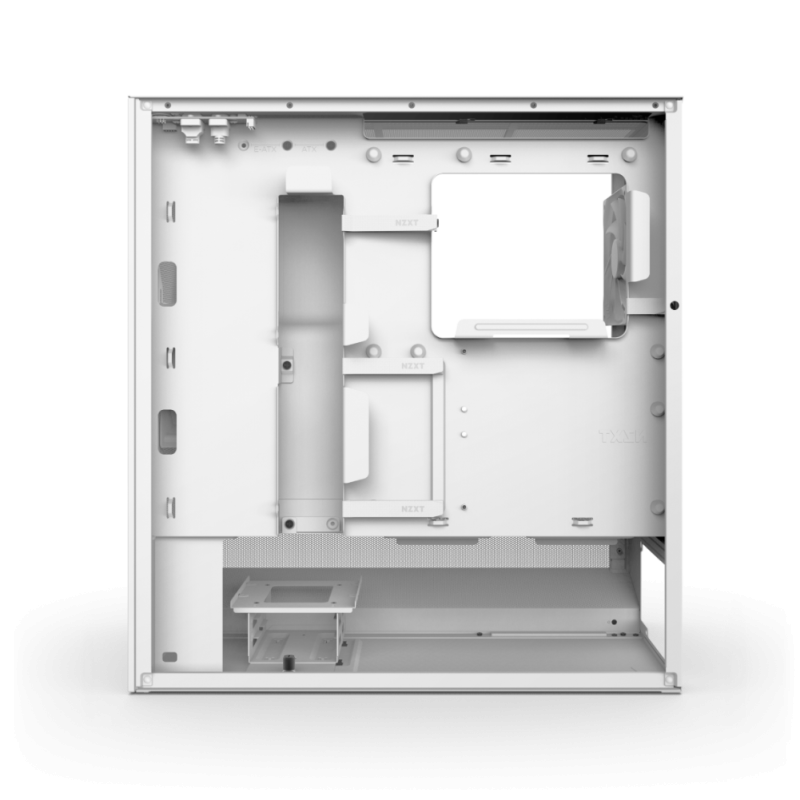

- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Inside the Box
-
H5 Flow 1
-
F120Q (CV) 2
-
Installation accessories 1
-
User guide 1
Tech Specs
Key Specs
-
Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
-
Enclosure Type:Mid-Tower
-

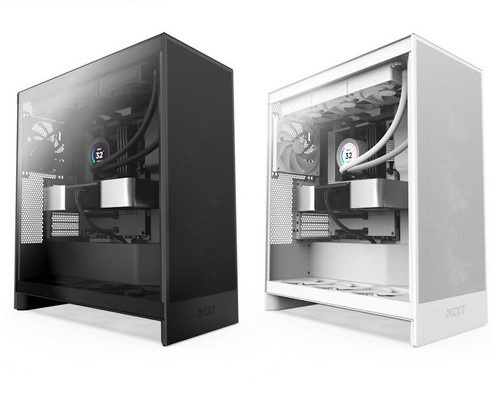

Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
-
Height (with feet): 465 mm / 18.31 in
-
Width: 225 mm / 8.86 in
-
Depth: 430 mm / 16.93 in
-
Weight: 7.28 kg / 16.04 lb
Compatibility & Clearance
-
CPU Cooler Height: Up to 170 mm
-
GPU Length: Up to 410 mm
-
PSU Length: Up to 200 mm
-
Cable Management: Up to 28.7 mm
-
Top Radiator: Up to 240 mm (280 mm with low-profile memory)
-
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55 mm

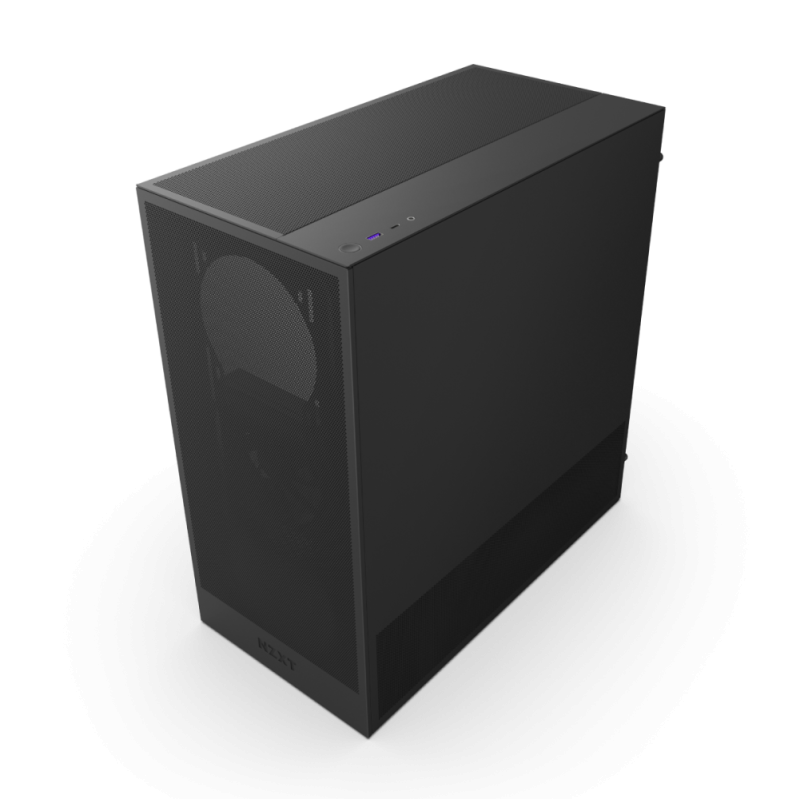

Front Ports
-
USB 3.2 Type-A: 1
-
USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
-
Headset Audio Jack: 1
Expansion Slots
-
Standard: 7
-
Vertical: 0
Drive Bays
-
2.5": 2
-
3.5": 1
Fan Support
-
Front: 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
-
Top: 2 x 120 mm / 2 x 140 mm
-
Bottom: 2 x 120 mm
-
Rear: 1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
-
Front: Up to 360 mm
-
Top: Up to 240 mm (280mm with low-profile memory only)
Fan Specs
-
Model: F120Q (Case Version)
-
Speed: 1,350 ± 150 RPM
-
Airflow: 60.2 CFM
-
Static: 1.05 mm-H₂O
-
Noise: 24.1 dBA
-
Fan Connector: 3-pin
General
-
Warranty: 2 years
-
Model Number: CC-H52FW-01(White) / CC-H52FB-01 (Black)
-
UPC: 810074845908 (White) / 810074845915 (Black)
-
EAN: 5056547205847 (White) / 5056547205854 (Black)
