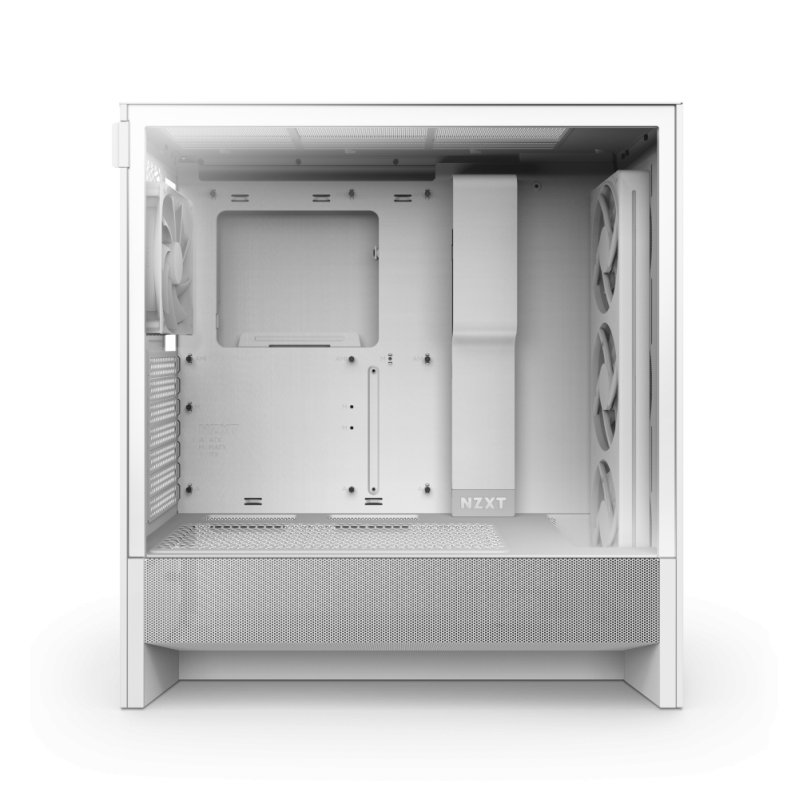

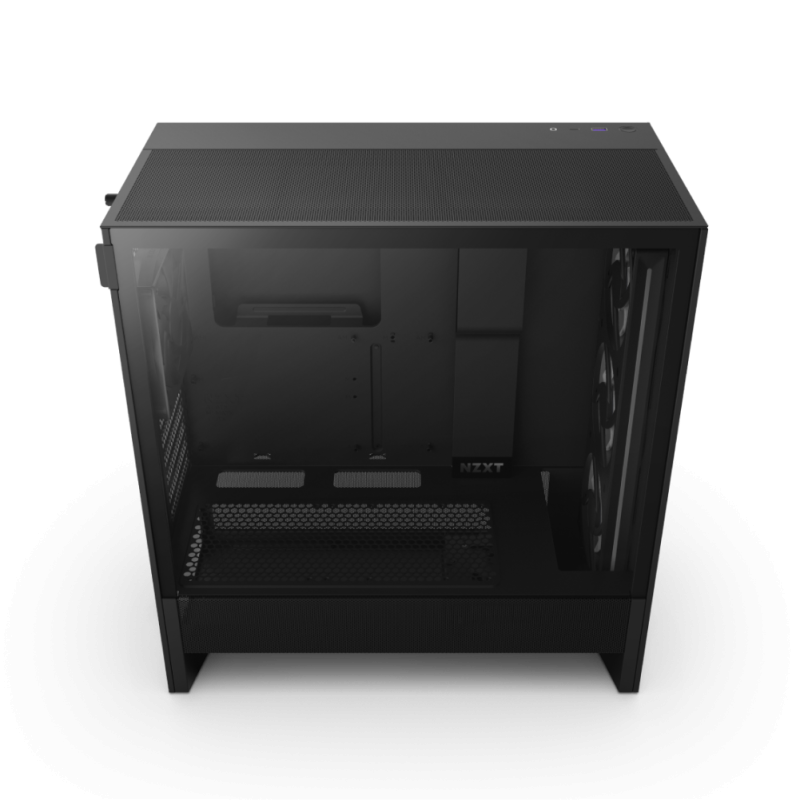

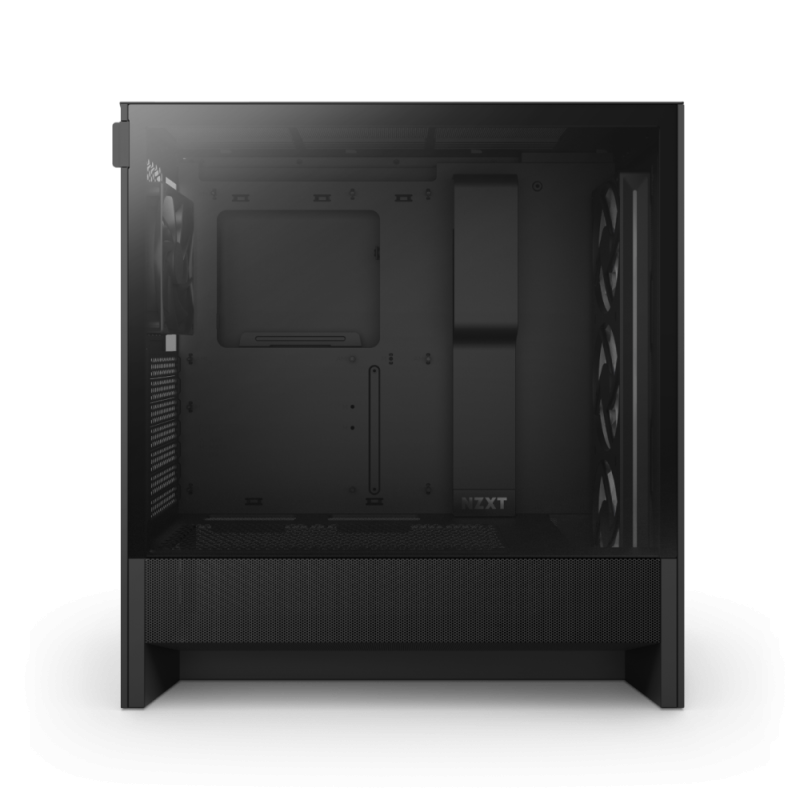

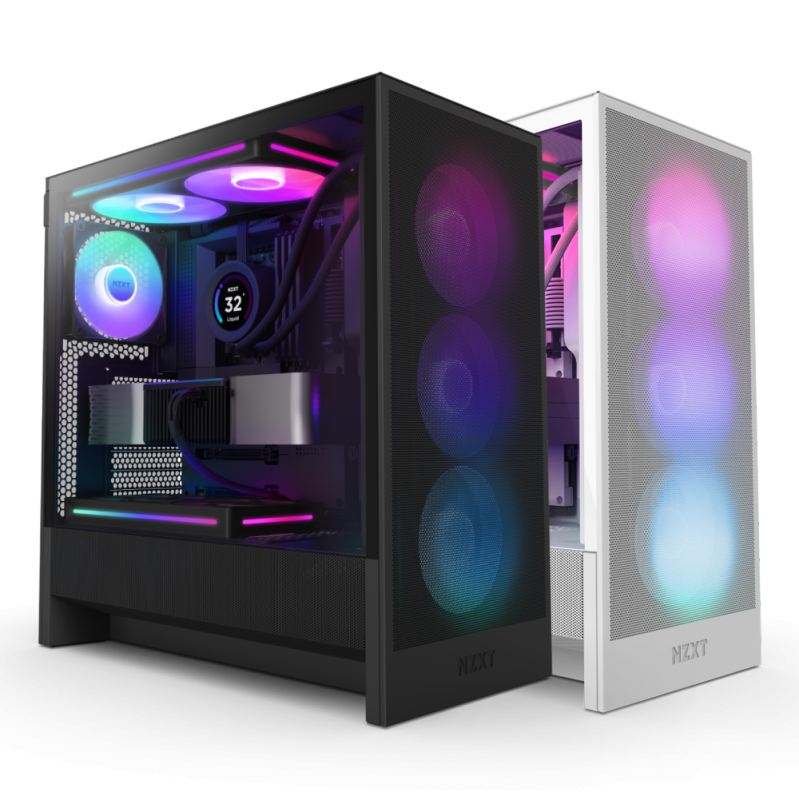

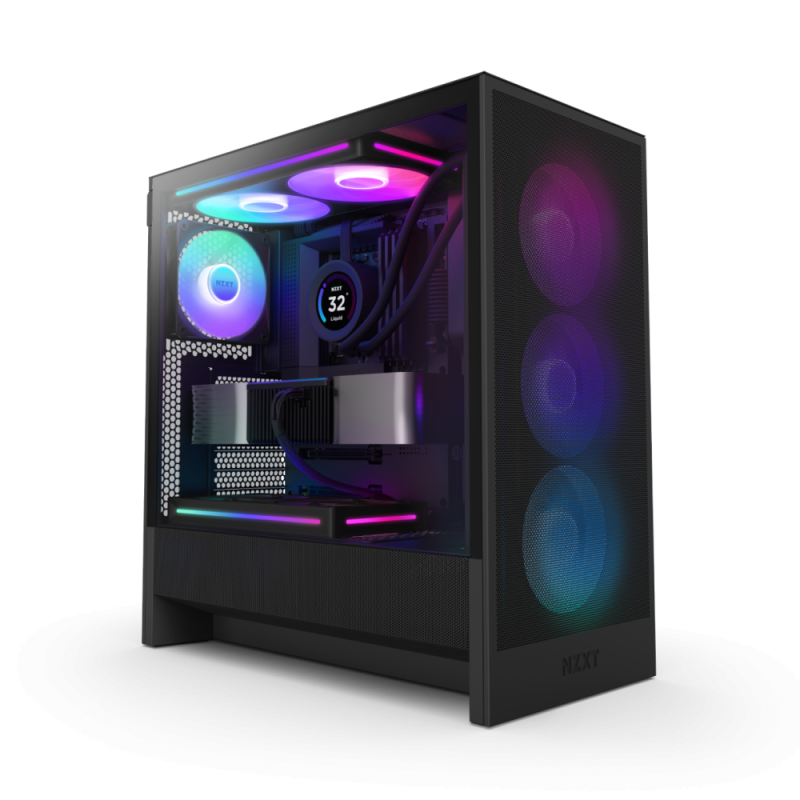

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

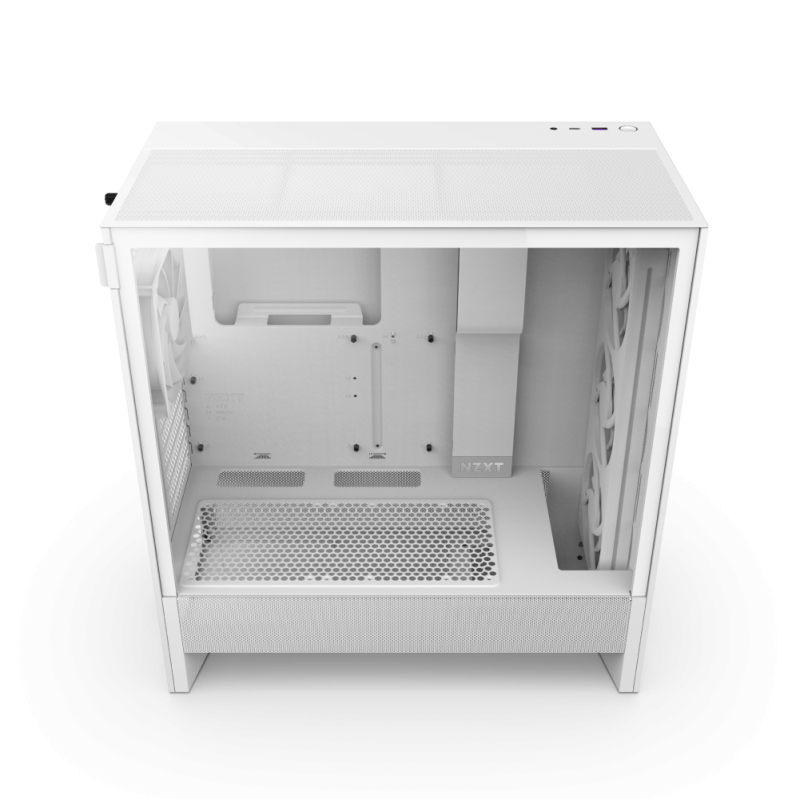

- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

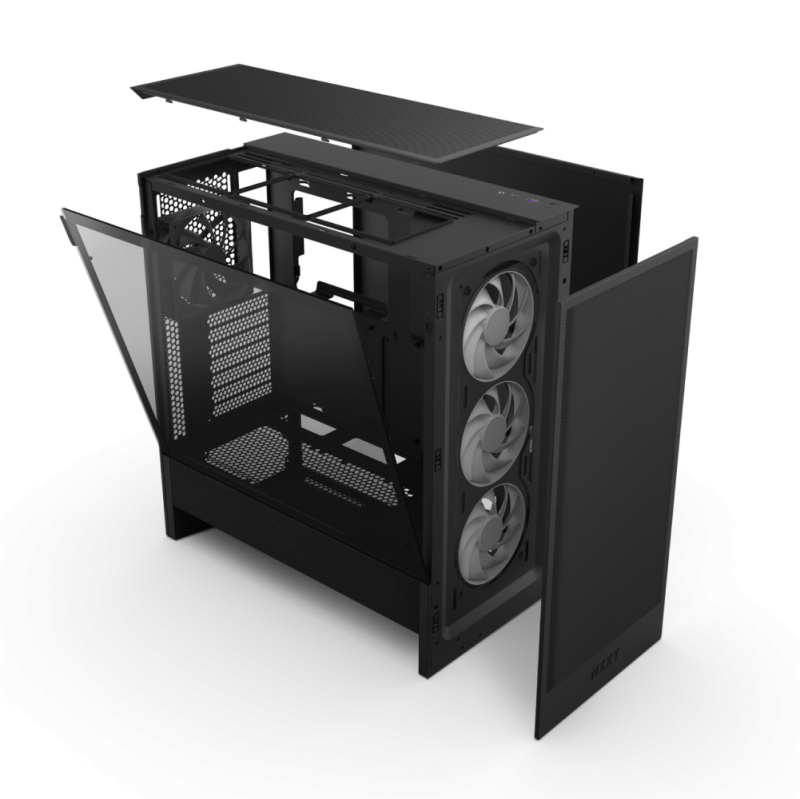

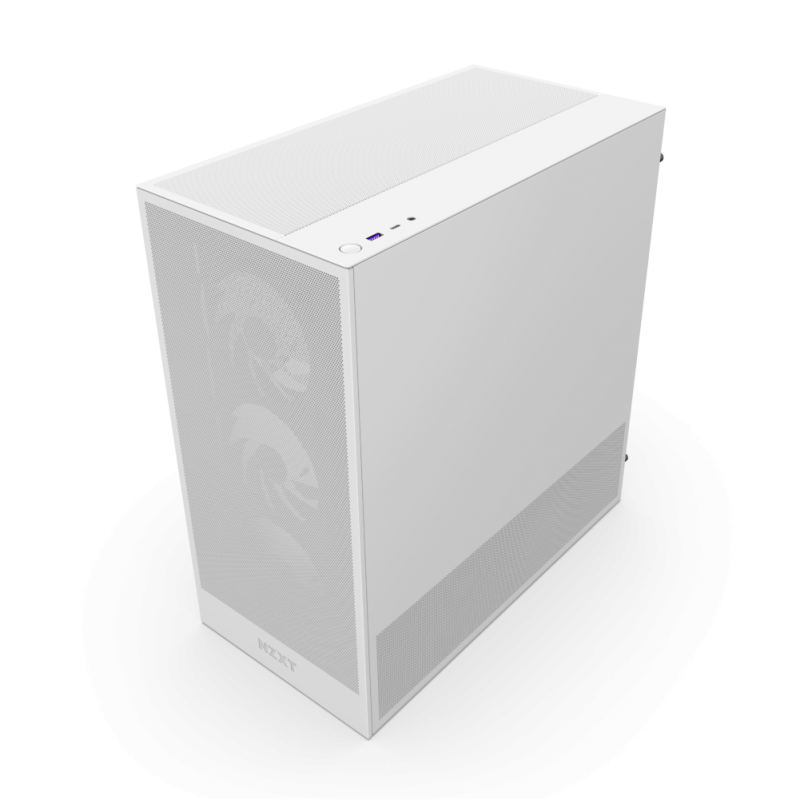

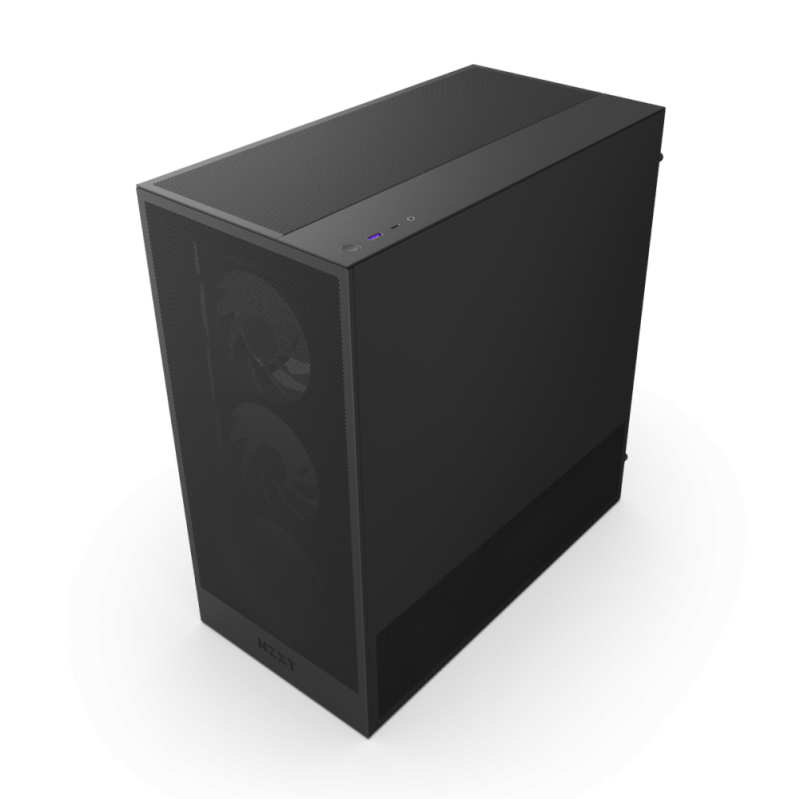

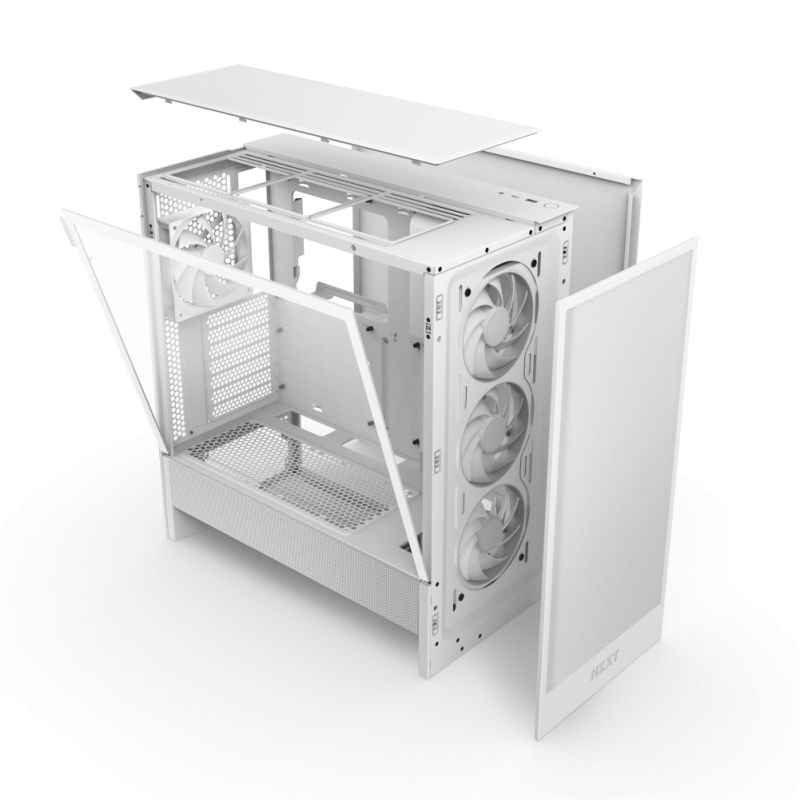

- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.

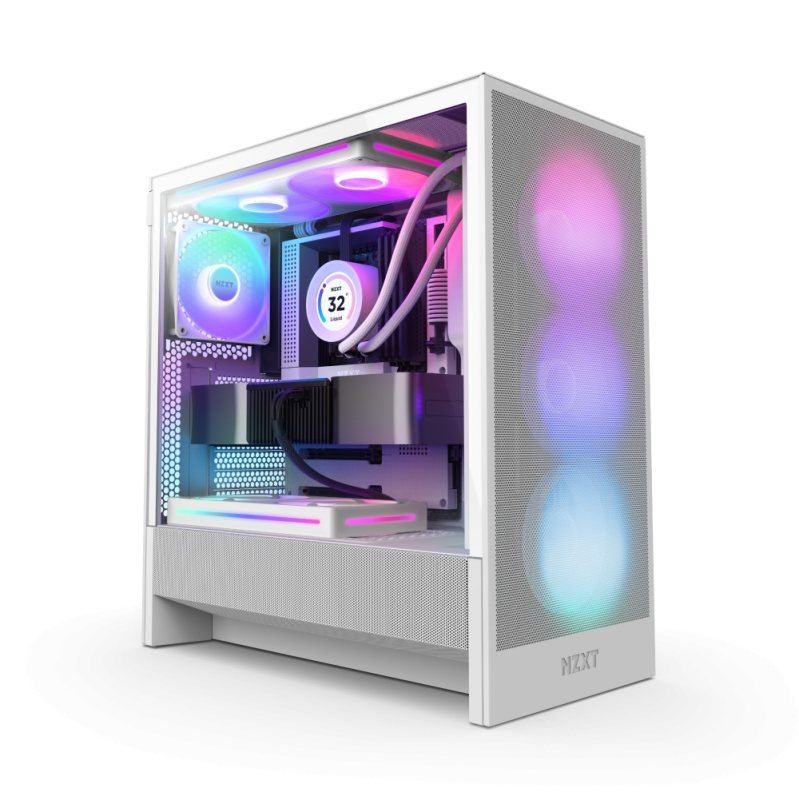

- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.

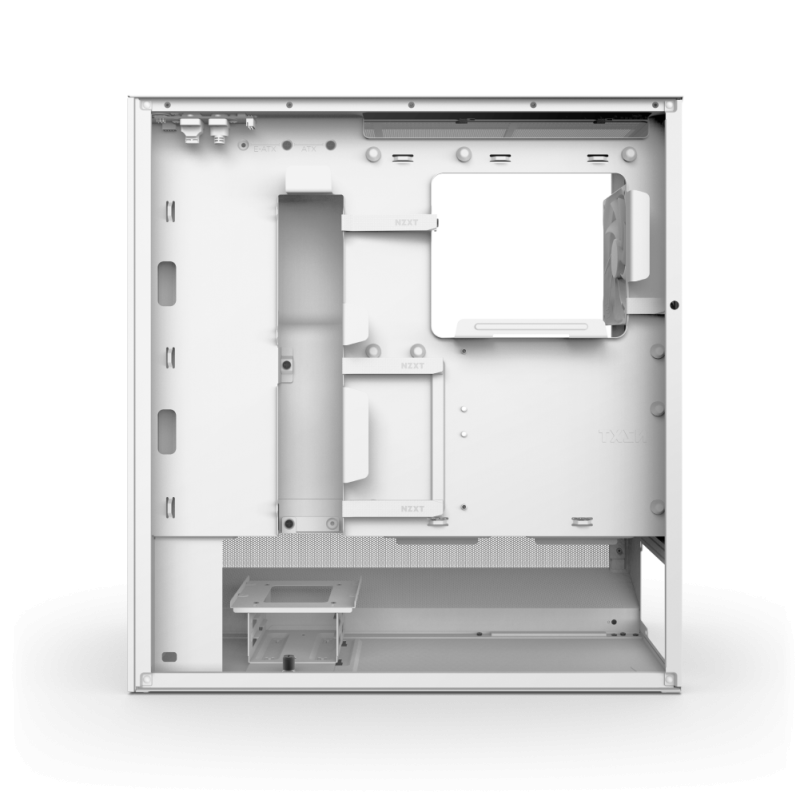

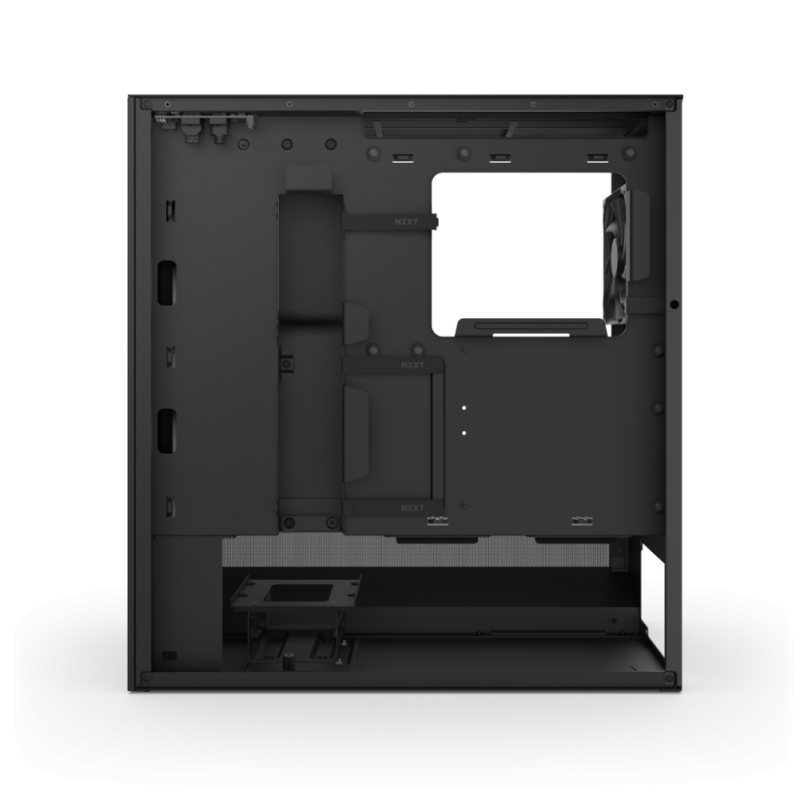

- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Inside the Box
-
H5 Flow RGB 1
-
F360 RGB Core (CV) 1
-
F120Q (CV) 1
-
Installation accessories 1
-
User guide 1
Tech Specs
Key Specs
-
Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
-
Height (with feet):465 mm / 18.31 in
-
Width:225 mm / 8.86 in
-
Depth:430 mm / 16.93 in
-
Weight:7.63 kg / 16.82 lb
Compatibility & Clearance
-
CPU Cooler Height:Up to 170 mm
-
GPU Length:Up to 410 mm
-
PSU Length:Up to 200 mm
-
Cable Management:Up to 28.7 mm
-
Top Radiator:Up to 240 mm (280 mm with low-profile memory)
-
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm
Front Ports
-
USB 3.2 Type-A:1
-
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
-
Headset Audio Jack:1
Expansion Slots
-
Standard:7
-
Vertical:0
Drive Bays
-
2.5":2
-
3.5":1
Fan Support
-
Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
-
Top:2 x 120 mm / 2 x 140 mm
-
Bottom:2 x 120 mm
-
Rear:1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
-
Front:Up to 360 mm
-
Top:Up to 240 mm (280mm with low-profile memory only)
Fan Specs
-
Model:F360 RGB Core (Case Version)
-
Speed:1,700 ± 200 RPM
-
Airflow:50.1 CFM
-
Static:1.27 mm-H₂O
-
Noise:23.3 dBA
-
Fan Connector:3-pin
Fan Specs
-
Model:F120Q (Case Version)
-
Speed:1,350 ± 150 RPM
-
Airflow:60.2 CFM
-
Static:1.05 mm-H₂O
-
Noise:24.1 dBA
-
Fan Connector:3-pin
General
-
Warranty:2 years
-
Model Number:CC-H52FW-R1 (White) / CC-H52FB-R1 (Black)
-
UPC:810074845922 (White) / 810074845939 (Black)
-
EAN:5056547205861 (White) / 5056547205878 (Black)
