Specification
|
Model No.: |
SF-650C12FG |
|
|
Transform Efficiency |
20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) Efficiency |
|
|
80+ Certification |
Gold |
|
|
Intel Power Design Guide |
EPS Ver. 2.92 & ATX 3.1 |
|
|

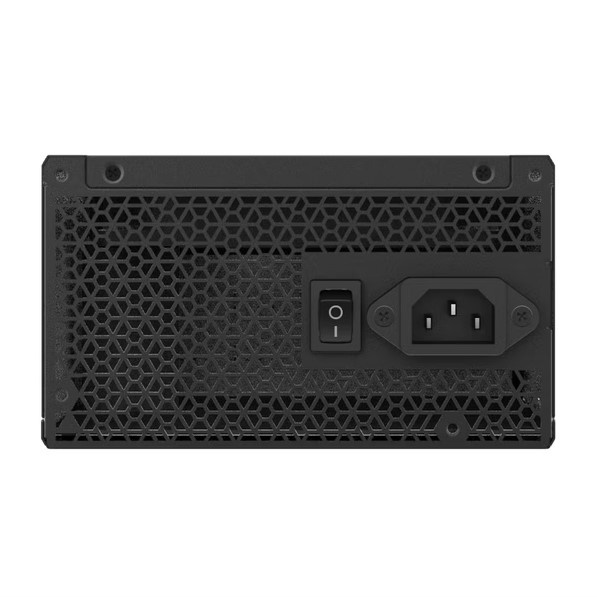

AC Input | Frequency |
100V-240V | 47-63Hz , Full Range APFC |
|
|

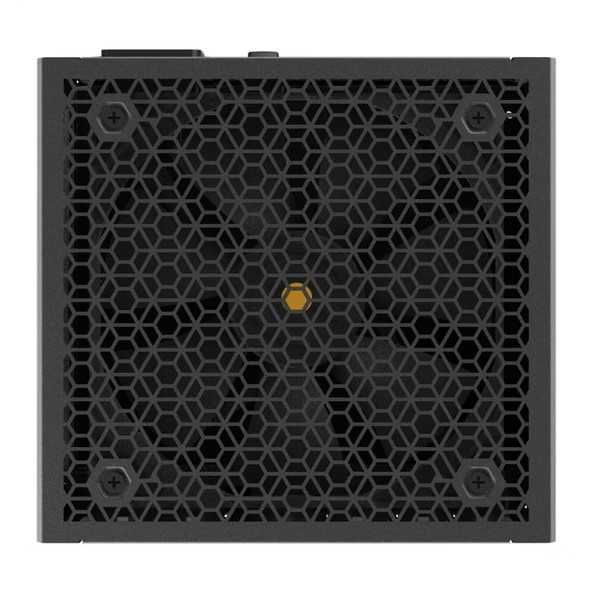

Fan Size |
12cm FDB FAN |
|
|
Dimension |
140mm(L) x 150mm(W) x 86mm(H) |
|
|
Protection |
OVP / OCP / OPP / SCP / OTP |
|
|
Safety Certificates |
cTÜV us / TÜV / CB / CE / FCC / UKCA / BSMI / RoHS /EAC |
|
|
Temperature |
Passed 40℃ Hot Testing |
|
|

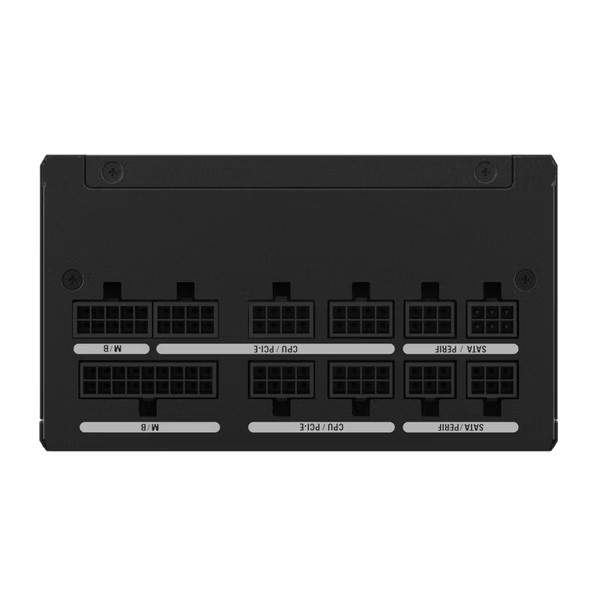

Cable Wires |
||
|
20+4 Pin |
Detachable |
One Cable (600mm) |
|
CPU(4+4 Pin) |
Two Cables (600mm) |
|
|
PCIe (6+2 & 6+2Pin) |
Two Cables (500+150mm) |
|
|
3 SATA |
Two Cables (400+150mm) |
|
|
4 Molex + FDD |
One Cable (400+150mm) |
|
|
PCIe 16 Pin |
One Cable (600mm) |
|
|

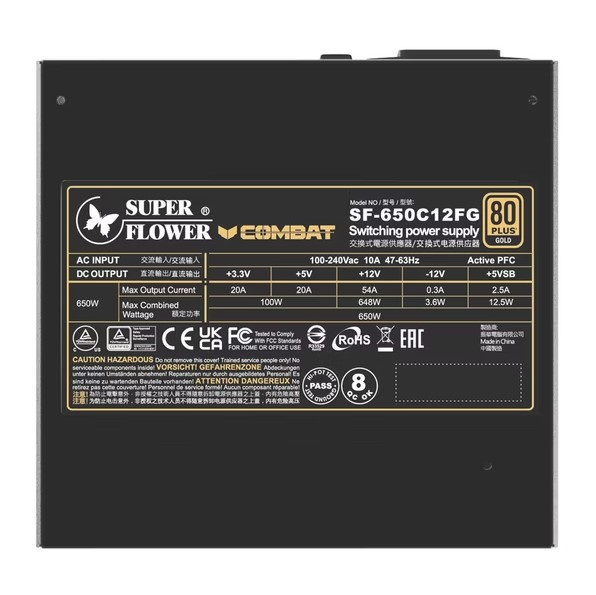

model no.: SF-650C12FG |
||||||
|
AC INPUT |
100-240V 10A 47-63Hz |
|||||
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
|
650W |
Max Output Current |
20A |
20A |
54A |
0.3A |
2.5A |
|
Max Combined Wattage |
100W |
648W |
3.6W |
12.5W |
||
|
650W |
||||||
