硬體規格 |
|
|---|---|

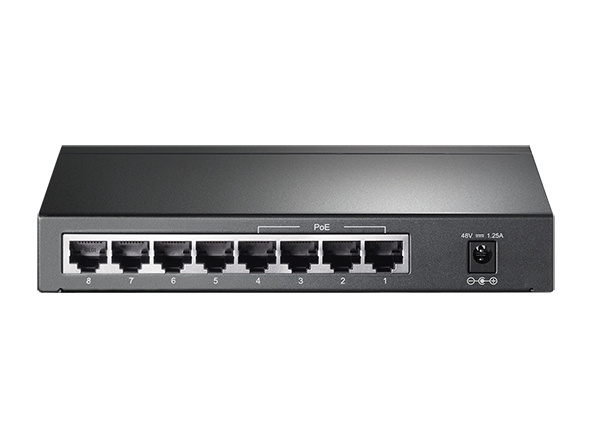

| 連接介面 | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| 網路連接線 | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |
| 物理安全鎖 | No |
| 外接電源供應器 | External Power Adapter(Output: 48VDC / 1.25A) |
| PoE連接埠(RJ45) | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 55W |
| 背板頻寬 | 16Gbps |
| MAC位址表 | 4K |
| 尺寸(長 x 寬 x 高) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| 最大功耗 | 5.49W(220/50Hz. no PD connected) 65.24W(220/50Hz. with 55W PD connected) |
| 最大散熱量 | 18.73BTU/h(no PD connected) 222.60BTU/h(with 55W PD connected) |
|
軟體規格 |
|
|---|---|
| 進階功能 | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS |
| 傳輸模式 | Store-And-Forward |
|
其他規格 |
|
|---|---|
| 認證 | CE, FCC, RoHS |
| 包裝內容 | TL-SG1008P, Power Adapter, Installation Guide |
| 環境 | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
