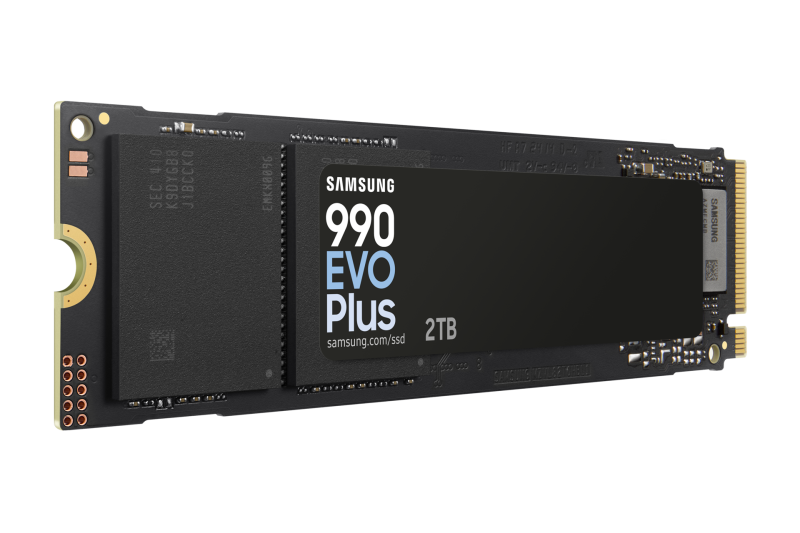

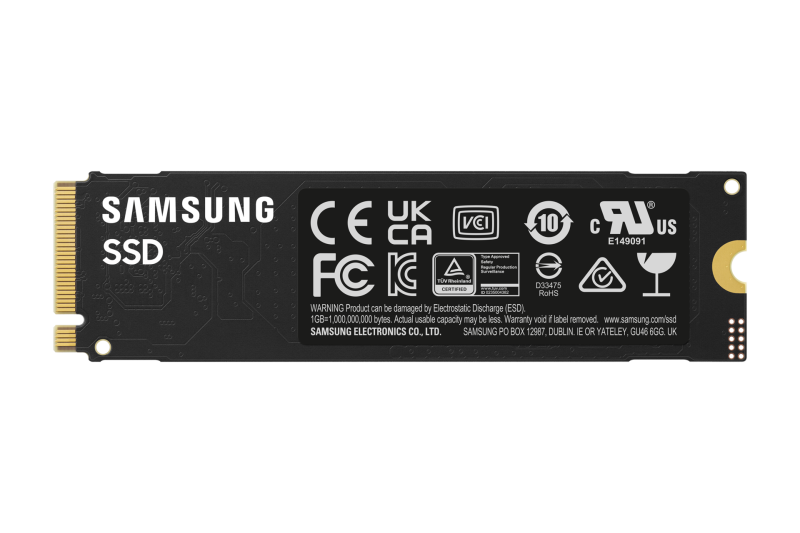

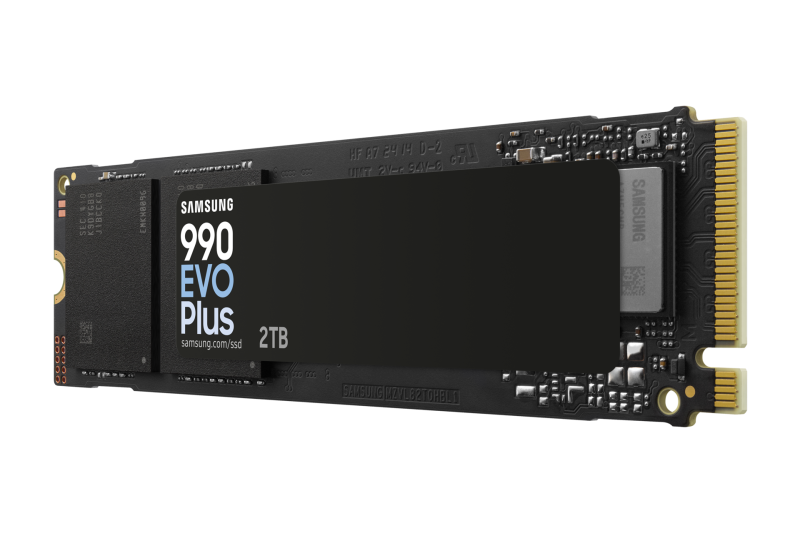

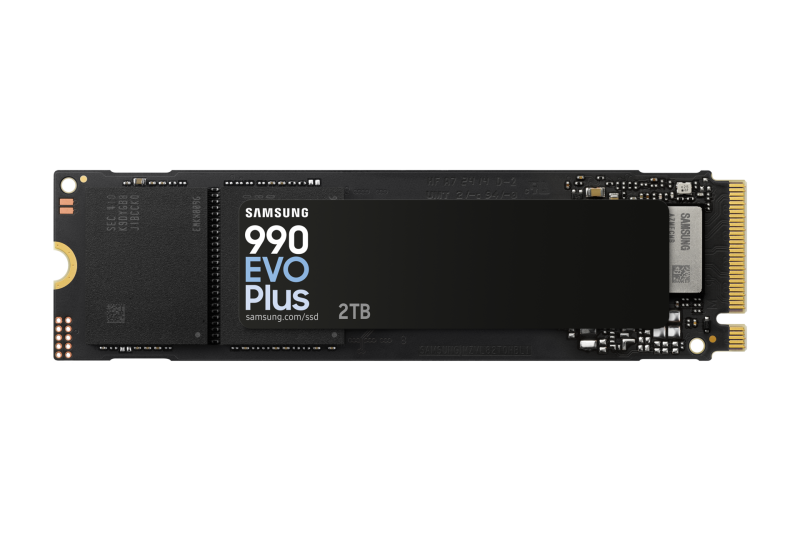

Model Code (Capacity)¹⁾

• MZ-V9S1T0BW(1TB)

• MZ-V9S2T0BW(2TB)

• MZ-V9S4T0BW(4TB)

General Feature

• Application

  Client PCs

• FORM FACTOR

  M.2 (2280)

• INTERFACE

  PCIe® Gen 4.0 x4 / 5.0 x2 NVMe™ 2.0

• DIMENSION (WxHxD)

  80.15 x 22.15 x 2.38mm

• WEIGHT

  Max 9.0g Weight

• STORAGE MEMORY

  Samsung V-NAND TLC

• CONTROLLER

  Samsung in-house Controller

• CACHE MEMORY

  HMB(Host Memory Buffer)

Special Feature

• TRIM Support

  Supported

• S.M.A.R.T Support

  Supported

• GC (GARBAGE COLLECTION)

  Auto Garbage Collection Algorithm

• ENCRYPTION SUPPORT

  AES 256-bit Encryption (Class 0) TCG/Opal
  IEEE1667 (Encrypted drive)

• WWN SUPPORT

  Not supported

• DEVICE SLEEP MODE SUPPORT

  Yes

Performance²⁾

• SEQUENTIAL READ

  1TB: Up to 7,150 MB/s
  2TB: Up to 7,250 MB/s
  4TB: Up to 7,250 MB/s

• SEQUENTIAL WRITE

  1TB: Up to 6,300 MB/s
  2TB: Up to 6,300 MB/s
  4TB: Up to 6,300 MB/s

• RANDOM READ (4KB, QD32)

  1TB: Up to 850,000 IOPS
  2TB: Up to 1,000,000 IOPS
  4TB: Up to 1,050,000 IOPS

• RANDOM WRITE (4KB, QD32)

  1TB: Up to 1,350,000 IOPS
  2TB: Up to 1,350,000 IOPS
  4TB: Up to 1,400,000 IOPS

Environment

• AVERAGE POWER CONSUMPTION
  (System Level)³⁾

  1TB: Average: Read 4.3 W / Write 4.2 W
  2TB: Average: Read 4.6 W / Write 4.2 W
  4TB: Average: Read 5.5 W / Write 4.8 W

• POWER CONSUMPTION (IDLE)³⁾

  1TB: Typical 60 mW
  2TB: Typical 60 mW
  4TB: Typical 60 mW

• POWER CONSUMPTION (DEVICE SLEEP)

  1TB: Typical 5mW
  2TB: Typical 5mW
  4TB: Typical 5mW

• ALLOWABLE VOLTAGE

  3.3 V ± 5 % Allowable voltage

• RELIABILITY (MTBF)

  1.5 Million Hours Reliability (MTBF)

• OPERATING TEMPERATURE

  0 - 70 ℃ Operating Temperature

• Shock

  1,500 G & 0.5 ms (Half sine)

Accessories

• INSTALLATION KIT

  Not Available

Software

• MANAGEMENT SW

  Magician Software for SSD management

Warranty⁴⁾

• MZ-V9S1T0BW(1TB)

  5-year or 600 TBW limited warranty

• MZ-V9S2T0BW(2TB)

  5-year or 1200 TBW limited warranty

• MZ-V9S4T0BW(4TB)

  5-year or 2400 TBW limited warranty

• ¹⁾Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

• ²⁾Performance may vary based on system hardware & configuration

• ³⁾Actual power consumption may vary depending on system hardware & configuration

• ⁴⁾Samsung Electronics shall not be liable for any loss, including but not limited to loss of data or other information contained in Samsung Electronics products and in storage devices, or loss of profit or revenue which may be incurred by user. For more information on the warranty, please visit https://semiconductor.samsung.com/us/consumer-storage/support/warranty
