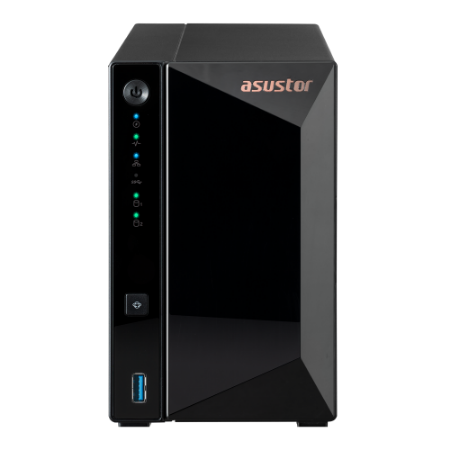

ASUSTOR DRIVESTOR 2 Pro Gen2 (AS3302T v2)

Hardware Specifications

CPU

CPU Model
Realtek RTD1619B

CPU Architecture
ARM64 64-bit

CPU Frequency
Quad-Core 1.7GHz

Memory

Memory 2GB DDR4

Memory Expandable up to
not expandable

Flash Memory
8GB eMMC

Storage

Drive Bays 2
Compatible Drive Type Compatibility

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Maximum Drive Bays with Expansion Unit 14
Supports Hot Swappable Drives Yes

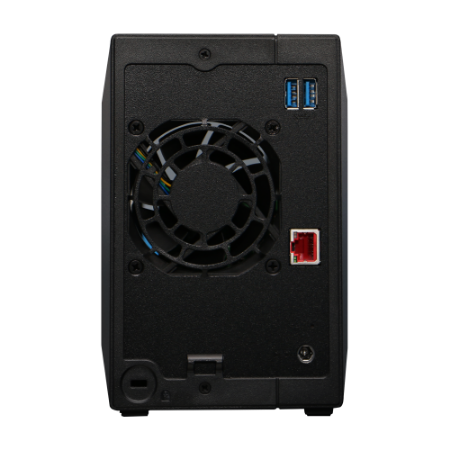

External Ports

Expansion 3x USB 3.2 Gen 1
Network 1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output N/A

Others

System Fan 1x 70mm
Power Supply Unit / Adapter 65W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Warranty 3 Years

Operation

Power Consumption 13.1W (Operation) 4.5W (Disk Hibernation);
Noise Level 18.6dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Humidity 5% to 95% RH

Size and Weight

Size 170(H) x 114(W) x 230(D) mm
Weight 1.6kg / 3.53 lbs Package Contents

Software & Features

General Specifications	Supported OS	Windows 10, 11, Server 2016, Server 2019, Server 2022 macOS UNIX, Linux, and BSD
	Supported Languages	Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
	Supported Browsers	Firefox Chrome Safari Microsoft Edge
Network	Network Protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
	Connection and transmission	TCP/IP (IPv4 & IPv6) Link Aggregation: 0 Jumbo Frame (MTU) VLAN EZ Connect Wireless Network DDNS and EZ-RouterCompatibility Supports Wake-on-LAN (WOL) See More Supports Wake-on-WAN (WOW) See More
File Management & Sharing	File System	Internal Disk: EXT4 ,Btrfs External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
	File Explorer	Web-based File Management ISO File Mounting Share Links Task Monitor Browse Files on Local PC Thumbnail Previews Data Access via External Optical Drive Supports video playback
	Network Recycle Bin	Share folder-based Maintains original directory structure and file permission On-click restore Supports scheduled emptying Filtering rules File size File extension Deletion Settings File size File date
Storage management	Supported RAID levels	Single JBOD RAID 0 RAID 1
	Supported RAID migration methods	Single to RAID 1
Volume	RAID levels supporting storage expansion by complete drive replacement	RAID 1
	RAID levels supporting storage expansion by drive addition	-
	RAID spare drive support	-
	MyArchive	Hot swappable design enables easy transfer or exchange of high amounts of data Works on any empty bay on an ASUSTOR NAS File system support: EXT4, NTFS, HFS+, Btrfs and exFAT Supports AES 256-bit encryption on EXT4 and Btrfs Supports Btrfs snapshots Supports decryption with a USB key
	iSCSI/IP-SAN	Maximum Targets: 256 Maximum LUNs: 256 Maximum Snapshot Versions of a Single LUN: 256 Target Masking LUN Mapping ISO File Mounting Supports MPIO Persistent (SCSI-3) Reservations
	Disk Management	Scheduled Bad Block Scans Scheduled S.M.A.R.T Scans
Access & Security	Access Control	Maximum Number of Users: 4096 Maximum Number of Groups: 512 Maximum Number of Shared Folders: 512 Maximum Number of Concurrent Connections: 512 Supports Windows Active Directory Supports Windows Active Directory / LDAP
	ACL	Provides both Windows ACL and Linux ACL permission configuration methods Can enable Windows ACL for specific shared folders Comprehensive support for Windows’ 13 types of advanced permission settings Can view Windows ACL permission settings from within ADM Supports local users and groups Exclusive permission reset function allows users to quickly restore default permissions
	System Administration	Log Type: System Log, Connection Log, File Access Log Real-time Online User Monitor Real-time System Monitor User Quota Virtual Drive (ISO Mounting, Maximum 16) UPS SupportCompatibility
	Security	AES 256-Bit Encryption Firewall: Prevent Unauthorized Access Alert Notifications: E-mail, SMS Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH Built-in Hardware Encryption Engine
	Network Defender	Auto black list Trusted list Black/White list Supports IP/IP range/geolocation
Backup	Backup Solutions	Rsync (Remote Sync) Backup Cloud Backup FTP Backup External Backup One Touch Backup EZ Sync SMB Backup
	Snapshots	Btrfs Snapshots 256 Snapshots iSCSI LUNs
Others	ASUSTOR Hightlight	System Migration EZ Connect Dr. ASUSTOR 2-way Backup Task Monitor
	Eco-Friendly Design	Auto-Standby for Both Internal and External Disks Auto Fan Control LED Night Mode Power Schedule: On, Off, Restart
	Energy Control	Configurable Disk Hibernation Wait Time
