- Graphics Processing

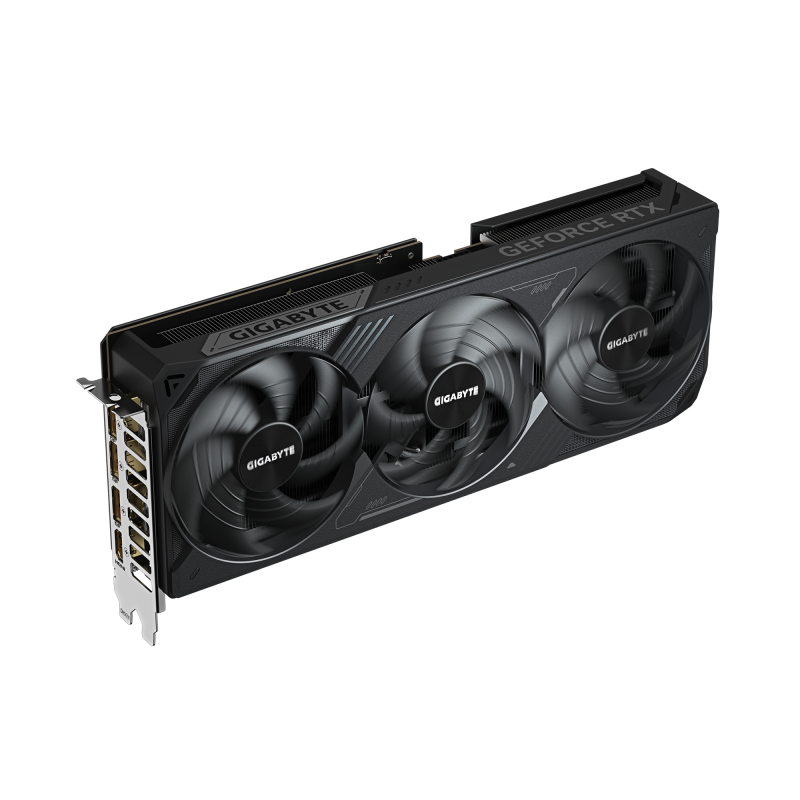

GeForce RTX™ 5080
- Core Clock
TBD
- CUDA® Cores
TBD
- Memory Clock
32 Gbps
- Memory Size
16GB
- Memory Type
GDDR7
- Memory Bus
256 bit
- Card Bus
PCI-E 5.0
- Digital max resolution
7680 x 4320
- Multi-view
4
- Card size
L=304 W=126 H=50 mm
- PCB Form
ATX
- DirectX
DirectX 12 API
- OpenGL
OpenGL 4.6
- Recommended PSU
850W
- Power Connectors
16 pin*1

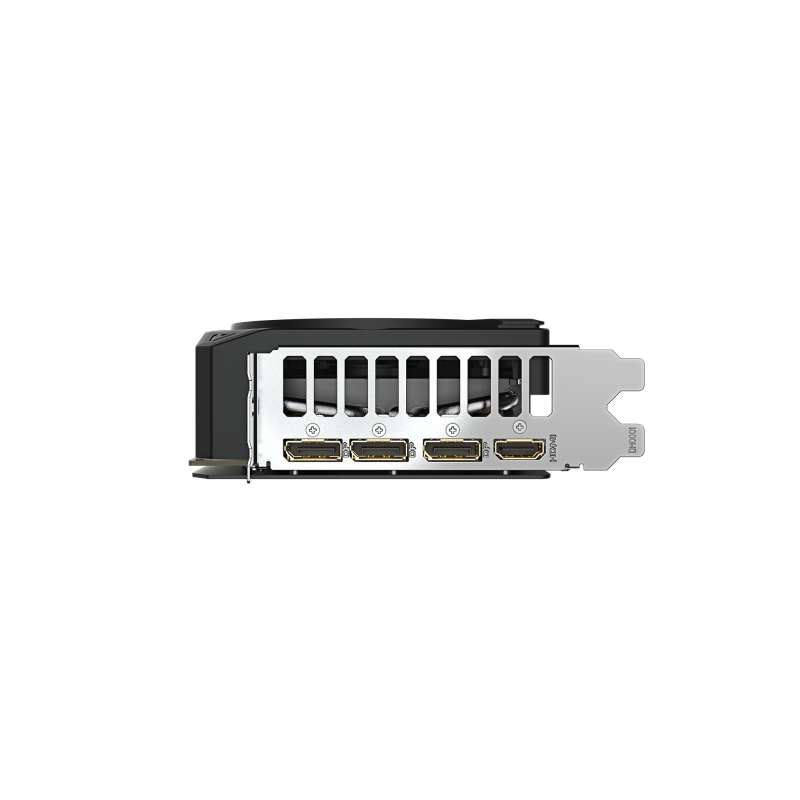

- Output
DisplayPort 2.1a x3
HDMI 2.1b x1
- Accessories
1. VGA manual
2. 1x 12V-2x6 to 3x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
