- Graphics Processing

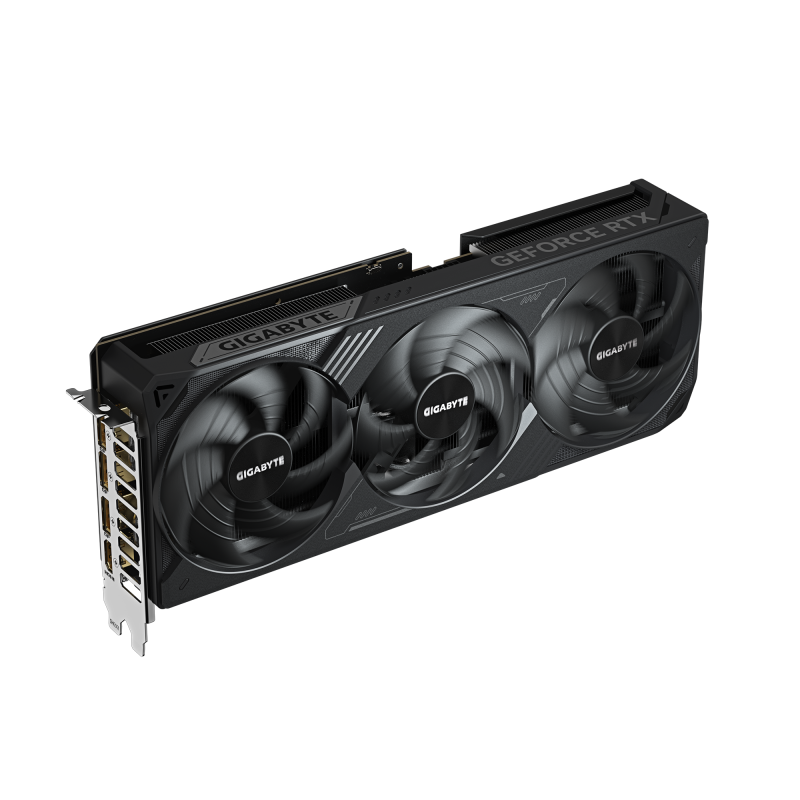

GeForce RTX™ 5070 Ti - Core Clock
TBD - CUDA® Cores
TBD - Memory Clock
28 Gbps - Memory Size
16GB - Memory Type
GDDR7 - Memory Bus
256 bit - Card Bus
PCI-E 5.0 - Digital max resolution
7680 x 4320 - Multi-view
4 - Card size
L=304 W=126 H=50 mm - PCB Form
ATX - DirectX
DirectX 12 API - OpenGL
OpenGL 4.6 - Recommended PSU
750W - Power Connectors

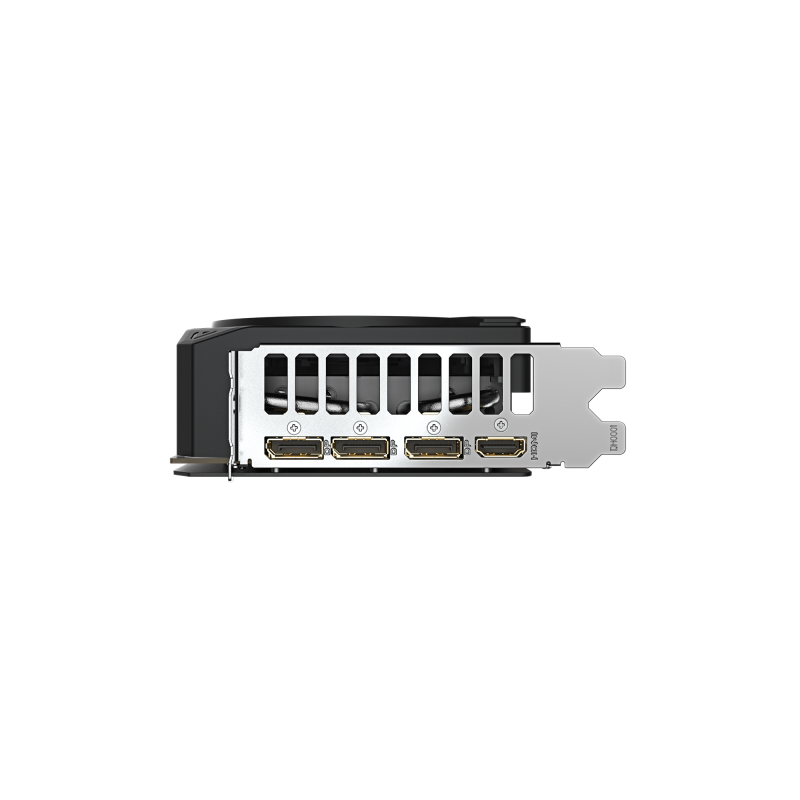

16 pin*1 - Output
DisplayPort 2.1a x3
HDMI 2.1b x1 - Accessories

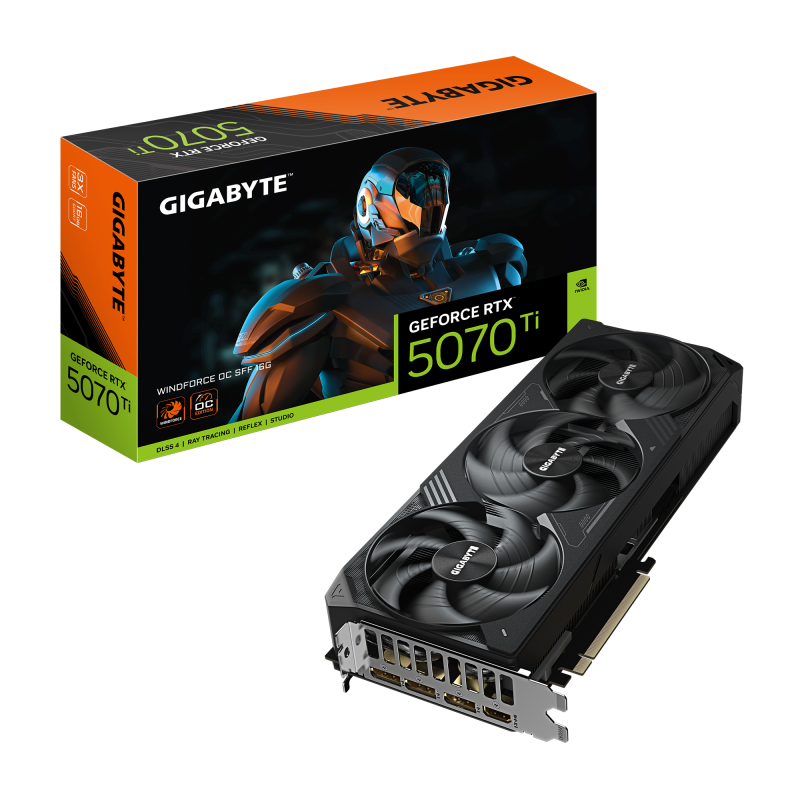

1. VGA manual
2. 1x 12V-2x6 to 3x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
