Specification
|
Model No.: |
SF- 1000F14XP |
|
|
Transform Efficiency |
20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency |
|
|
Cybernetics Certified |
Efficiency: Platinum / Efficiency 230V: Platinum |
|
|
Intel Power Design Guide |
EPS Ver. 2.92 & ATX 3.1 |
|
|
AC Input | Frequency |
100V-240V | 60 / 50Hz , Full Range APFC |
|
|
Fan Size |
14cm FDB FAN |
|
|
Dimension |
150mm(L) x 150mm(W) x 86mm(H) |
|
|
Protection |
OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
|
|
Safety Certificates |
cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
|
|
Temperature |
Passed 50℃ Hot Testing |
|
|
Cable Wires (Detachable) |
||
|
20+4 Pin |
One Cable (600mm) |
|
|
8(4+4) Pin CPU |
Two Cables (700mm) |
|
|
PCI 6+2 Pin |
Four Cables (700mm) |
|
|
4 SATA |
Three Cables (550+130+130+130mm) |
|
|
4 Molex |
One Cable (550+150+150+150mm) |
|
|
PCIe 12+4 Pin |
One Cable (700mm) |
|
|
model no.: SF-1000F14XP |
||||||
|
AC INPUT |
100-240V~ 15A 60Hz/50Hz |
|||||
|
200-240V~ 10A 60Hz/50Hz (Only for China/Korea) |
||||||
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
|
1000W |
Max Output Current |
20A |
20A |
83.3A |
0.5A |
2.5A |
|
Max Combined Wattage |
100W |
999.6W |
6W |
12.5W |
||
|
1000W |
||||||
LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

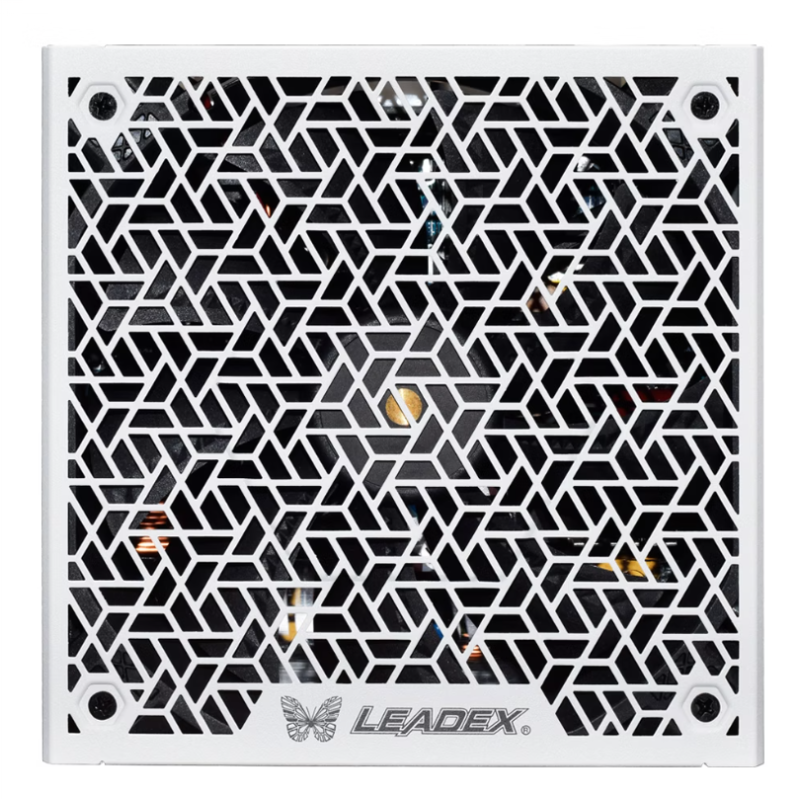

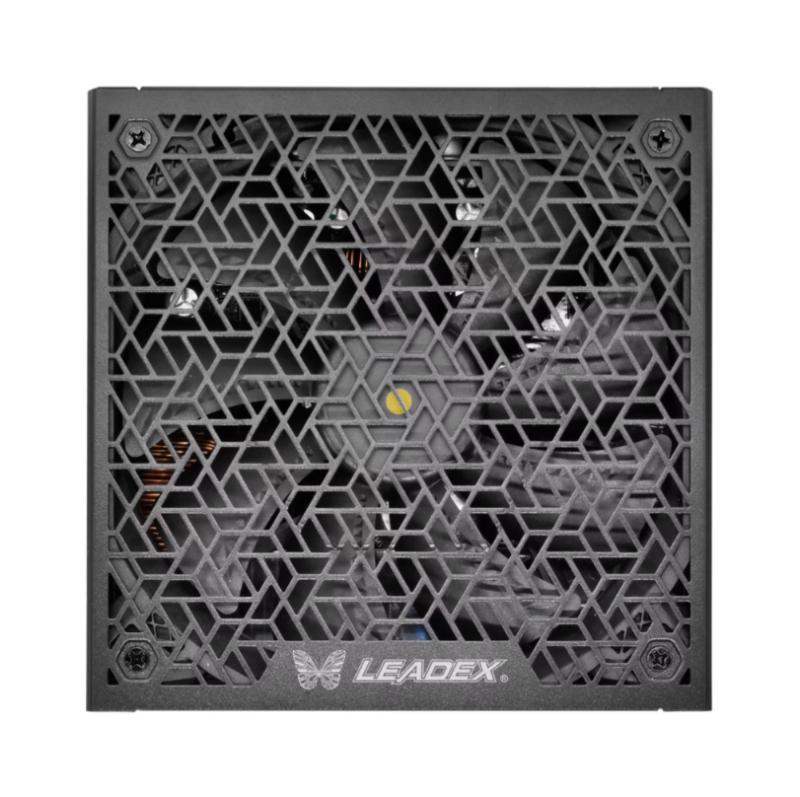

♦ 140mm F.D.B Fan: Unique 9-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
♦ Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

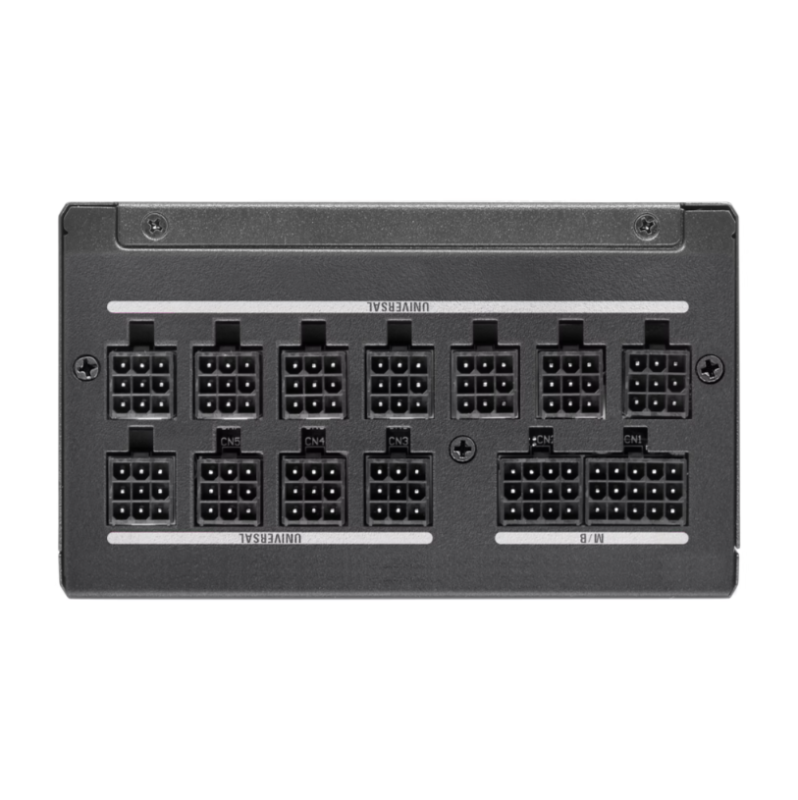

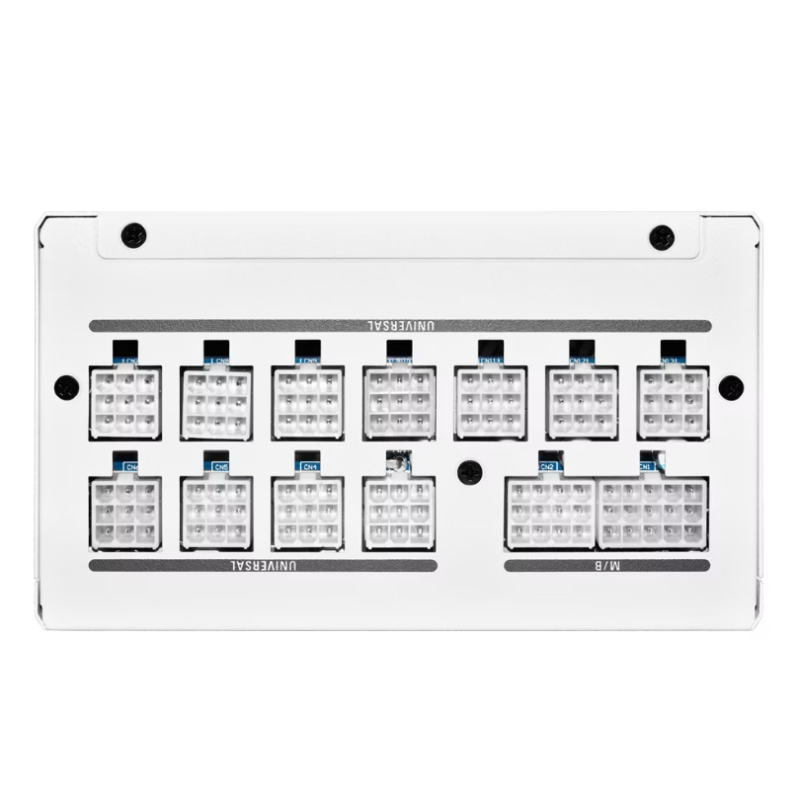

♦ New patented Universal SUPER CONNECTOR(Patent No.: Taiwan D196948 D196949 ; China CN304998083S) Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.
♦ New patented technology of Buckle (20+4) Pin connector(Patent No.: Taiwan M563575 ; China 7566010)
♦ Innovative Design for gaming System & PSU protection
1. DC output +12V/+5V/+3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple
♦ ECO-design
1. Auto & ECO Fan Control
2. High efficiency on all rails, including 5VSB

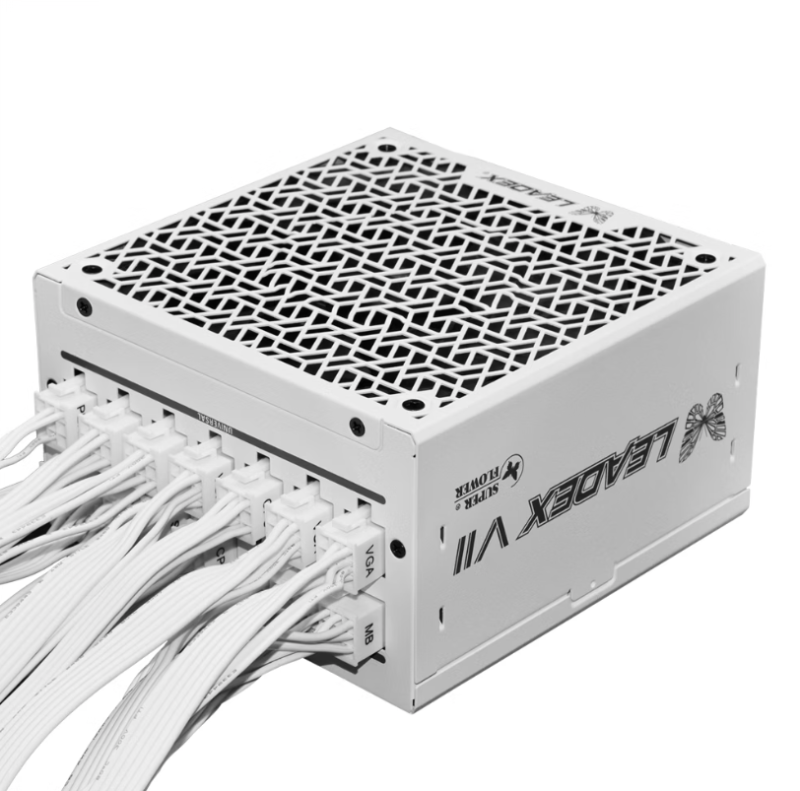

♦ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
♦ 80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)

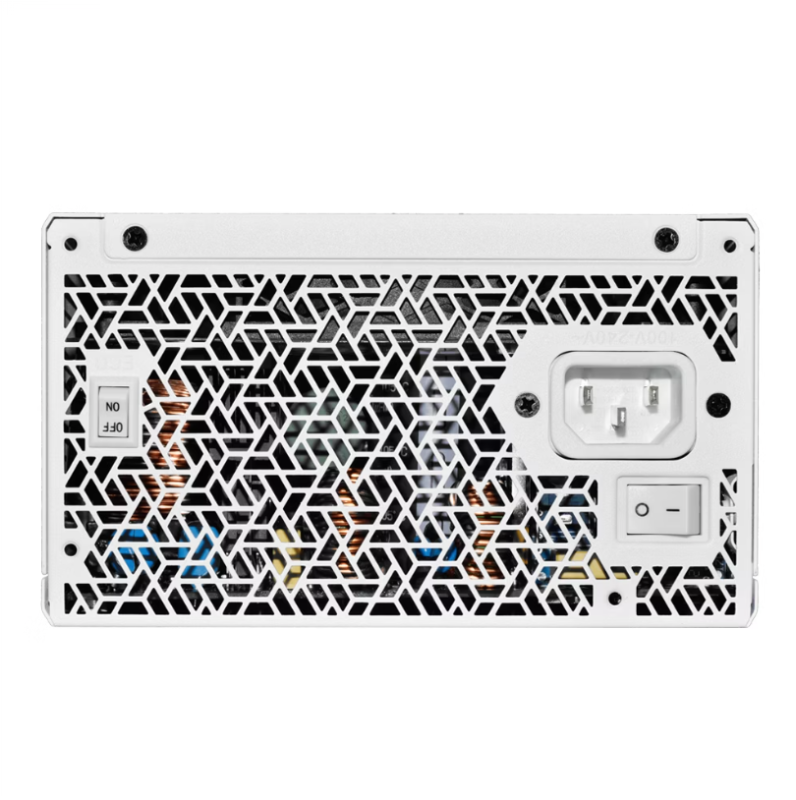

♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
♦ Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦ More than 2,000 times On/Off test
♦ Lead-free Green Materials with RoHS / WEEE Compliance
♦ Perfect For Professional & High Performance Gaming System
♦ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.
