Specification
★Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
★Fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion..
★OVP/ OCP / OTP/ SCP / OPP / NLP
★Compact 14cm size.
★ECO Fan control design.
★Pass 50°C Hot Testing.
★All Flat Cables.
★105°C Taiwanese Full Capacitor.
|
Model |

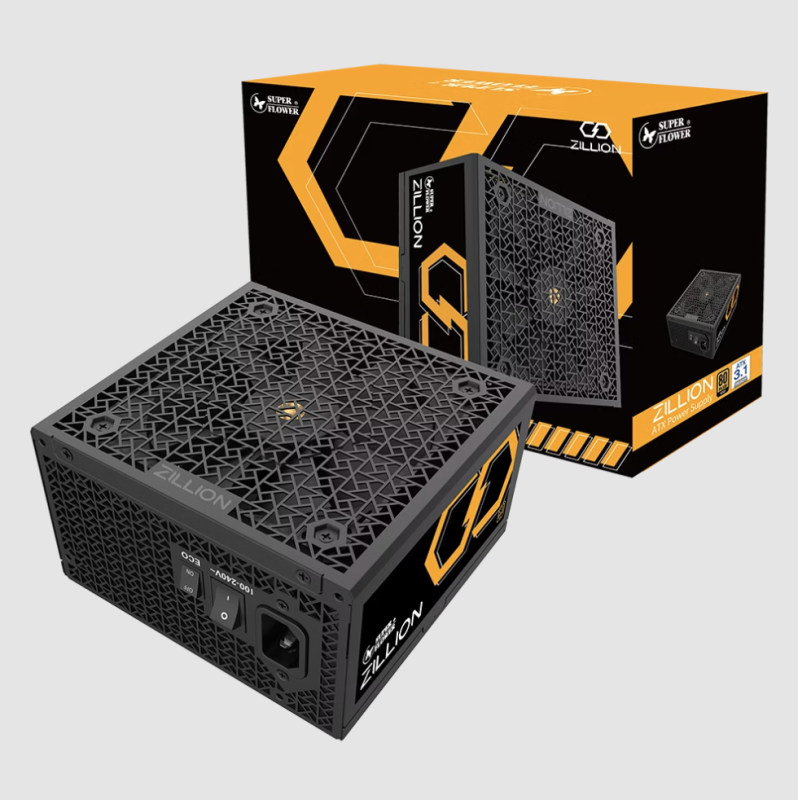

Zillion FG Gold 1250W |
|
|
Wattage |
1250W |
|
|
Efficiency |
20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) Efficiency |
|
|
Intel Power Design Guide |
ATX 12V v3.1, EPS 12V v2.92 Specification. |
|
|
AC Input / Frequency |
100V-240V | 60 / 50Hz , Full Range APFC |
|
|

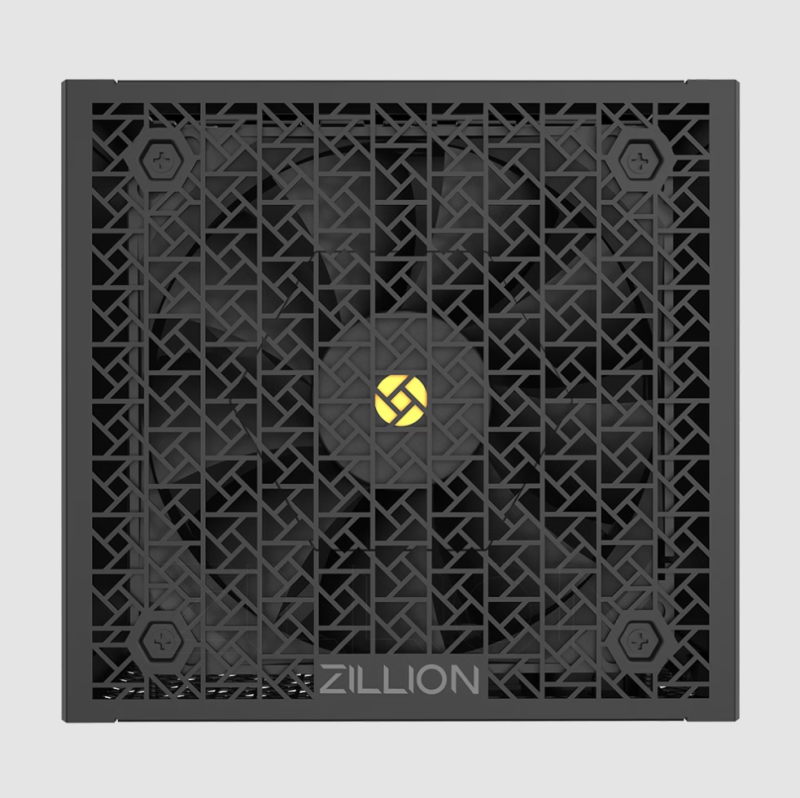

Fan Size |
120mm FDB Fan |
|
|
Dimension |
140mm(L) x 150mm(W) x 86mm(H) |
|
|
Protection |
OVP/ OCP / OTP/ SCP / OPP / NLP |
|
|
Safety |
CCC / FCC / cTÜVus / TÜV / CE / UKCA |
|
|
Weight |
Around 1.5 KG |
|
|

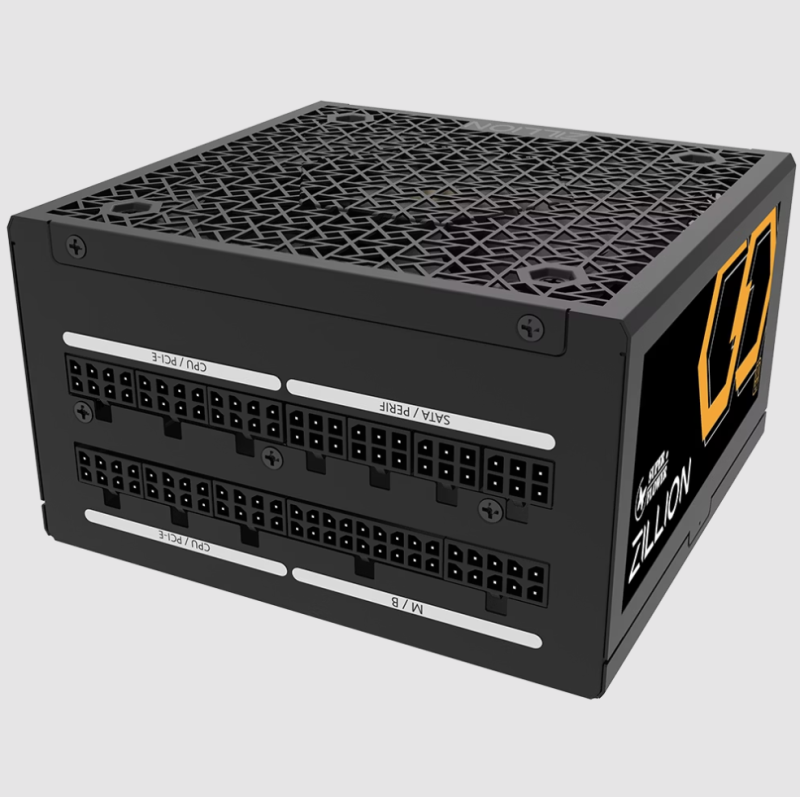

Cable Spec - Detachable |
||
|
20+4Pin |
1 (600 mm) |
|
|
PCI(6+2)Pin |
3 (700mm) |
|
|
8Pin (4+4Pin) |
2 (750mm+150mm) |
|
|
12+4 Pin PCIe |
1 (700mm) |
|
|
4SATA |
2 (550mm+150mm+150mm+150mm) |
|
|
3Molex+FDD |
2 (550mm+150mm+150mm+150mm) |
|
|
Molex to FDD |
1 (100 mm) |
|
|
model no.:SF-1250Z12FG |
||||||
|
AC INPUT |
100-240V~ 10-5A 50-60Hz | |||||
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
5VSB |
|
|
1250W |
Max Output Current |
20A |
20A |
104.2A |
0.3A |
2.5A |
|
Max Combined Wattage |
100W |
1250W |
3.6W |
12.5W |
||
|
1250W |
||||||
