Graphics Processing

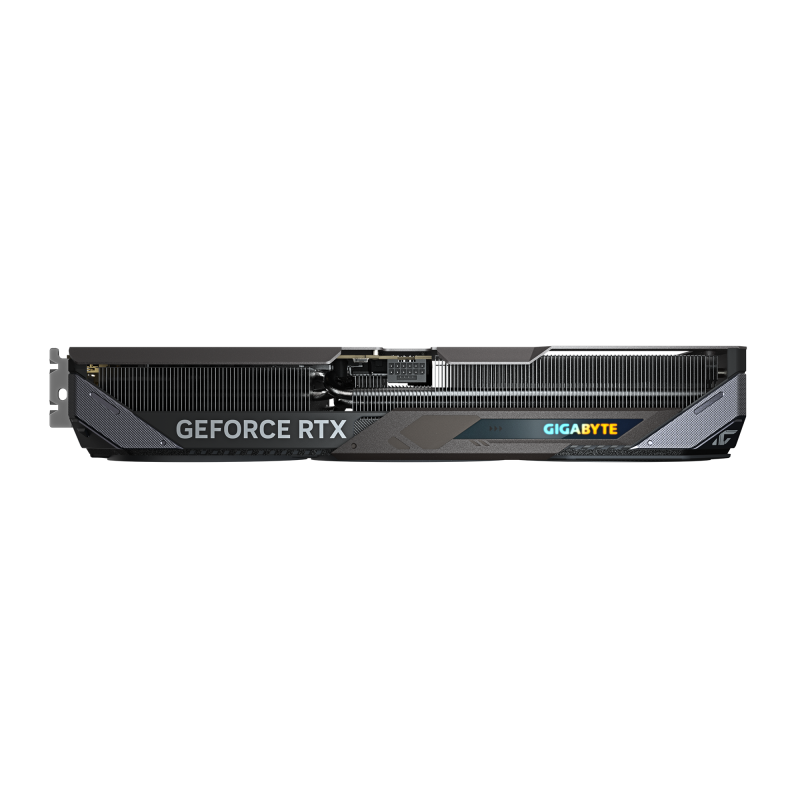

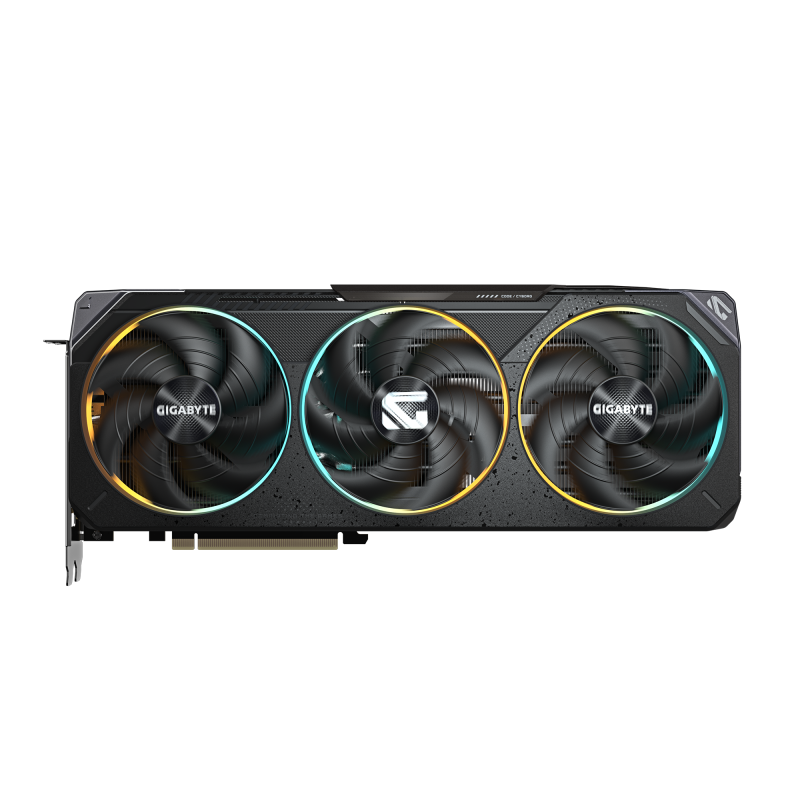

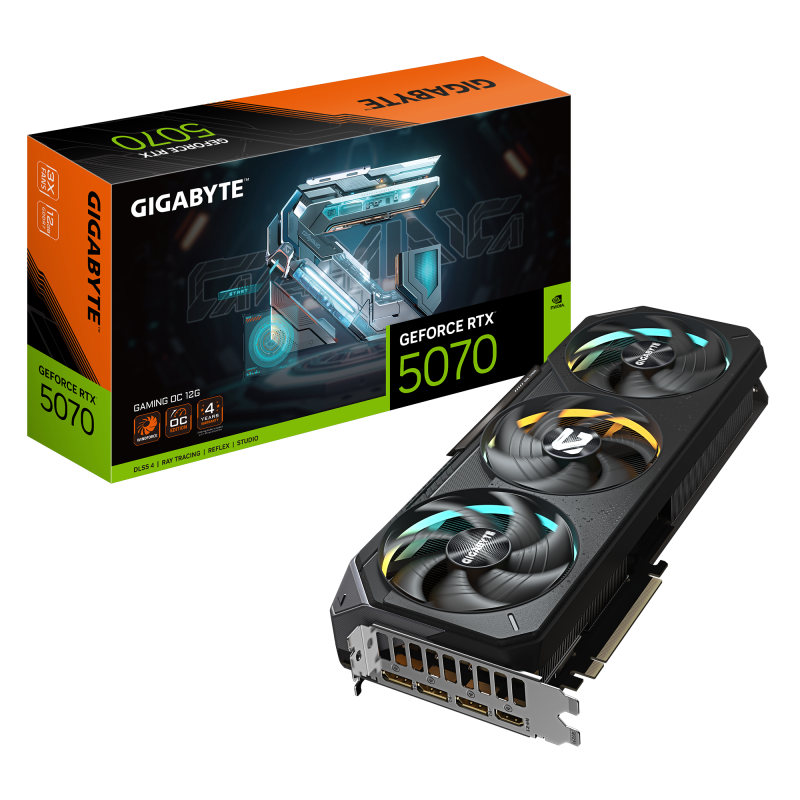

GeForce RTX™ 5070
Core Clock
2625 MHz (Reference card : 2512 MHz)
CUDA® Cores
6144
Memory Clock
28 Gbps
Memory Size
12 GB
Memory Type
GDDR7
Memory Bus
192 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=327 W=132 H=56 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
750W
Power Connectors
16 Pin*1

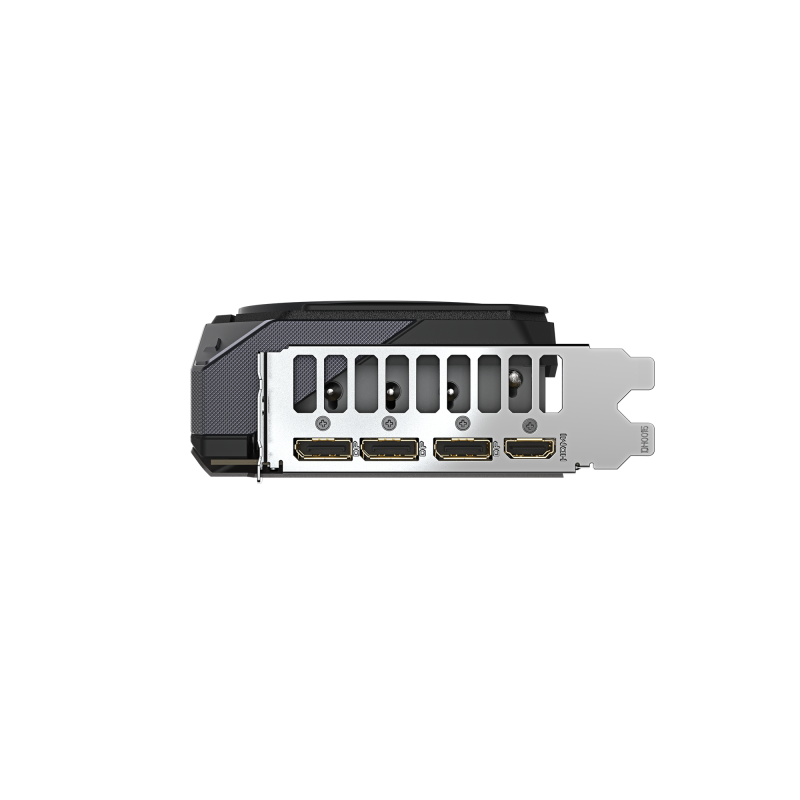

Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
1. Quick guide
2. Warranty registration
3. 1x 12V-2x6 to 2x PCIe 8pin adapter
4. Versatile VGA holder
5. Versatile VGA holder manual
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.amount.d therefore the actual memory size is less than the stated amount.
