型號

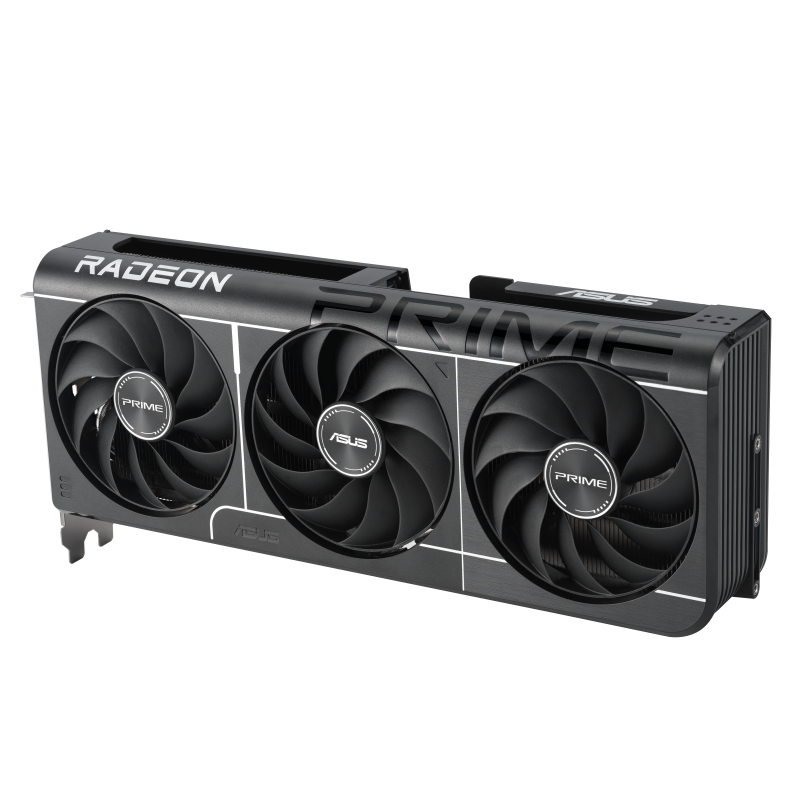

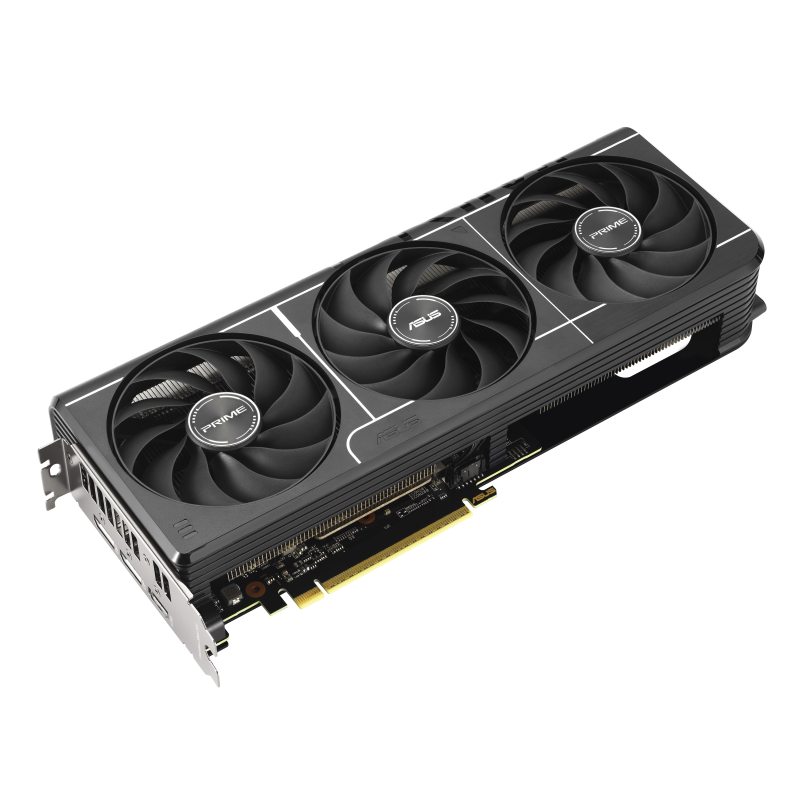

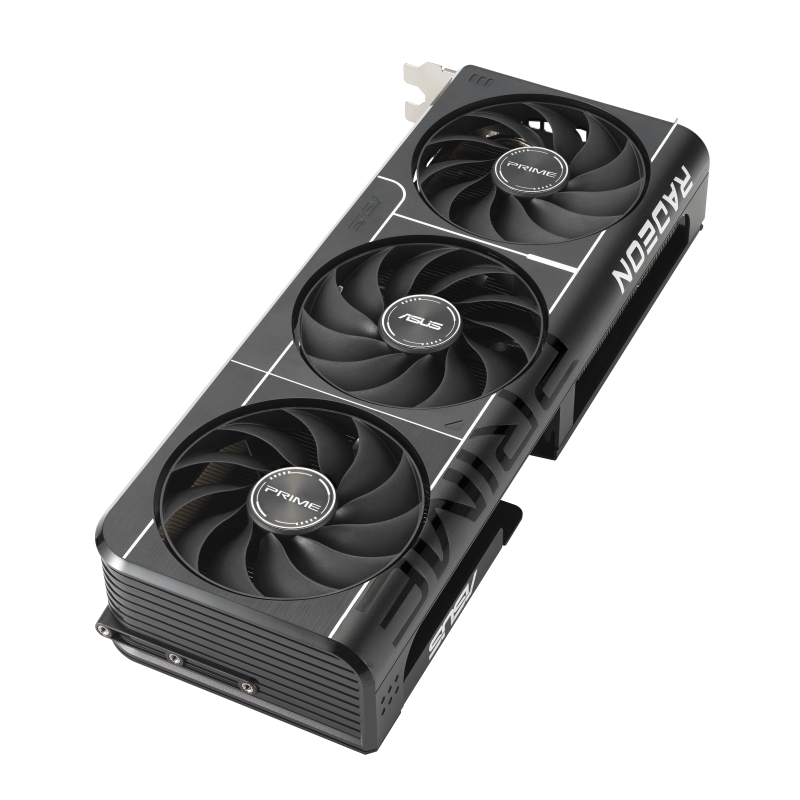

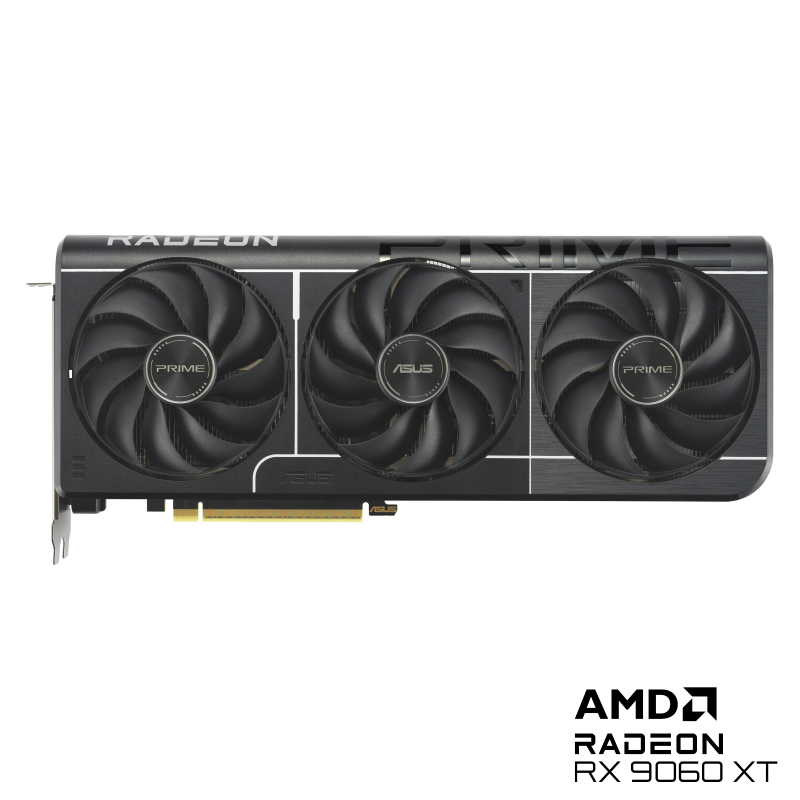

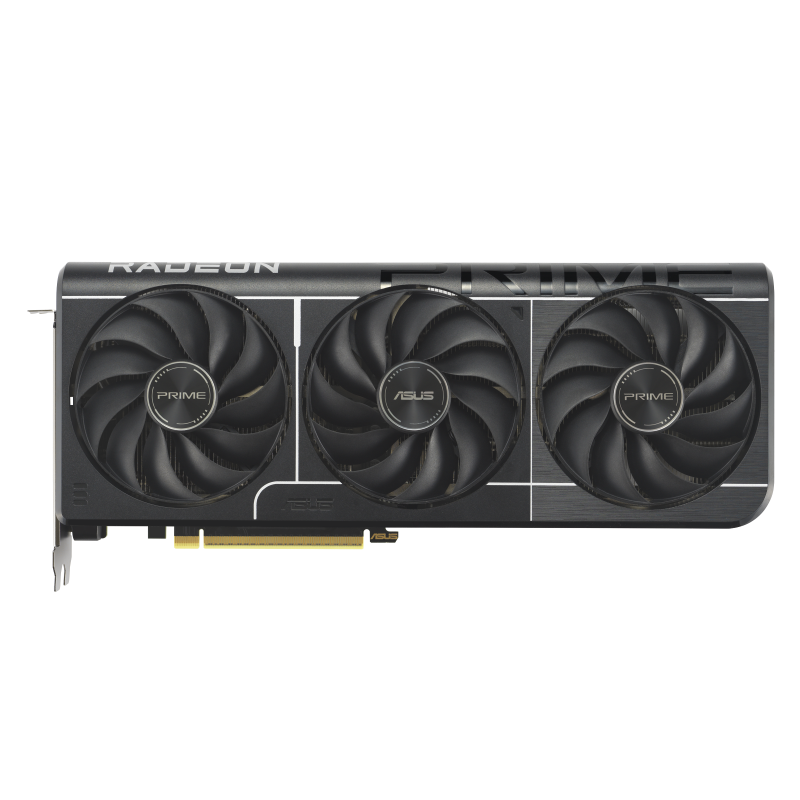

PRIME-RX9060XT-O8G
繪圖核心
AMD Radeon™ RX 9060 XT
匯流排規格
PCI Express 5.0
OpenGL
OpenGL®4.6
記憶體形式
8GB GDDR6
GPU 時脈
OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock)
Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)
Stream Processors
2048
Memory Speed
20 Gbps
Memory Interface
128 位元
解析度
Digital Max Resolution 7680 x 4320

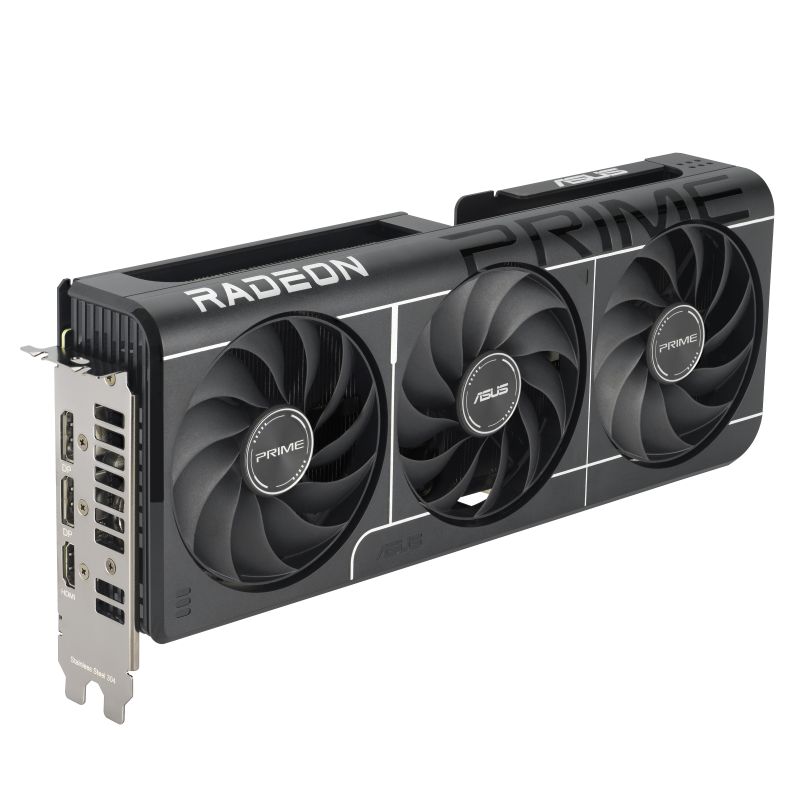

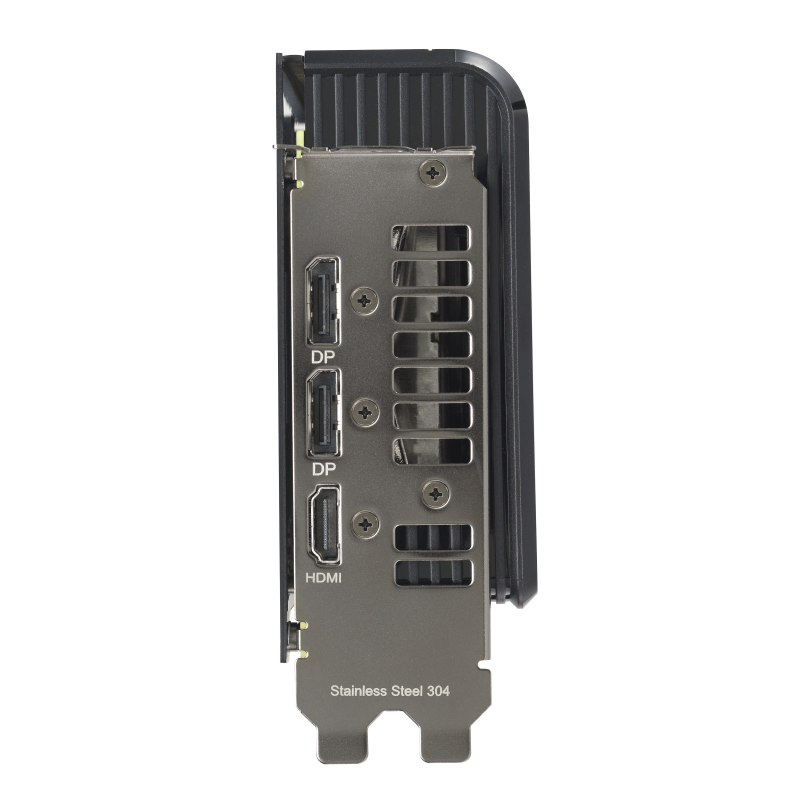

介面
Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
支援HDCP : 有 (2.3)
最多可支援顯示器數量
3
NVlink/ Crossfire Support
無
配件
1 x Thank you card
1 x Speedsetup Manual
軟體
ASUS GPU Tweak III & Drivers: please download all software from the support site.
產品尺寸
304 x 126 x 50mm
Recommended PSU
550W
電源連接器
1 x 8-pin
Slot
2.5 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
PRIME-RX9060XT-O8G
繪圖核心
AMD Radeon™ RX 9060 XT
匯流排規格
PCI Express 5.0
OpenGL
OpenGL®4.6
記憶體形式
8GB GDDR6
GPU 時脈
OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock)
Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)
Stream Processors
2048
Memory Speed
20 Gbps
Memory Interface
128 位元
解析度
Digital Max Resolution 7680 x 4320
介面
Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
支援HDCP : 有 (2.3)
最多可支援顯示器數量
3
NVlink/ Crossfire Support
無
配件
1 x Thank you card
1 x Speedsetup Manual
軟體
ASUS GPU Tweak III & Drivers: please download all software from the support site.
產品尺寸
304 x 126 x 50mm
Recommended PSU
550W
電源連接器
1 x 8-pin
Slot
2.5 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
