Description
- Interface Type: PCIe
- Form Factor: M.2 Key-E 2230
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support
- SupportsBluetooth 5.2
- SupportsMU-MIMO
* AMD 802.11ax Wi-Fi 6E Kit is compatible with ASRock motherboard models only. Please check the support list on the ASRock website before purchasing.
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
- Specification
- Support
- Dimensions - 22mm x 30mm x 2.4mm
- Form Factor - M.2 2230
- Interface Type-PCIe
- Wi-Fi Certified
- Wi-Fi 6E (802.11a/b/g/n/ac/ax)
- TX/RX Streams - 2x2
- Bands - Dual-Band 2x2 with extended 6GHz band support *
- * Wi-Fi 6E (6GHz band) will be supported by Microsoft ® Windows® 11. The availability will depend on the different regulation status of each country and region.
- It will be activated (for supported countries) through Windows Update and software updates once available.
- A 6GHz compatible router is required for 6E functionality.
- Bluetooth Version-5.2
- MU-MIMO-Yes
- OS- Microsoft® Windows® 10 64-bit / 11 64-bit

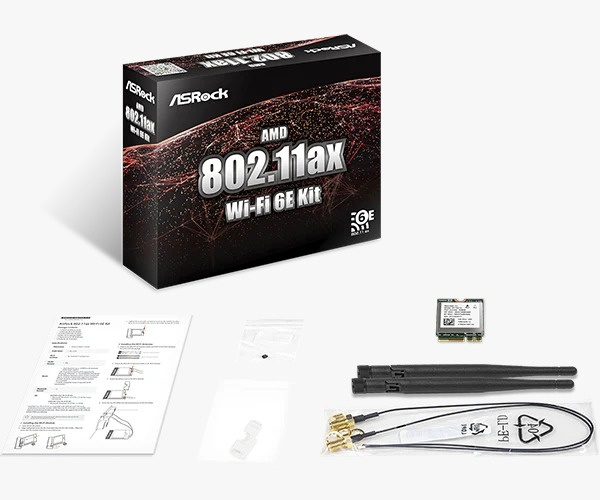

- Accessories - 1 x Quick Installation Guide - 1 x AMD 802.11ax Wi-Fi 6E Module - 2 x WiFi 2.4/5/6 GHz Antennas - 2 x SMA Wi-Fi Antenna Cables - 1 x Plastic Cover for Wi-Fi Module - 1 x Screw for Wi-Fi Module
