Overview
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to NVIDIA® GeForce RTX™ RTX 50 Series graphics cards.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.

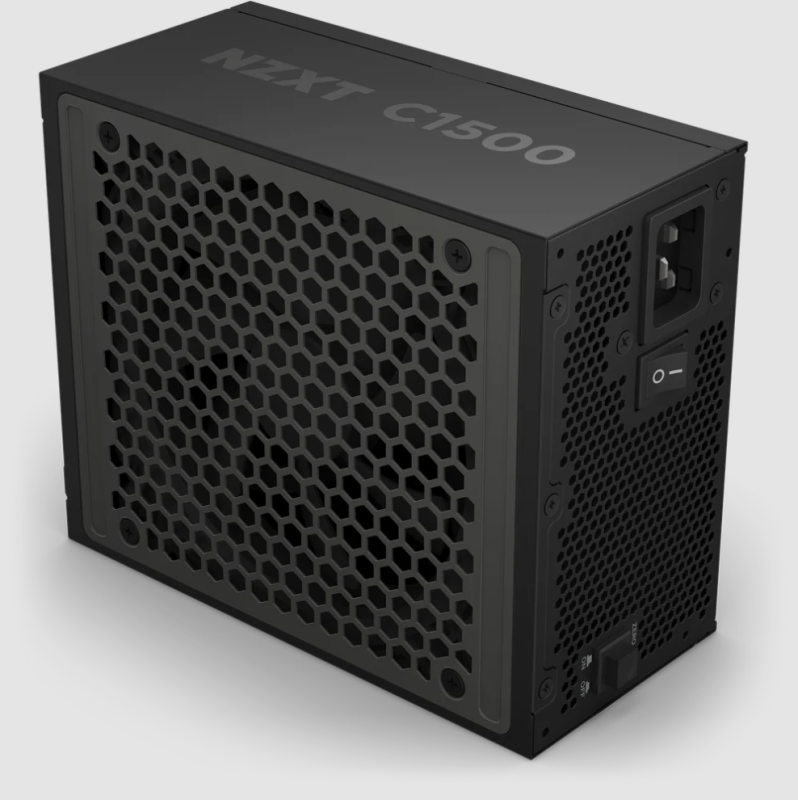

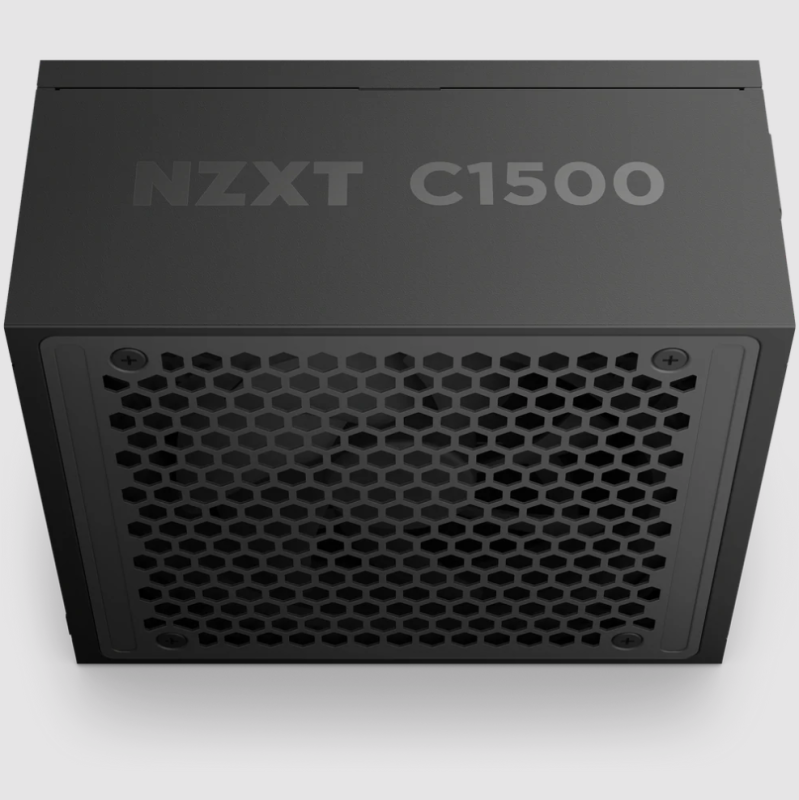

- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.

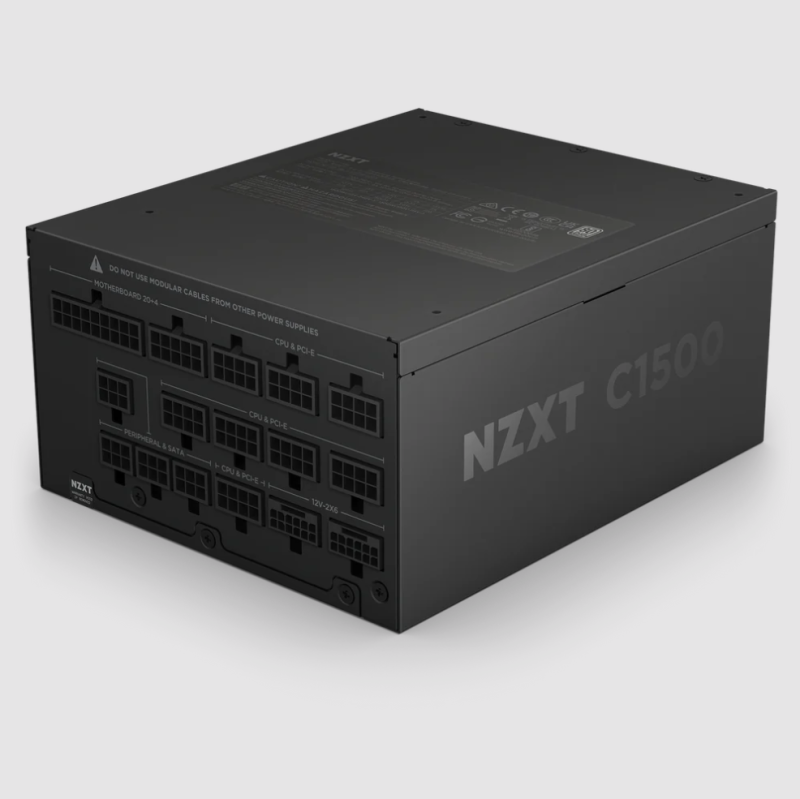

- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.

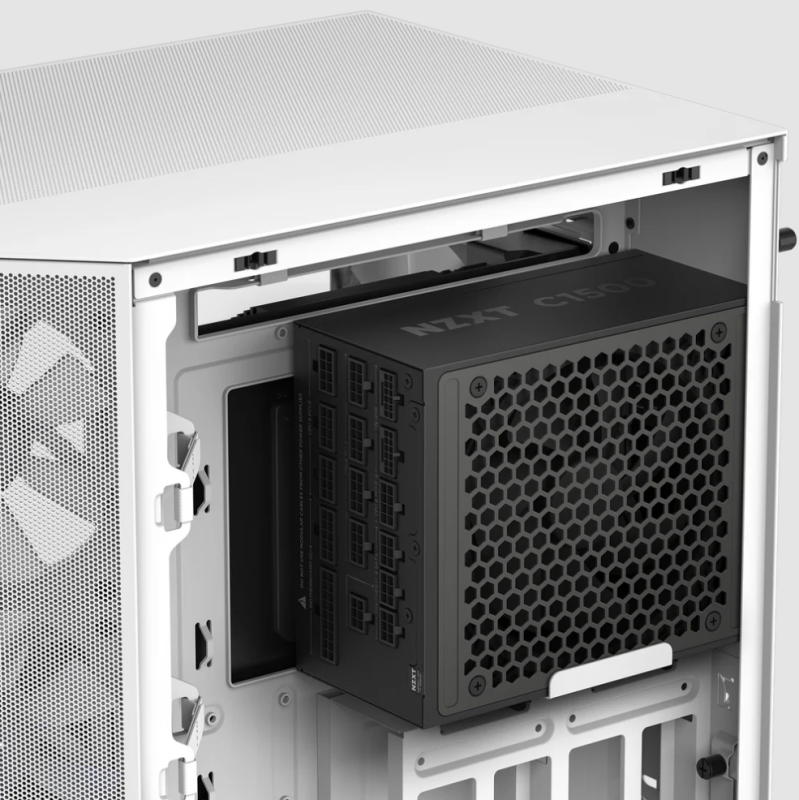

- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
Tech Specs

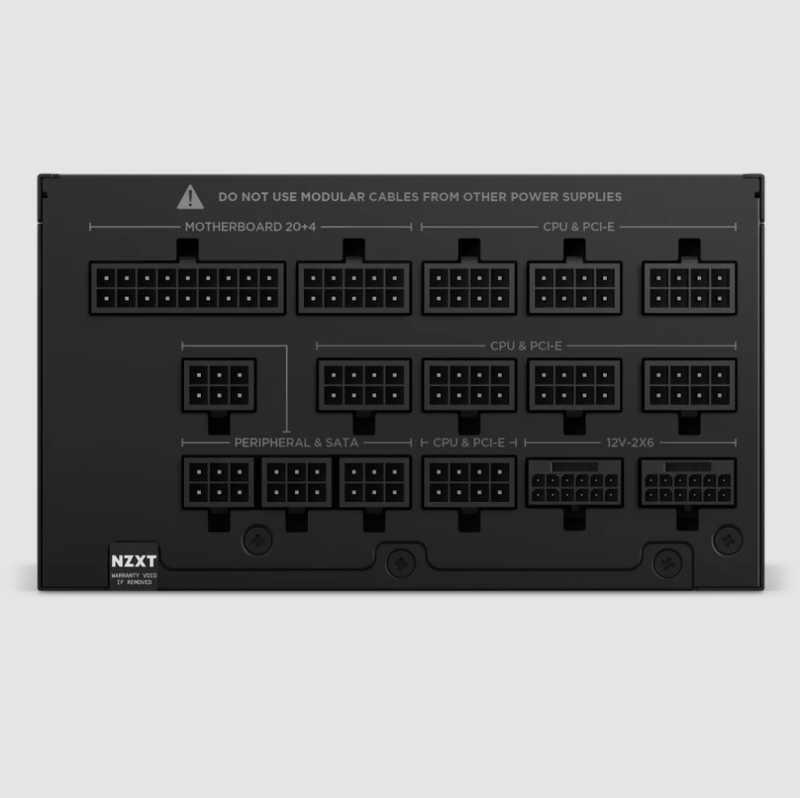

Output Connectors
24-pin ATX Power Cable
1
4+4-pin CPU Power Cable
1
8-pin CPU Power Cable
1
6+2-pin PCIe Power Cable
6
16-pin (12+4) 12V-2x6 PCIe Cable
2
SATA Cable
12
Peripherals Cable
4
Cable Specs
24-pin ATX Power Cable
600mm with nylon sleeving
4+4-pin CPU Power Cable
700mm with nylon sleeving
8-pin CPU Power Cable
700mm with nylon sleeving
6+2-pin PCIe Power Cable
650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable
650mm with nylon sleeving
SATA Cable
500 + 150 mm with nylon sleeving
Peripherals Cable
500 + 150 mm with nylon sleeving
AC Input Rating
100 - 240Vac
15A-9A 50Hz-60Hz
200 - 240Vac
9A 50Hz-60Hz
DC Output Rating
3.3V / +5V
22A (120W)
12V
125A (1500W)
5Vsb
3A (15W)
Total
1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
Rating
80 Plus Platinum
10% loading
92% @115Vac
20% loading
94% @115Vac
50% loading
93.8% @115Vac
100% loading
90.8% @115Vac
Electrical Features
PF Correction
Active @0.99
Protections
OVP / UVP / SCP / OTP / OPP / OCP
Fan Specs
Dimensions
140 x 140 x 25 mm
Speed
2500 ± 10% RPM
Airflow
125 CFM (Tpy.)
Noise
41.0 dBA max
Bearing
Magnetic Levitation Bearing (ML)
Operation
MTBF
100,000 hours
Temperature
0 - 50 °C
Dimensions
Width
5.91 in / 150 mm
Height
3.39 in / 86 mm
Depth
7.09 in / 180 mm
General
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v3.1 / EPS12V v2.92
Regulation & Certification
FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Warranty
10 Years
Model Number
Model Number
PA-5P1BB-US / PA-5P1BB-EU / PA-5P1BB-UK / PA-5P1BB-CN / PA-5P1BB-JP / PA-5P1BB-AU
EAN
EAN
5056547203645 (US) / 5056547203652 (EU) / 5056547203669 (UK) / 5056547203638 (CN) / 5056547203676 (JP) / 5056547203683 (AU)
UPC
UPC
810074843720 (US) / 810074843737 (EU) / 810074843744 (UK) / 810074843713 (CN) / 810074843751 (JP) / 810074843768 (AU)
