- Model Name
G506T-8V2P
- 繪圖引擎
NVIDIA® GeForce RTX™ 5060 Ti
- 科技介面
PCI Express® Gen 5 x16 (uses x8)
- 動態 / 核心時脈(MHz)
Extreme Performance: 2587 MHz (MSI Center)
Boost: 2572 MHz
- Cores
4608 Units
- 記憶體速度
28 Gbps
- Memory
8GB GDDR7
- 記憶體介面
128-bit

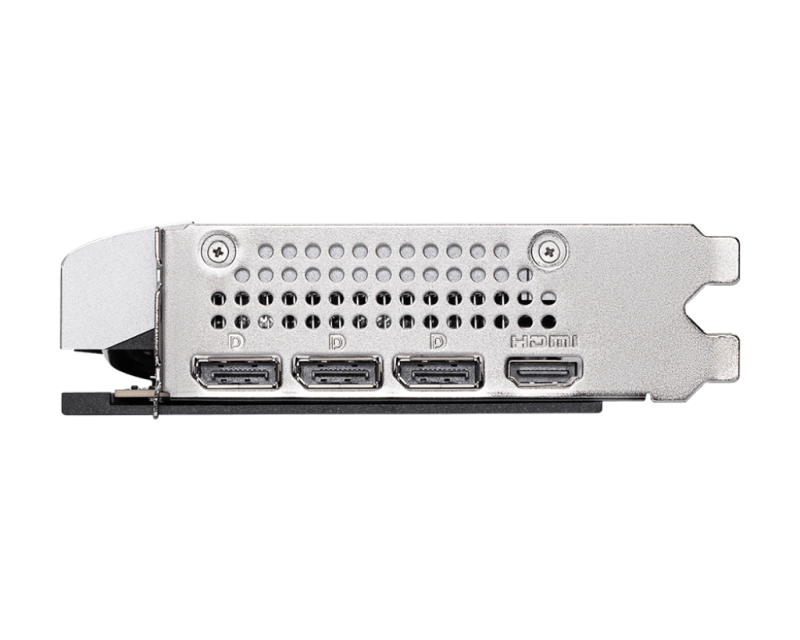

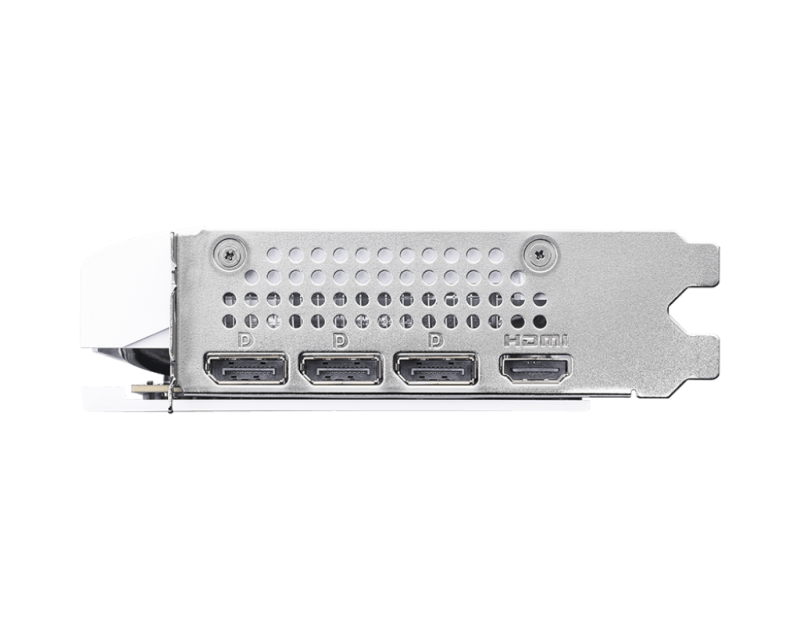

- Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
- HDCP 支援
Y
- 功耗(W)
180 W
- 供電接口
16-pin x 1 (ATX 3.1 PSU recommended)
- 建議電源供應(W)
600 W
- 顯示卡尺寸(mm)
227 x 127 x 41 mm
- 重量 (顯示卡 / 包裝盒)
573 g / 834 g
- DirectX 支援版本
12 Ultimate
- OpenGL 支援版本
4.6
- 最大螢幕輸出數量
4
- G-SYNC® technology
Y
- Digital Maximum Resolution
7680 x 4320

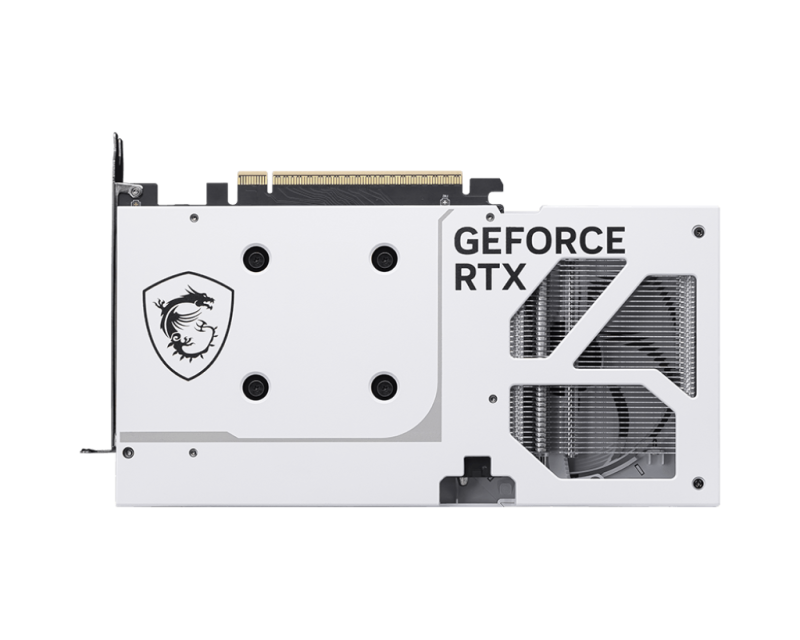

- Marketing Name

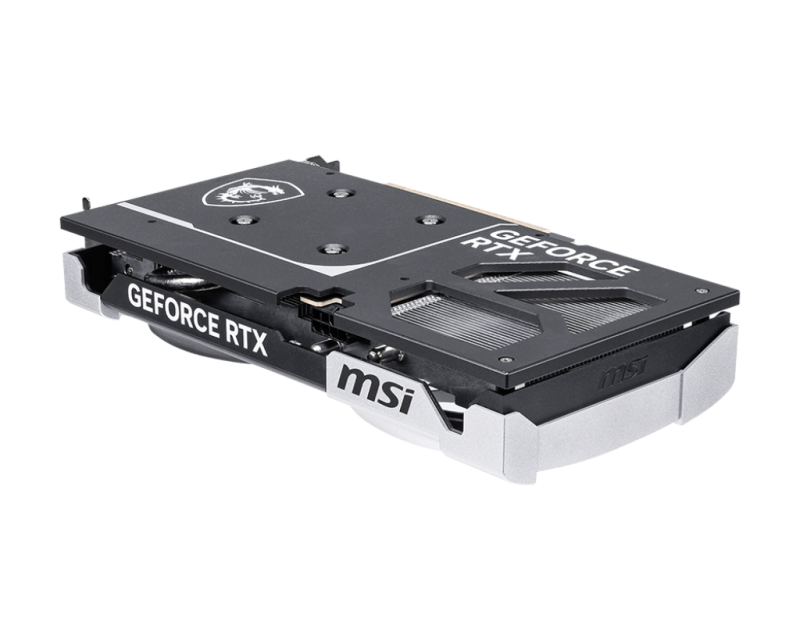

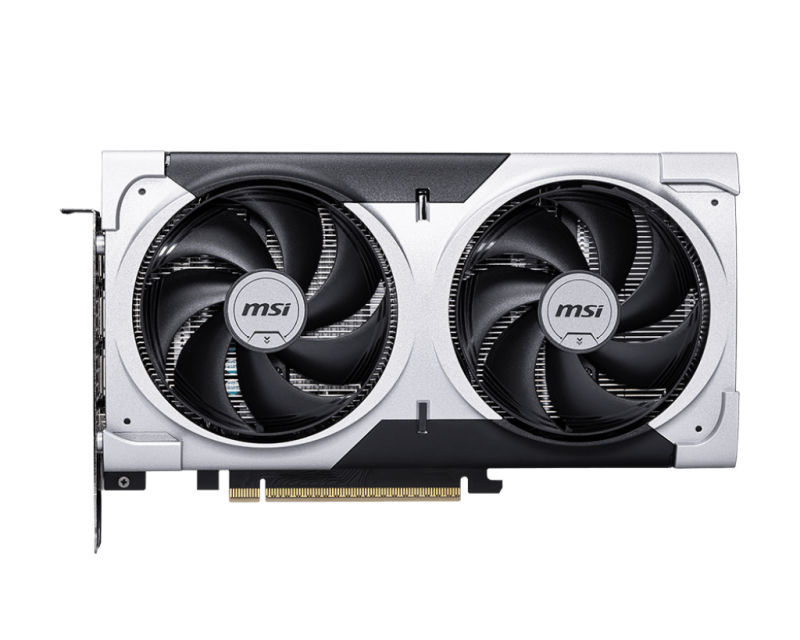

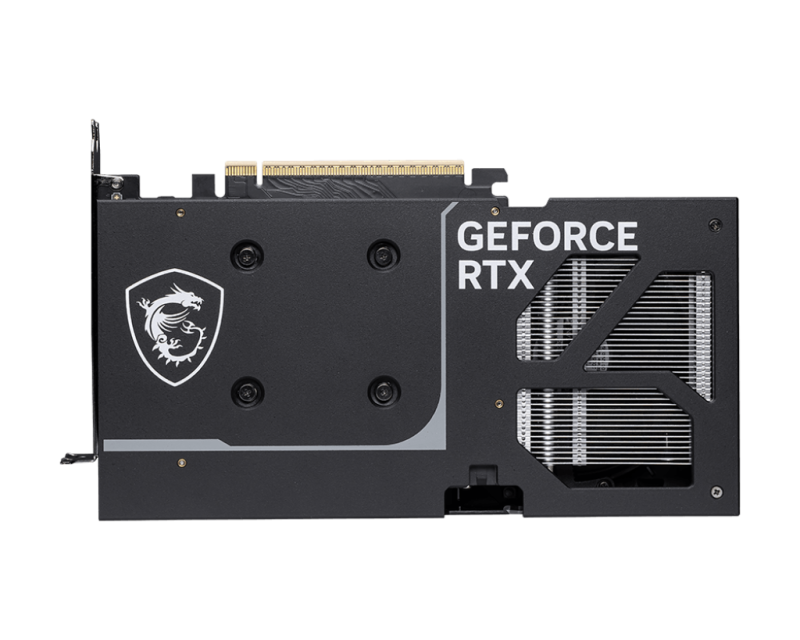

GeForce RTX™ 5060 Ti 8G VENTUS 2X PLUS
