Technical specifications & manual
General SpecificationsWarranty
6 Years
Operating Ambient Temperature
0–40 °C

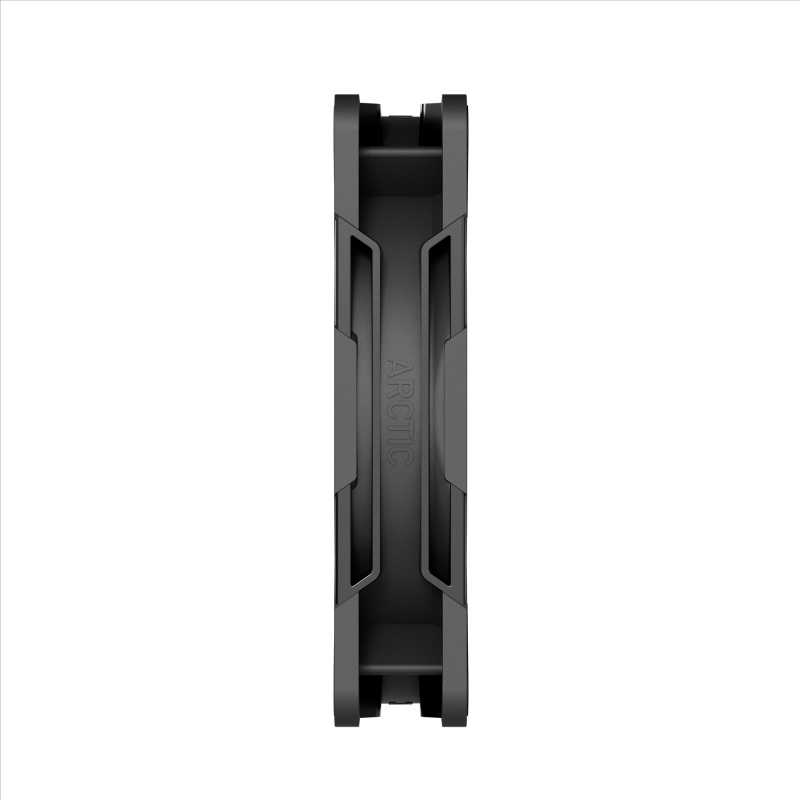

Dimensions
120 (L) x 120 (W) x 25 (H) mm
Net Weight
185 g
Fan Specifications
Fan Speed
600–3000 rpm, PWM controlled
0 rpm below 5 % PWM
Airflow
77 cfm | 131 m³/h
Static Pressure
6.9 mmH2O
Fan Bearing
Fluid Dynamic Bearing
Typical Voltage
12 V DC
Start Up Voltage
3.3 V DC
Current
0.33 A
Cable Length
400 mm + 80 mm Daisy-Chain Cable
Connector
4-Pin Fan Plug + 4-Pin Socket

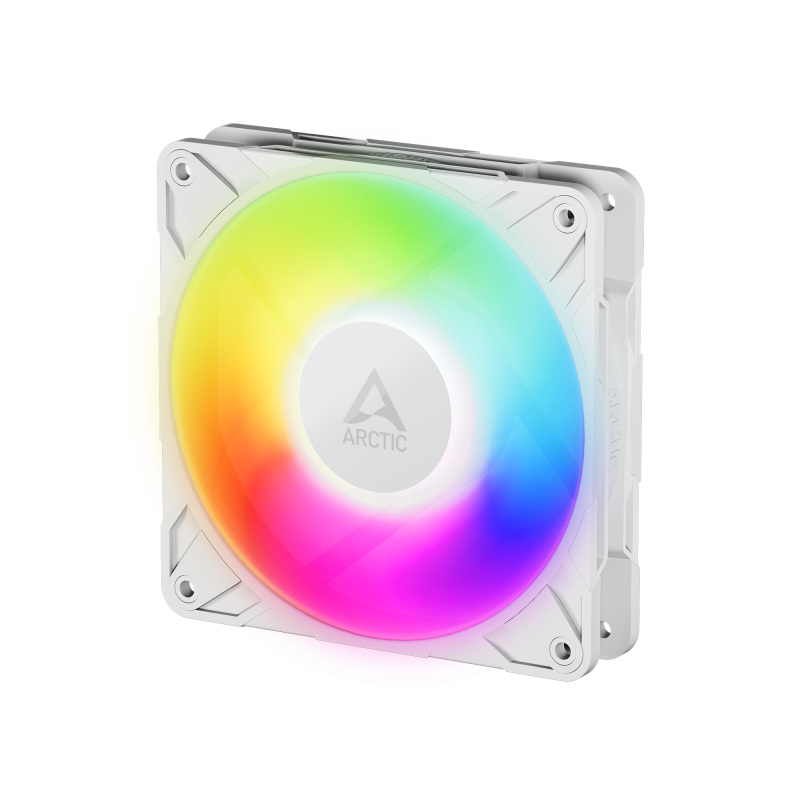

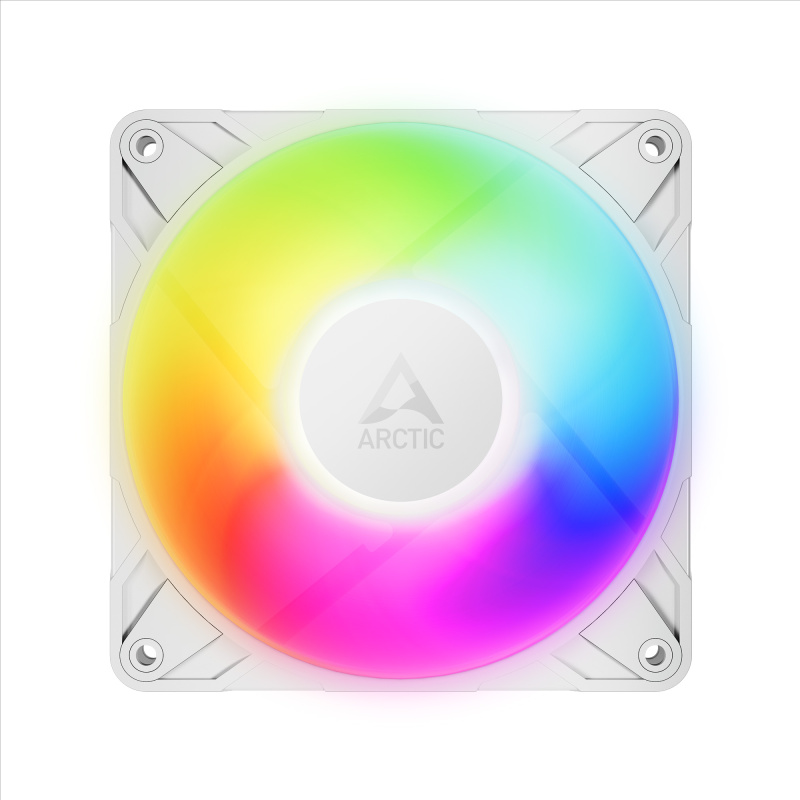

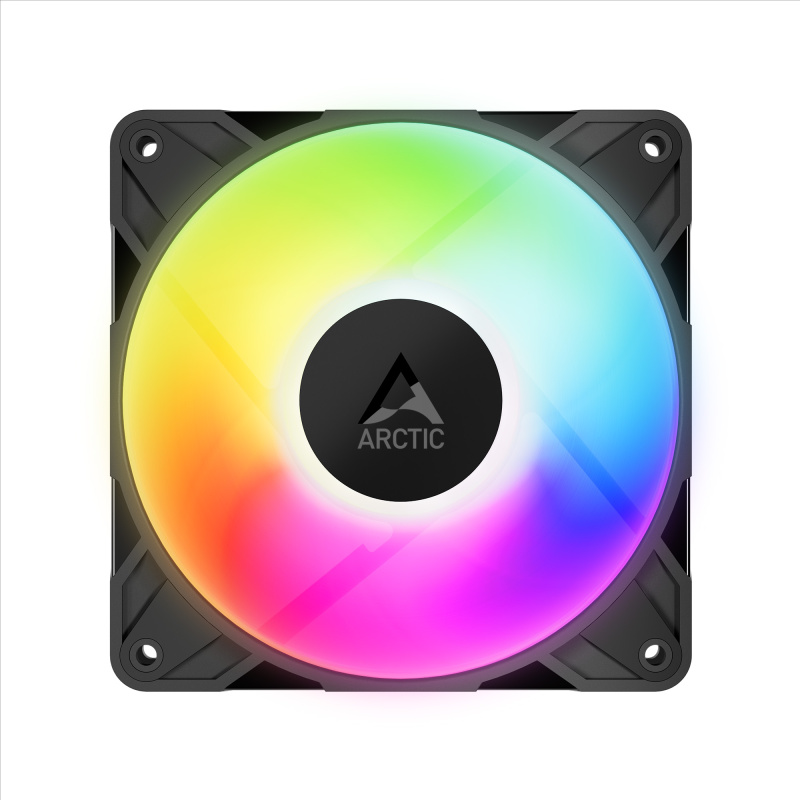

RGB Specifications
LEDs
12x A-RGB Gen2 LEDs
Current | Voltage
0.40 A | 5 V DC
Connector
3-Pin A-RGB Plug + 3-Pin Socket
Packaging
- Width: 125 mm
- Height: 30 mm
- Length: 127 mm
- Weight: 0.221 kg
