Technical specifications & manual
General SpecificationsCompatibillity
Intel:
LGA1851 | LGA1700
AMD:
AM5 | AM4
PI | NNPI:
250 | 234
TIM:
MX-6 (0.8 g)
Warranty:
6 Years
Operating Ambient Temperature:
0—40 °C

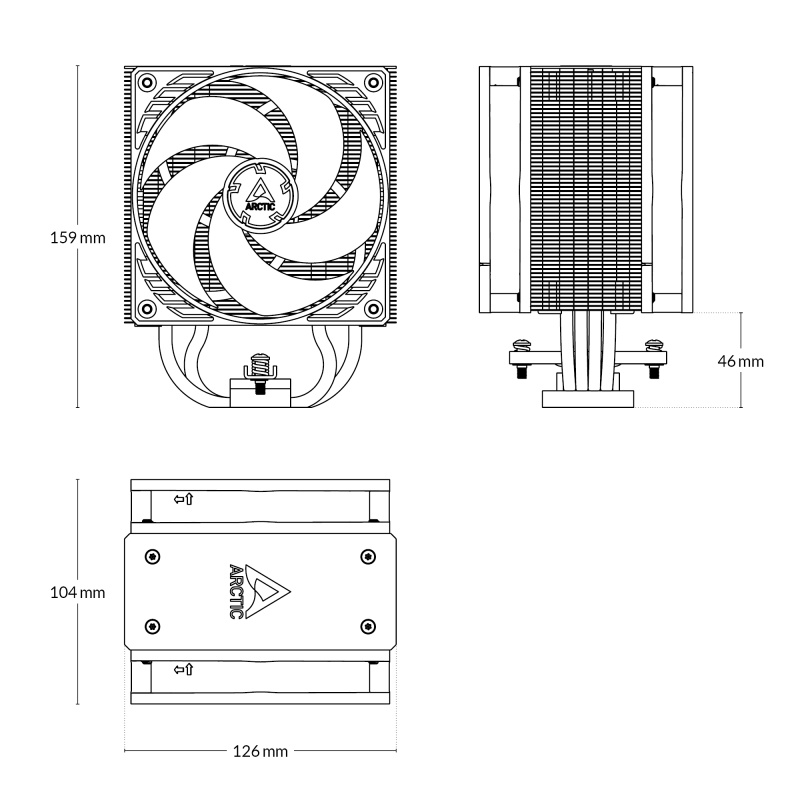

Dimensions:
104 (L) x 126 (W) x 159 (H) mm
Weight:
890 g
Heatsink
Heatpipes:
4x Ø6 mm, Copper
Fin Stack:
59x 0.4 mm, Aluminium
Fans
Fan:
2x P12 PWM PST CO
Speed:
200 - 1800 rpm, PWM Controlled (0 rpm below 5 % PWM)
Bearing:
Dual Ball Bearing
Current | Voltage:
0.10 A | 12 V DC
Cable Lenght:
200 mm + 80 mm Splitter Cable
Connector:
4-Pin PWM-Connector + 4-Pin Plug
Packaging
- Width: 186 mm
- Height: 117 mm
- Length: 190 mm
- Weight: 1.23 kg
